6' iron drum huller rice mill rubber roller

Product Overview

Description

6'' IRON DRUM HULLER RICE MILL RUBBER ROLLER

General Information

1. Name: Rubber Rice Roller

2. Material: SBR,NBR, POLY

3.Color: white,amber,brown,red

4.Size: 6 inch

5.Minimum Order: 100pcs

6.Delivery Time:  Within 20 days after receiving the payment

7.Packing: shirnk film of each piece, carton box outside



 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber roller,

 paddy are torns up by two rubber rollers, in the end, rice grain comes out.



Specification:

Type	Inch	Length(mm)	External Diameter           (mm)	Thickness of Rubber        (mm)±0.5mm
Wheel Type	4	100	222	19.5
	6	152	222	19.5
	7	178	222	19.5
	8(small)	200	225	25
	8(big)	200	254	25
	10	254	254	25
	12	300	270	33
	13.8	350	254	25
Casting Type	14	355	227	25.5
	18	457	232	25.5
	20	508	255	25.5
	25	635	255	25.5
	28	708	255	25.5





Advantages:

1. Strong bonding between rubber roller and drum.
2. Ensure high degree of heat resistance and durability.
3. High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.
4. Maximum hulling rate with lowest breakage and better output.

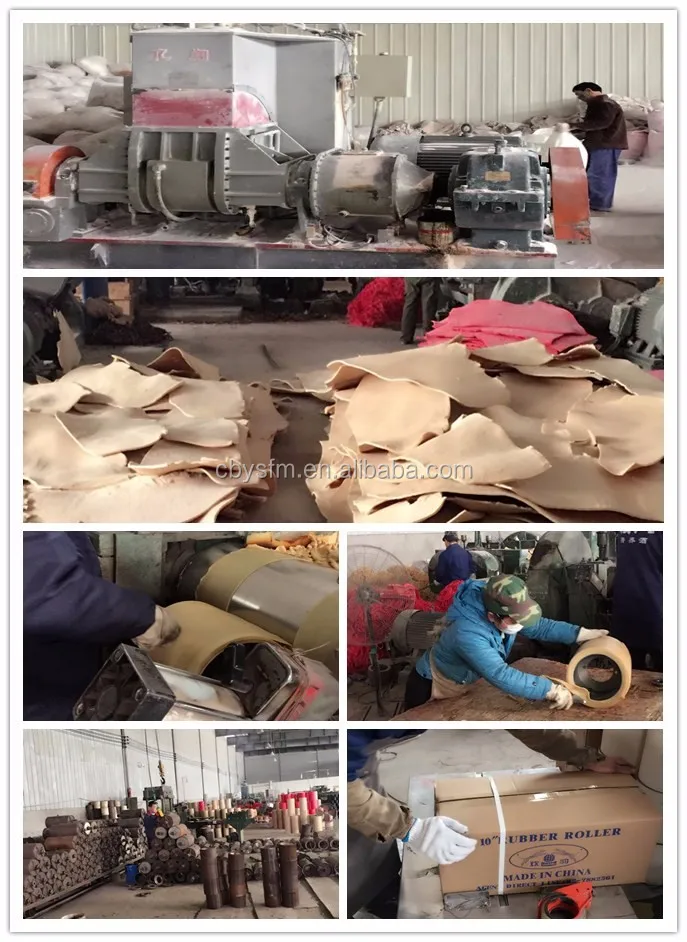

Our Factory Pictures:





Our Production Line:





PAY ATTENTION:

1. Optional of RIce Mill Rubber Roller: For the choice of  the black, brown and white rubber roller with  hardnes shore A 90^oC and 95^oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow rollers.



2.Temperature and Hardness Control: The proper hardness is shore A 82-86^oC, and the temperature is below 50^oC. When the temperature reaches above 60^oC,  the hardness of roller should be reduced 4-8^oC



3. Alternative use of rice mill rubber roller is recommended:

A: It can increase the usage life of roller and quantity of dehusking rice.

B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference upondifferent diameters, and controlling the temperature effectively.



4. Two rollers should be at the same level to keep the space equal.



5. The paddy inputting should keep the balance.



6.  Keep the rate of the re-hulling under the limitation.



Iron Drum Rice Mill Rubber Roller:



Rice Huller Rubber Roller



7. Storage:

A: Avoid the direct sun shine and soaked in the rain and snow.

B: Away from the heating device about 1.5m.

C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.

D. Keep the room temperature 10-30 degrees, comparative moisture 50-80degrees.

E. Keep in vertical position,  horizontal is not allowed.

F. No other materials pressure on it, no hitting to avoid deformation and damage.
