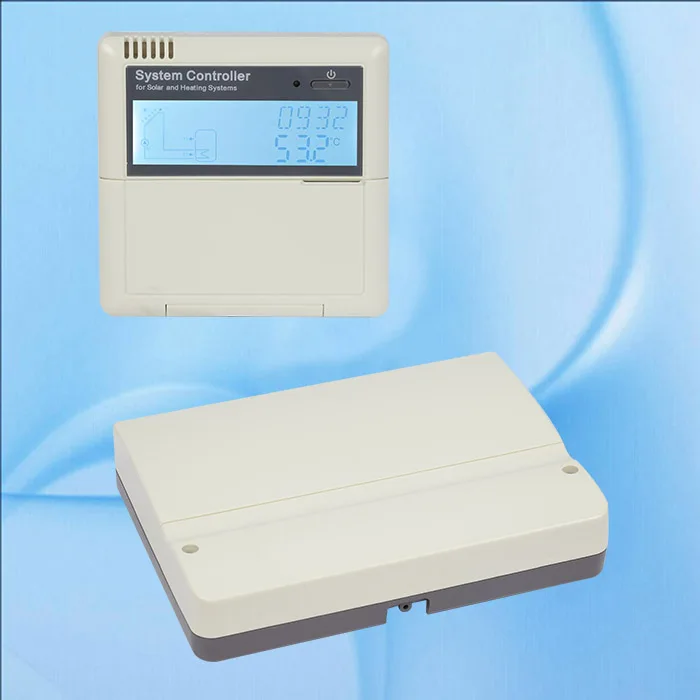

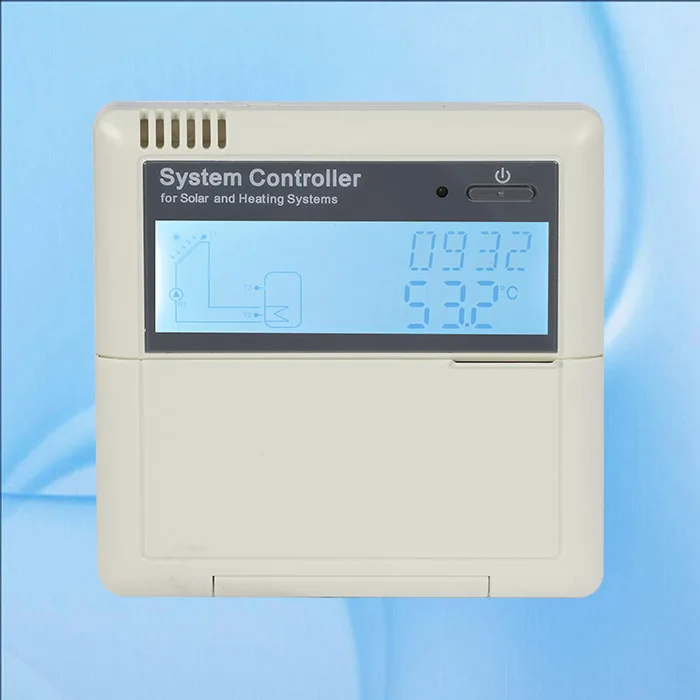

SR81/SR81Q solar water heater controller, for split pressurized solar water heater
- Category: >>>
- Supplier: Changzhou 1st Sunflower Intelligence Technology Co. Ltd.
Share on (60609464020):
Product Overview
Description
Product Description
Overview
SR81 is an upgraded version of SR868C8.
SR81/SR868 is used in a split pressurized solar water heater system.
Intelligently controlled by the latest high-performance microcontroller from NXP.
All devices use industrial-grade standards to operate in cold, high-temperature, and humid environments, while using a clock chip for precise timing control.
- The controller is LCD type, with beautiful appearance, stable and reliable performance, easy to install, as the most ideal accessory product for split pressure solar water heater.
Applications capacity
Max.number of collectors:1
Max.number of storage tanks:1
Max.number of relays:4
Max.number of sensors:5
Max.number of visualization application system: 1
Main functions
DATE---Date setting
Timed heat---backup heating
Circle---Hot water circulation
LOAD---Setup Loading tank1
COL---Collector1
PUMP---Pump control mode
COOL---Cooling function
AUX---Auxiliary function
MAN---Manual mode
BLPR---Blocking protection function
OTDI---Thermal disinfection function
FS---Flow meter type selection.
UNIT---C-F unit switch
RST---factory setting
PASS--- password set
Holiday function
Screen Protection
Trouble Protection
Trouble Checking

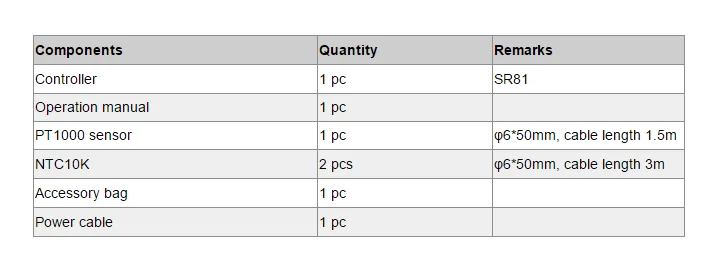

Delivery scope

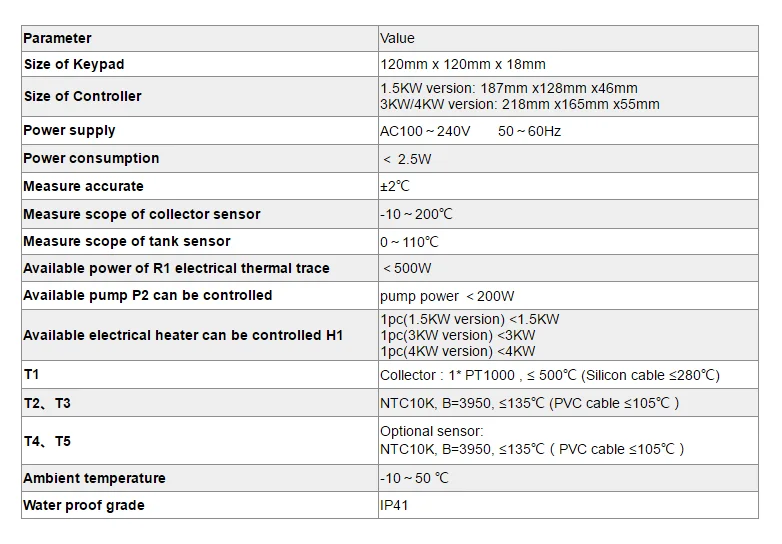

Technical Parameters
Optional accessories
Electromagnetic relay : SR802,can control electric heating of ≤4000W.Electromagnetic relay : SR802,can control electric heating of ≤4000W.
Contactor unit of high power: SR802
When user selects electrical heater as back-up device, we recommend using SR802 unit connecting controller and electrical heater.
Technical data of SR802 Dimension: 100mmx100mmx65mm
Power supply:180V～264V/AC 50/60Hz
Suitable power: ≤ 4000W
Available ambient temperature: -10 ~ 50oC Water proof grade: IP43
SR802 Connection Diagram:
Product Installation
SR81 Installation diagram
