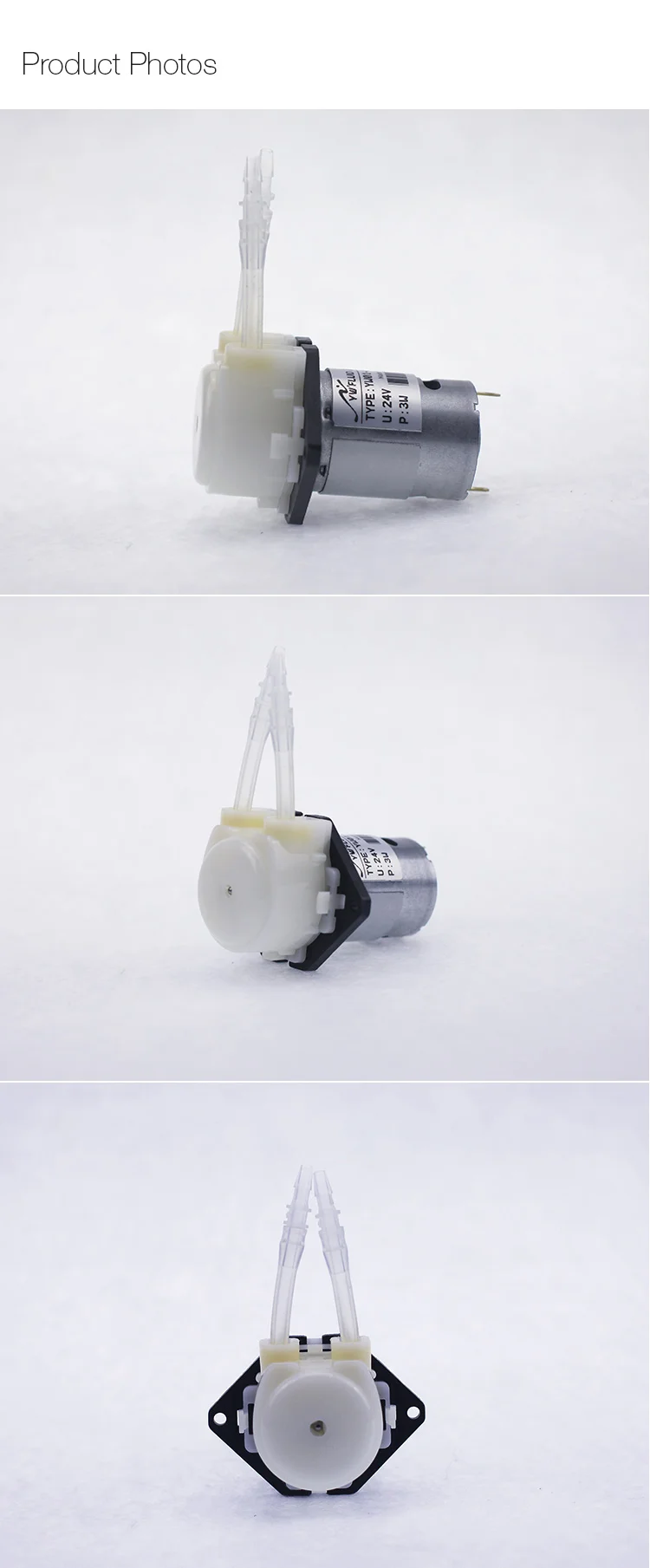

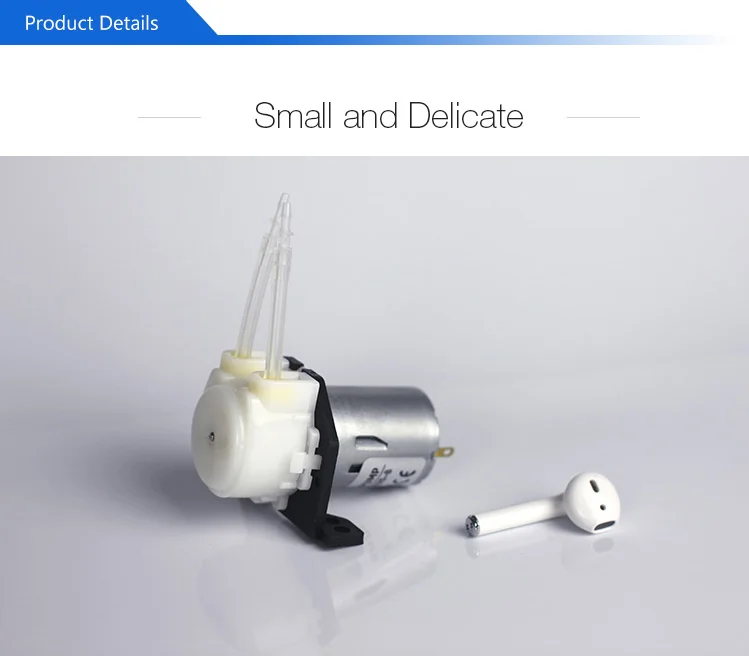

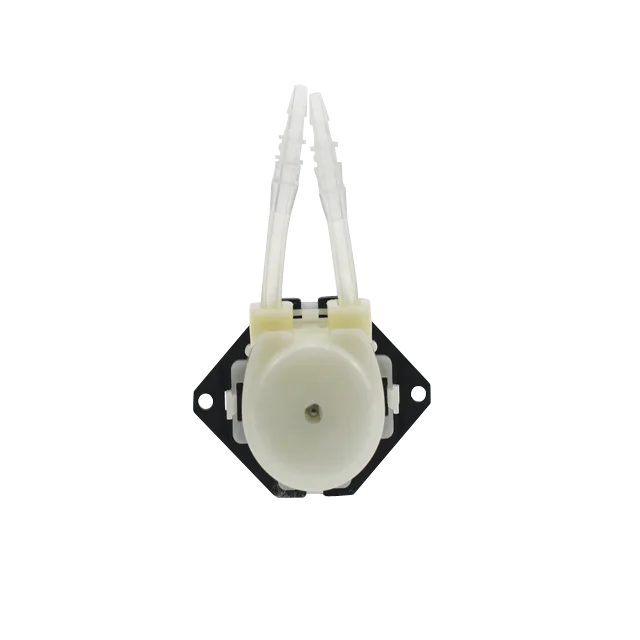

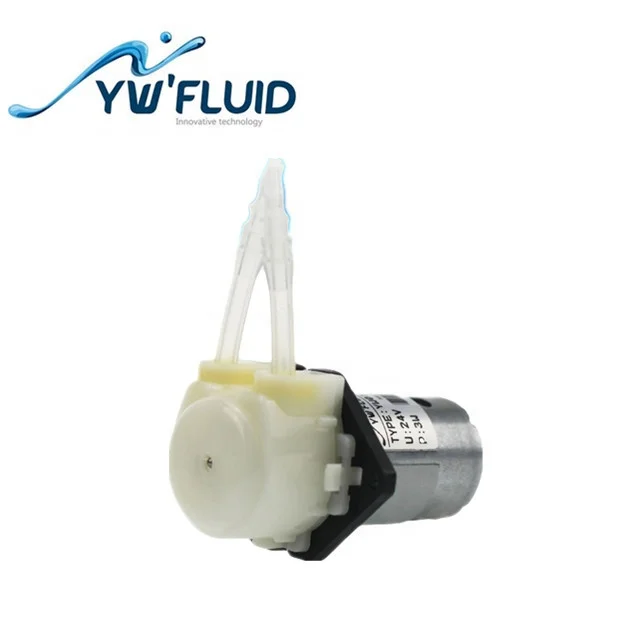

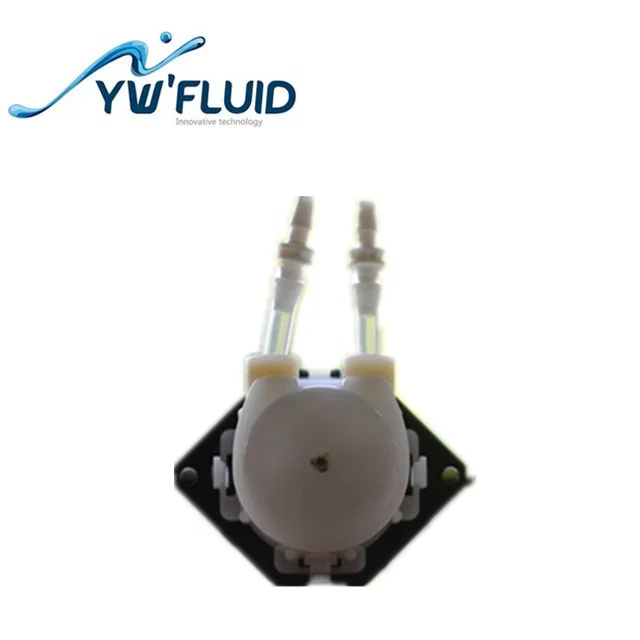

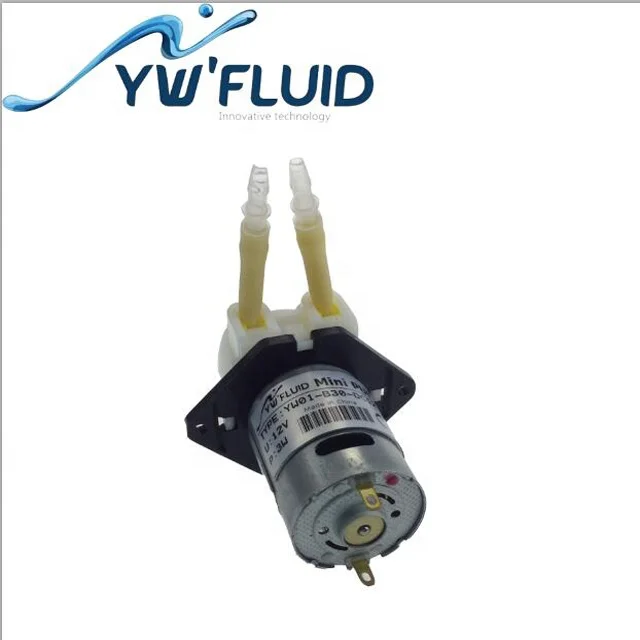

Good quality 12v dc micro liquid dosing pump head stepper motor

Product Overview

Description

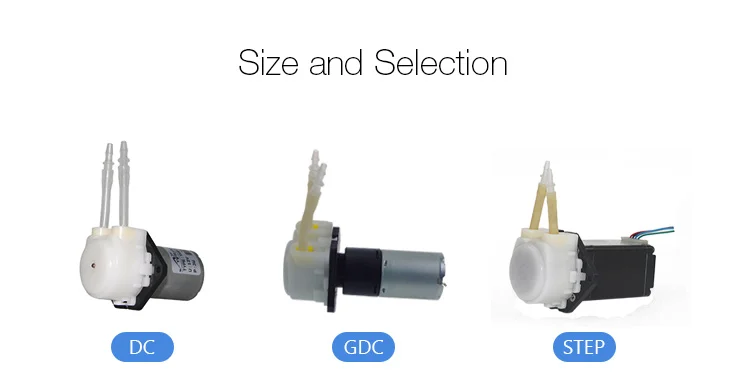

Model	DC	GDC	STEP
Motor type	Brush motor	Gear motor	Stepper motor
Precision	1%	0.50%	0.50%
Flow rate	130mL/min	150mL/min	150mL/min
Pump Assembly Rated Life	800Hrs	500Hrs	10000Hrs
Motor work temp	50℃	50℃	60℃
Noise Level	<49dB	<45dB	<52dB
Media:	liquid
Humidity:	Less than 80%
Operating Environment	0-40℃
Head Configuration:	single
Positive pressure	0.2Mpa
Nominal Motor Voltages	6V,12V,24V Other voltage can be customized
