s214 non fe aluminum bronze aws ercual a1 welding wire 1.2mm for shipbuilding
- Category: >>>
- Supplier: hebei naidi welding materials co. ltd
Share on (60610267595):
Product Overview
Description
s214 non-fe aluminum bronze aws ercual-a1 welding wire 0.8mm
Product Description

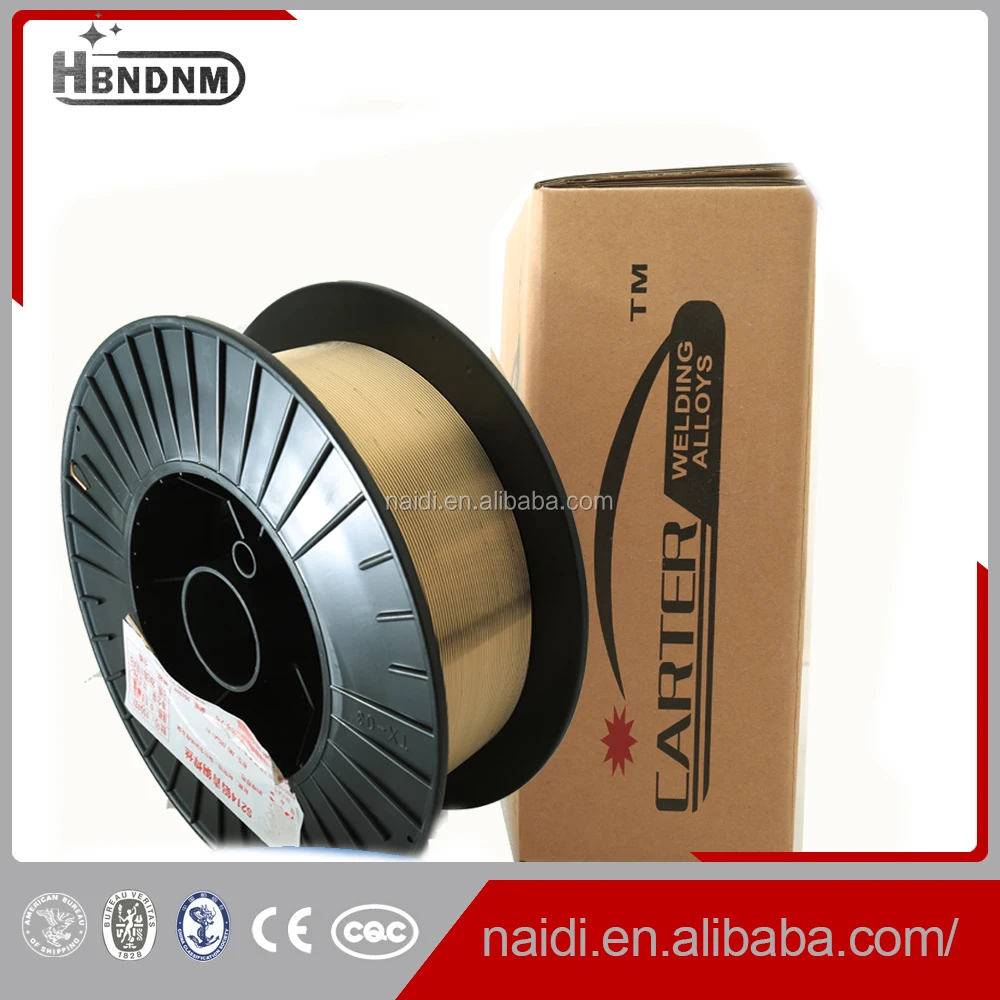

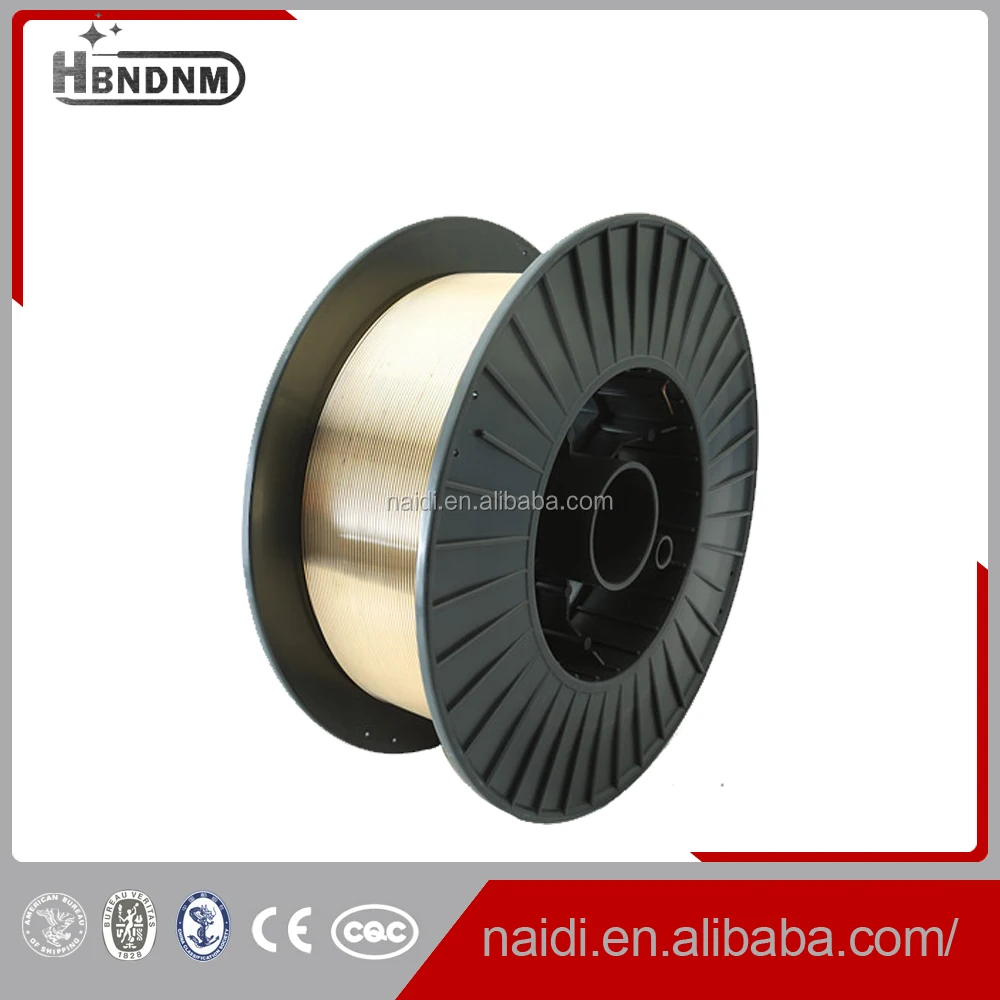

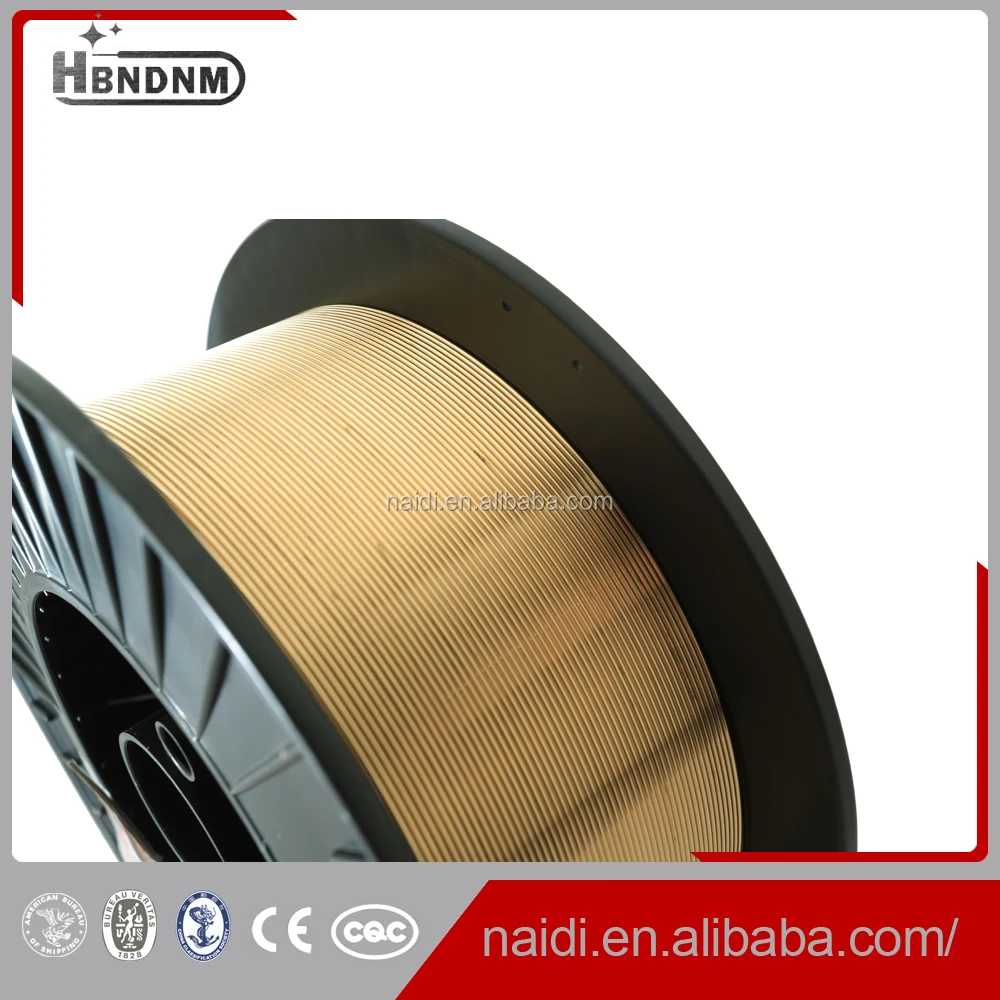

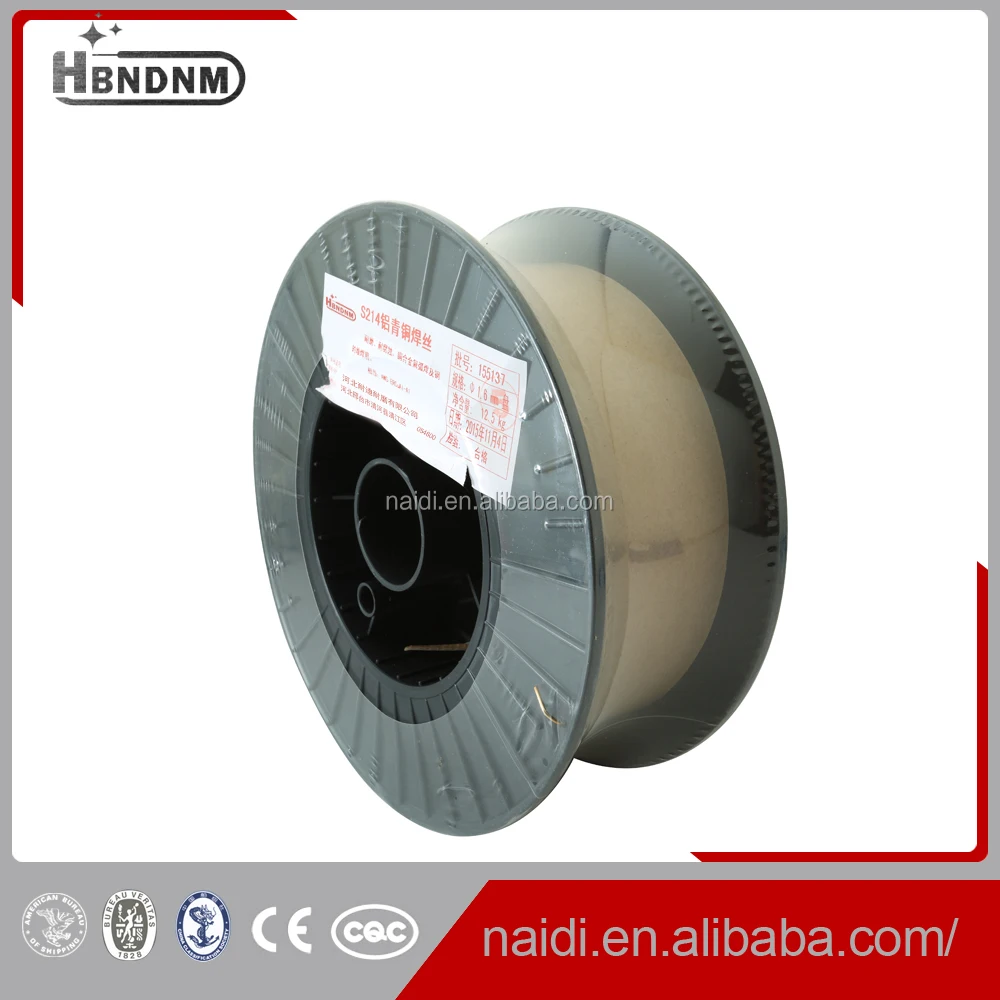

ERCuAl-A1 aluminum bronze wire aluminum bronze (C61000) copper wire
Implementation of standards: GB / T9460 GB: HSCuAl AWS A5.7: ERCuAl-A1 DIN 1733: SG-CuAl8
Product Description: Aluminum Bronze A1 is a non-ferrous copper-aluminum bronze. Can resist light load wear, seawater, brackish water and corrosion of common acids
Uses: Suitable for aluminum arc welding, marine propeller, slide, sliding surface and the surface of the surfacing and machinery manufacturing, chemical industry and shipbuilding industry in the gray cast iron welding and surfacing, anti- Corrosion of aluminum bronze or special brass pipe welding
Chemical composition (%)
Al | Fe | Cu |
7.0-8.5 | ≤0.5 | bal. |
physical characters
| proportion(kg/dm3) | melting temperature(℃) | Thermal conductivityw/m*k | conductivity(%acs) | Linear expansion coefficient(10-6/k(20-300℃)) |
| 7.7 | 1030-1040 | 65 | 12-15 | 17.0 |
Note:
1. TIG recommended the use of large flow, low flow of air to ensure that welding pool is well protected.
2. Thin plate with i-groove, thick plate with V-groove, need to add liner
3. This type of wire is not recommended for gas welding, because in the welding pool there will be the presence of aluminum oxide, affect the quality of the weld
MIG WIRE | ||||||||||
Diameter | Packing | Weight | ||||||||
Metric | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.6mm | 2.0mm | D100 mm | D200 mm | D300 mm | 12.5kg |
British | 0.030’’ | 0.035’’ | 0.040’’ | 0.045’’ | 1/16’’ | 5/64’’ | 27lb | |||
TIG WIRE | |||||||||
DIAMETER | Length | Packing | |||||||
Metric | 1.6mm | 2.0mm | 2.4mm | 3.2mm | 4.0mm | 4.8mm | 6.4mm | 457mm/914mm | 5kg/box, |
British | 1/16’’ | 5/64’’ | 3/32’’ | 1/8’’ | 5/32’’ | 3/16’’ | 1/4’’ | 18’’/36’’ | 10lb/box, |
FAQ
Q: are your trading company or manufacturer?
A:we are factory
Q:how long is your delivery time:
A:Generally it's 7-15 days if the goods are in stock,or it's 15-20days if goods are not in stock,it depends on quantity.
Q:Do you provide free sample?it's free or extra?
A:yes,we offer free sample,but don't pay the cost of freight.
Q:what is your payment term?
A:payment<=1000usd,100% in advance.payment>1000usd ,30%TT in advance,balance before shippment.
If you have another question, pls feel free to contact us as below:
