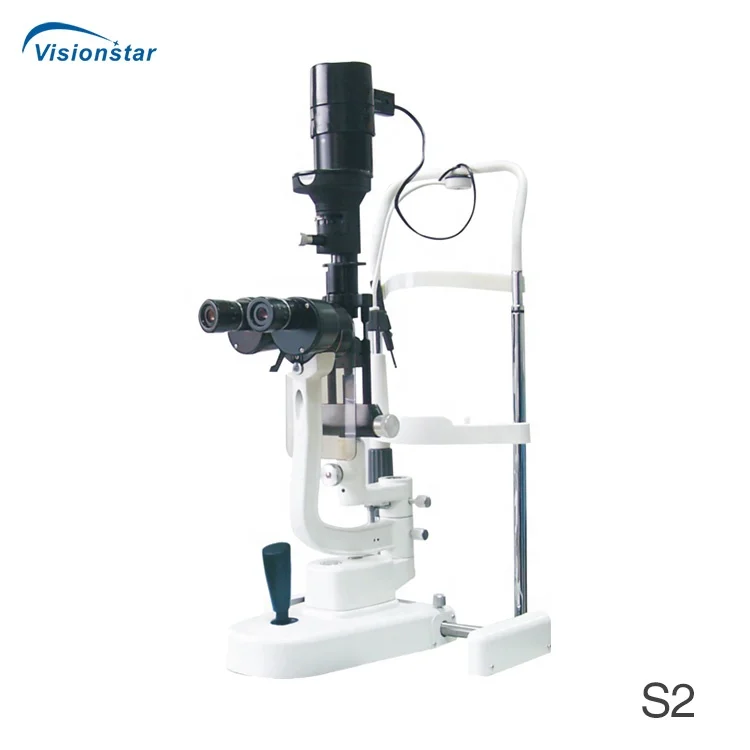

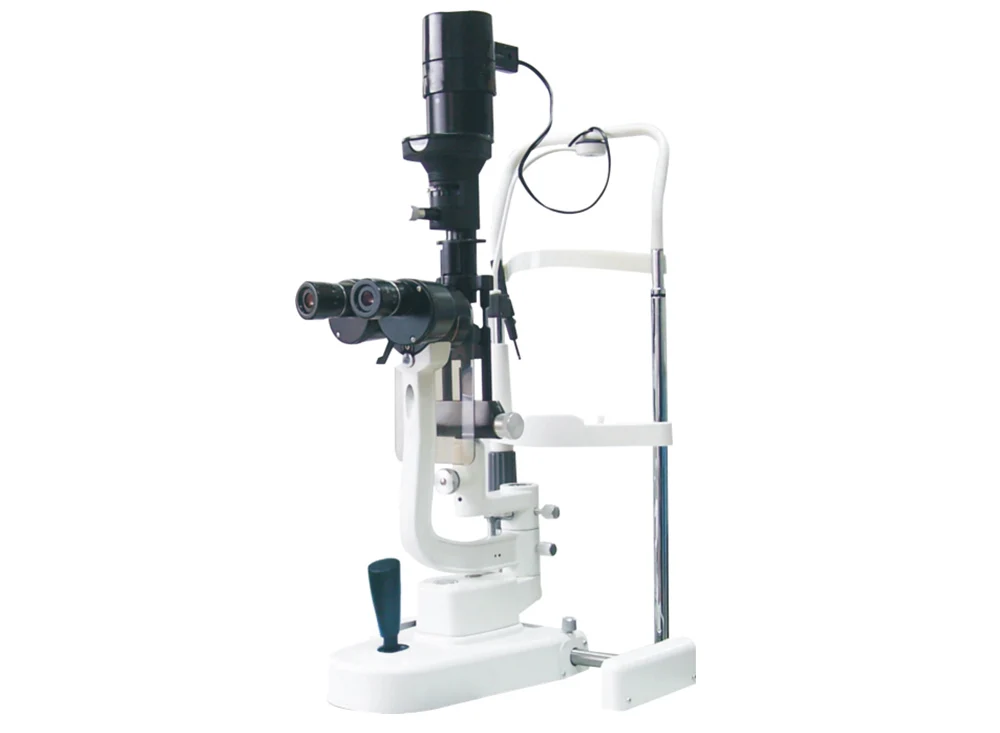

Factory Price Opthhalmic S2 Slit Lamp Microscope
- Category: Medical Optical Instruments >>>
- Supplier: Chongqing Vision Star Optical Co. Ltd.
Share on (60610316610):
Product Overview
Description
Product Description
Factory Price Opthhalmic S2 Slit Lamp Microscope
Features:
Two-step magnifications: 10X, 16X.
All the Optical lenses are moistureproof, mildewproof and anti-reflected treated.
Excellent optical performances.
Convenient and Compact.
Specifications:
Model | S2 |
Microscope Type | Converging stereoscopic microscope |
Objective Magnification | Two Steps Magnifications |
Eye Piece | 10x |
Magnifications (Field of View) | 10x(Φ18mm), 16x(Φ14.5mm) |
Pupil Distance | 55mm~82mm |
Diopter Adjustment | ±6D |
Slit Width | 0mm ~ 9mm adjustable (slit is round when the slit width is 9mm) |
Slit height | 1mm ~ 8mm adjustable |
Slit Angle | 0°~ 180° adjustable |
Slit Inclination | 5°, 10°, 15°, 20°, four steps adjustable |
Diameter of Light Spot | Φ9mm, Φ8mm, Φ5mm, Φ3mm, Φ2mm, Φ1mm, Φ0.2mm |
Filter | Heat Absorption, Grey, Redfree, Cobalt blue |
Illumination Bulb | 12v/30w Halogen Bulb |
Input Voltage | AC 220v±22v , AC 110v±11v |
Electrical Safety Standard | Conform to Standard IEC601-1, Class I, Type B |
Packing Volume | 720mm x 495mm x 480mm |
Total Weight | 23Kg |
Optional Accessories | R Type, T Type Applanation Tonometer, Measuring Eye Piece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens |
