1 - 6 Inch Automatic Wire Nail Making Machine Factory Price
- Category: Nail Making Machines >>>
- Supplier: Beijing,Double,Dragon,International,Industrial,&,Mining,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
1 - 6 Inch Automatic Wire Nail Making Machine Factory Price
Automatic Steel Nail Making Machine Description:
Processing Flow of the Common Nail Making Production Line.
The Original Wire Rod - - - Wire Drawing Machine - - - Common Wire Nail Making Machine - - - Nail Polishing Machine - - - Finished Nails

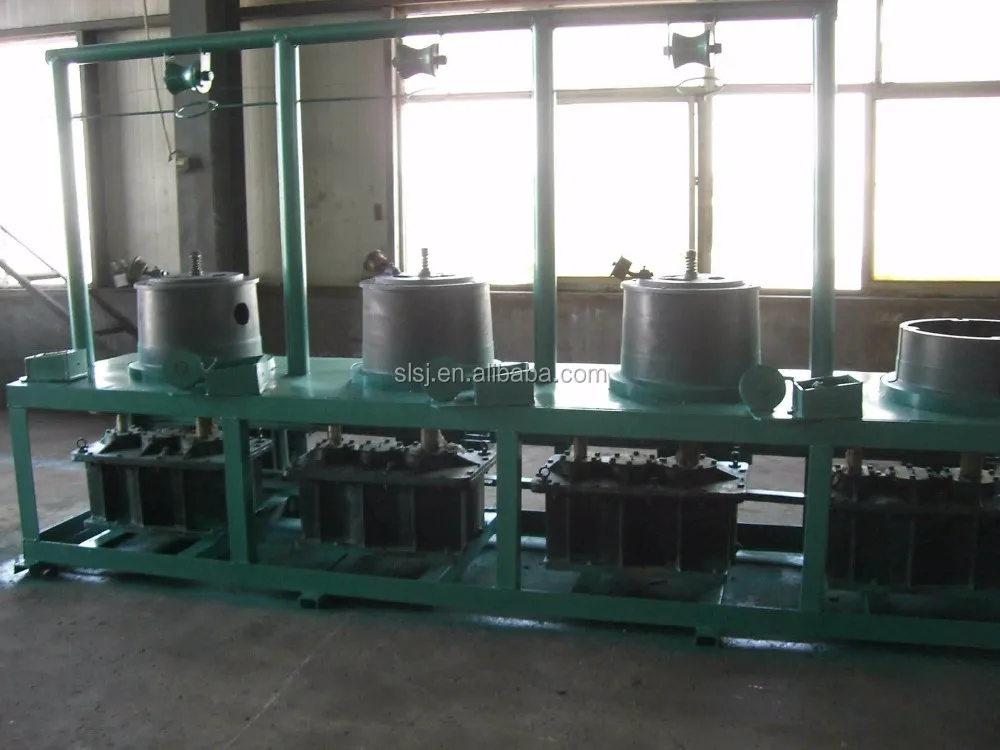

The First Step: Wire Drawing Machine:
The Second Step: Common Wire Nail Making Machine
This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.Especially,it can make the high quality
of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
The assortment of our products is complete. The nail machine is used for producing various common nails and special nails. It has wide uses, simple operation, and reliable run.
We can supply various machine parts and necessary fine auxiliaries for you.
Parameter for the Common Wire Nail Making Machine:
Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
Z94-5.5C
| Z94-6C |
Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.0 |
Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.1 |
Max length | mm | 100 | 75 | 50 | 25 | 150 | 180 |
Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
Desiged output | Pcs/min | 260 | 280 | 300 | 450 | 220 | 220 |
Motor power | kw | 4 | 4 | 2.2 | 1.5 | 5.5 | 11 |
Weight | kg | 2000 | 1400 | 1000 | 800 | 2500 | 5000 |
Machine Dimension | mm | 2120×1540 ×1590 | 1800×1260 ×1460 | 1645×1215 ×1345 | 1440×1040 ×1270 | 2380×1580 ×1660 | 3200×2200 ×2200 |

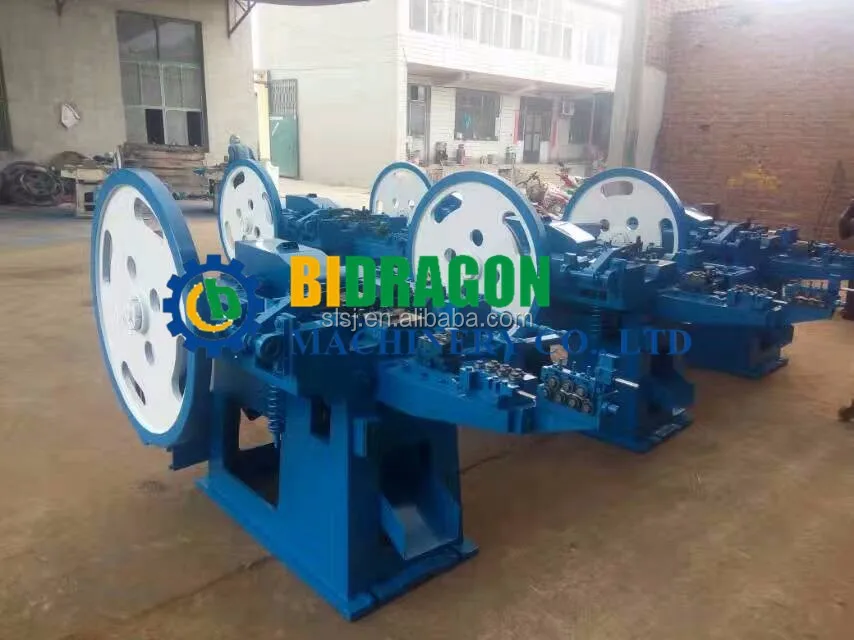

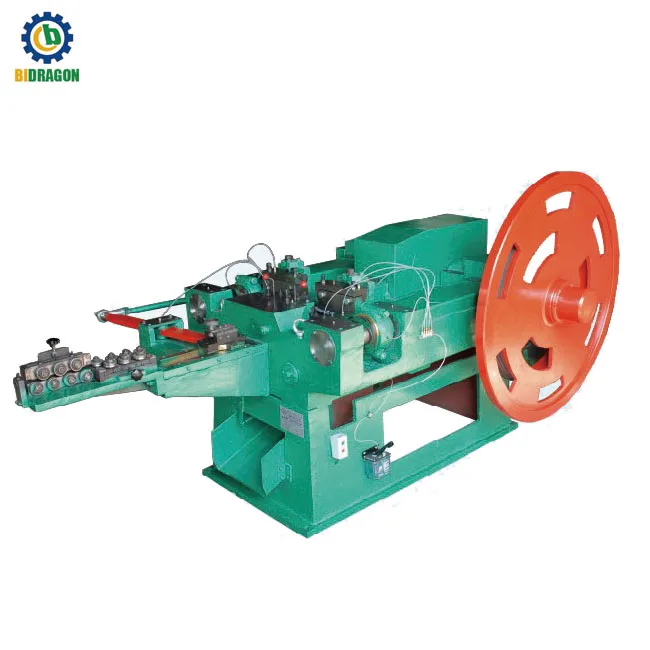

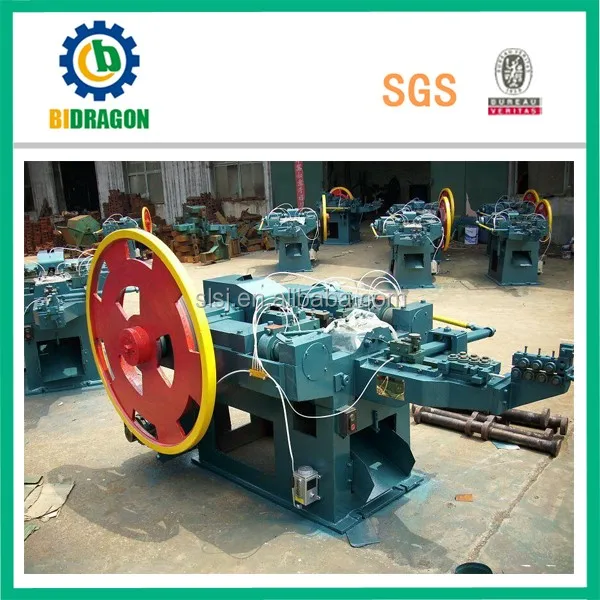

Picture of our Common Wire Nail Making Machine:
Packing Picture of our Common Wire Nail Making Machine:

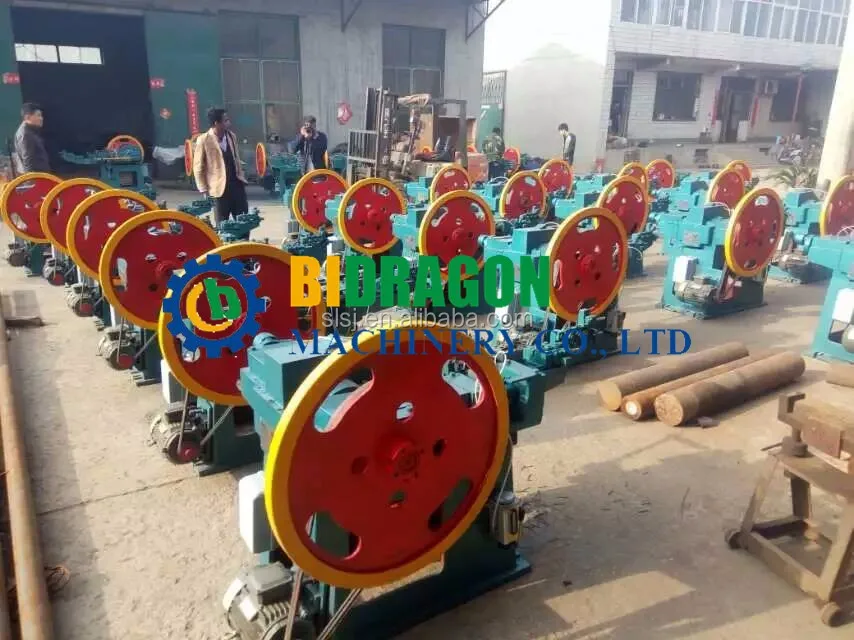

Client's visit for our Common Wire Nail Making Machine:
The Third Step: Nail Polishing Machine:
The Finished Nails after the Common Wire Nail Making Machine:
