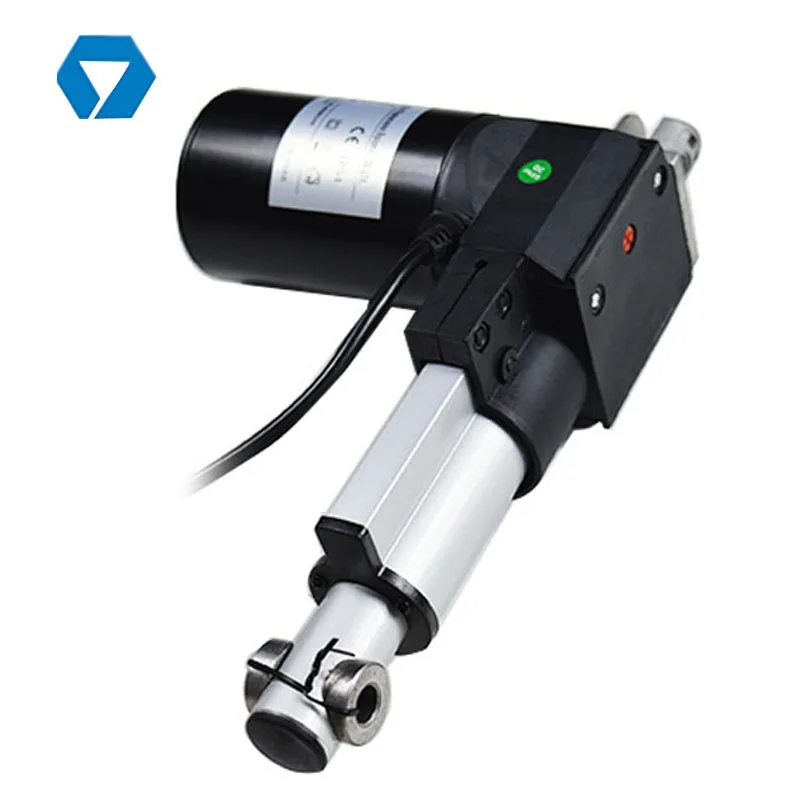

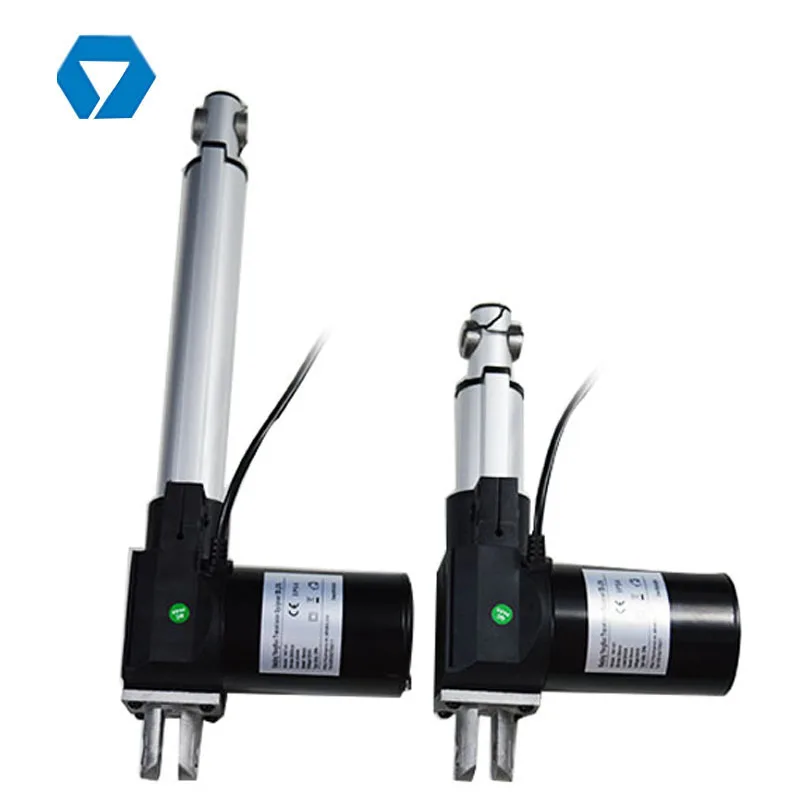

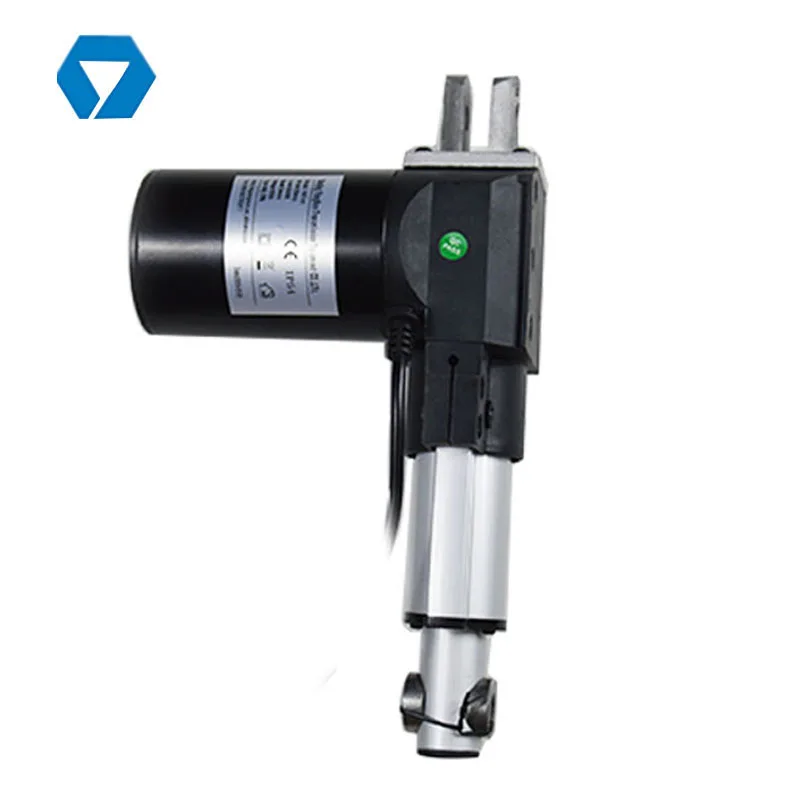

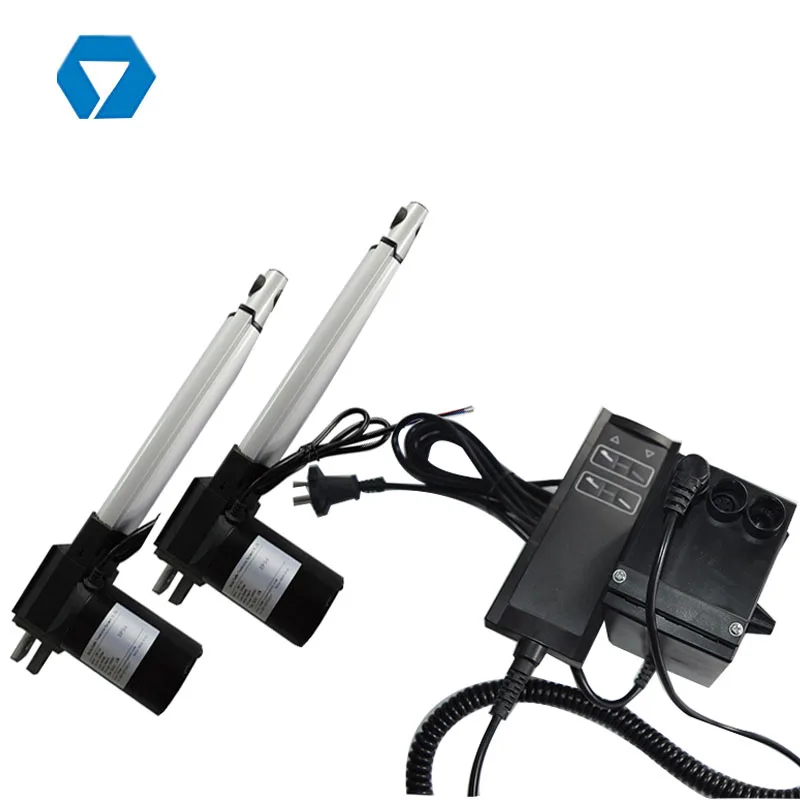

Table bed Tv lift Use Push 8000N pull 6000N 24V Linear Actuator with wireless remote control
- Category: Motors >>>
- Supplier: Nanjing Yongnuo Transmission Equipment Co. Ltd.
Share on (60610368200):
Product Overview
Description
Product Description
YNT-01 linear actuator brush DC motor,，big thrust，low noise，Widely used in Medical beds, furniture, sofas, electric chairs,windows and doors, TV cabinets, cabinets, lifting platforms, etc.
Model | YNT-01 | Power | 60W |
Brand | YONGNUO | Color | White/Black |
IP Grade | IP54 | Limit switch | Built-In |
Duty cycle | 20% | Stroke | Customized Stroke Available |

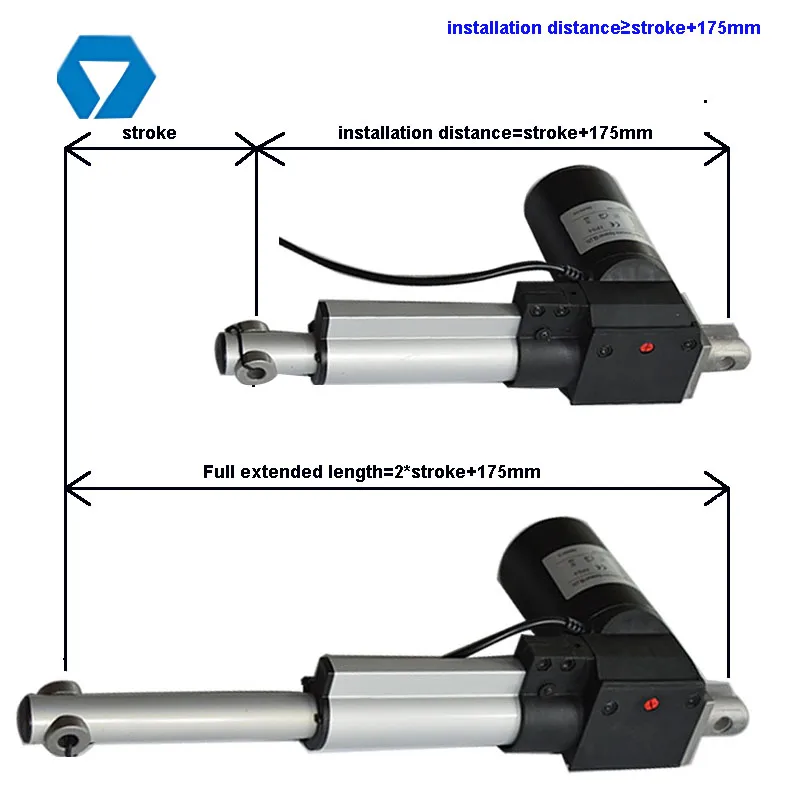

Noise level | <=50dB | Minimum installation distance | Stroke+175mm |
Feedback signal options | Hall sensor | Operation temperature | -30℃~+65℃ |
Dynamic Load Force(N) | 8000 | 6000 | 3000 | 1500 | 500 | ||||
No load speed (Mm/s) | 5 | 5 | 10 | 20 | 30 | ||||
Full load speed (Mm/s) | 4 | 4 | 8 | 16 | 24 | ||||
Voltage(VDC) | 12V/24V DC | ||||||||
Detailed Images
Front Mounting Hole Options
Rear Base Options
Accessories
DC drive motor,T-type Screw and plastic turbine (can be customized copper turbine), Aluminum alloy inner tube （Can be customized stainless steel inner tube） ,Aluminum alloy outer tube, surface sandblasting treatment，And Oxidation,treatment，smooth，easy to clean,the chassis is brand new,pa66 material
