Suitable for: PET and glass bottles with all volumes and shapes Filling system: hot filling Production capacity: 2000-30000BPH

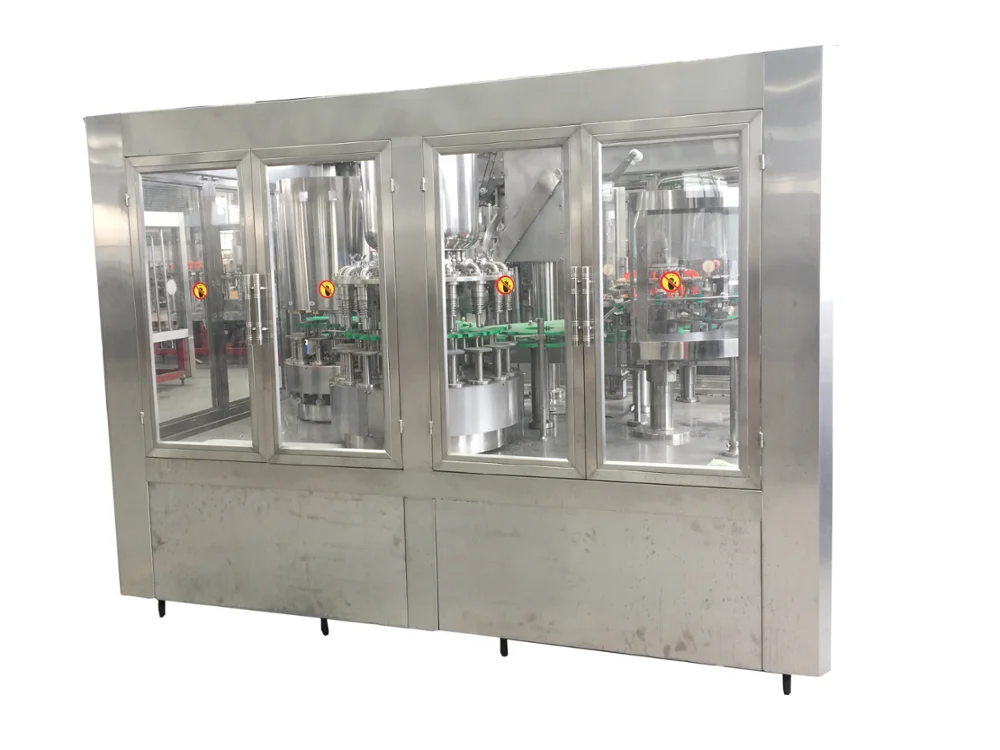

washing filling capping picture

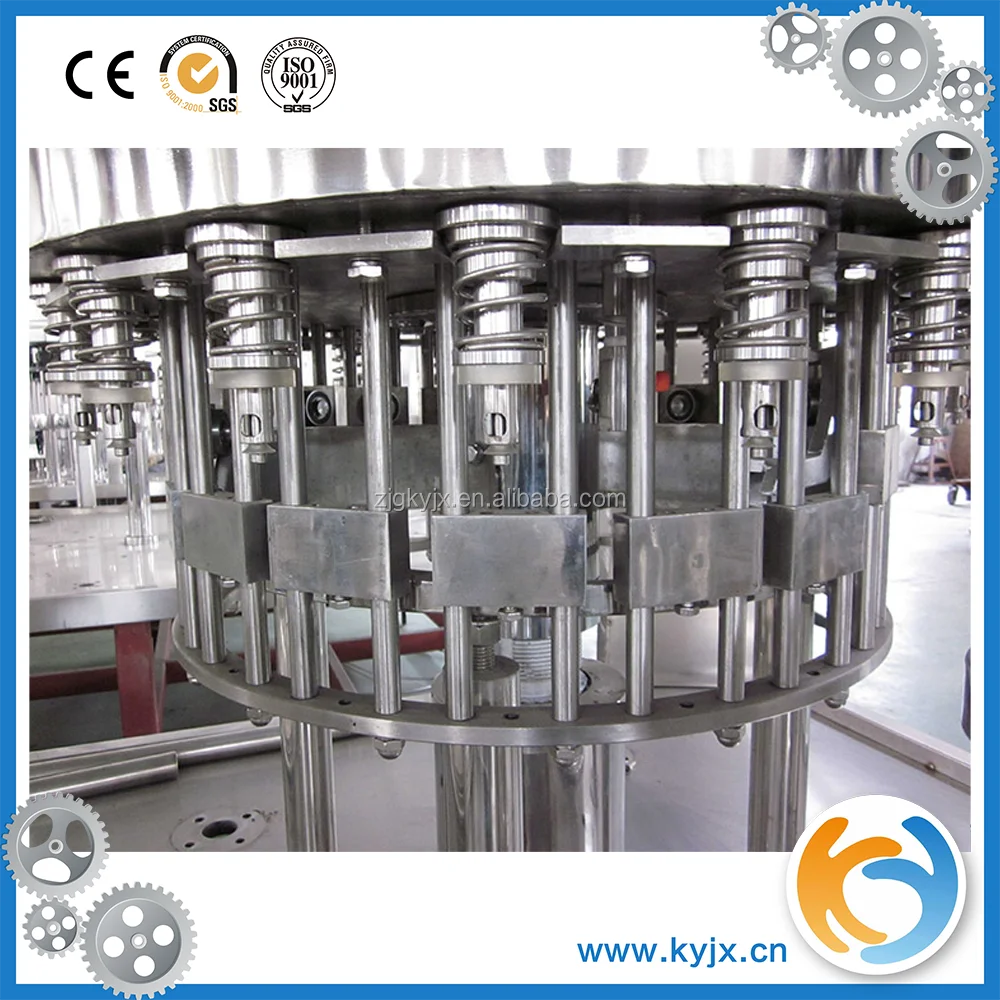

Washing Part
1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottle neck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
5). Washing part moves by a frame in the transmission system through the gear transmission.

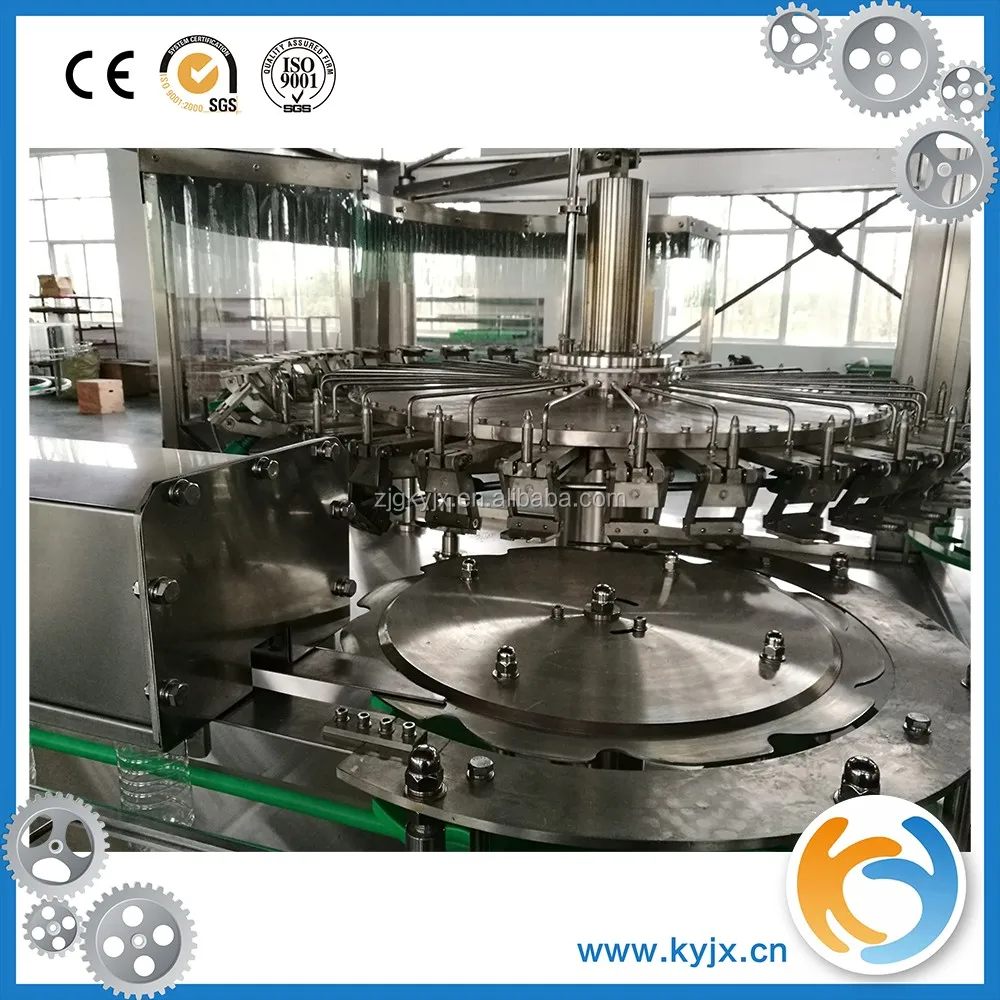

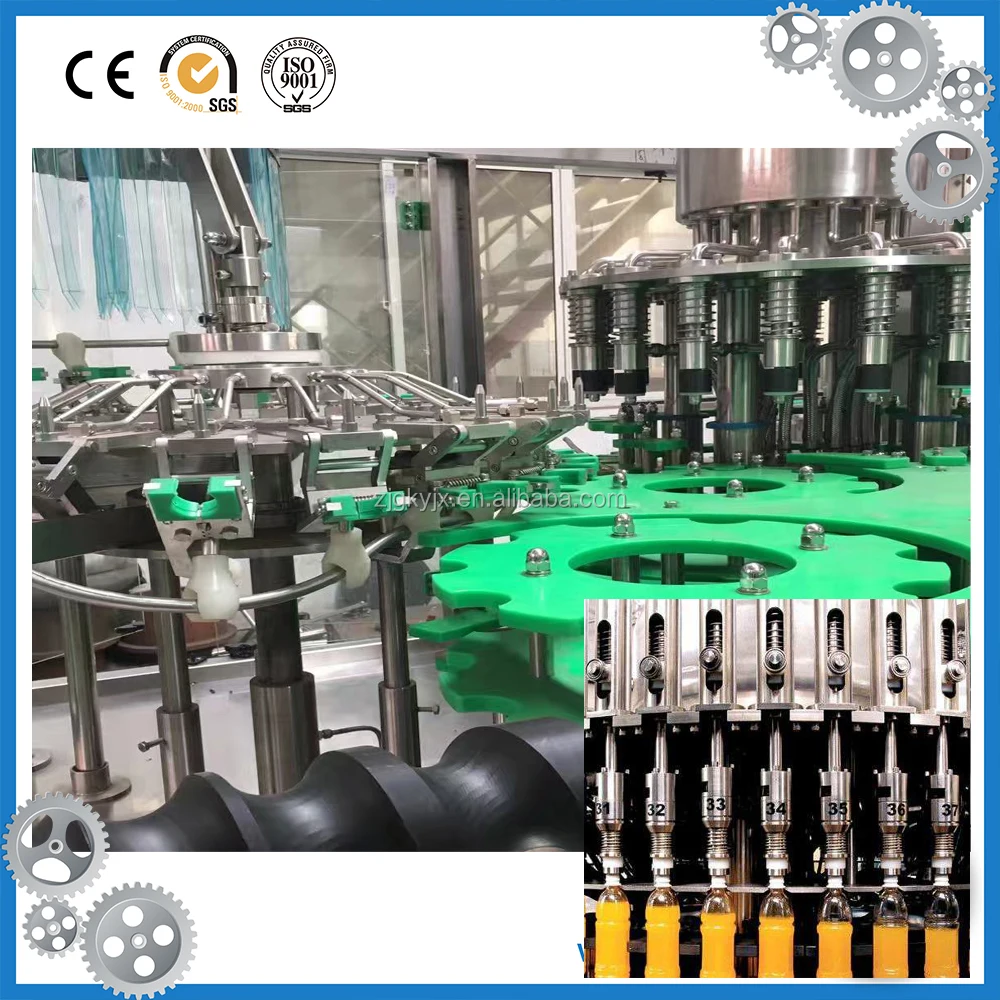

Filling part
1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.
4). Filling valve manufactured by SUS304.
5). The filling valve structure design is reasonable, the filling quantity is accurate.

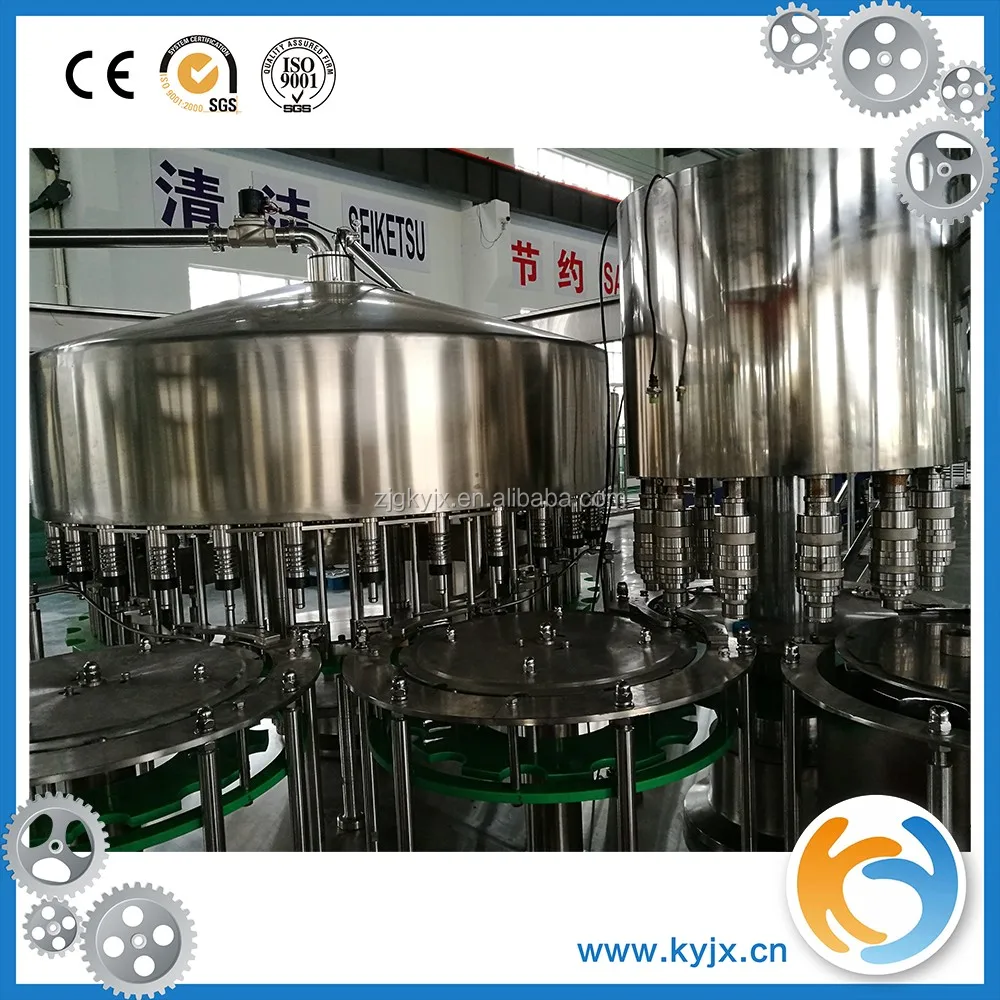

Capping part
The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.
Electronic control system part
The electronic components like PLC and transducer are from Mitsubishi, Siemens, Omron, etc., The pneumatic devices are also from international famous brand. Main electric brand Touch screen: Weinview or Siemens PLC program controller: Mitsubishi or Siemens Inverter: Mitsubishi or Siemens Photoelectrical controller: Omron or Autonics Proximity switch: Omron Other electrical components: Schneider Pneumatic component: Airtac or SMC or Festo Water pump: CNP or Grundfos Main motor: SL or ABB or SEW Bearing: Harbin or Igus
Technical Parameter
Model
XGFC18/18/6
XGFC24/24/8
XGFC32/32/10
XGFC40/40/12
XGFC50/50/15
Rinsing Head
18
24
32
40
50
Filling Head
18
24
32
40
50
Capping Head
6
8
10
12
15
Capacity (500ml)
8000BPH
12000BPH
15000BPH
18000BPH
21000BPH
Pressure of air source
0.7Mpa
0.7Mpa
0.7Mpa
0.7Mpa
0.7Mpa
Air consumption
0.8M3/min
0.8M3/min
0.8M3/min
0.8M3/min
1M3/min
Pressure of rinse water
0.2~0.25MPa
0.2~0.25MPa
0.2~0.25MPa
0.2~0.25MPa
0.2~0.25MPa
Consumption of rinsing water
1.2t/hour
1.2t/hour
2t/hour
2t/hour
3t/hour
Suitable bottle size
300ml-1500ml
D:50-90mm
H:150-320mm
300ml-2000ml
D:50-115mm
H:150-320mm
300ml-2000ml
D:50-115mm
H:150-320mm
300ml-2500ml
D:50-120mm
H:150-320mm
300ml-2500ml
D:50-120mm
H:150-320mm
Power
3.5KW
4.5KW
5.6KW
6.3KW
7.5KW
Weight
3000KG
4000KG
5000KG
6000KG
7500KG
Packing Size
(L*W*H)(mm)
2300×2000×2300
3000×2200×2800
4000×2600×2800
4700×2950×2800
5100×4800×3000
For more model and capacity, please contact us freely, we will customized the machine according your requirement, and provide you with complete solution
