Silabs CP2102 USB 2.0 to RS232 DB9 Female Serial Adapter Cable for Windows 10, 8, 7, Mac, Linux
- Category: >>>
- Supplier: Shenzhen Ewormart Electronics Limited
Share on (60610396704):
Product Overview
Description
Product Description

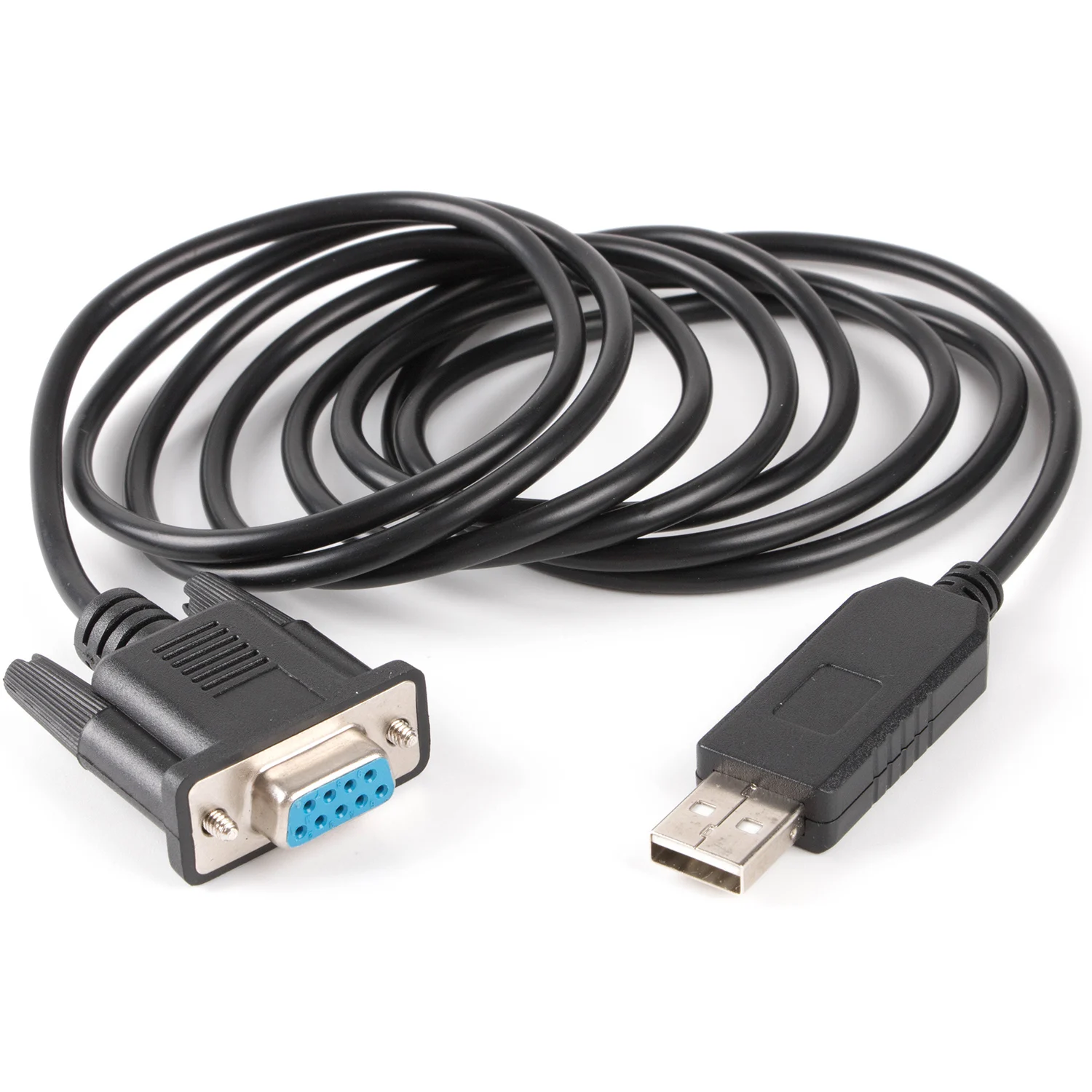

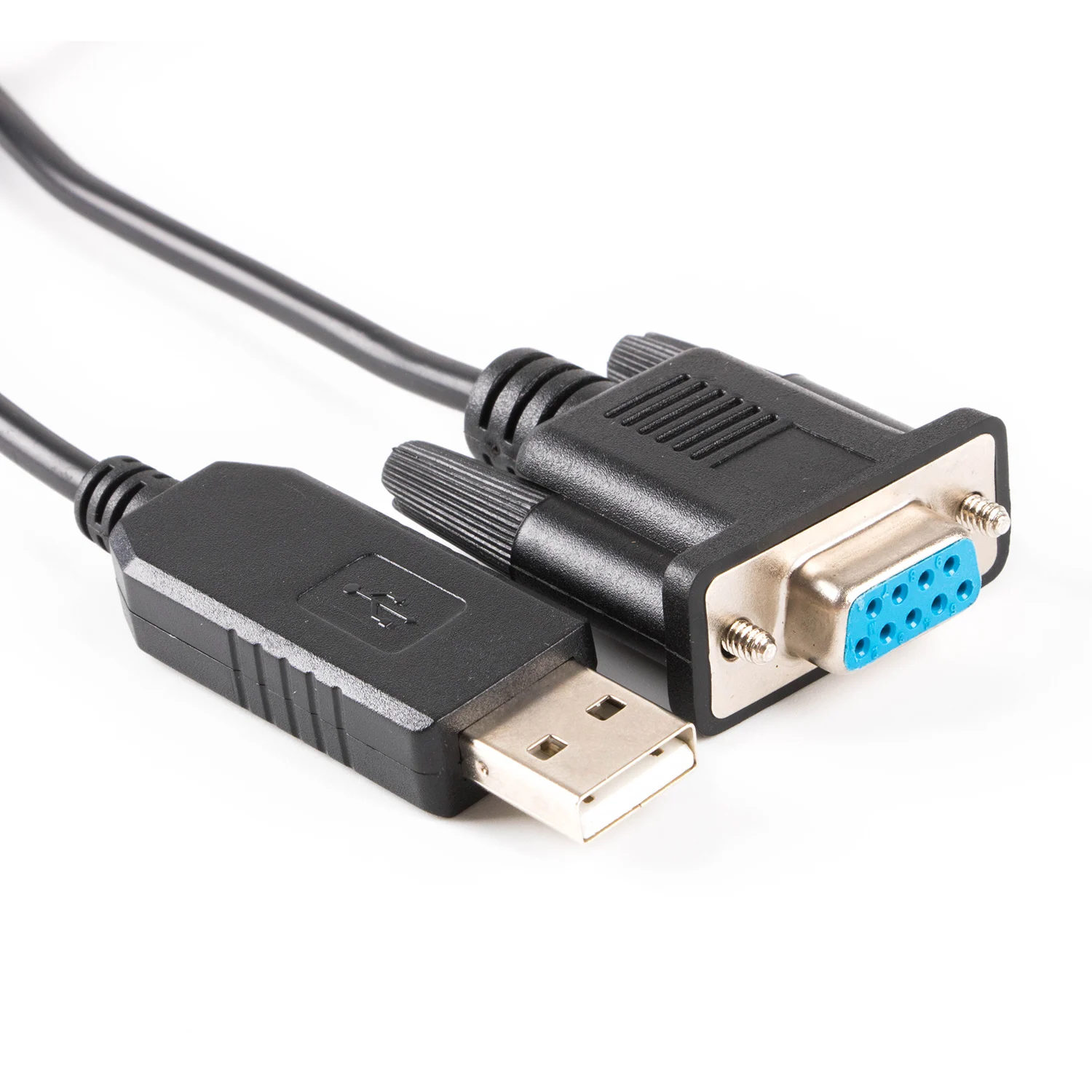

USB RS232 Serial to DB9 Female Adapter Converter CP2102 Null Modem or Terminal device Cable support win7/8/10/xp/android/mac etc
Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
* USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
* The CP2102 chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
* Portable USB-Powered design requires no bulky power adapter or outlet
* USB to Null Modem (Cross-Wired) RS232 Serial Adapter
* Integrated CP2102 USB UART Chip
* Baud Rate up to 921.6Kbps
* COM Port assignments maintained across reboot
* USB-powered - no external power adapter required
* FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial
DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
*
* USB to Null Modem (Cross-Wired) RS232 Serial Adapte
* USB2.0 RS232 to DB9 female cable
* CP2102+ZT213 chip
* USB2.0 standard, full speed
* Baud Rate up to 921.6Kb
* Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):
* 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
* Driverdownload : www.silab.com

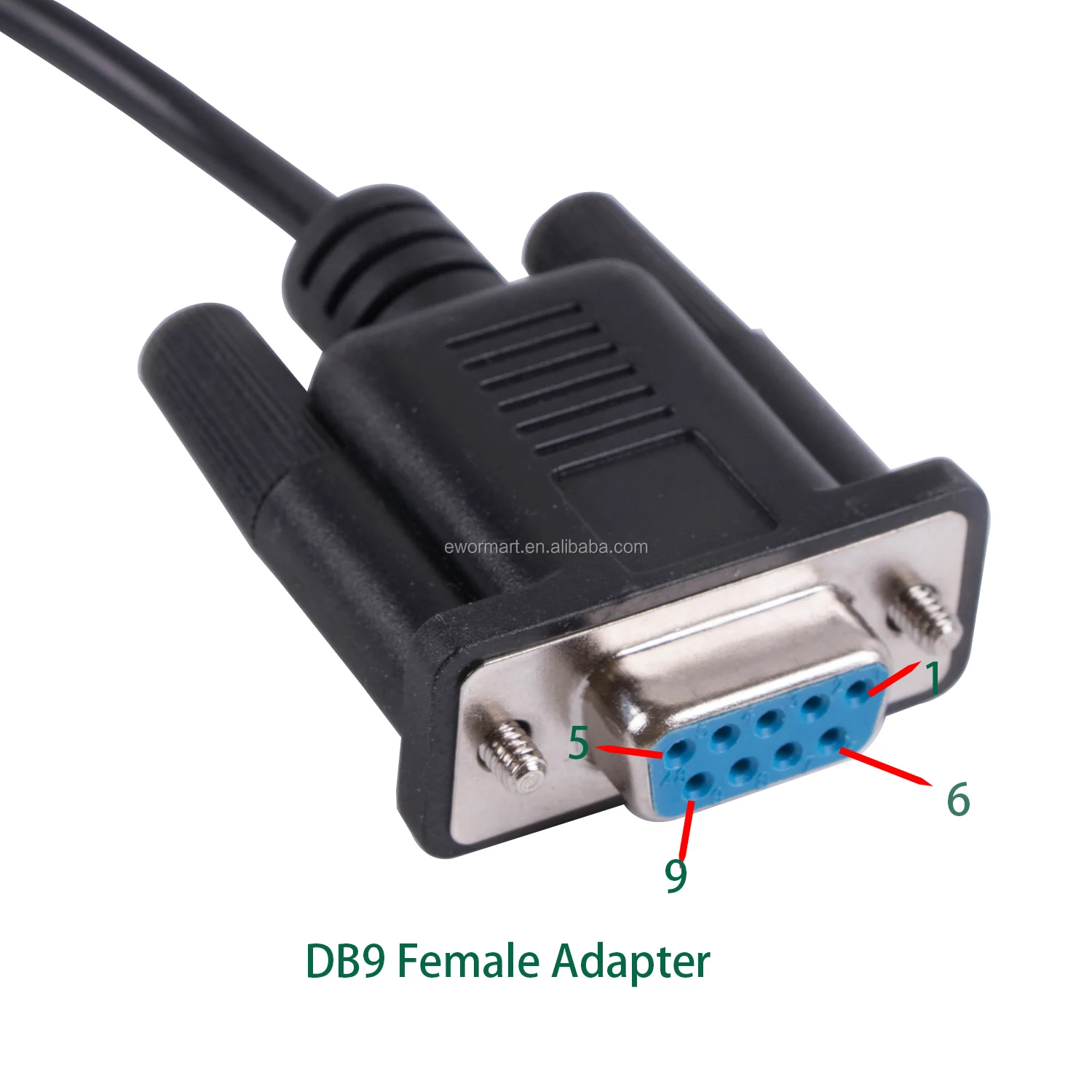

* Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave)
2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
* USB to female serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9
port to laptop or desktop via USB port
* Portable USB-Powered design requires no bulky power adapter with superior performance, offering an easy connectivity for serial
plug devices
* Built as cp2102 serial cable for Windows 10, 8, 7, Mac OS8 or higher, Linux 2.4.0 and later
* USB male to serial female cable is designed with a high performance quality processor chip (cp2102 Chipset) that makes this USB
to RS232 converter one of the most reliable adapters on the market
* 6 feet USB 2.0 to RS232 DB9 serial cable (male to female) is long enough for your devices to reach to a place needed (standard
pinout: pin 2- RXD, Pin 3- TXD, Pin 5 - GND)
Package: 1 x usb db9 rs232 female cable
Specification
item | value |
Type | USB Cable |
Certification | ce |
Use | COMPUTER, for embedded systems that require a serial connection to a computer |
Brand Name | YIDAMA-TONGLE |
Model Number | USN201117C |
Place of Origin | China |
Guangdong | |
USB Type | Standard |
Material | PVC |
Connector | USB 2.0 Connector |
Jacket | PVC |
Products Status | Stock |
Shielding | Braid |
Conductor | Tinned Copper |
Function | Serial Cable |
Signal | rs232 |

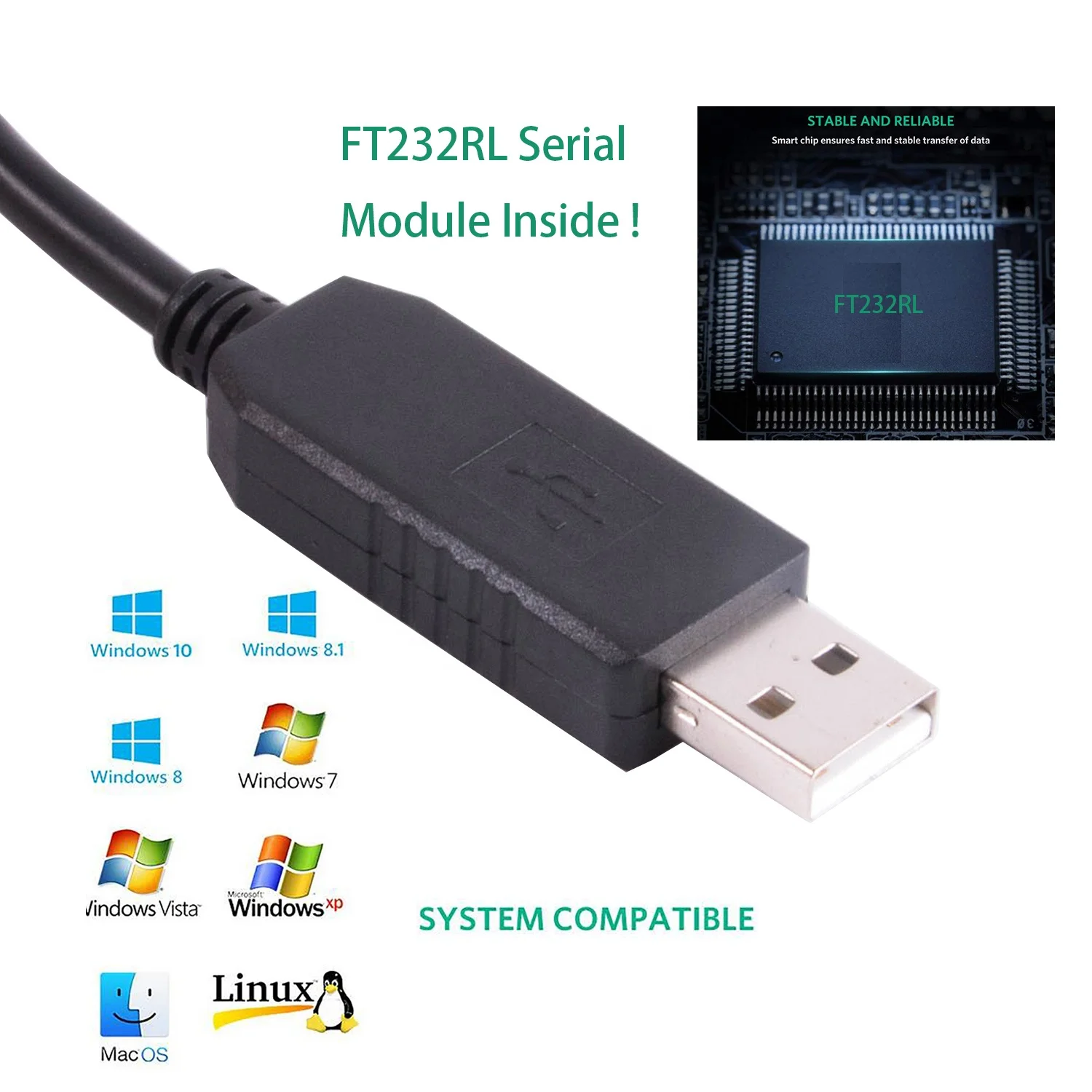

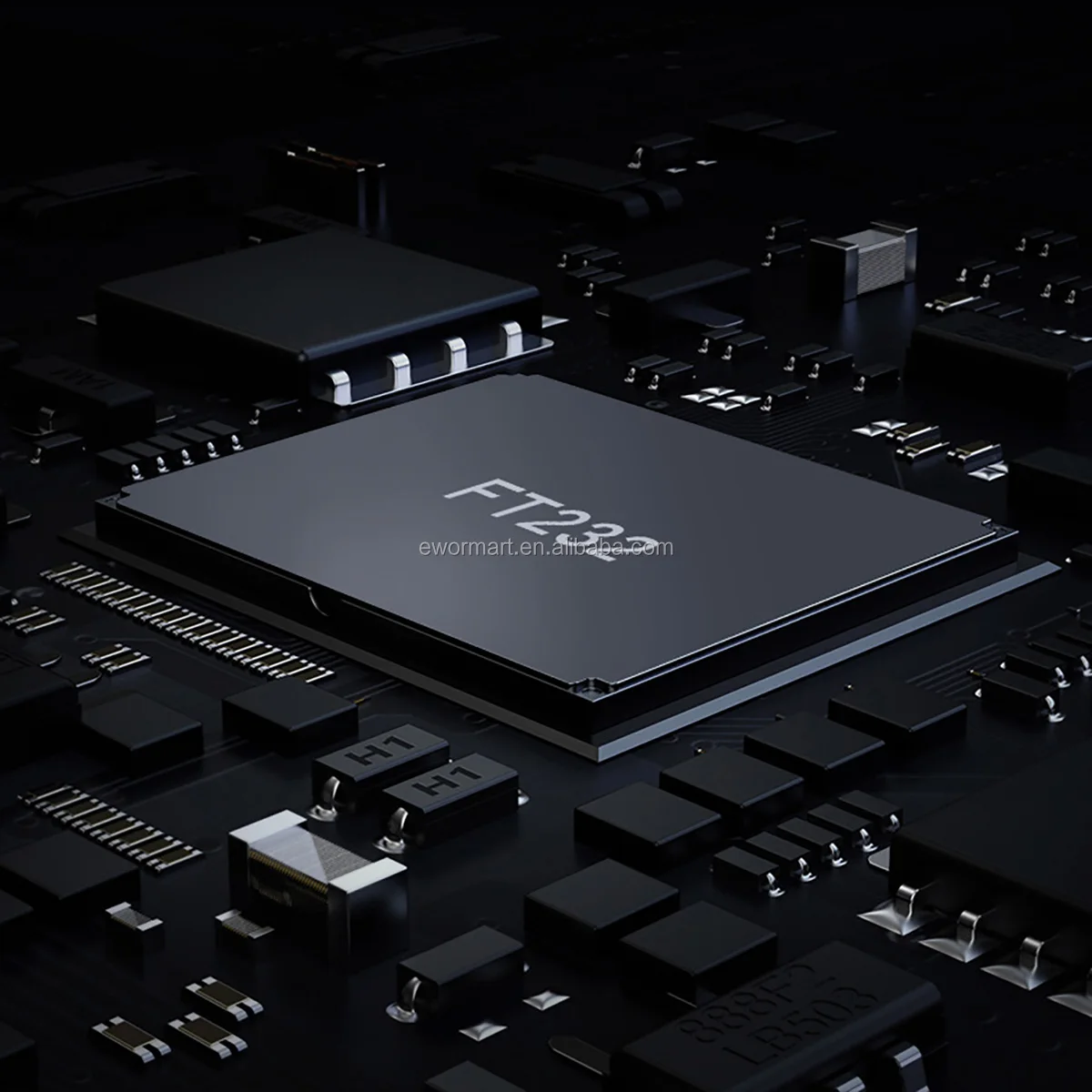

chip | geniune :FT232RL |
Function | USB to rs232 Serial Cable Assembly |
Cable | OD/3.5MM |
Support | Win7/8/10/xp/android/Mac OS/Linux/vista |
Connector Type | usb to db9 |
Keywords 01 | db9 rs232 |
Feature 01 | usb rs232 serial cable |
Warrany | One Year |
