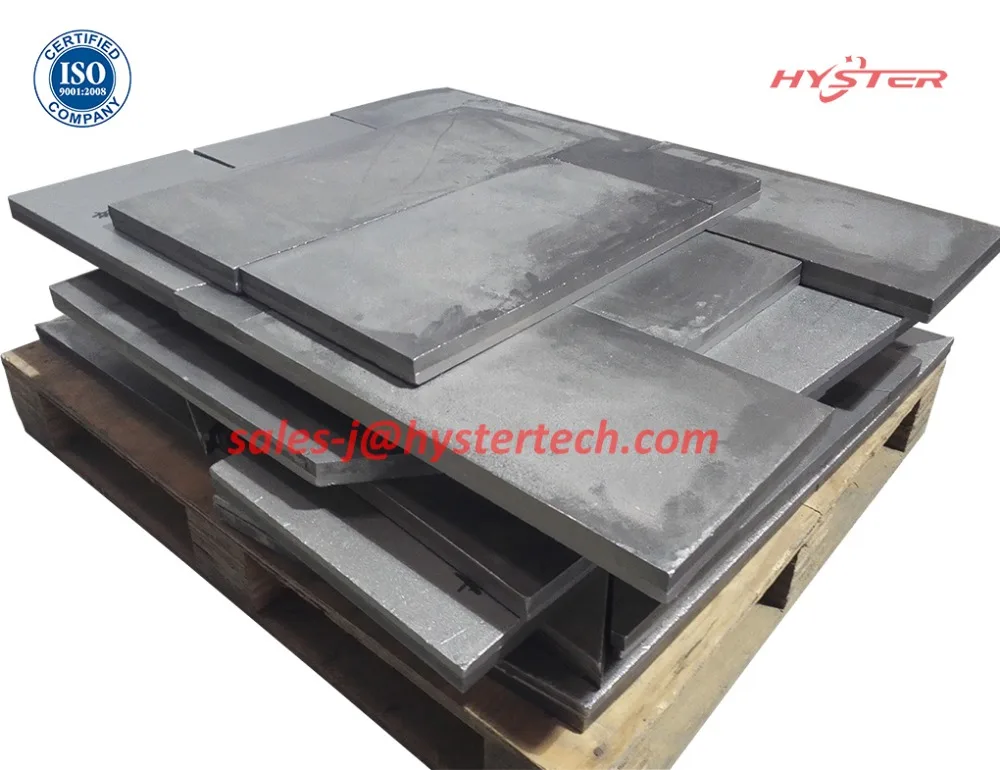

The most popular special discount bimetal wear liner plate 700BHN

Why Our Partner Choose Hyster?

1. We have completly production line. Annual output of bi-metallic wear blocks/bars/plates is more than 3000tons, capable to produce about 1200 different sizes and shapes; annual output of wear-resistant castings is more than 3000 tons, and hardfacing wear plates more than 2000 tons.

2. We have a very skilled team of workers and engineers with more than 15 years of experience.

3. We have independent research and development capabilities.

4. We are fully equipted with all necessary testing devices.

5. Hyster has its own License for Import and Export and also a professional team of sales staff, who are familiar with English, Spanish, Russian and international logistics.

How We Work With Our Partners?

1. We always welcome OEM / Distributor / Agent / Dealer.

2. We supply continuously R&D Support.

3. We guarantee the fastest Service & Delivery.

4. We provide the most competitive Price & Top-grade Quality.

> Confidentiality  > Professional   > Innovation   > Efficient

Typical applications of Wear Plates include Discharge Chutes, Hoppers, Rock Boxes, Excavator Buckets, Loader Buckets, Dragline Buckets, Face Shovel Buckets, Spider Arm Guards on Crushers.

\\

Hyster produce three kinds of wear plates to the mining and quarry market:

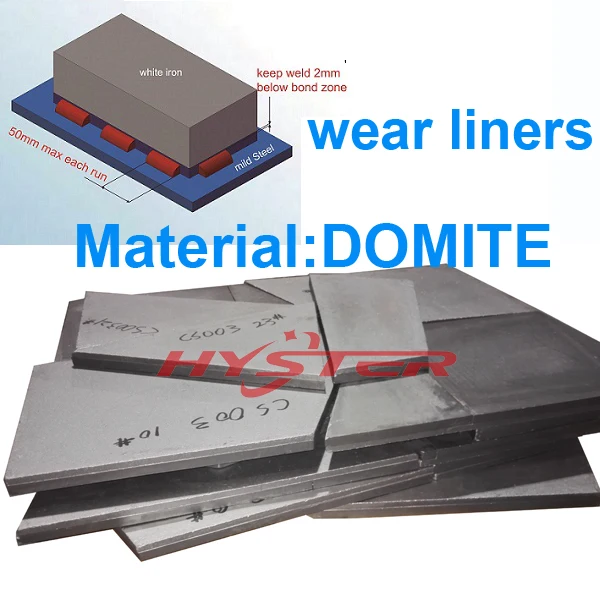

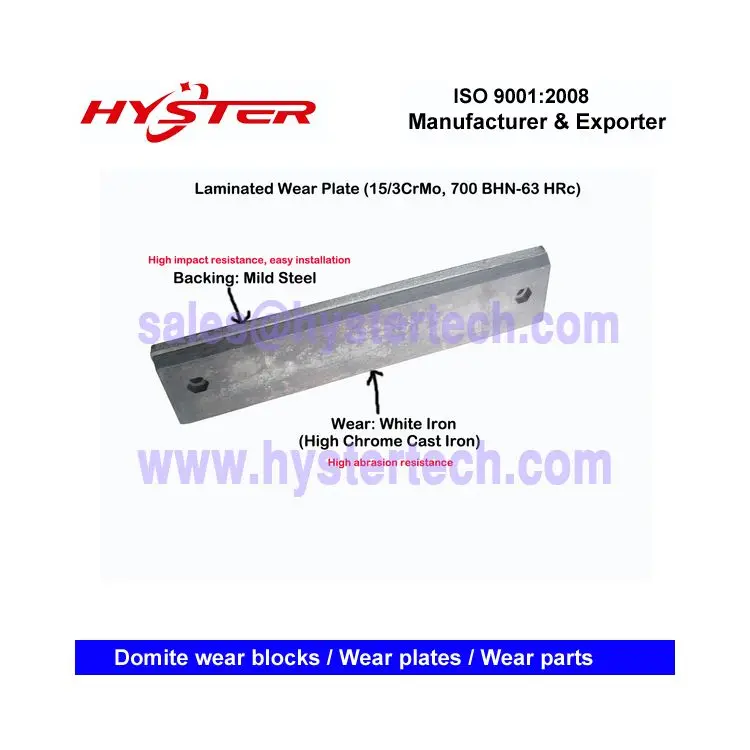

>> White iron laminated wear plates/Domite wear plates

They combine very high wear resistant qualities of a high white iron plate(ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel plate through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.

For different work conditions, we can control the thickness of the layer to reach the overall performance requirements, thus, at the same time, satisfy the abrasion-resisting demand and structural requirement of the wear-resistant parts, then to realize the efficient use of the scarce resources. Most usual thickness ranges from 15mm to 90mm.

>> Nihard Wear Plates/liners

NiHard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of NiHard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows NiHard to be utilised in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.

Our NiHard products include billets and liner plates that can be made to the customers' specification or supplied from our range of stock sizes. Our NiHard products can be custom designed to meet any situation regardless of any size and shape concerns. We can also supply cut and shaped liners to be strategically placed on fixed plant equipment so that a unique wear package can be created, maximising wear life. This makes NiHard the perfect material for chutes, drop boxes, bin and hopper liners.

We primarily supplies cast billet and liner plates produced to the NiHard 4 specifications.

However, we can produce billets and liner plates from the following alloys on special request:

   > NiHard 1 & 2

   > 27 Chrome Alloy

   > 15/3 White Iron

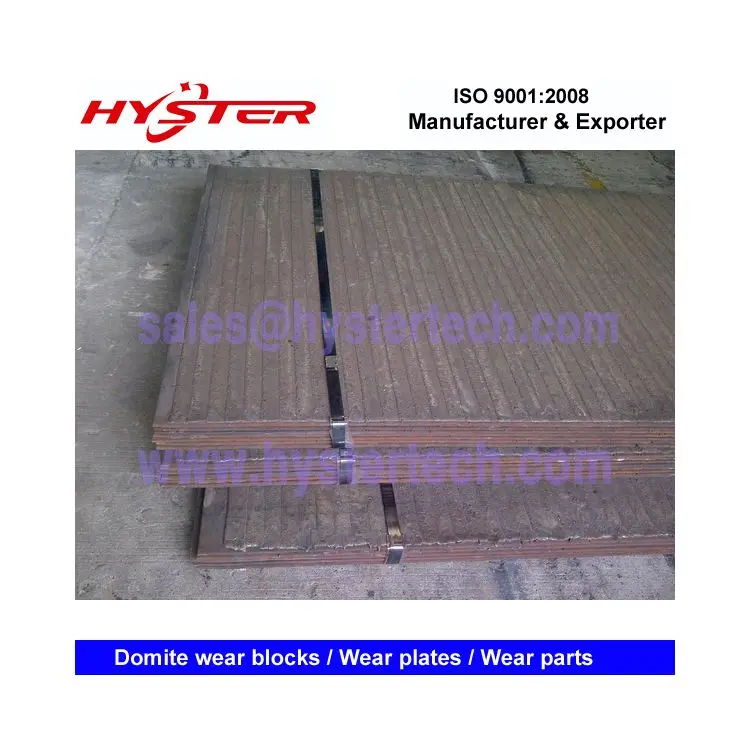

>> Chromium Carbide Overlay Wear Plates

OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique.

OVERLAY-PLATE has excellent performance in abrasion and impact.

Standard sheet size we can produce is 1500x3000mm, 1200x2400mm.

Thickness we can produce 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.

Note:

1. Other sizes can be made on request.

2. Liners can be cut to size on request.

3. Bolts/Nuts/Washers are available on request.

4. Holes are to suit M20 fishtail bolt

Quality Guarantee

Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.
