10 wheeler 18tons 15 cubic meter dump truck 15cbm dimensionss
- Category: >>>
- Supplier: Shiyan Yunlihong Industrial & Trade Co. Ltd.
Share on (60610477279):
Product Overview
Description

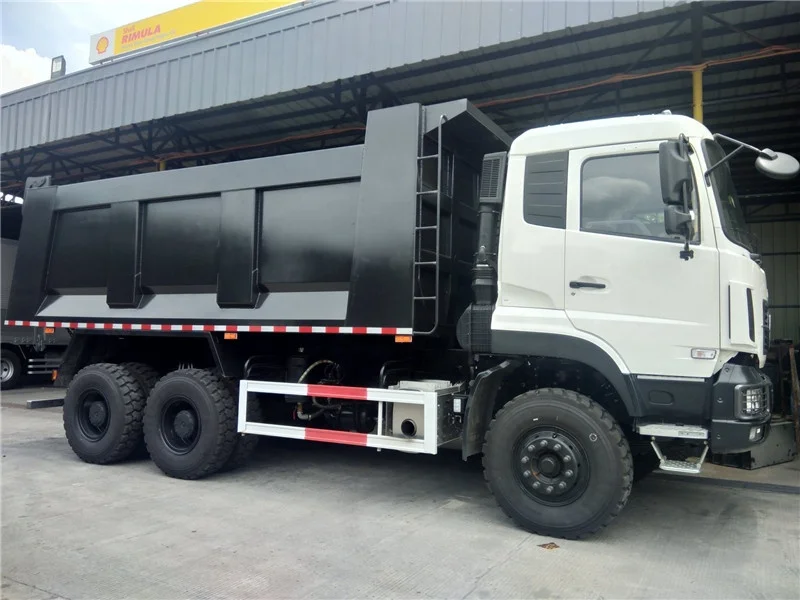

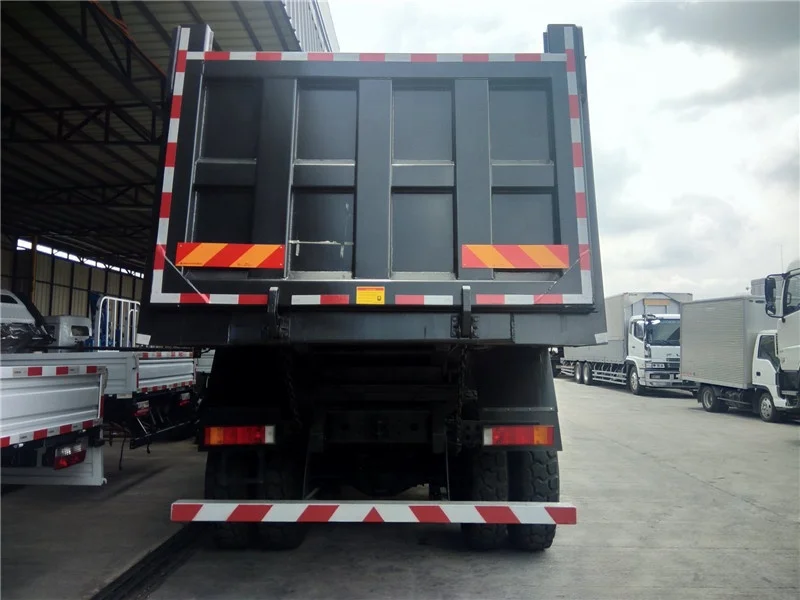

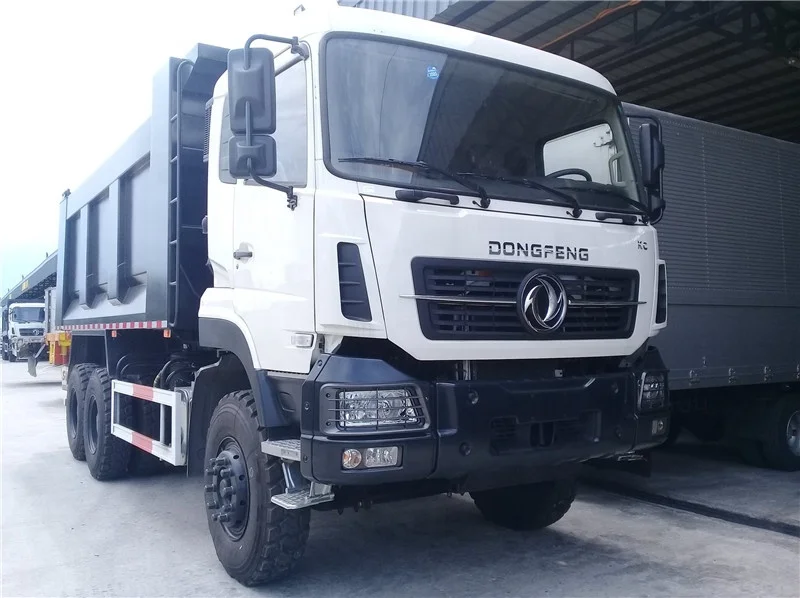

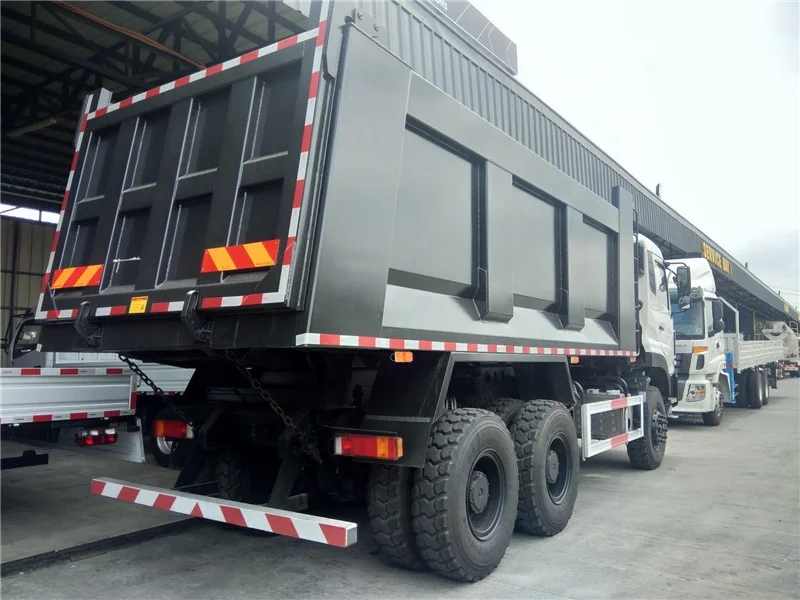

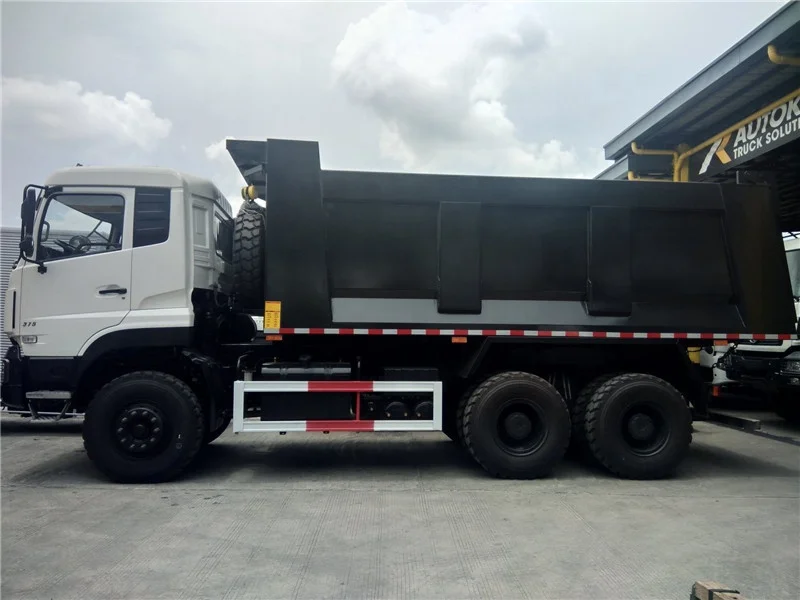

10 wheeler 18tons 15 cubic meter dump truck 15cbm dimensionss
Truck model
| DFH3250B-KP7V | Wheel base | 3800+1350mm |
Box size
| 5400x2350x1200mm | Top speed | 90km/h |
Box volume
| 15 m3 | Loading weight | 20 tons |

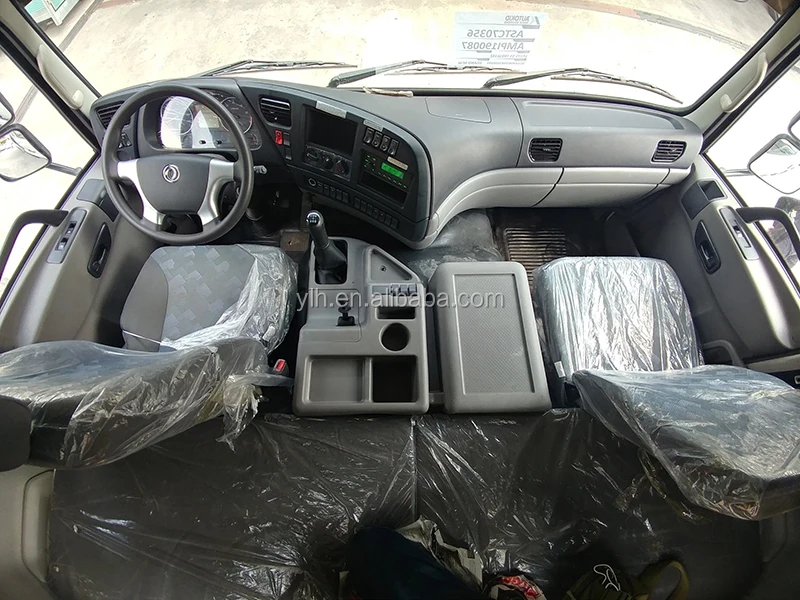

Cabin Model |
LHD or RHD Sleeper cab, forward control type, low roof , adjustable driver's seat, with air conditioner
| ||
Brand
| DCEC C300 33 | Intake way | Turbo inter-cooling |
Rated power & speed | 221 Kw at 2200 rpm | Max. torque | 1125N.m at 1500rpm |
Engine type | in-line, 4 stroke, water-cooled | Displacement | 6 cylinder, 8.3L, diesel |
Type
| Manual, 9JS119T, 9 forward gear, 2 reverse gear, synchronization | ||
Torque
| 1190N.m | ||
Front axle loading | Dongfeng DANA 5T industry front axle | ||
Rear axle loading
| Dongfeng DANA 10T x2 rear axle | ||
Suspension
| 9/13 | ||
Chassis Frame
| 300x90x(8+6) | ||
Tire
| 11.00R20 | ||
Window

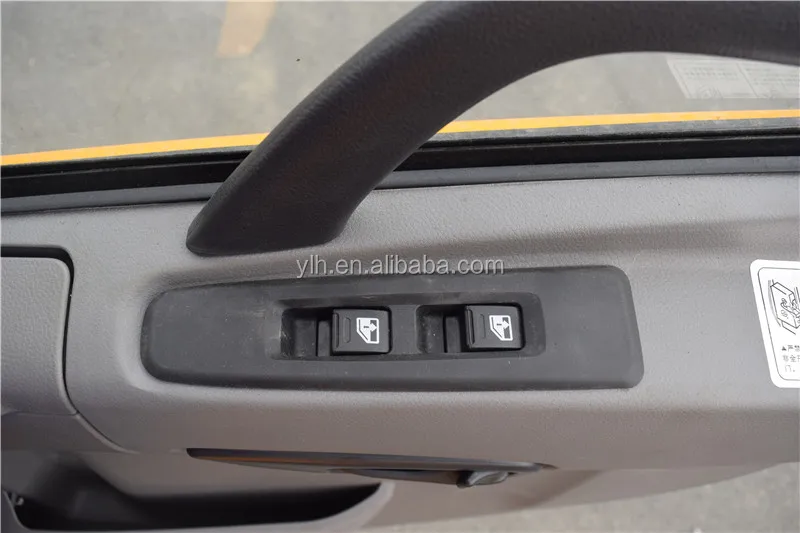

| Power window | ||
Fuel tank
| 280L | ||
Overall dimension | 8250x2550x3450 mm | ||
Front lifting hydrocylinder, stronger lifting capacity and better stability

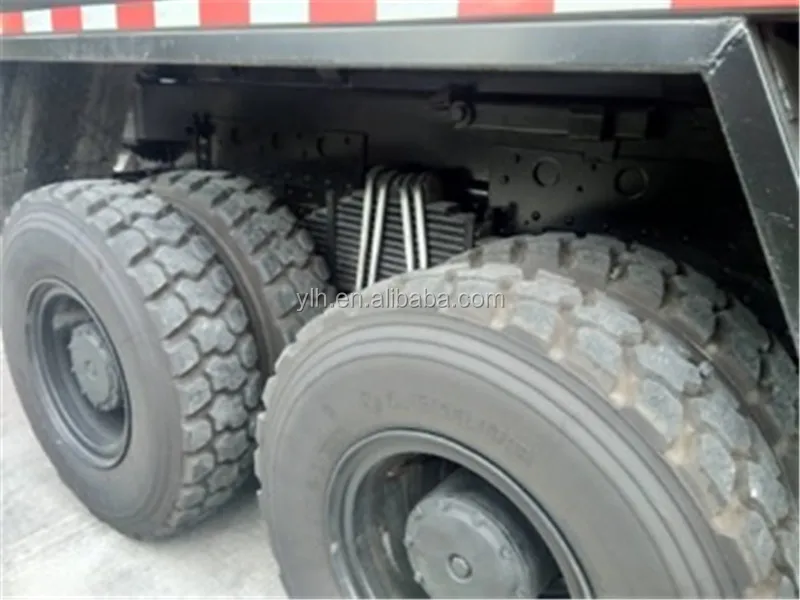

Strong spring plates, front 9, rear 10. high industrial ability
Cabin with air conditioner, power window, left hand drive and right hand drive are option.
