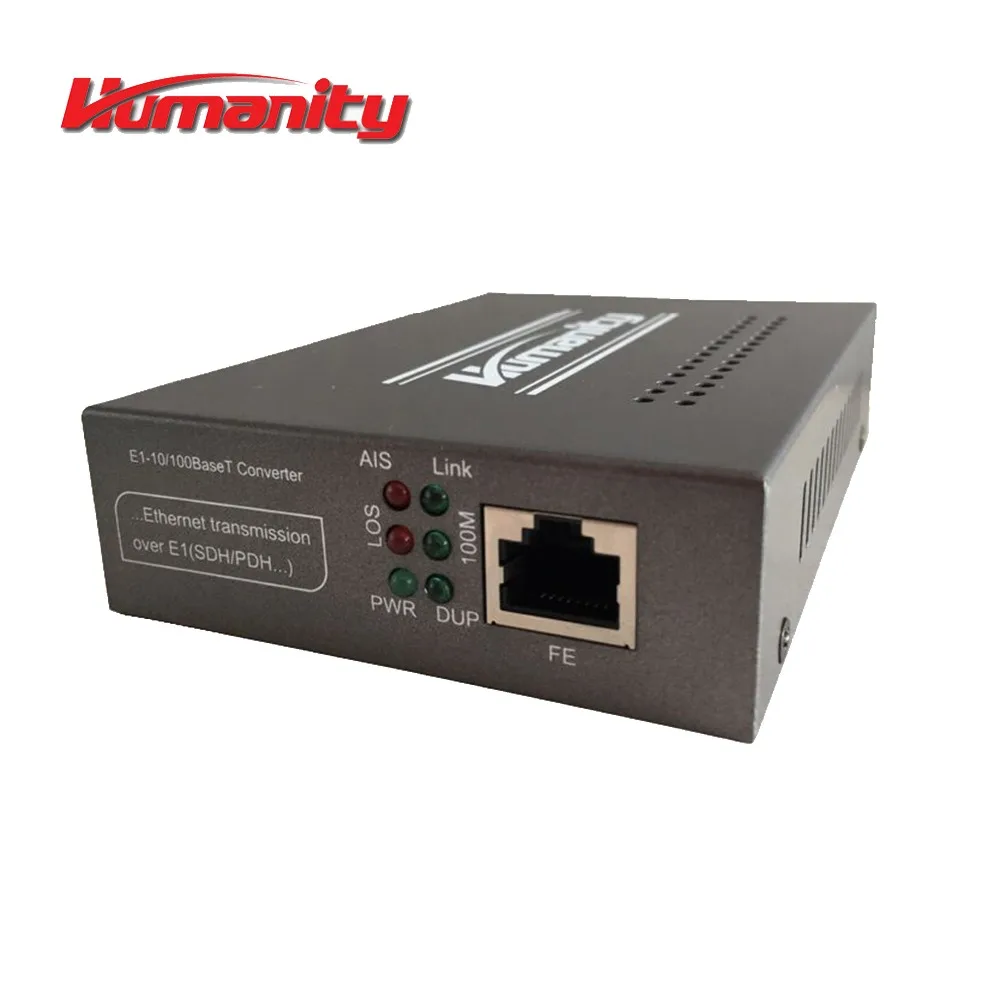

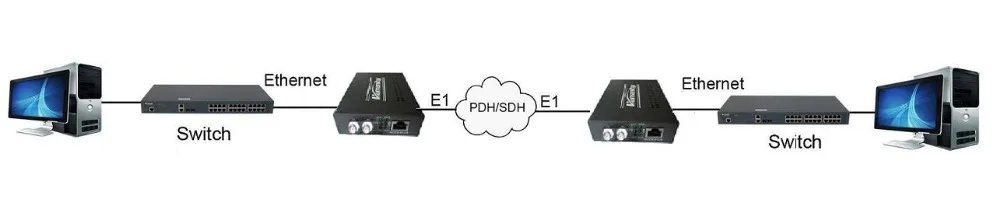

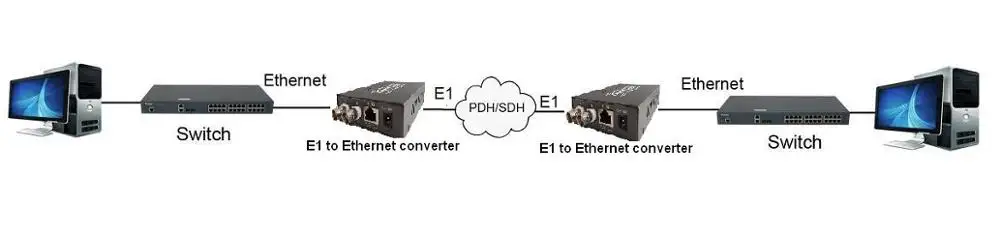

Humanity HM C108W converter ethernet over e1

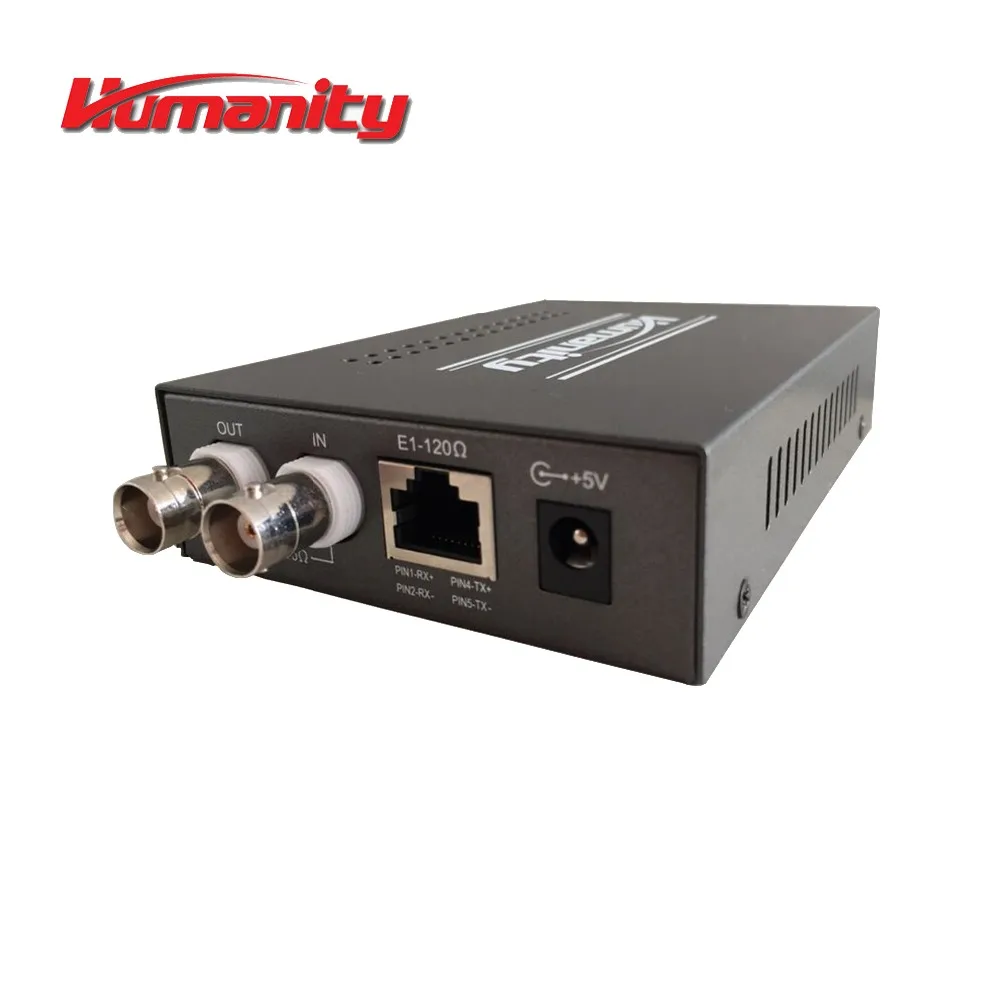

E1 interface

E1: one E1 with BNC and RJ45

Rate: 2048Kbps

Line code: HDB3

Electric characteristic: comply with ITU-T G.703 standard

Jitter index: comply with ITU-T G.823 standard

Interface impedance: 75Ω unbalance and 120Ω balance

Ethernet interface

Ethernet port: One RJ45

Auto adapt MDI/MDIX

Data rate: 10/100Mbps auto-negotiation

Interface mode: full/half duplex

Indicator light

Power, LOS, AIS, LINK

Power supply

Voltage: AC power

Power consumption: less than 5W

Environment

Operating temperature: 0°C~50°C
