Teethers baby Product Blister Packing Machine
- Category: >>>
- Supplier: Guangzhou Looker Packaging Machinery Co. Ltd.
Share on (60610686808):
Product Overview
Description
Product Description
The pulse fever comes from the heating element of the mould/die, combines the plastic and the paper card perfectly. The heat sealed products is not only with anti-moisture and anti-dust function but also makes the products in a good-looking appearance.
Applies to plastic blister(made by PVC, PET, PETG etc) seal with paper card. It's suitable for such as toys, stationery, foods, commodity, cosmetics, hardware, medicine, etc. Like lipstick, toothbrush, battery, surgical instruments, etc.
Applies to plastic blister(made by PVC, PET, PETG etc) seal with paper card. It's suitable for such as toys, stationery, foods, commodity, cosmetics, hardware, medicine, etc. Like lipstick, toothbrush, battery, surgical instruments, etc.
Main Features
1. The machine using four guide pins to guide the pressure plate, it is more flat, the pressure is more stable, the paper card and blister adhesive perfectly.
2. Unique pressure plate heating delay design allows the sealed products much better and more attractive.
3. The round plate (square plate) can be rotated clockwise or anticlockwise freely.
4. Fix with Φ80mm cylinder, can assure pressure, also assure stable sealing and good looking.
5. Small size machine allows to put anywhere and easy to handle and convenient to operate, also should improve the work efficiency.

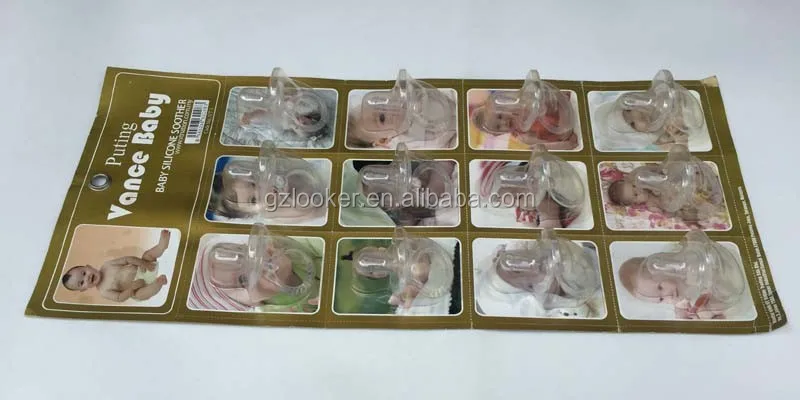

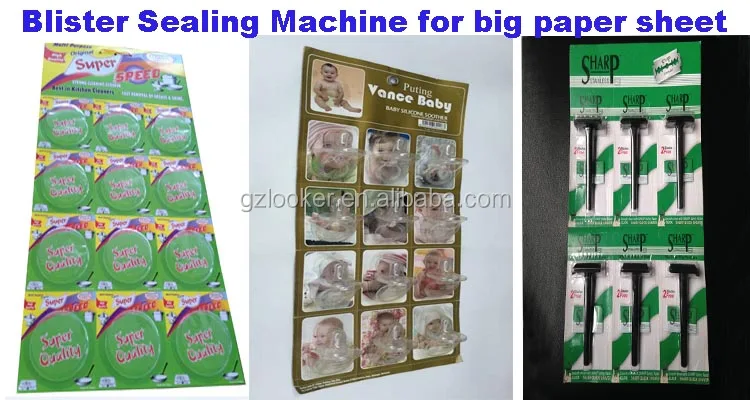

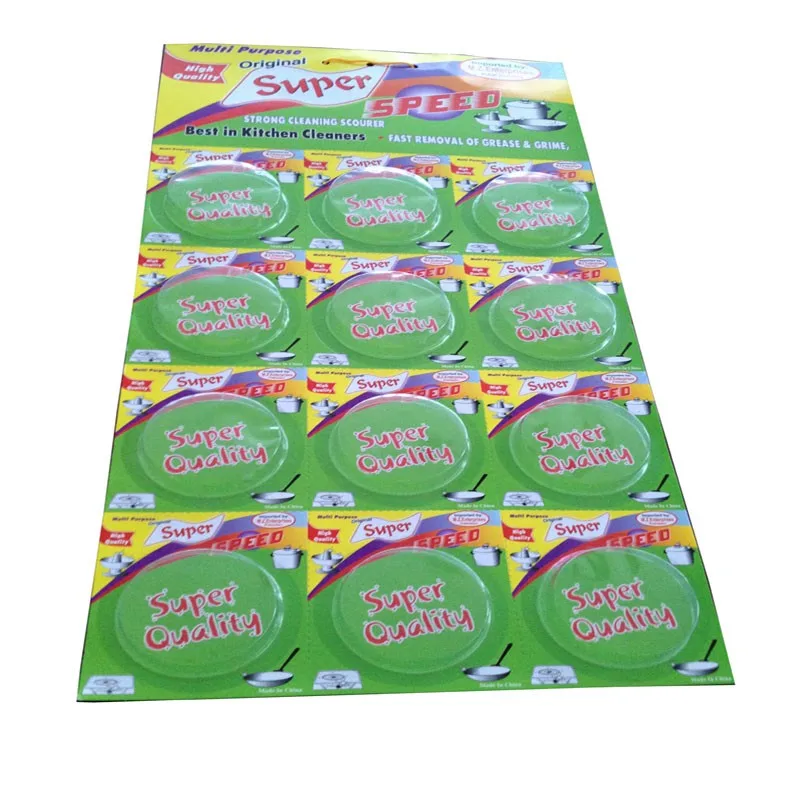

Samples
Detailed Images
Machine Process
Name: LK-2030
Brand: LOOKER
Original:China
From the frame body to the final machine.
Our engineer take care part and build the machine one step by one step.
Each part we have double check it before machine and then ship to each customer.
Arylic cover
Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator.
square plate
The square plate can be rotated clockwise or anticlockwise freely
Emergency stop button
Install the emergency stop button, can stop working anytime, ensure the safety of operator also reduce the output of defective products.
\t\t\t\t\t\t\t\t\tParameters \t\t\t\t\t\t\t
Model | LK-2030 |
Power supply | AC220V 50/60HZ |
Power | 5.0KW |
Max. sealing size | 500*750mm |
Working table | Rectangle 2 stations |
Sealing mould Q'ty | 2pcs |
Productivity | around 10 times/min |
Machine size | 1220*1440*1450mm |
Net weight | 190KG |
Gross Weight | 240kgs |
Packing & Delivery
Packaging | ||
Size | 100 (L) * 90 (W) * 161 (D) | |
Weight | 150kgs | |
Packaging Details | The normal package is wooden box Bubble foam for inside package Firm plywood for outside package We use plywood case for packing machines, it will meet export standard like safty protection requirment and durable performance in long time ship by sea or by air our packing no need fumigation. | |
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Product design discuss support

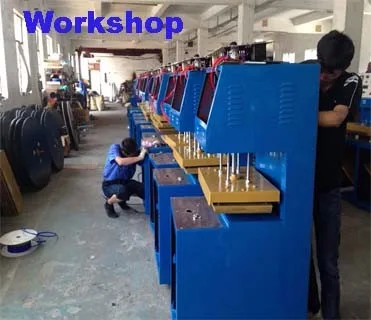

Factory workshop view :
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas to teach the customer everything about machine
