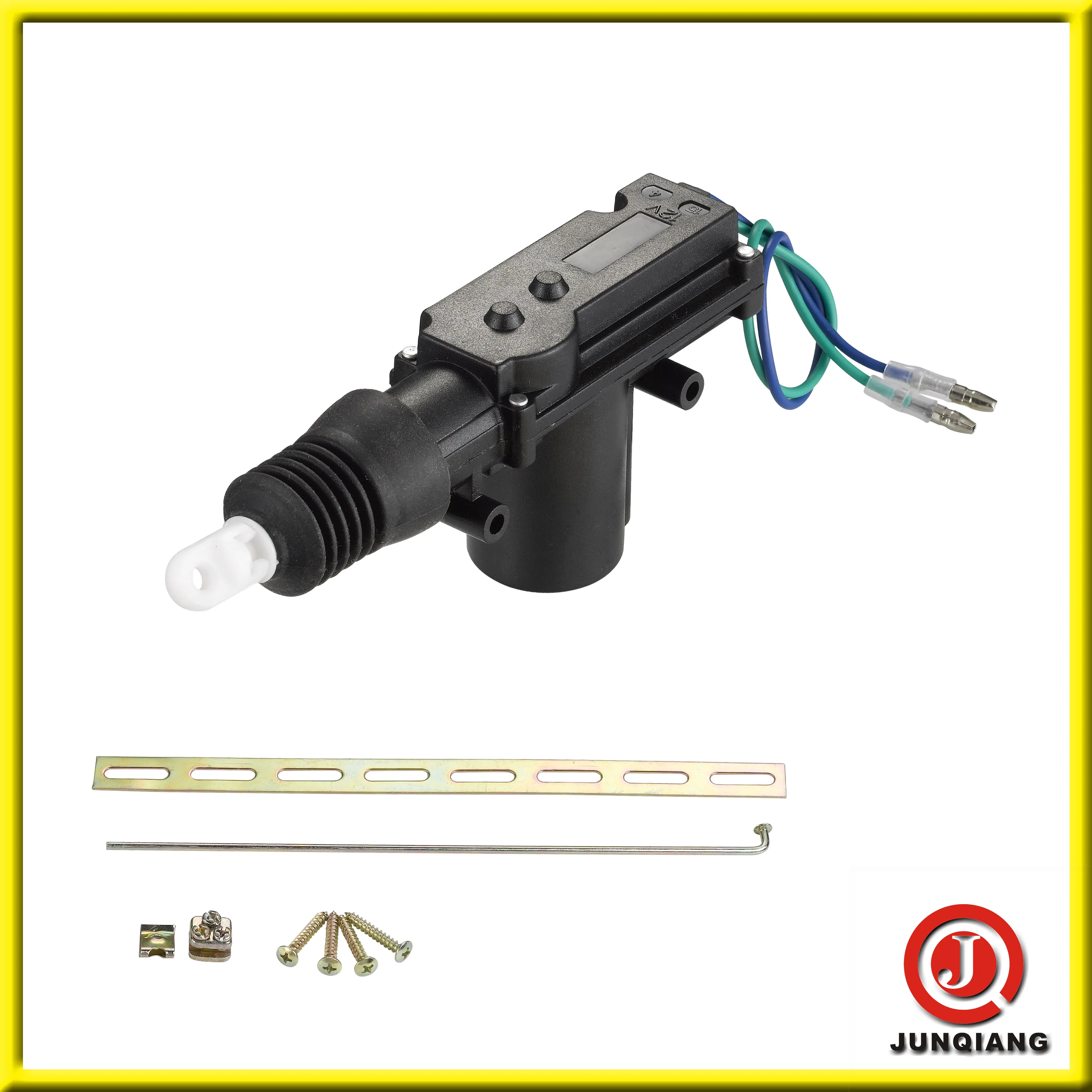

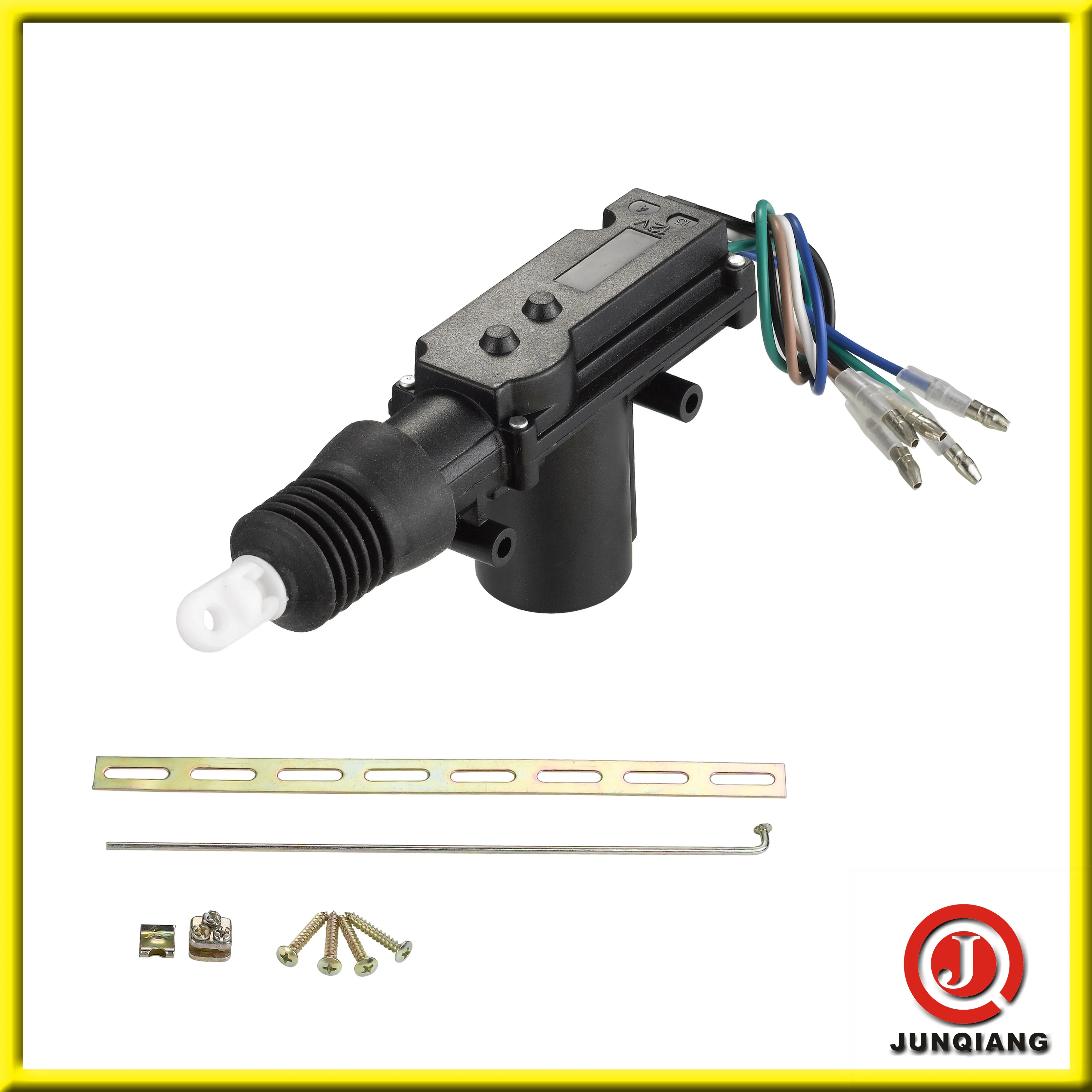

High Quality Universal Car Central Door Locking System with riveted gun type actuators for 4 Doors

Product Overview

Description

·Central locking system with riveted gun-type actuators

·Convert any vehicle with manual door locks to central locking power door locks

·Universal features and fits any model of any brand

·Motor with Japanese technology

. Covers fixed with screws

·Original ABS housing

·Patented double track design, moving more stable and anti-block

·Adjustable positioning hardware for easy installation and quiet operation

·Hardware with 8 mounting holes for flexible installation

. Operating voltage: DC 12V ±10%

. Empty-load current: 1.5A ±5%

. Blocking-load current: <6A

. Load current: 2.5A ±5%

. Pull force: 5.5kgs ±5%

. Push force: 5.0kgs ±5%

. Mechanical life: ≥80,000 times (one up and down action as one time)

. Electric life: ≥100,000 times ±10%

. Stroke: 16-18mm

. Actuator lock/unlock timer: 0.2~0.3 second

. Operating temperature: -30°C ~ +80°C

. Module circuit current: 25mA max.

·System of control: Negative ground

·Compatible with car alarm system

·360-degree swivel or fixed head available



·Available models:

o JQ-CLS-13D 4-door system, one master controls three slaves

o JQ-CLS-22D: 4-door system, two masters control two slaves
