ASY 6600A normal speed 6 colors rotogravure printing wall paper machine

Product Overview

Description

ASY-6600A normal speed 6 colors rotogravure printing wall paper machine

1.Feature:

1.1 It adopts combination type, the printing can be finished on time continuously with single-double-side many colors.

1.2 Unwinding and rewinding tension magnetic control system.Ink automatic cycle.

1.3 Far infrared heating with drying system with single drying-channel is available for drying film.

1.4 Differential gear is adopted with plates free adjusted with 360.

1.5 Pressure height and parallelism of ink blade are adjustable at will, and it can transversely  reciprocate with main machine too.

1.6 It adopts turnover double-station rolling and releasing structure, receiving and replacing material without stopping the machine.

1.7 Suitable for rolling plastic film, OPP, nonwoven cloth, PVC, paper, aluminum foil, etc.



2. Main Technical Specification

Model of Machine	ASY-6600A	ASY-4600A
Unwind width	610mm	610mm
Color number	6colors	4colors
Unit	8unit	6unit
Width of Printing	560mm	560mm
Speed of Printing	50m/min	50m/min
Version Accuracy	±0.25mm	±0.25mm
Length of Printing	200-1000mm	200-1000mm
Unwind diameter	600mm	600mm
Pressure	0.6Mpa	0.6Mpa
Fan power	0.19kw/unit	0.19kw/unit
Heating power	15kw	11kw
Total Power	32kw	22kw
Dimensions	8500×1800×2000mm	6500×1800×2000mm

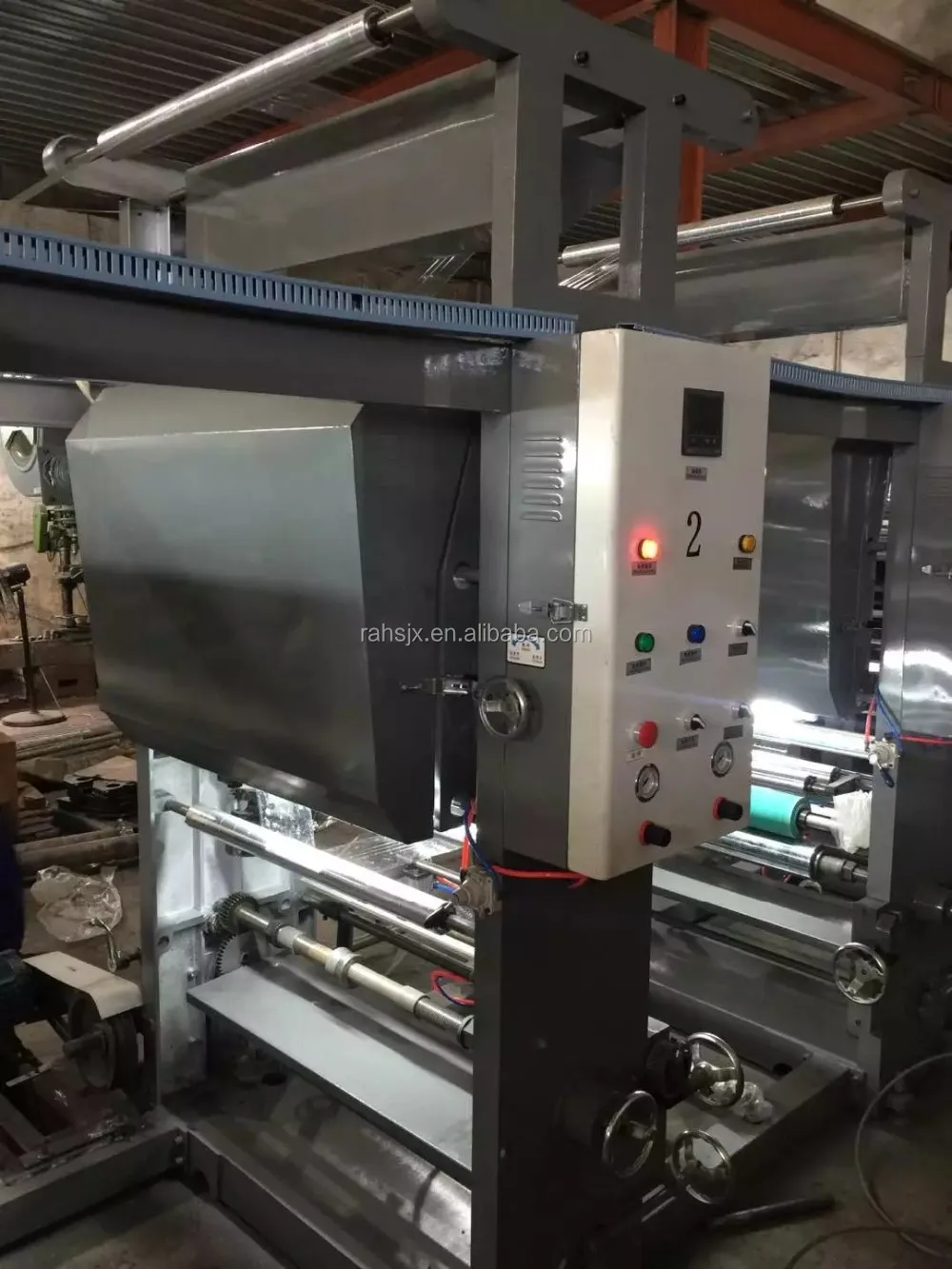

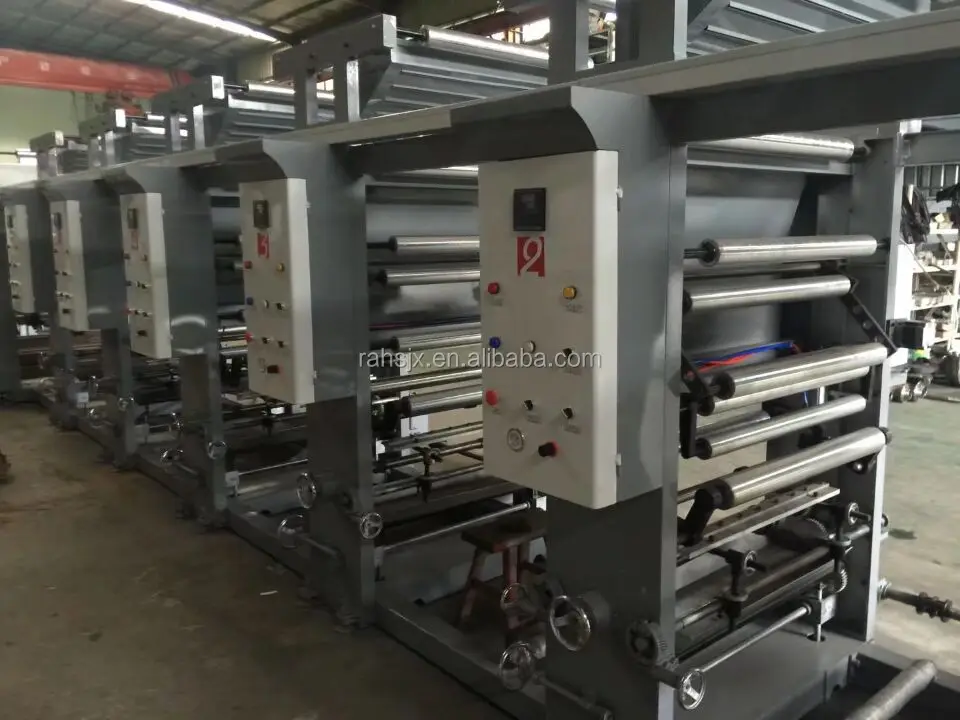

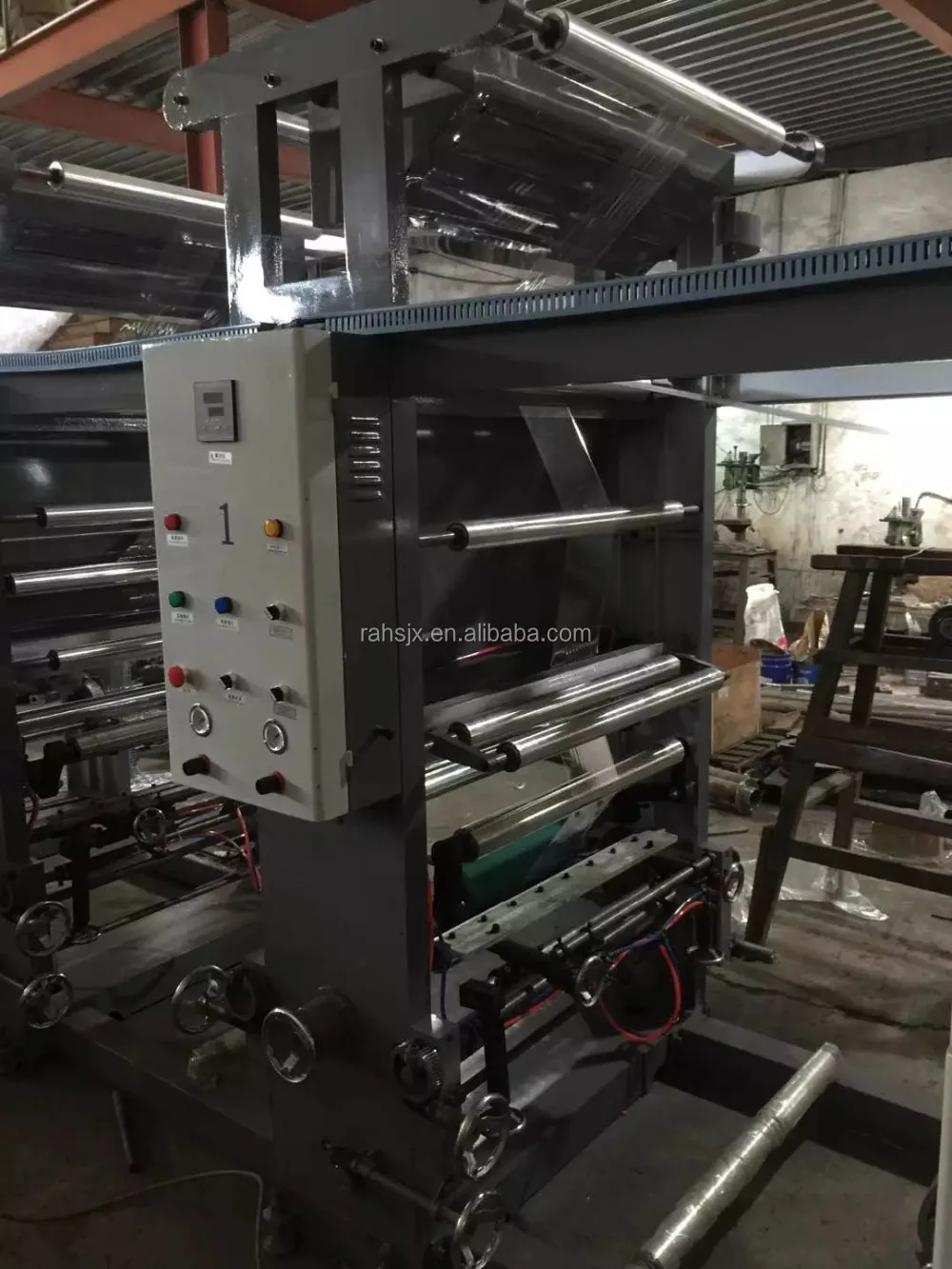

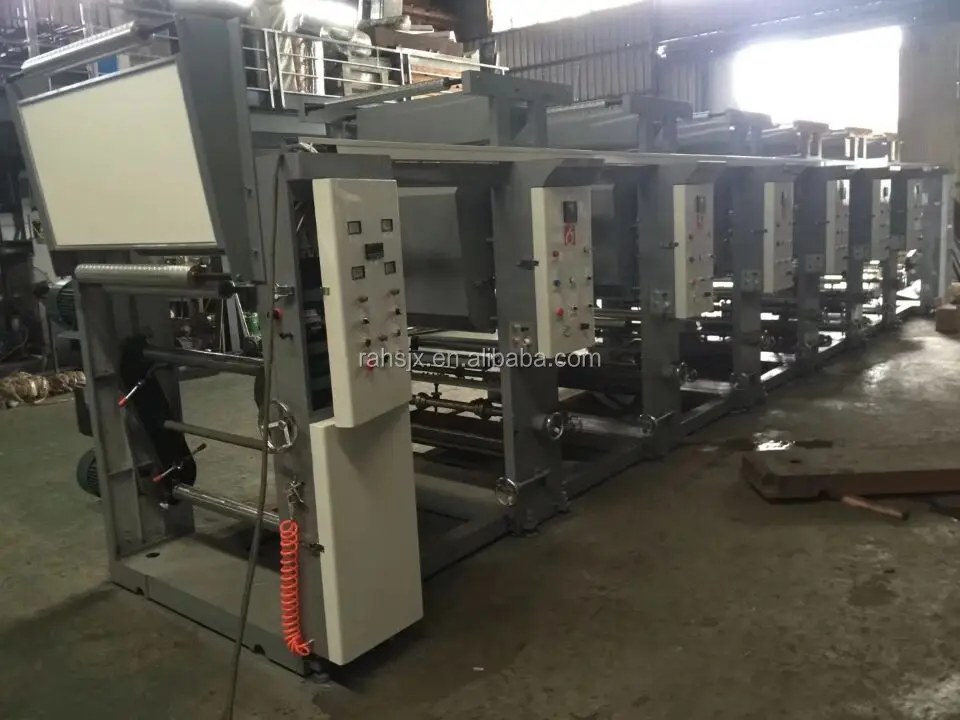

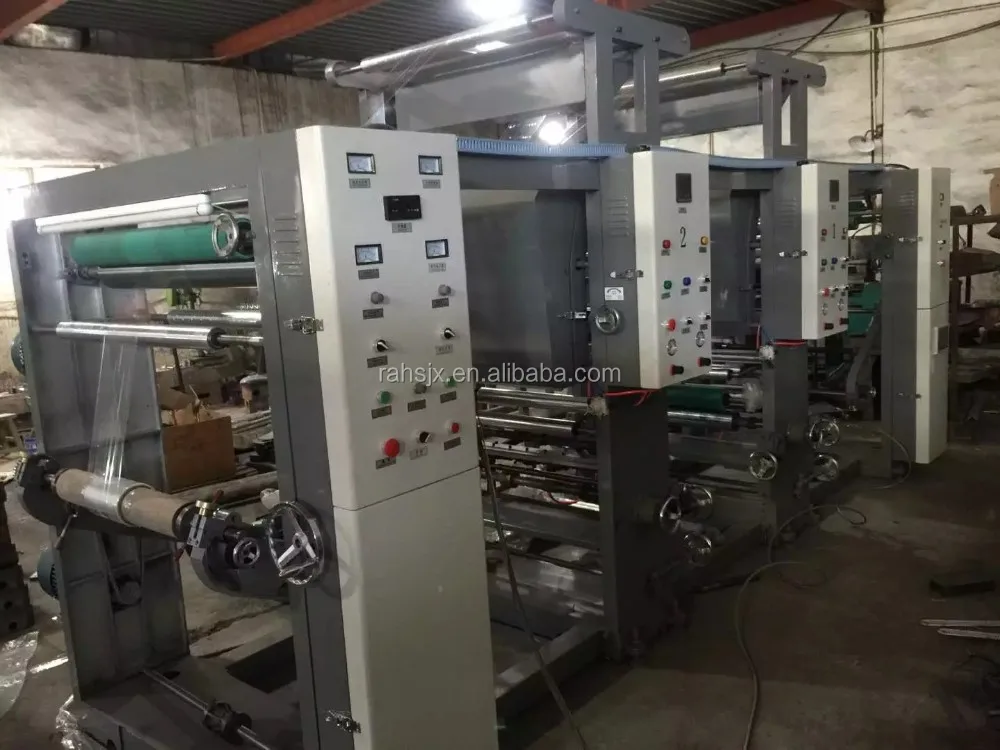

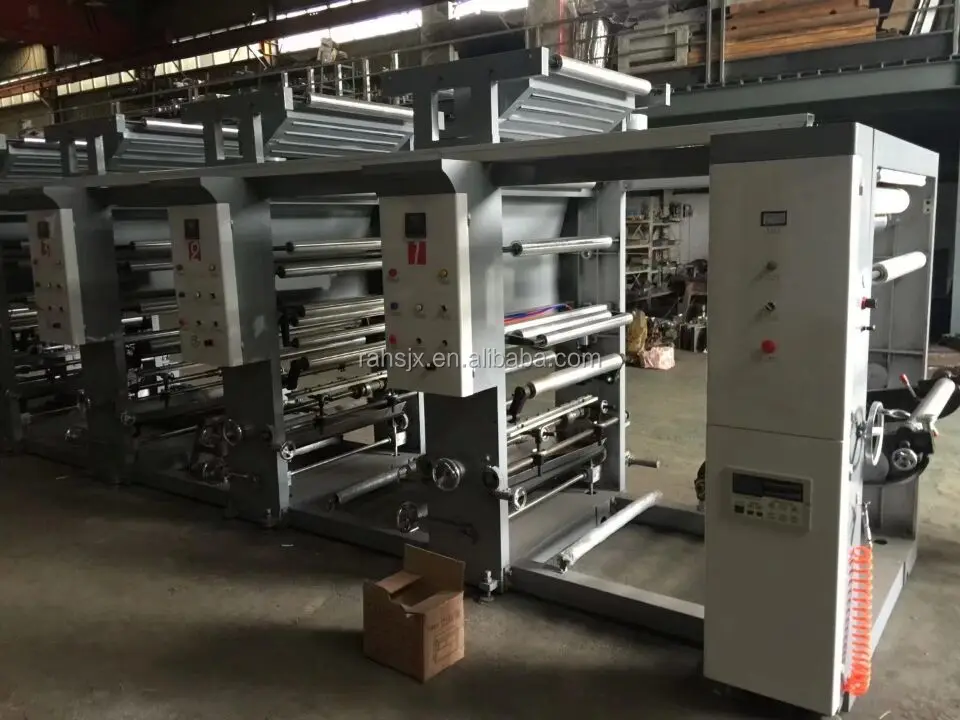

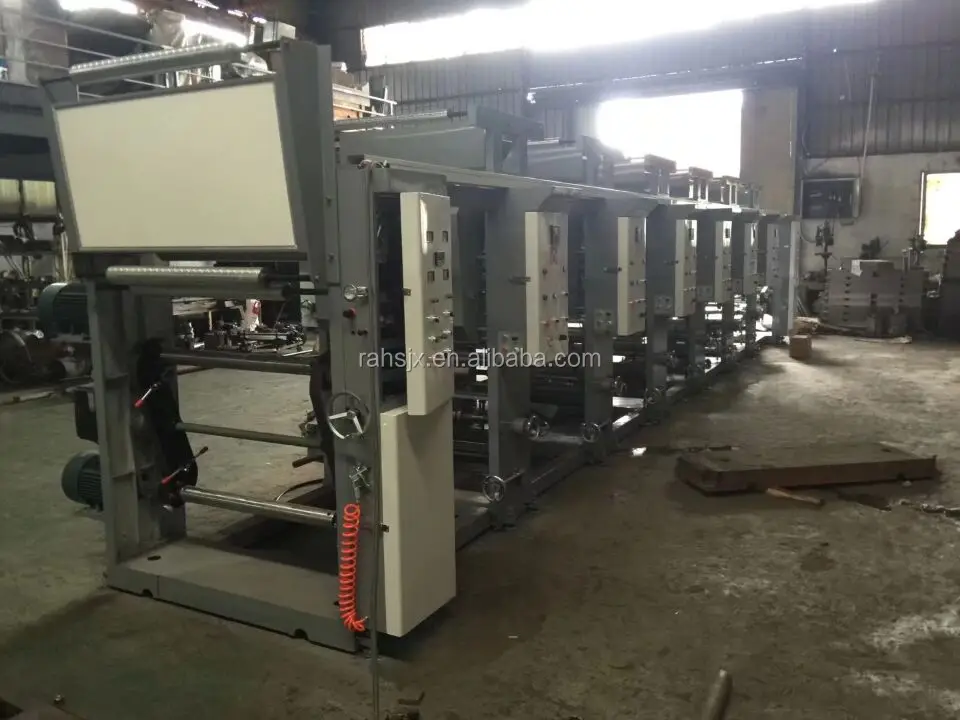

3. picture showroom:
