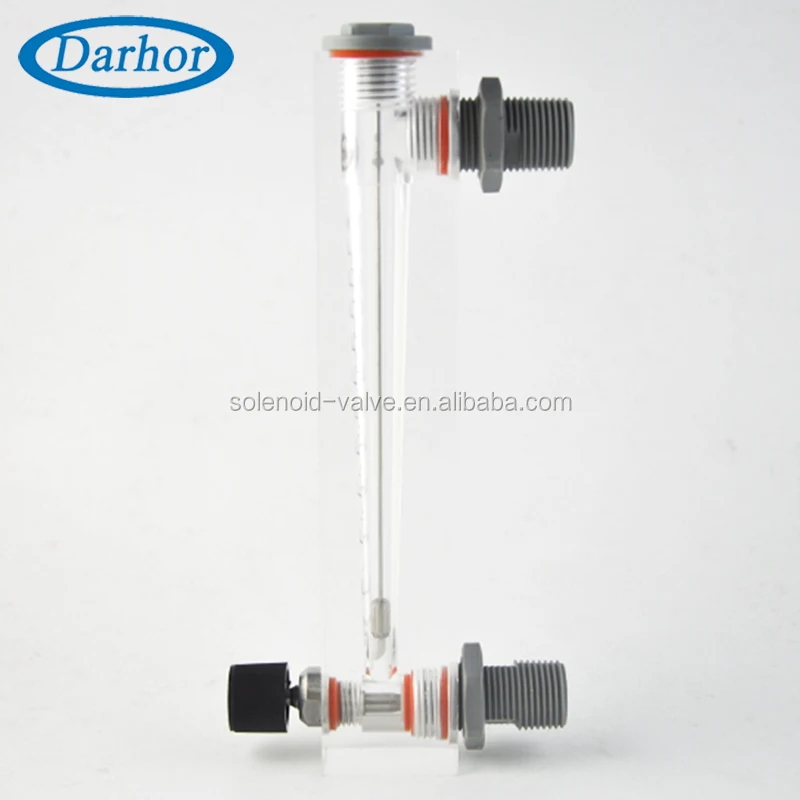

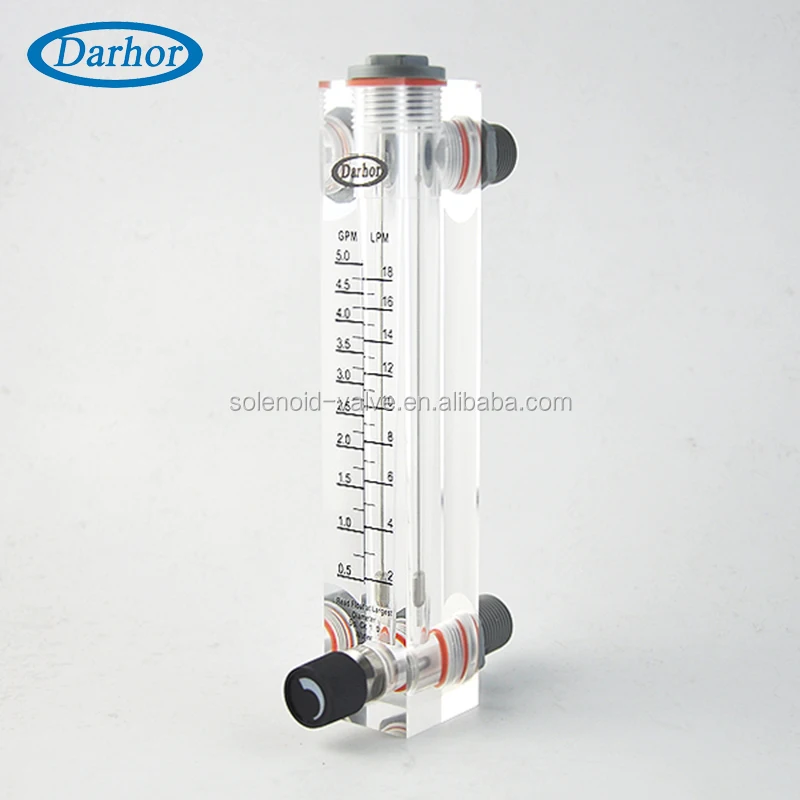

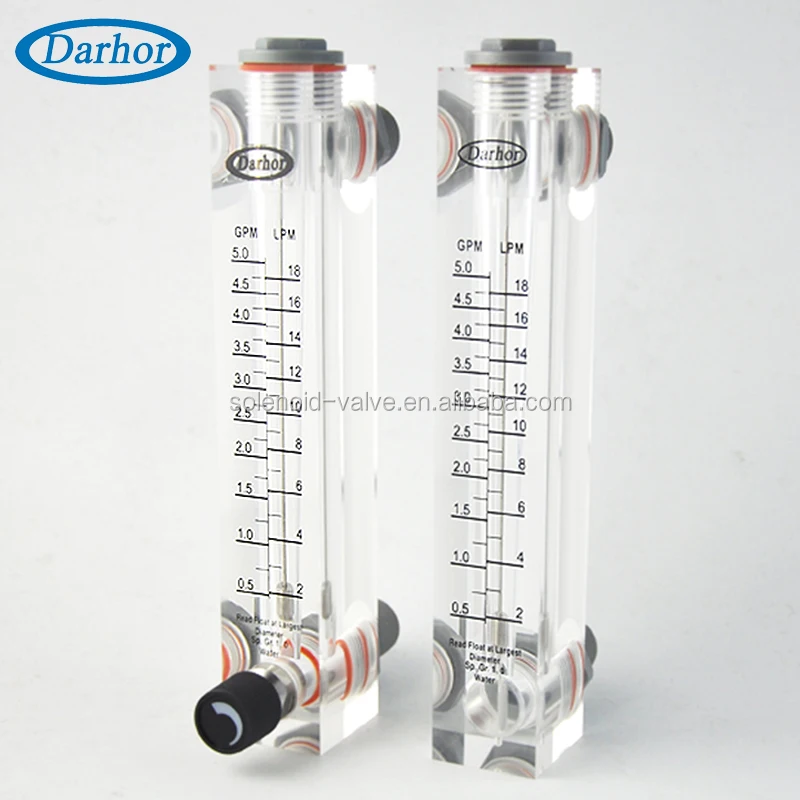

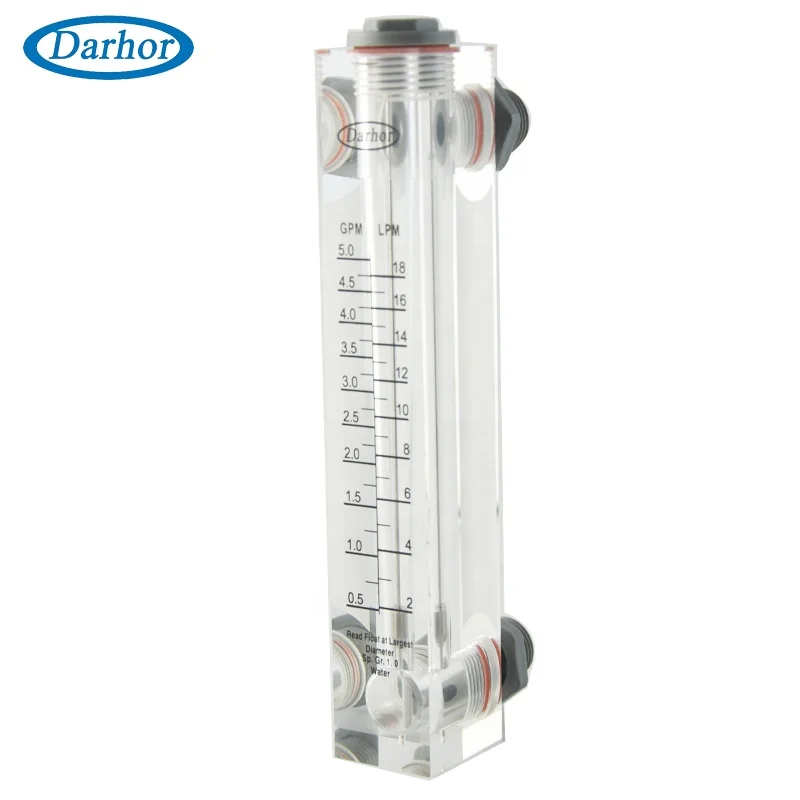

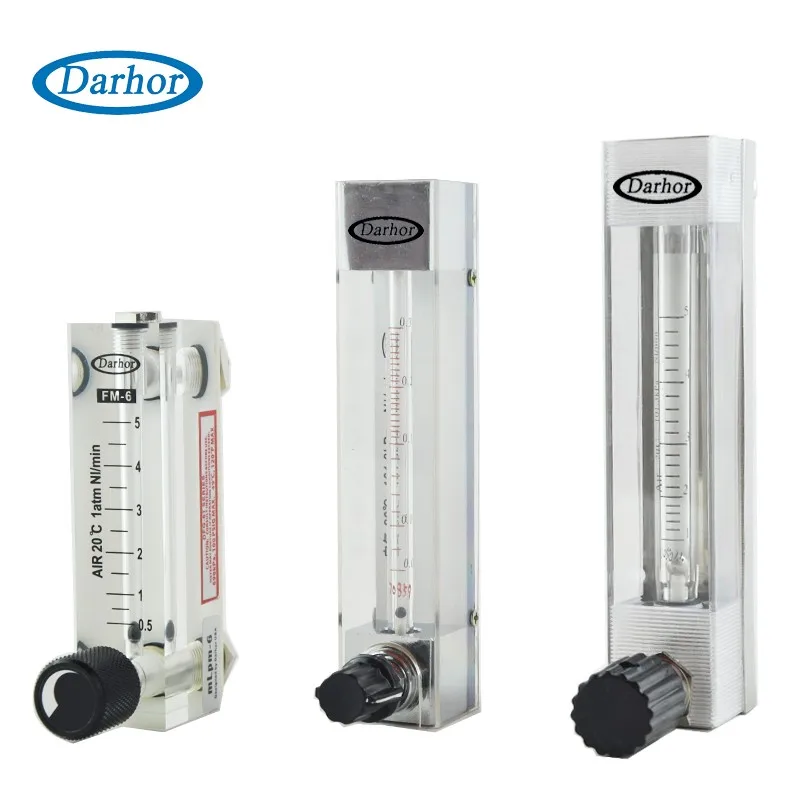

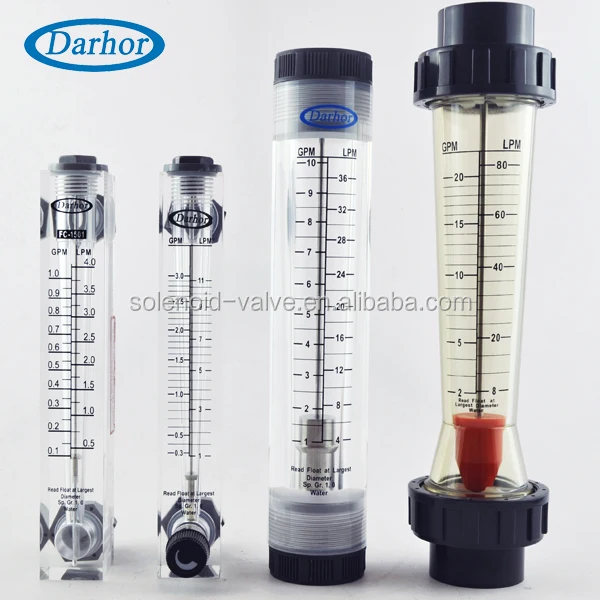

DFC durable panel mount nitrogen acrylic flowmeter water double scale rotameter

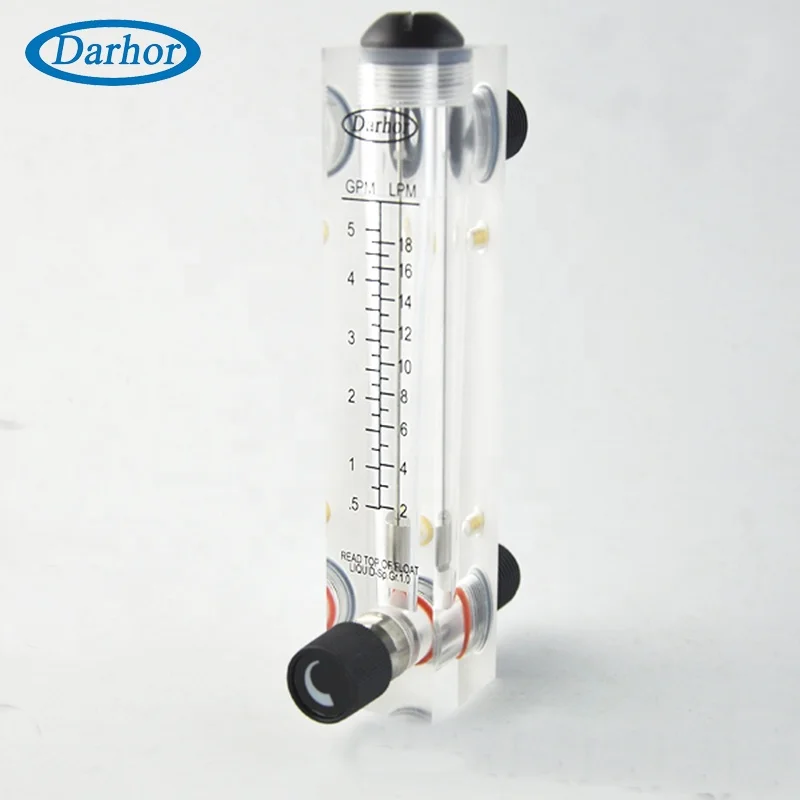

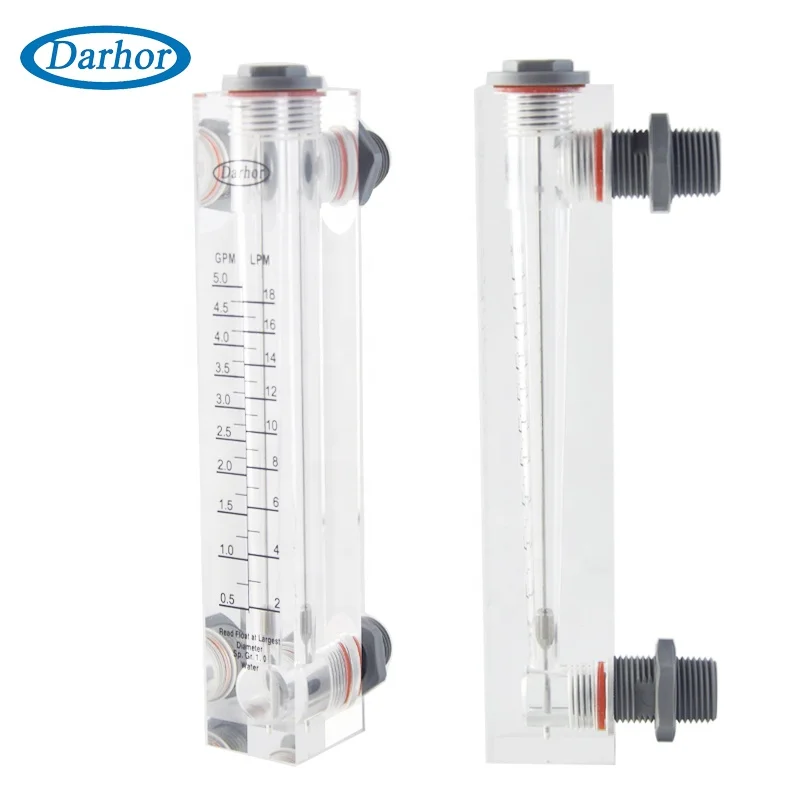

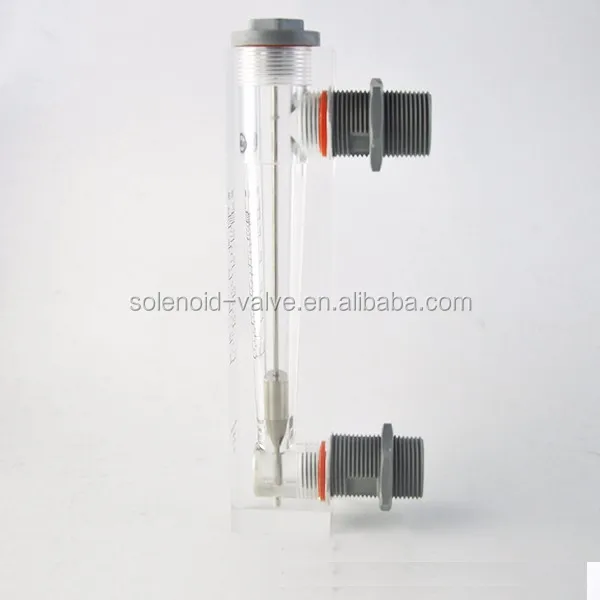

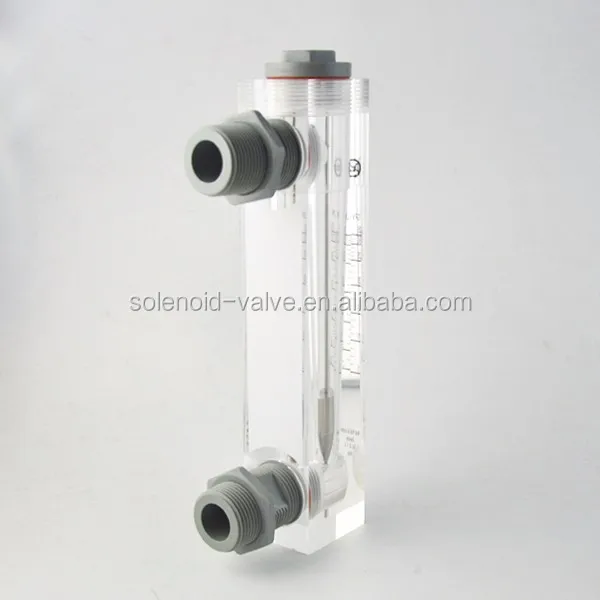

1.Durable, highly polished, one piece meter body.
2.Bulkhead nuts attach directly to inside panel.
3.Direct reading permanent scale.
4.Optional flow control needle-type adjustment valve.
5.316 stainless, PTFE floats and float guides.

Model	Measuring Range			screw thread	Accurary
	GPM(Liquid)	LPM(Liquid)	Nm3/h
DFC-15	0.1-1	0.5-4	1-10	Male 1/2'' BSP or NPT	±4%
	0.2-2	0.8-8	1.6-16
	0.3-3	1-11	2.5-15
	0.5-5	2-18	4-40
	1-7	2-28
	1.5-9	5-35
DFC-20	2-10	8-40	2.5-25	Male 3/4'' BSP or NPT
	2-16	8-60	6-60
	2-20	8-80	16-80
			16-160
DFC-25	1.5-15	6-60	20-200	Male 1'' BSP or NPT
	3-13	10-50	25-250
	4-24	10-100
	5-35	10-130
	5-45	20-170

Model	Size(mm)
	A	B	C	D	E	F	G	H	I
DFC-15	216	32	206	37	33	100	1/2''	165	30
DFC-20	233	39	220	44	49	100	3/4''	165	32
DFC-25	253	44	240	50	48	100	1''	175	40

Dimension.

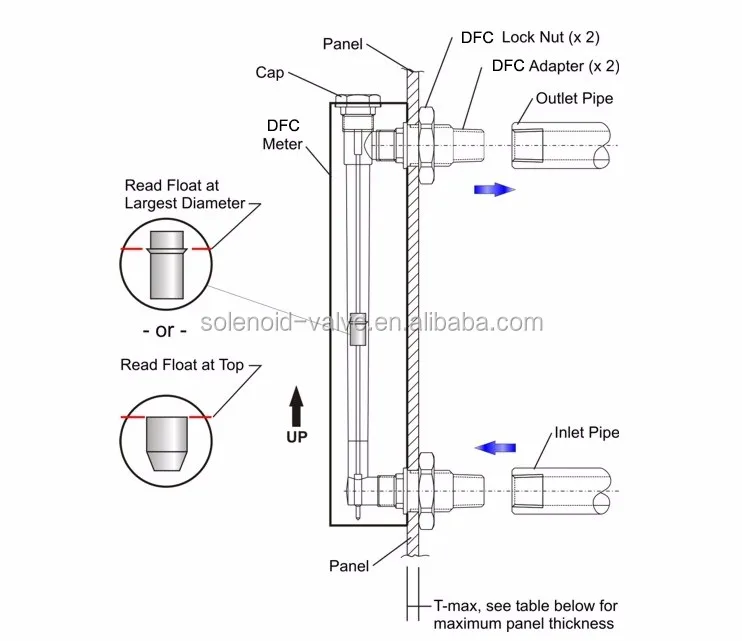

DFC series flow meters derive from DFB series flow meter,it has lengthen,which is installed on the panel, but flow range is same .Customer will fix it by hexagonal nut on the fitting.

With Valve	Valve	Fitting	Float	O-ring
T- with valve	1. Brass	1.PVC       2.PP	1.SS   2.Acrylic	1.Silicon rubber
O- No	2. Stainless steel	3.ABS      4.Brass	3.Agate ball	2. Fluorine rubber
		5.Chrome plated brass   6.SS	4. PTFE	3. Butyl

Detailed Images

Spare Parts

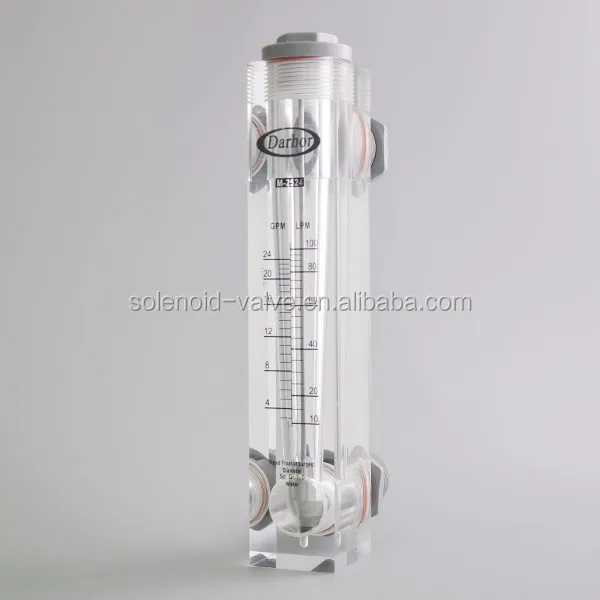

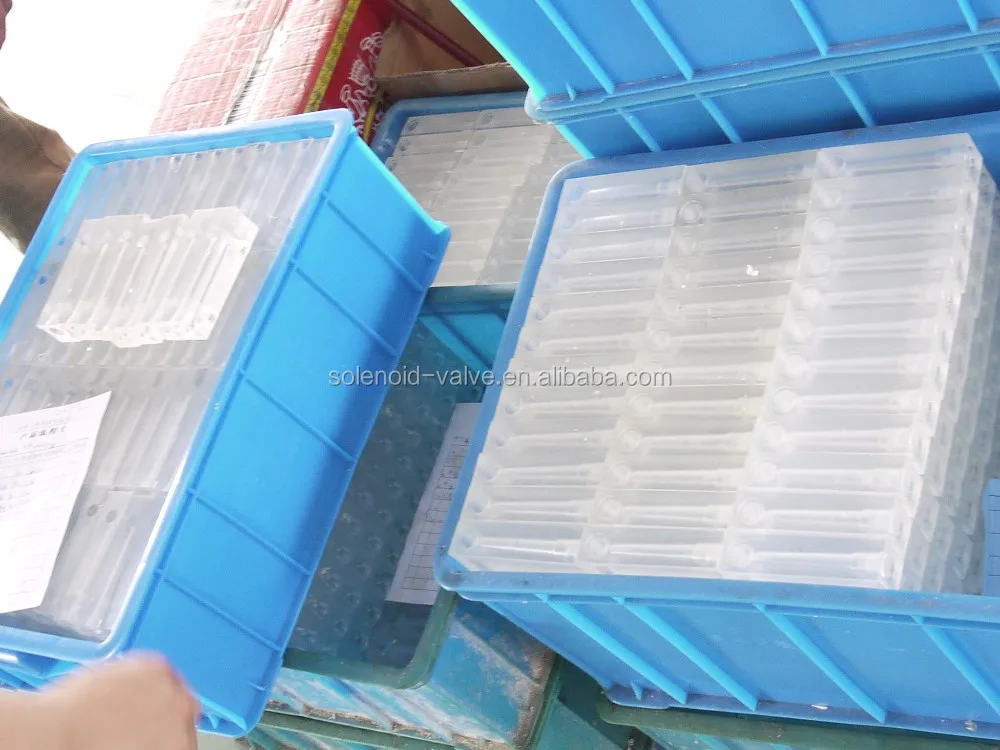

Body material : cast acrylic sheet

Rod: SS316 guide rod

1.White back reflector for easy reading

2. Adapter and lock nut: pure PVC

3. Viton seal

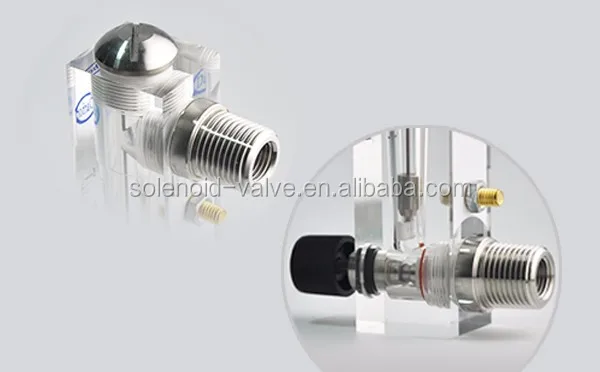

           Optional control valve :

             Optional flow control needle-type adjustment valve.



OEM

Cap Material : Stainless steel 316

Adapter Material : Stainless steel 316
