Price:$33.00 - $35.00
Price in USD:Details

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tWelcome to Minisite \t\t\t\t\t\t\t








Product Description

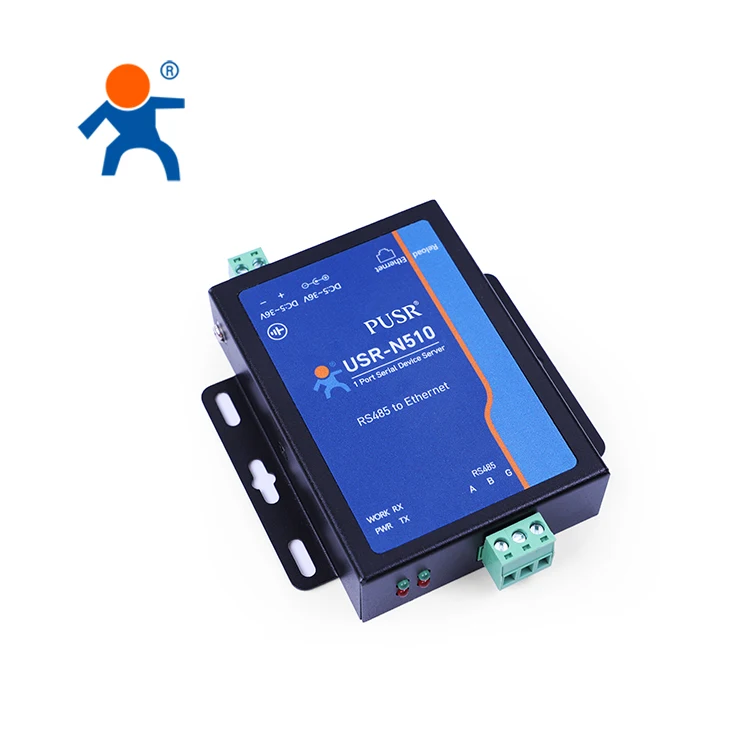

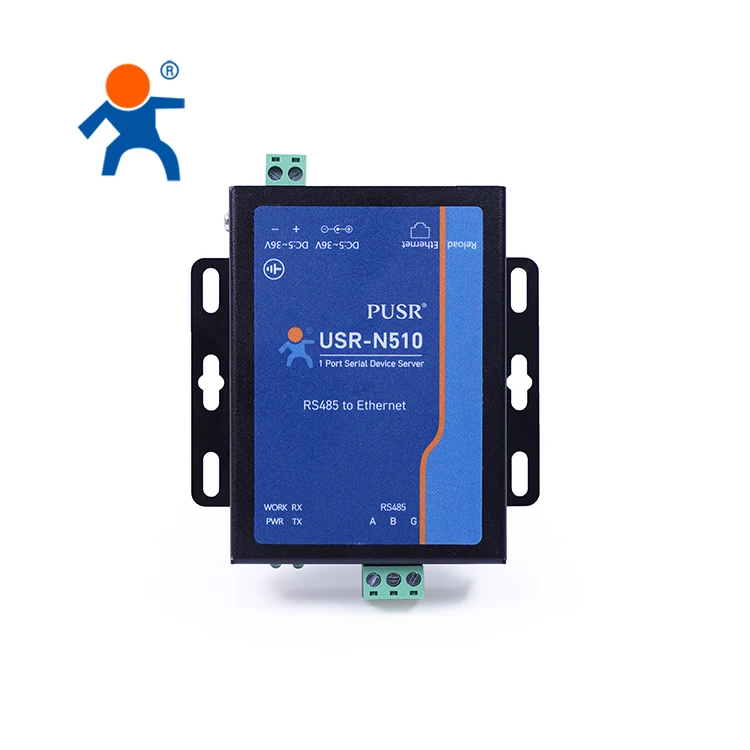

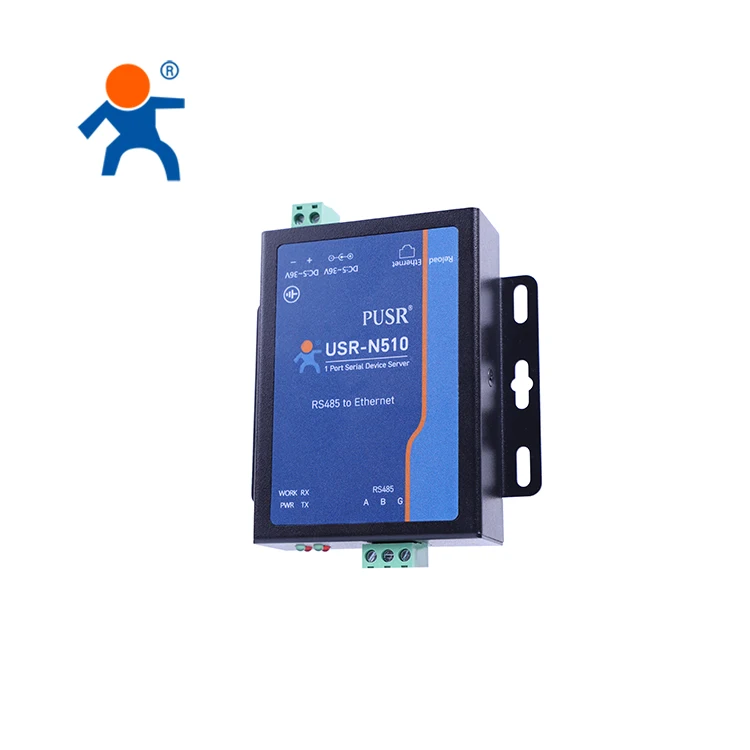

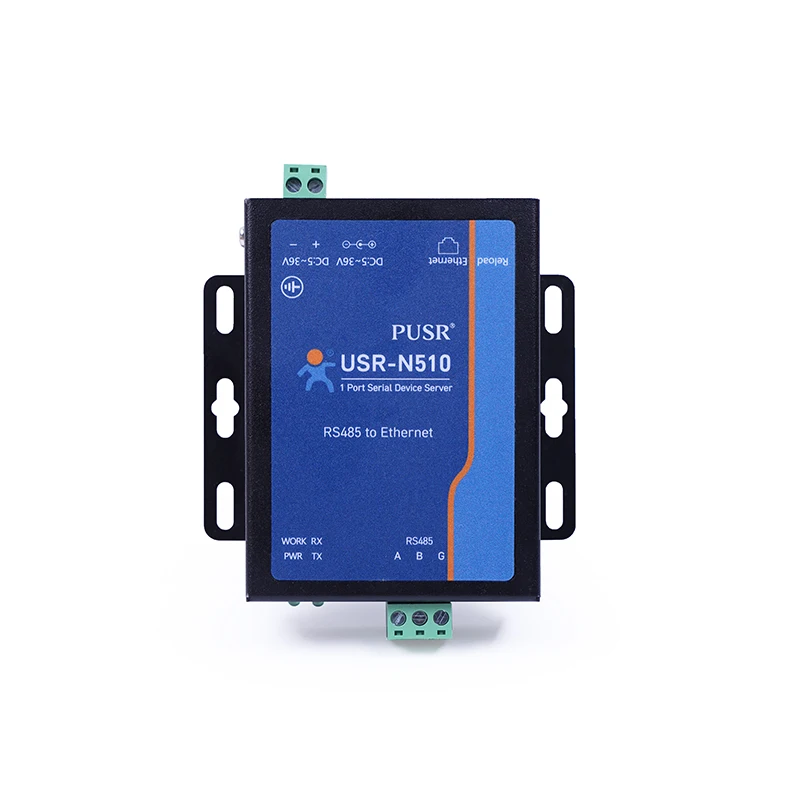

1 Port RS485 Ethernet Device Servers[NEW]
----------------------------------------------------------------------------------------------------------------------------------
1 port RS485 Ethernet device servers USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network.

● 1-port 485 Ethernet device servers
● Power supply accepts wide voltage input range DC 5-36V
● Modbus Gateway: Modbus RTU to Modbus TCP, Modbus Polling
● Support flow control XON/XOFF
● Configuration via Web Server page, AT commands, and Windows Utility
● MQTT/SSL/Modbus RTU to JSON/SNMP/Telnet/Edge Computing(Special firmware, contact sales)





Character


System Information
Processor
ST Cortex-M7
Basic Frequency
400MHz
Flash
128K+4M byte
Ethernet
Port Number
1
Interface Standard
8 pin RJ45
Rate
10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection
2KV electromagnetism isolation, shell insulation blocking
Network Protocol
IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
Receive Buffer
Max 16k bytes buffer
Serial
Port Number
1
Interface Standard
RS-485: 2 wire (A+,B-) Half-Duplex
Data Bits
7,8
Stop Bit
1,2
Check Bit
Even,Odd
Baud Rate
600bps ~ 921600Mbps
Flow Control
XON/XOFF
Buffer
Send and receive 4k bytes respectively
Protection
RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor
2.2 KΩ
Software
Virtual Serial（USR-VCOM）
Windows 2000 or higher(32 bit/64 bit)
Configuration
Built-in webpage, computer set-up software, serial command
Basic Parameter
Size
88 x 81 x 24 mm
Operating Temp.
-40 ~ 85°C (industry)
Storage Temp.
-40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage
DC 5 ~ 36V
Working Current
53mA @ 12V
Power
<1W
More
Certificate
CE,FCC,ROHS
Warranty
2 years

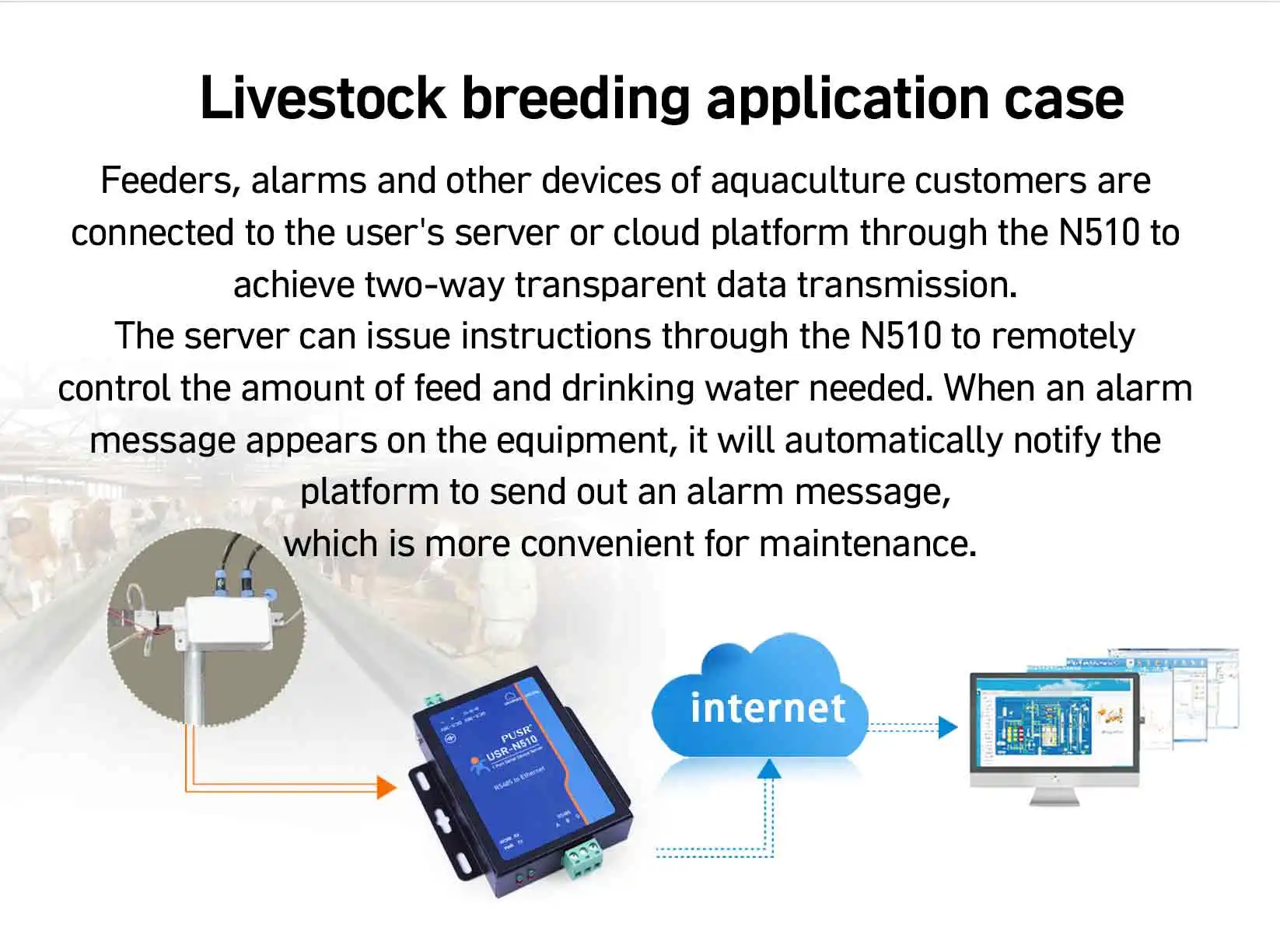

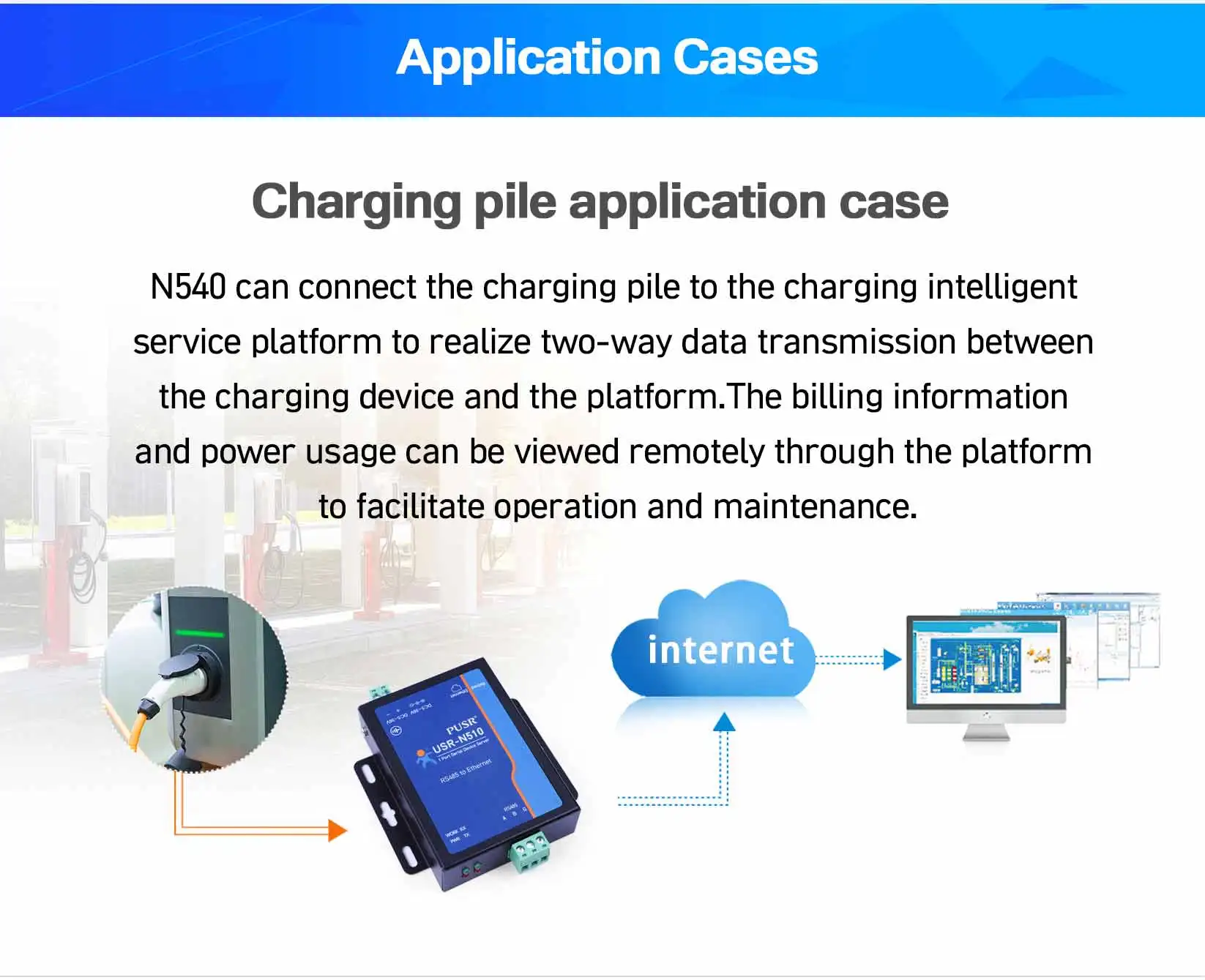

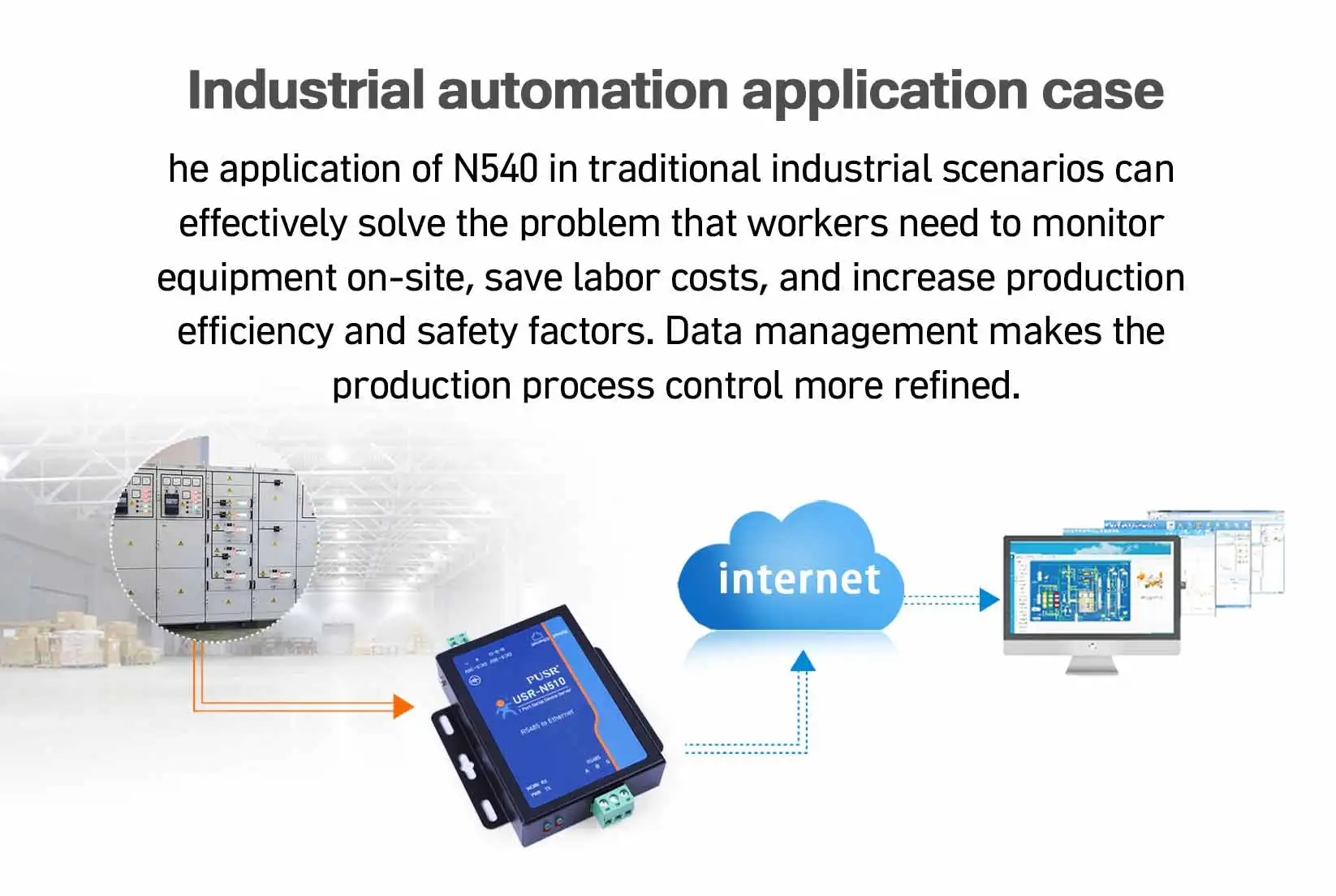

Application








\t\t\t\t\t\t\t\t\tUSRIOT Company \t\t\t\t\t\t\t
