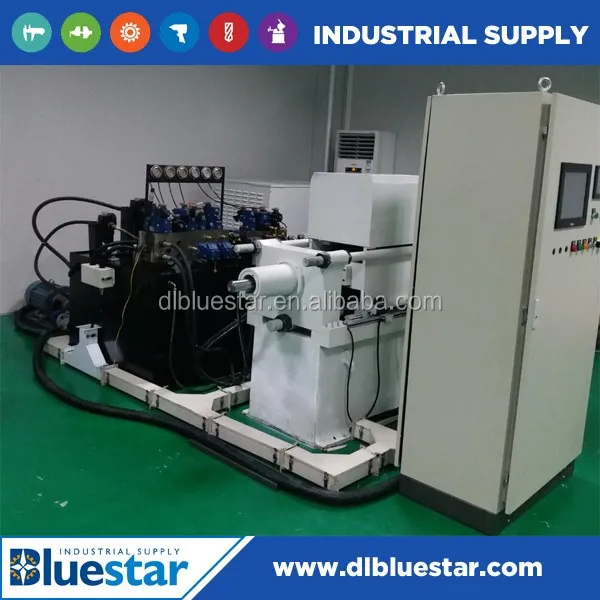

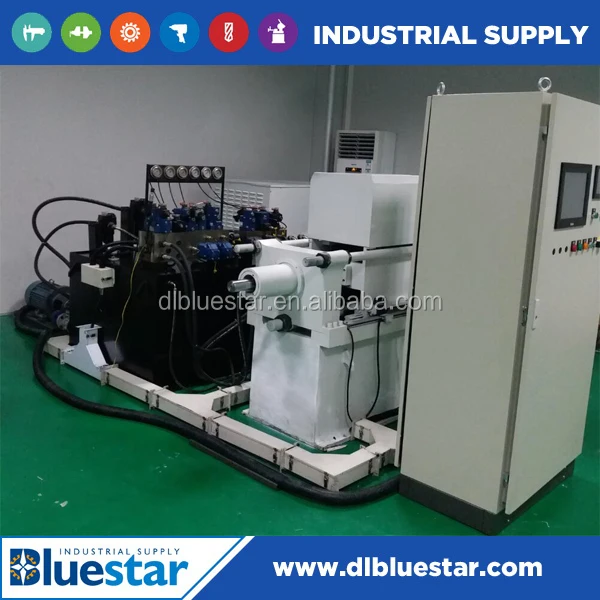

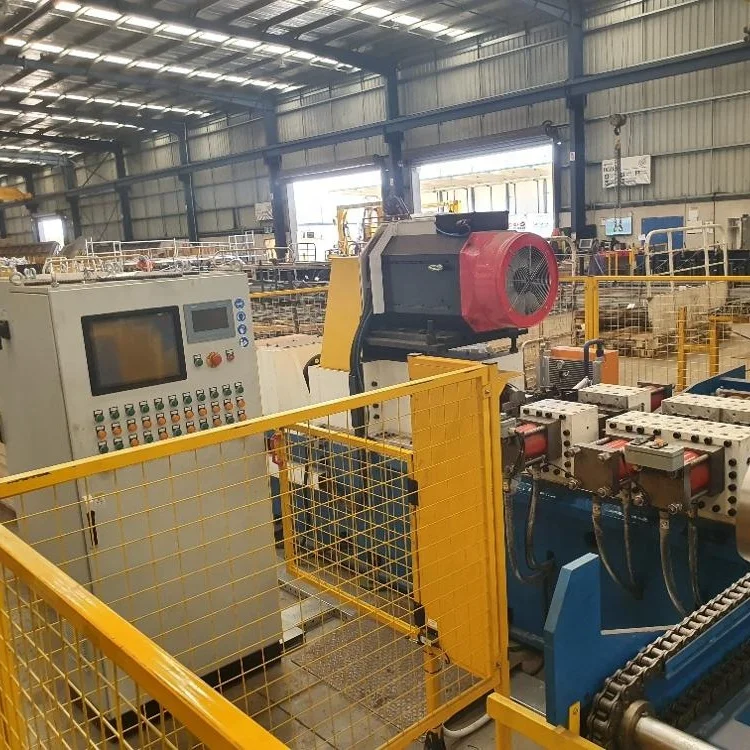

Aluminium Copper Cable Lug friction welding machine

Aluminium Copper CABLE LUG FRICTION WELDING MACHINE

1. Standard name, model, summary of equipment

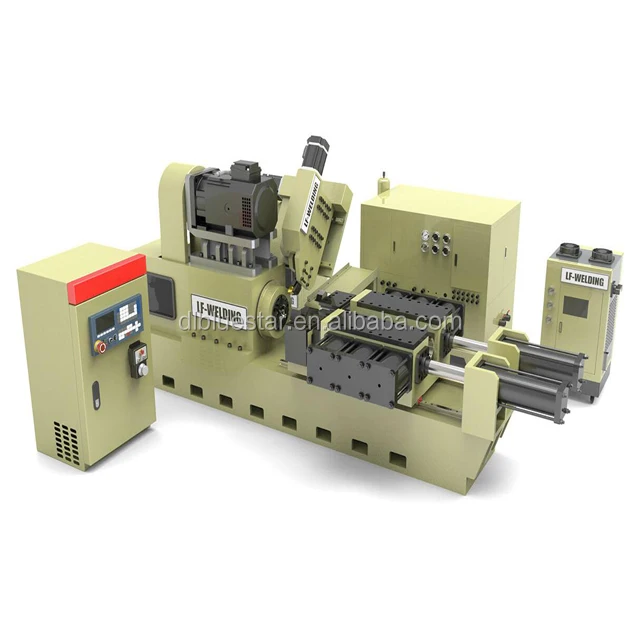

1.1 Equipment name: Friction welding machine

1.2 Equipment model: ZCC-30Y-Q

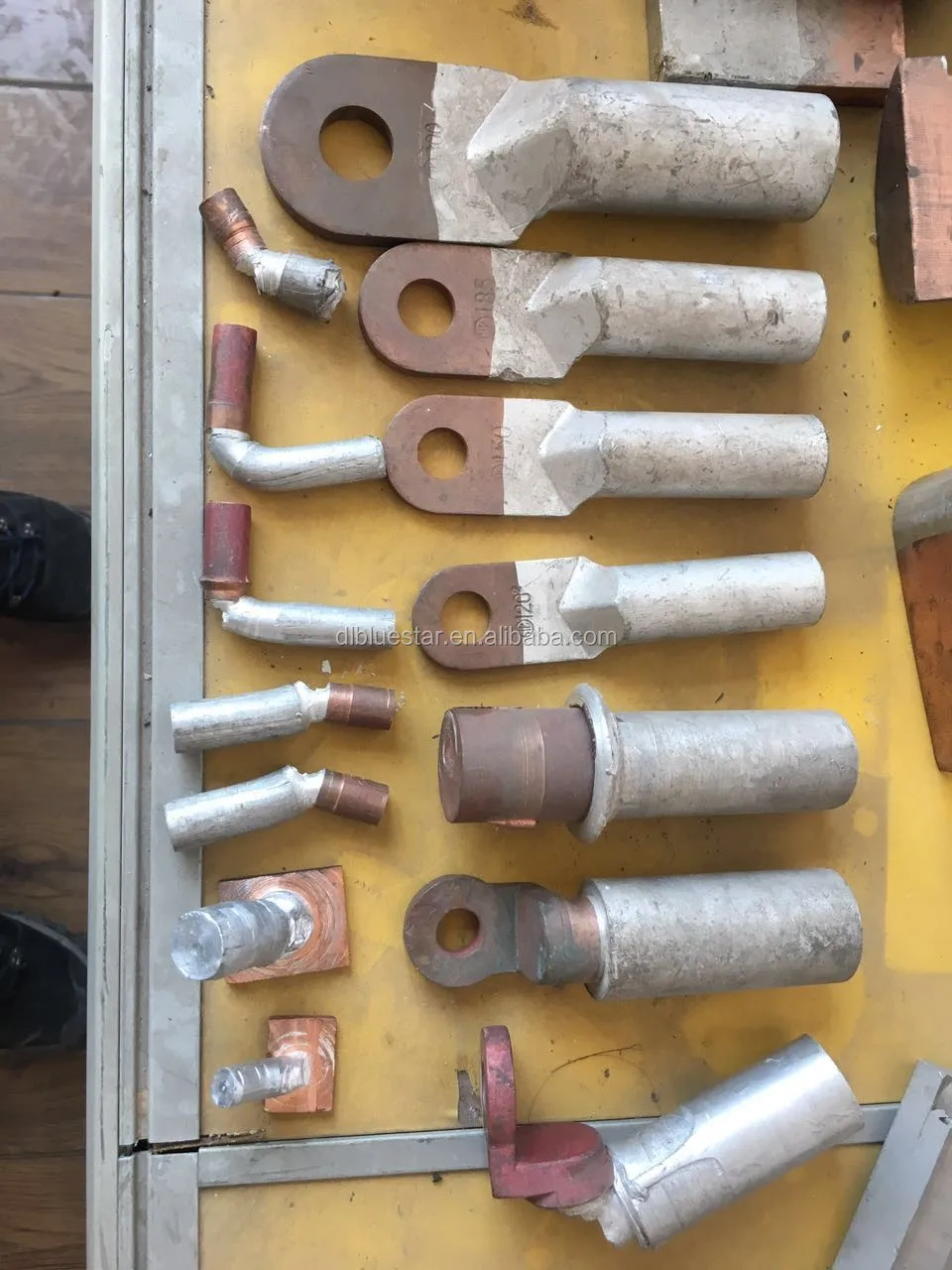

1.3 Welding product:  friction welding machine for cable lug bimetal production

1.4 Supply scope:

1.4.1 Main part of Friction Welding Machine

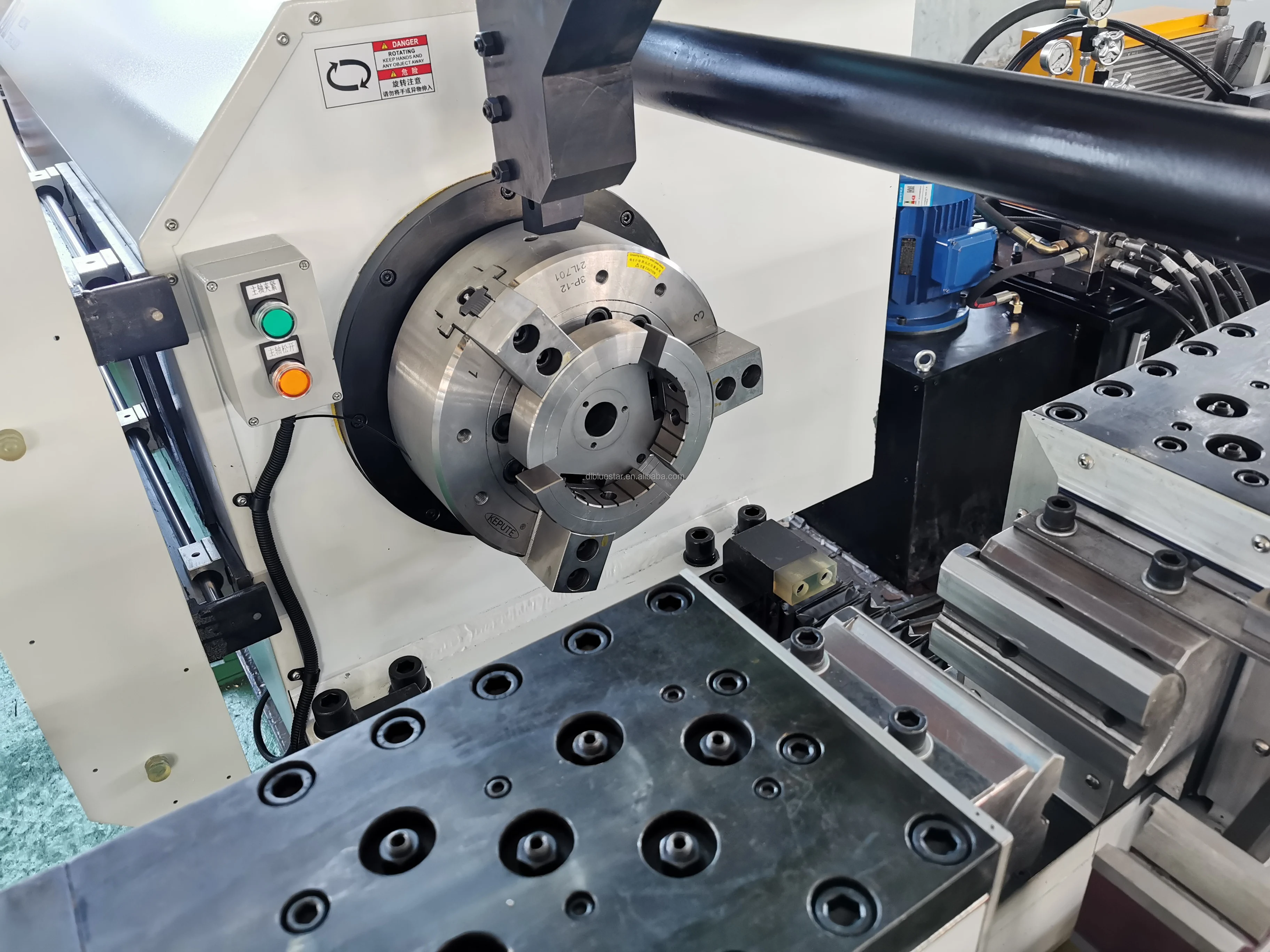

1.4.1.1 One set of moveable headstock, including DC main motor, ParKer driver made in Britain, spindle, synchronous belt transmission, bearings, symmetrical pulling double hydraulic cylinders, one set of rotary fixture, with hydraulic collet chuck, one set of fixed split jaw,, one set of  two-axis CNC turning external flash removal system;

1.4.1.2 One set of fixed jaw for bed: a set of self-centering V-shape jaw can accommodate all rod diameters, one set of fixture includes two groups of horizontal split C-shape ragged jaw, and one group of self-centering external flash removal center rest

1.4.1.3 The whole bed body should be heat-treated

1.4.2 Monitoring System

1.4.3 Electric control system

1.4.4 Hydraulic system, one set of oil-cooler

1.4.5 Lubrication system

2. Product processing range

2.1 Welding diameter:Aluminum Rods Φ 12-34mm

Copper Rods Φ 10-30mm

After welding length 80-140mm

2.2 Maximum welding area ≤1000mm

2.3 Welding workpiece material: Aluminum- Copper

3. Equipment power voltage

3.1 Spindle motor: 380V, 50HZ, 30KW, one set

3.2 Driver: ParKer 590C series DC driver

3.3 Oil pump motor: 380V,50HZ,    11KW and 3.7KW one set each

3.4 Lubrication Motor: 380V, 50HZ, 370W,one sets
