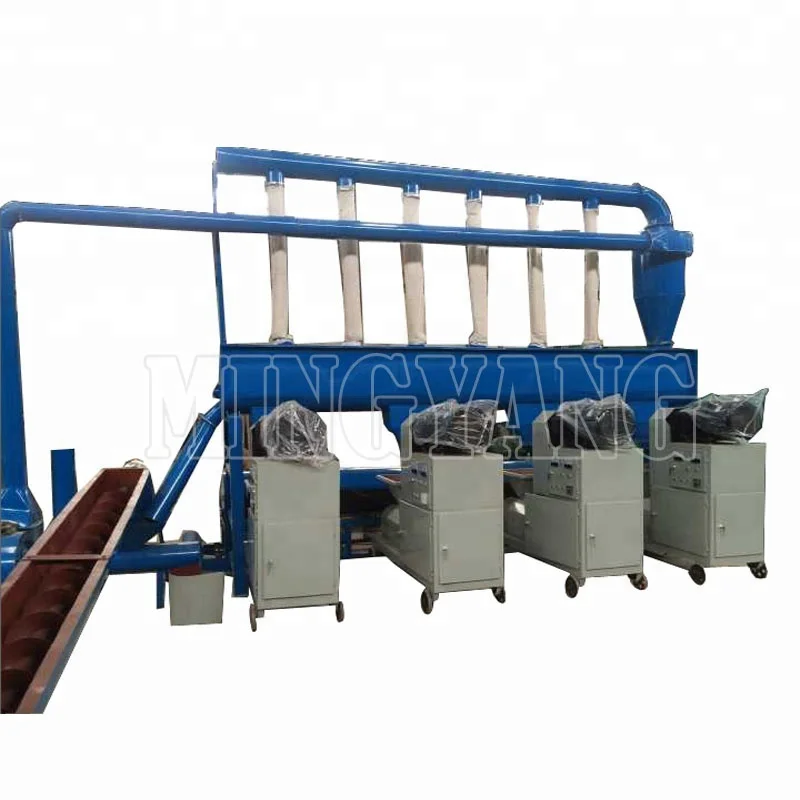

Малая древесная солома, рисовая шелуха, Кокосовая Скорлупа, древесный уголь для брикетирования, использует винтовую брикетную машину

 of eco-friendly wood chips powder sawdust briquette manufacturing machine

1.technology data and models of the eco-friendly wood chips powder sawdust briquette manufacturing machine

models of eco-friendly wood chips powder sawdust briquette manufacturing machine

picture of theeco-friendly wood chips powder sawdust briquette manufacturing machine

model: ZBJ50-9 1.Capacity :100-150kg/h 2.Total power: 15.5kw 380v 50Hz    Motor power: 11kw 380v 50Hz  Heat coil heater: 1.5kw*3  380v 50HZ 3.Packing dimension :1750*680-12500mm 4.Weight :500kg 5.Electricity consumption: 15kw/h 6 Demand on material: moisture: 8-12%, diameter;3-5mm 7 Product feature: (1) External form size: external diameter:50mm,Internal diameter :15mm  Length:300-400mm The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with pentagon (2) Specific gravity: 1200—1300kg/m3 (3) Calorific value: 4400—5000kcal/kg 8.spare parts: propeller, coil heater, barrel

other models of the eco-friendly wood chips powder sawdust briquette manufacturing machine

the introduction of eco-friendly wood chips powder sawdust briquette manufacturing machine

Uzbekistan market Engineers available small wood sawdust briquette producing machine make the biomass material into briquettes. After the well preparement  of raw material, briquetting is easy at right operation of biomass briquette press. When machine rise to over 300 centigrade, the material can be feeding continuously into briquetting press. First, the color of briquettes may be a little dark even black, but after a while, the color will be light to normal level coming out of biomass briquette machine.

raw material of eco-friendly wood chips powder sawdust briquette manufacturing machine

sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.

final products of eco-friendly wood chips powder sawdust briquette manufacturing machine

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.

The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge

 The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

The available length could be :20cm,30cm, 40cm, 50cm

The feature of the final product : Specific gravity: 1300—1900kg/m   Calorific value: 4500—5000kcal/kg

advantage of the eco-friendly wood chips powder sawdust briquette manufacturing machine

• No binder or noxious chemical need to use.


• reasonable design of the hopper height , reduce the working intensity of the labour


• automatic electric heating device,can adjust raw material moisture.ensure that the material forming stability,improve the work efficiency


• main parts of the machine made from wear resistant material(, the machine can working 24 hours per day Change the three bearing into four, increased the stability of the machine


• Change the lubrication method, (maintenance much easier                                                                                 change the mould barrel structure, reduce the friction between the machine and raw material,increase the final product density


• Invented a break system which can guarantee to make the length of Briquette sticks same


• control panel in both Chinese and English more easier for operate

structure of the eco-friendly wood chips powder sawdust briquette manufacturing machine

The main machine include the electrical motor, heating system,  switchboard, Temperature control device, rack, transmission lubrication system, the screw propeller, molding barrel, etc.

customers and projects of eco-friendly wood chips powder sawdust briquette manufacturing machine

After 25 years development, our products have been exported to more than 150 countries and areas.

working principle of eco-friendly wood chips powder sawdust briquette manufacturing machine

Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind,compress and extrude the biomass into briquettes.

The self bonding of biomass to form a briquette involves the thermos-plastic flow of the biomass. The natural lignin content in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, binds the particles of wood together, thus binding,compressing the biomass to form into high density briquettes.

A.: The size of material should be no larger than 5*5mm

Q. What is the suitable moisture for briquetting?

A.: The suitable moisture is in the range of 8-13%

Q. What is the final use of the briquettes?

The final briquettes can be fuel for cooking, warming house ,as fuel for boiler and as fuel for BBQ,etc.

Q. How many kgs of waste needed to form 01 kg of briquettes?

A.: For moisture content 8-12% material, 1.2kg of waste can form 1kg briquette

Q. How many Kcal we can get when burning 01 kg of briquettes?

A.: 4500-6000kcl/ kg

Q. Daily capacity of wood briquettes? (How many kgs of briquettes can be produced per day?)

A.: Different model of briquette machine have different capacity. For example 11kw briquette machine, the output of wood briquettes is 1000-1200kg /8 hours (one shift)

Q. Any sub materials/paste we need to add in during the briquetting process?

A.: No, our machine can produce clean briquette without using additives or binders.

Q. Can we make the briquette machine in single phase?

A.: we can't make the machine with single phase motor now.

Q. Which briquette lengths can be stopped

A.: usually the length of briquettes breaks at 450mm, , minimum briquette length is 200mm, no limit for the maximum length .

Q. What’s the min & max capacity of the machine?

A.: The minimum capacity is 2T, while the max capacity is 30T/H.

Q. What kind of material can be used to be pressed by this roller press?

A.:It’s mainly used in the briquettes making of various material
