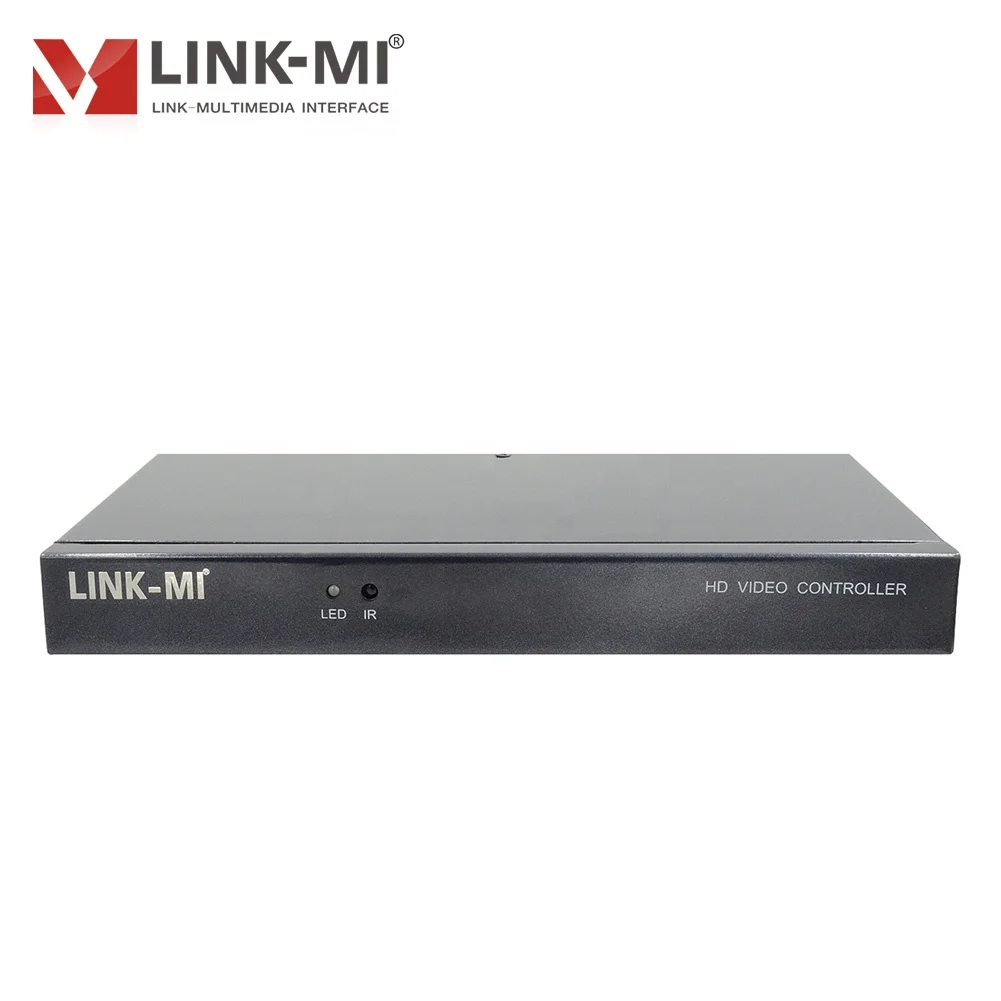

LINK MI HD Caption Adder 4x1 HDMI Video Capture Caption/Subtitles/Title Video Image Processor 4 in 1 out Video Processor

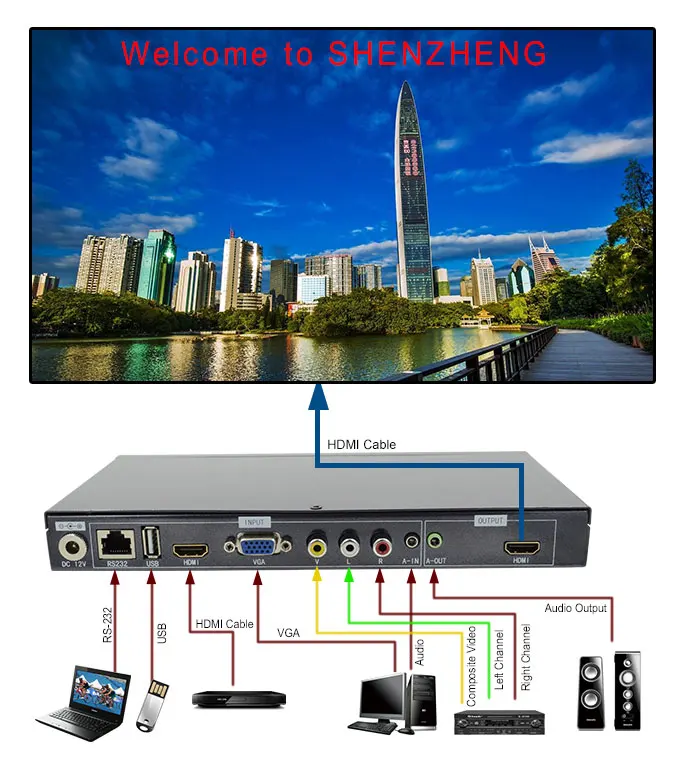

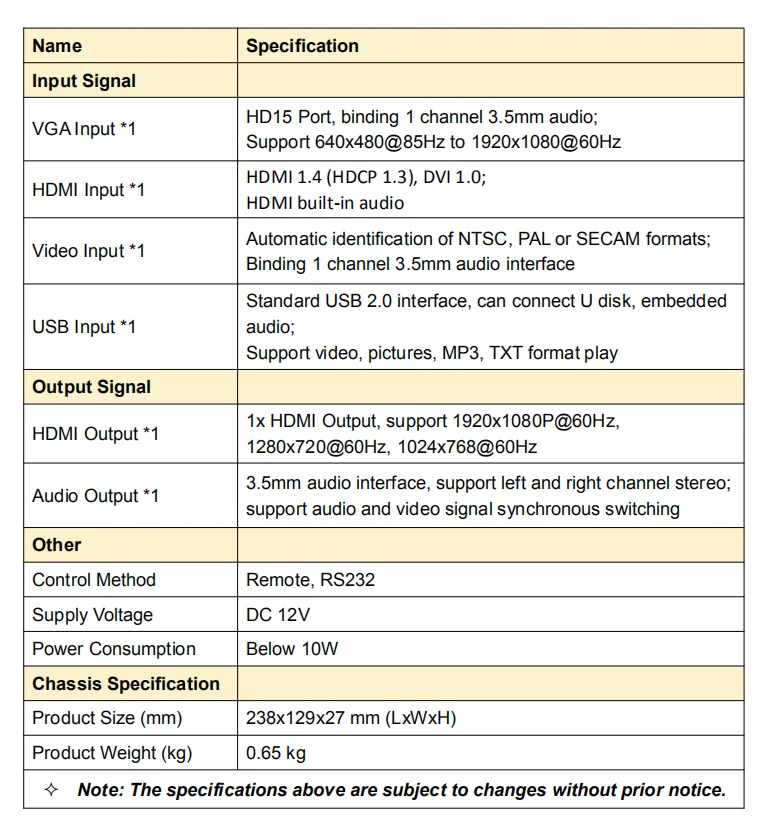

    LINK-MI LM-WPS41 is a versatile image processor, realizing the caption adder, multi-signal fold line switching , signal format conversion, rotate 180 degrees of image, screenshot image, image compression, and other functions through a single piece of equipment. Product support 1 Composite Video, 1 channel VGA, 1 channel HDMI, 1 USB Signal Input, and 1 HDMI, 1 independent audio signal output. Input and output signal can support full HD up to 1920x1080@60Hz. All input signals support image and audio synchronization switching.

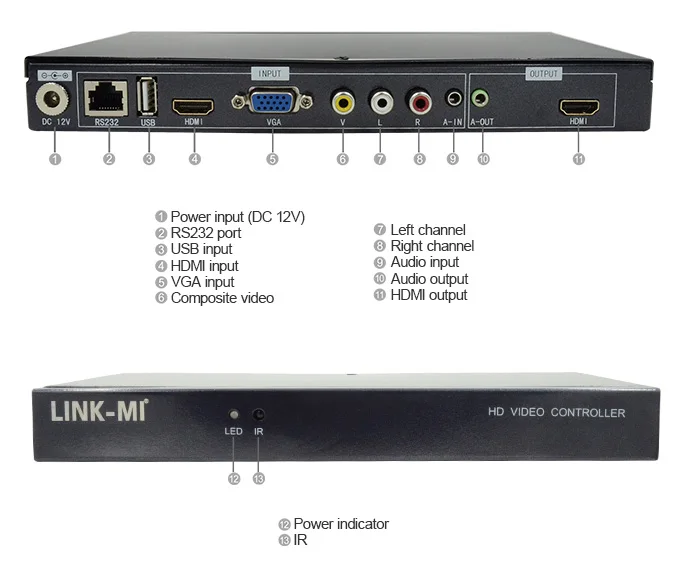

1. Support USB+HDMI+VGA+AV Signal inputs

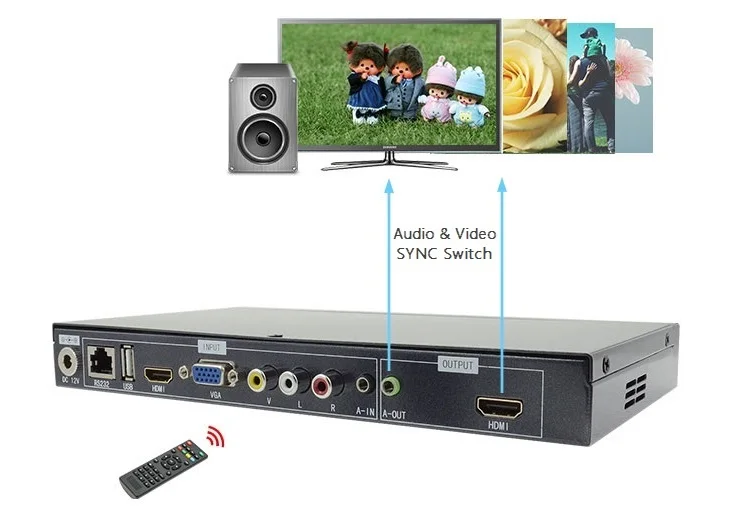

Any one of the 4 input signals can be switched to display unit by remote or control software. All Support audio and video synchronous switching

2. Audio Function:

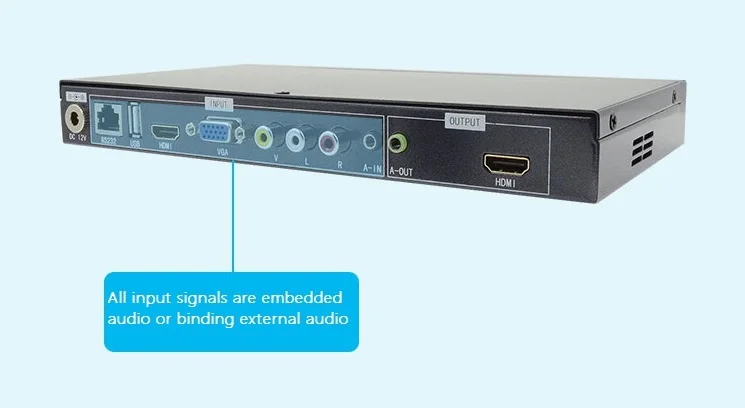

All input signals are embedded with audio or binding external audio

3. U-disk Play Funtion:

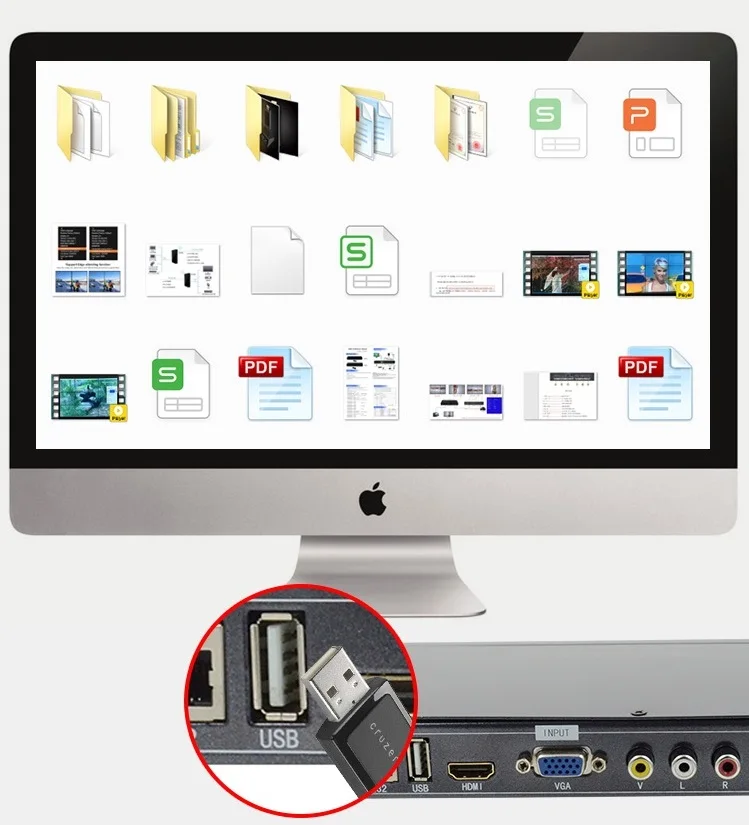

User can play videos, images, TXT files and MP3 in U-disk and don't need other decoding devices

4. Caption Adding Functon:

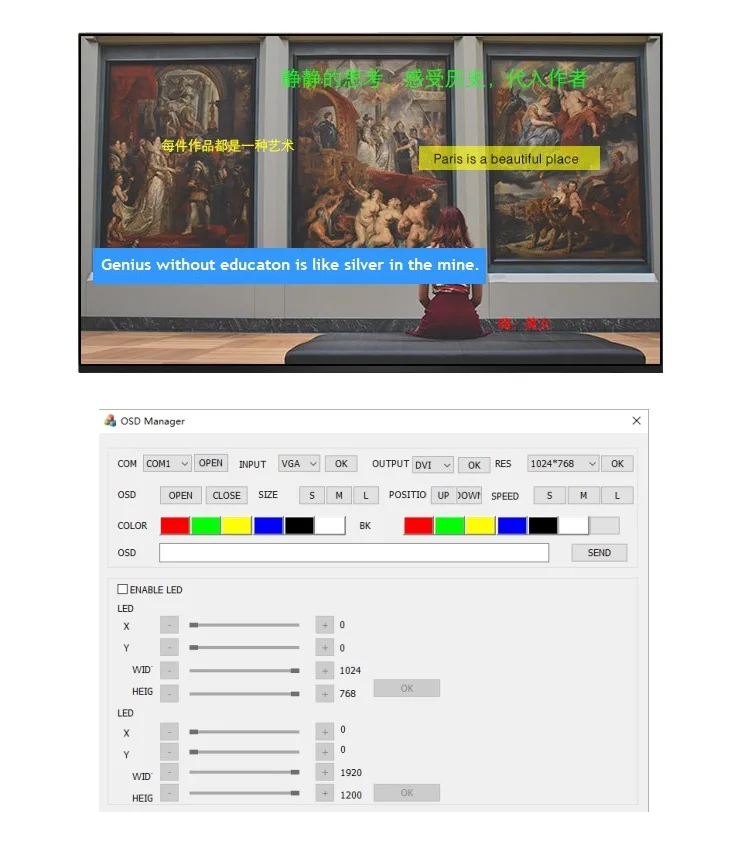

Via software control users can input any Chinese and English caption to display unit and select text size/position/color/font/moving speed/background color...etc.

5. 180 Degree Rotation Function:

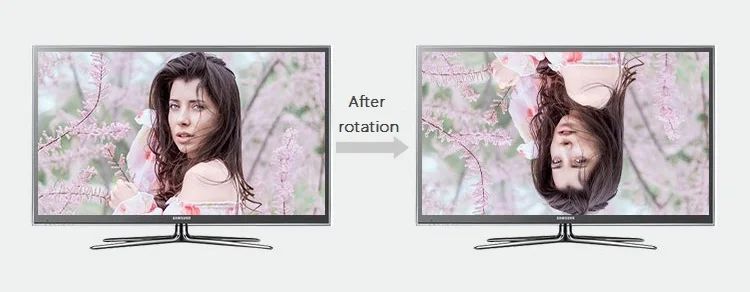

Support 180 degree mirror rotation by remote control

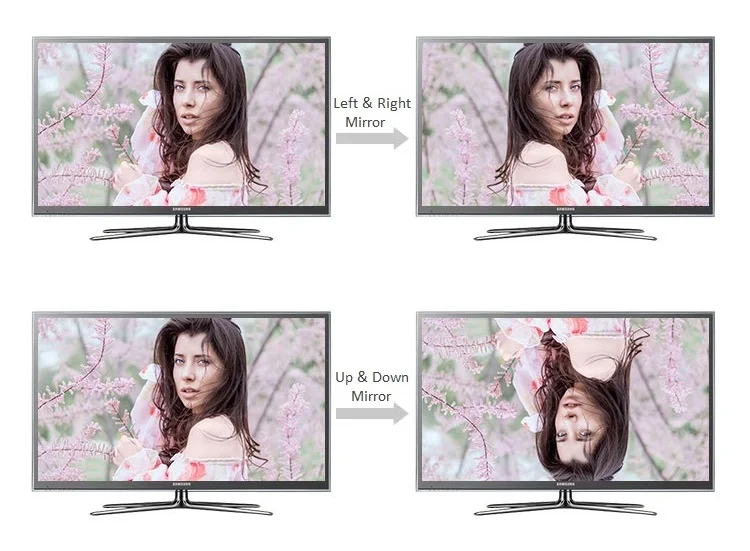

6. Left & Right and Up & Down Mirror Function:

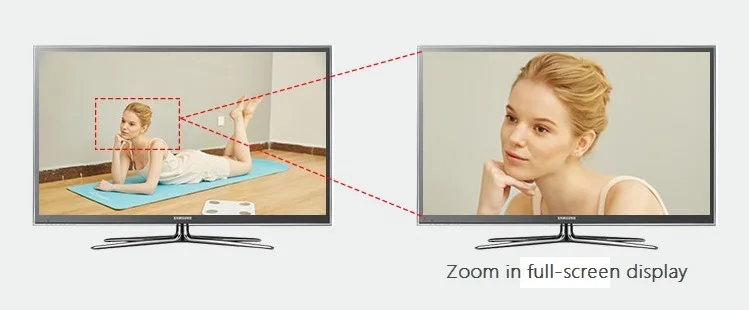

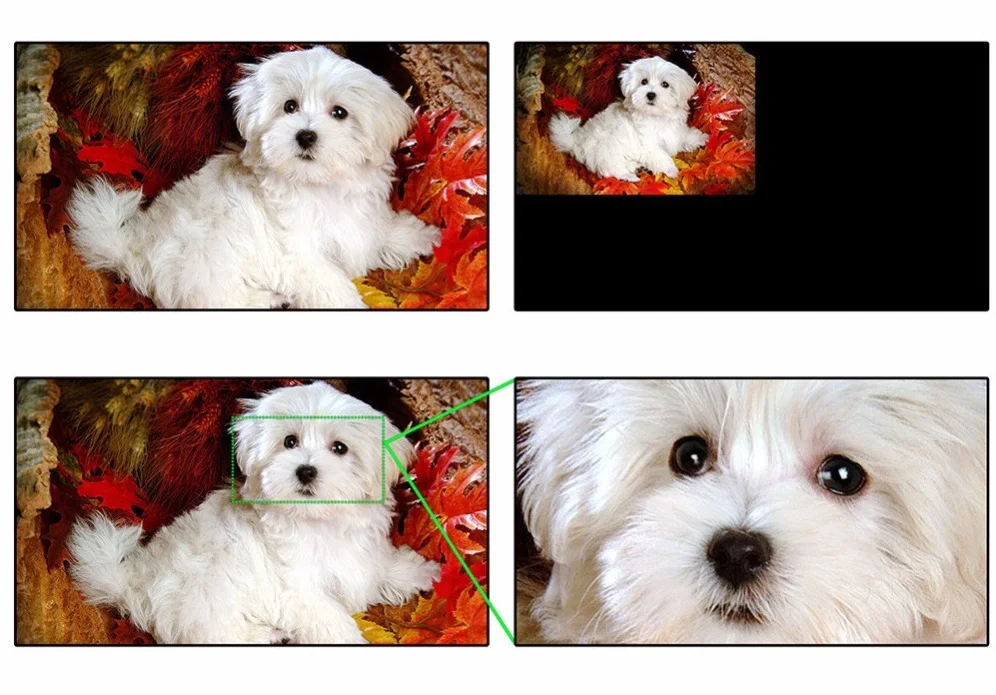

7. Image Clipping Function (LED Screenshot Function):

Any part of a complete signal can be intercepted and zoom to full screen display by LED screenshot function

8. Image Compressed Function:

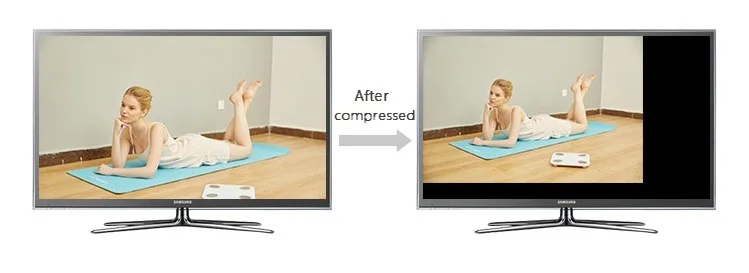

Compress a complete video signal and make it show only on a part of the dispaly unit, mainly used in LED full-color screen

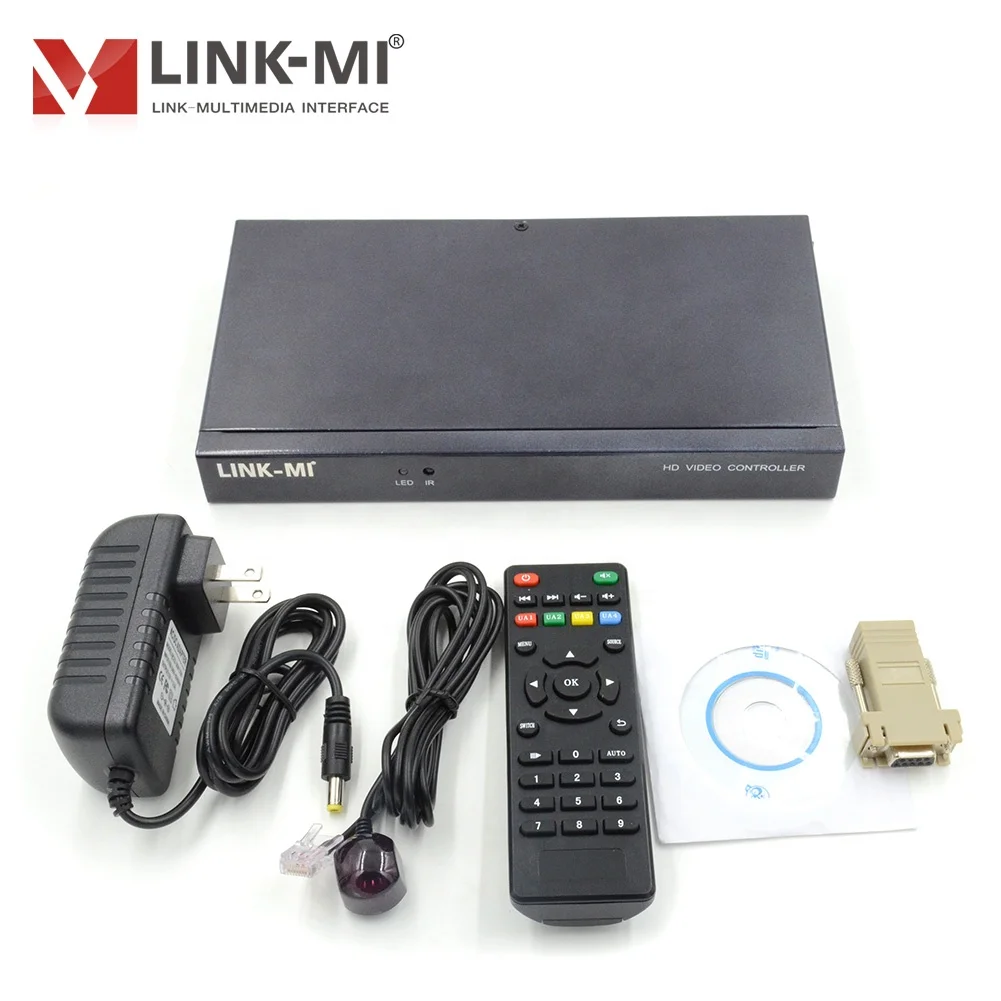

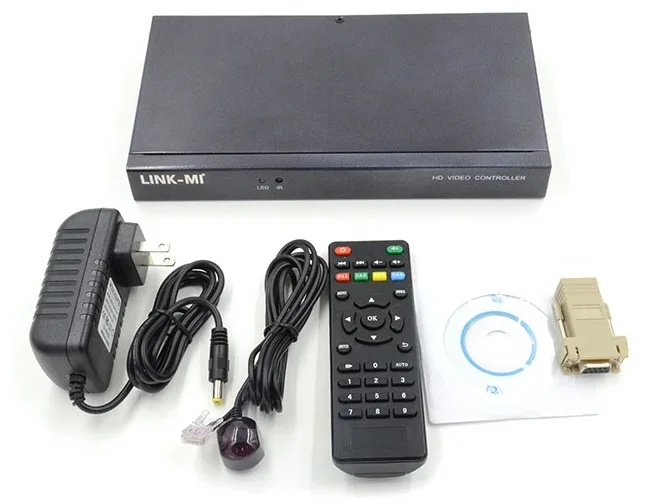

1) 1x Main Unit (HD Caption Adder)
2) 1x Power Adapter
3) 1x Remote Control
4) 1x IR Cable
5) 1x CD for Control Software
6) 1x RJ45(Female) to RS232 (Female) Connector
7) 1x User Manual
