elevator parts gearless elevator motor brake

Product Overview

Description

Production description:

elevator parts gearless elevator motor brake:

1.Characters

Large brake torque,low temperature rise,low noise,long service,fast brake,low energy consumption ,safety reliability.

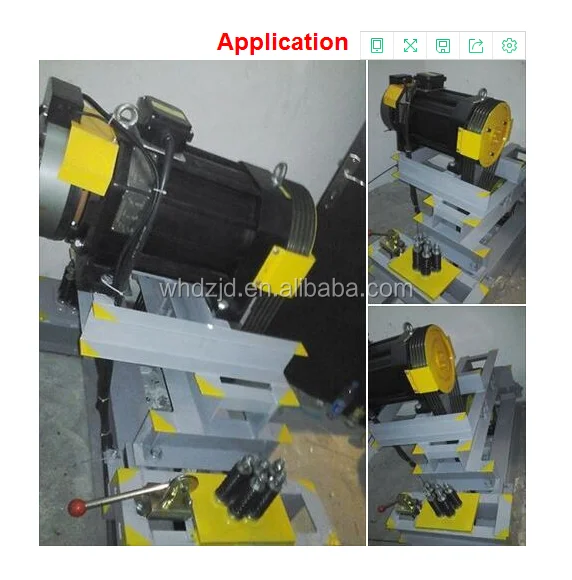

2.Application

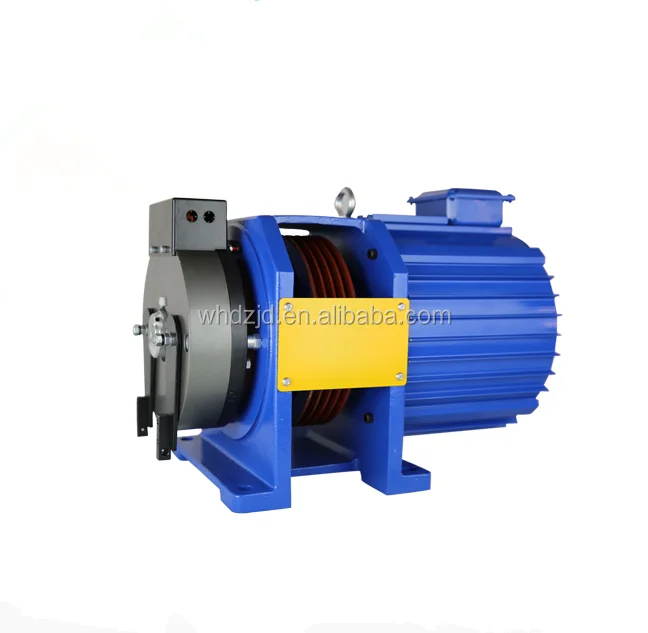

Widely used in various disc axis brake on gear or gearless elevator traction,constitute the braking system of traction machine.

3.Constructure and principle

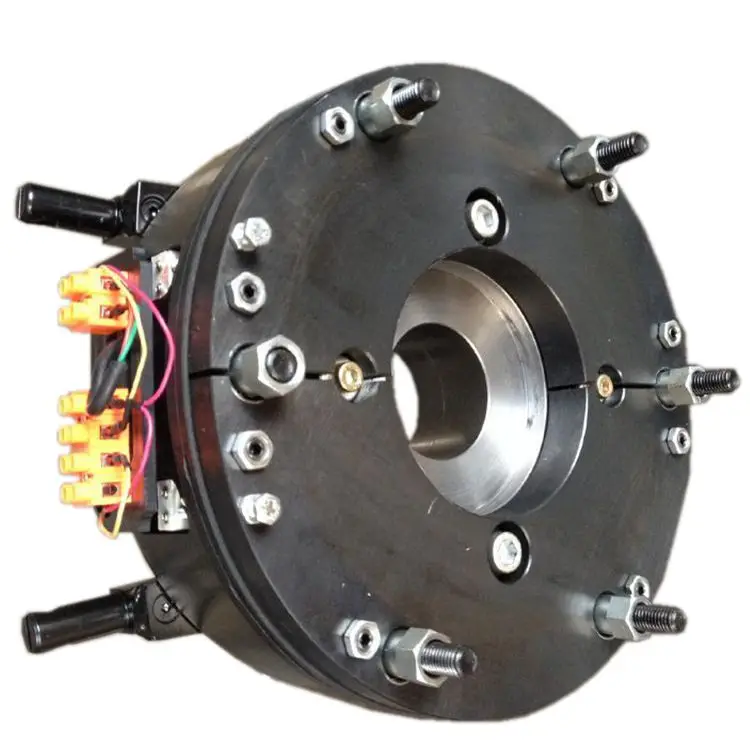

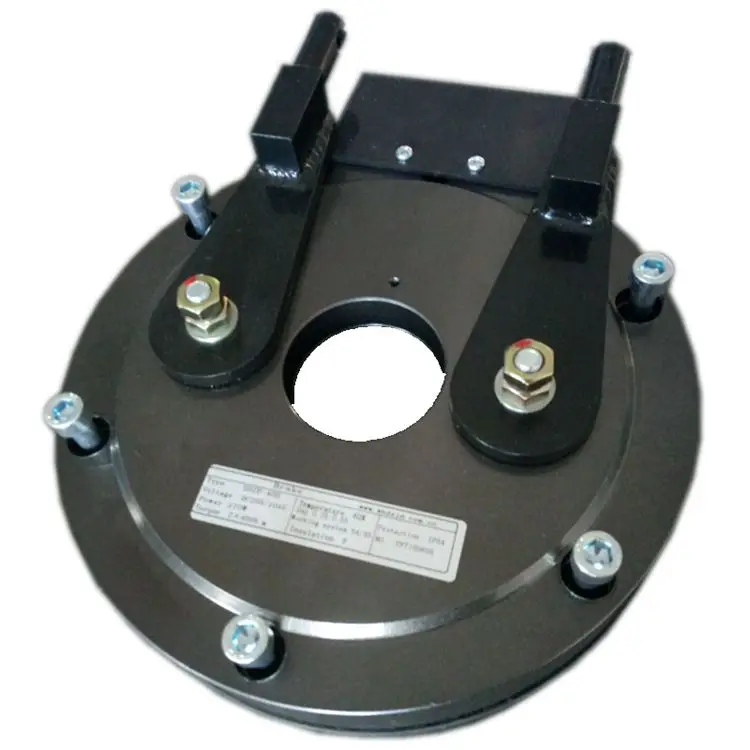

SDZP type disc brake’s coil 3 through DC electricity to cuase magnetic field because electromagnetic iron 8 and armature 5 are made of high purity soft magnetism material,magnetic resistance small,but it can cause large magnetic force,according to electromagnetic iron’s principle,armature 5 was pick up by electromagnet 8,brake disc 7 was release,when power off,spring 4 thrust down armature pressing brake disc 7 to realize brake,this brake assemble remote monitoring microswitch and handle take off the brake,easy operation.

Contact  more details information:

·Tel: +86 0553-3023358

·Fax: +86 0553-3022805

·E-mail: sales @whdzjd.com.cn

·Skype:maozhenzhu

.Wechat:15375537758

Why do you choose us?

                             Your choice,I promise.

Type	A	B	C	D	E	L	L1	L2	L3
SDZP-200	230	208	180	140	65	82.3	35	2	32
SDZP-400	260	230	206	155	65	96.3	40	3	40
SDZP-600	285	250	225	185	65	113.3	50	3	48



TYPE	L4	L5	N-M	H	d	b	h	δ
SDZP-200	105	120	4-M10	130	44.5	12	47.8	0.25
SDZP-400	118	130	6-M10	130	50	14	53.8	0.25
SDZP-600	135	150	6-M12	130	60	18	64.4	0.25
