Japan/korea type vibrator

Product Overview

Description

Description
Internal concrete vibrators use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head.  The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor and petrol or diesel engine drive units series, with 7 standard poker diameters. The vibrator poker is top of the range poker head suitable for professional application.

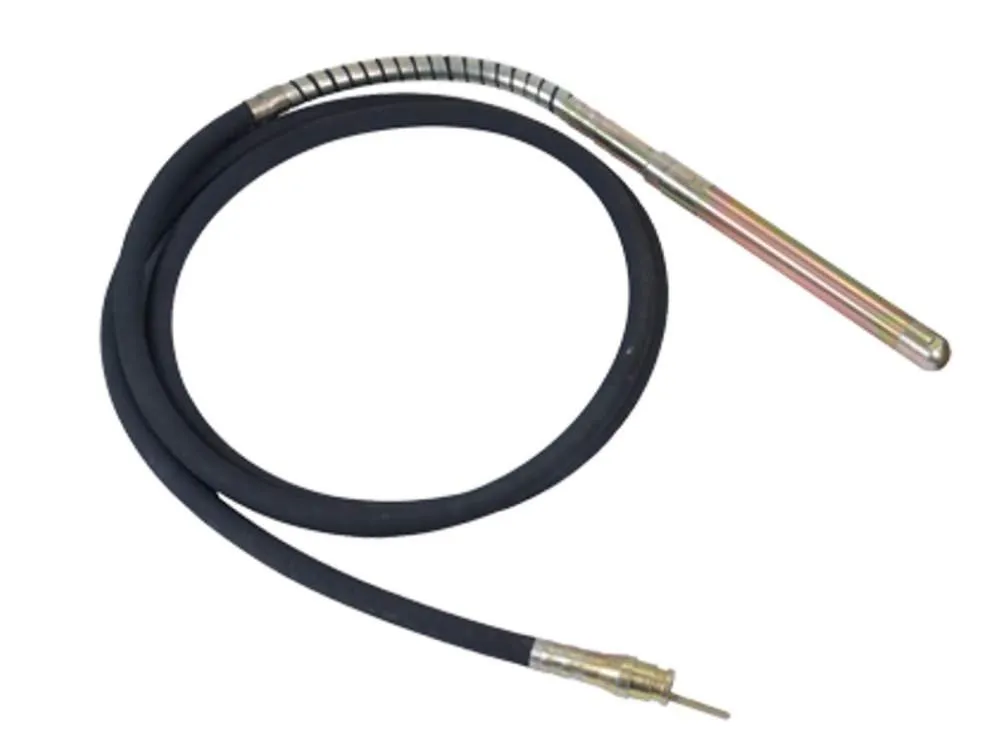

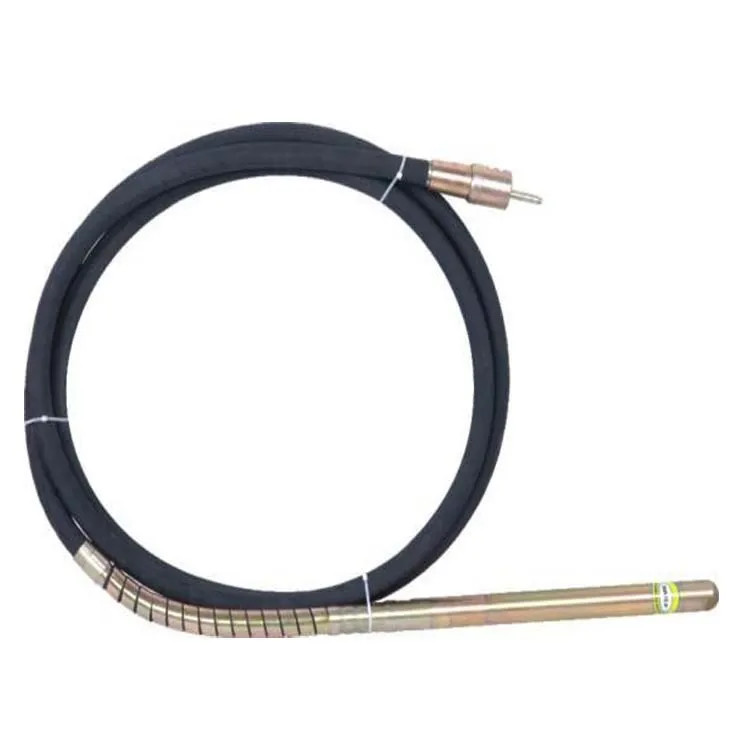

JK serials vibrator poker 4~12m length,  Bar diameter 28mm, 32mm, 38mm, 45mm, 50mm, 60mm, 70mm

---

Features
1. stable operation
2. good mechanical performance
3. band pressing design, easy to mend the poker
4. good anti-wear performance

JK-SERIES Inserting Pendulum Vibrator Poker

Model	Vibrating Head Size	Vibration (V.P.M)	Vibration Amplitude  (mm)	Flexible Shaft Diameter	Rubber Hose Diameter and Length
JK-28	28mmx47cm	10,000~15,000	0.9	8mm
JK-32	32mmx47cm		1.1	10mm	30mmx4m~6m
JK-38	38mmx47cm		1.6	10mm	30mmx4m~6m
JK-45	45mmx47cm		2.0	10mm	30mmx4m~6m
JK-50	50mmx47cm		2.2	13mm	32mmx4m~6m
JK-60	60mmx47cm	9,000~12,000	2.4	13mm	32mmx4m~6m
JK-70	70mmx47cm		2.6	13mm	36mmx4m~6m

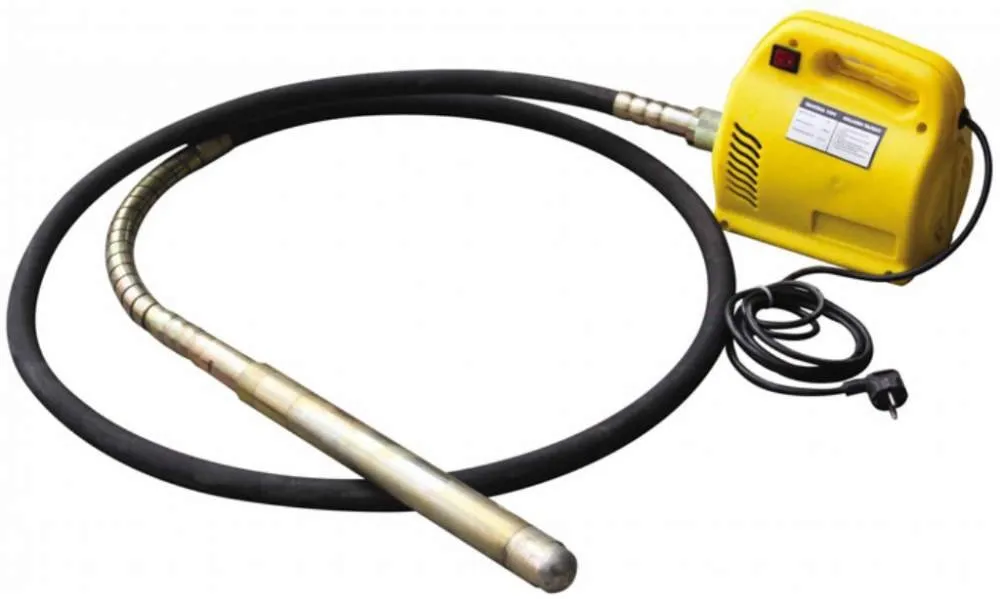

Concrete Vibrator Driven unit- electrical vibrator motor


Additional Specification

Model	Motor type	Voltage	Power	Frequency	Speed	Weight	Dimension
ZN-B	Brushless Motor	110v/220v/380v	1.5hp/2hp/3hp	50/60hz	2850rpm	16kgs	37x29x32cm
ZN-C		110v/220v/380v	1.5hp/2hp/3hp	50/60hz	2850rpm	18kgs	35x28x30cm
JY160	Brush motor	110v/220v	1.6kw	50/60hz	4000rpm,	7kgs	41x22x22cm

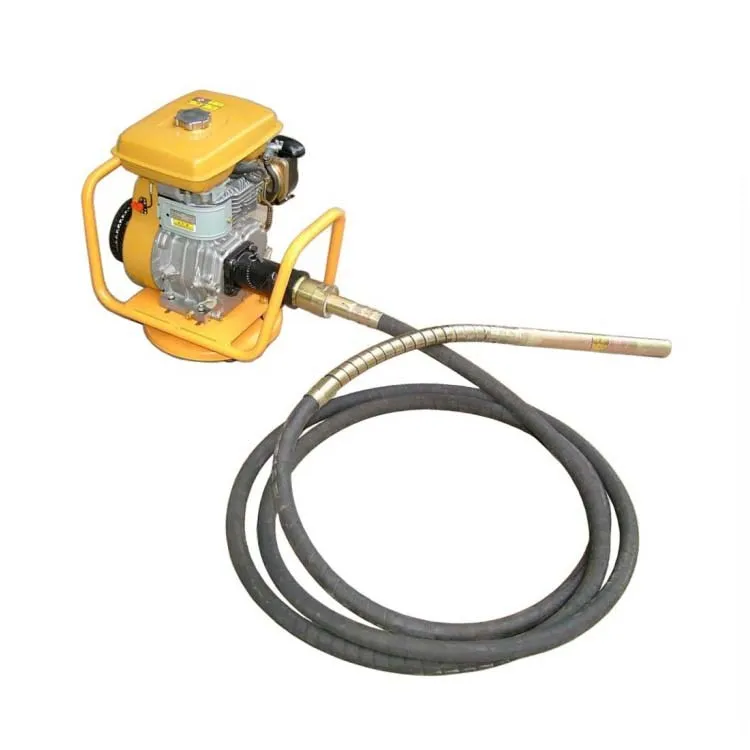

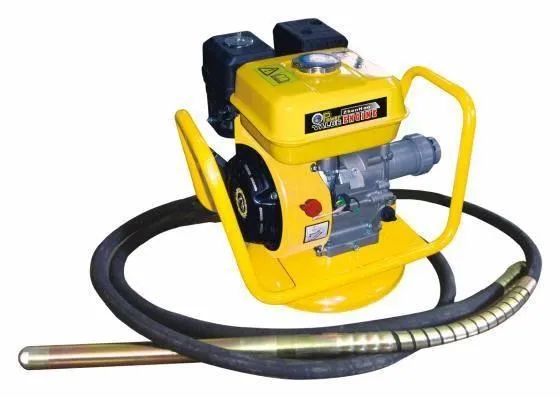

Concrete Vibrator Driven unit- gasoline engine/diesel engine


Additional Specification

Model	Engine type	Power	Speed	Weight	Dimension
JVR20	Robin Engine EY20	5hp	3600rpm	21kgs	51x38x53cm
JVD170	Diesel Engine 170F	4hp	3600rpm	31kgs	56x45x60cm
JVH160	Honda Engine GX160	5.5hp	3600rpm,	21kgs	53x38x45cm
JVL168	Lifan Engine 168F	5.5hp	3600rpm	21kgs	53x38x45cm



Engine Frame – typical frame



Hose coupling:



Vibrator Coupling – typical connector
