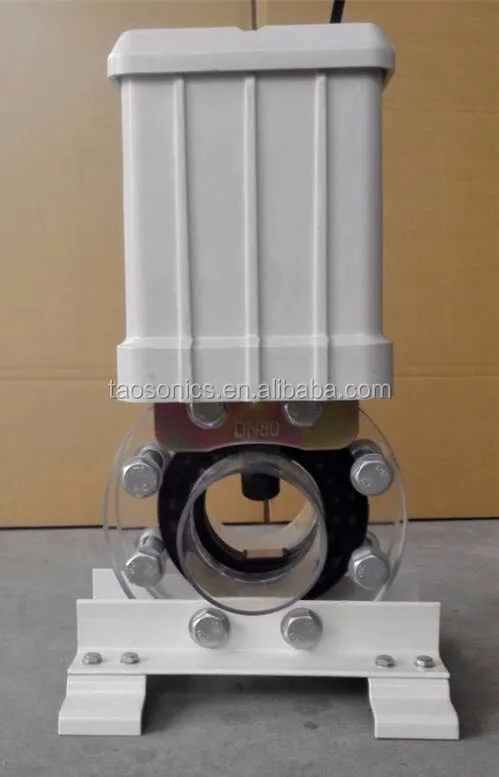

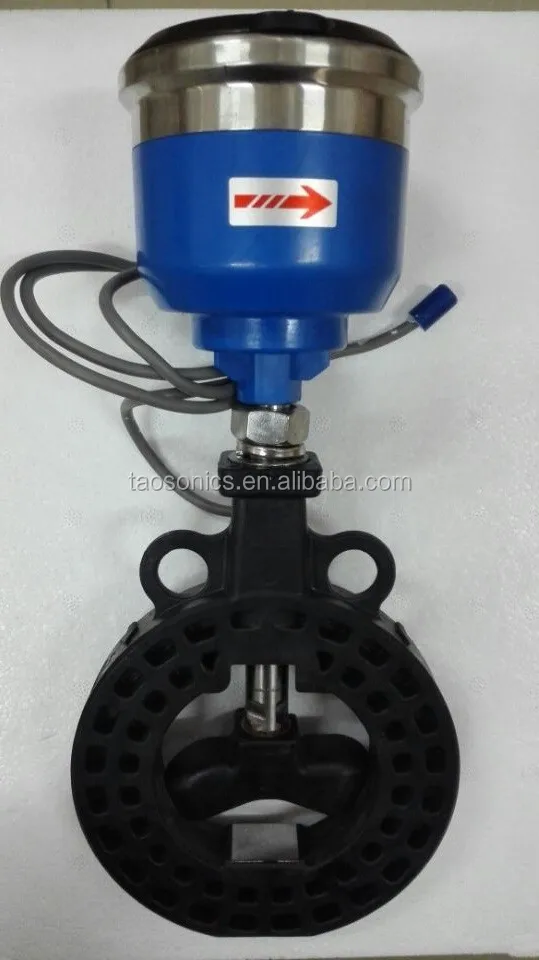

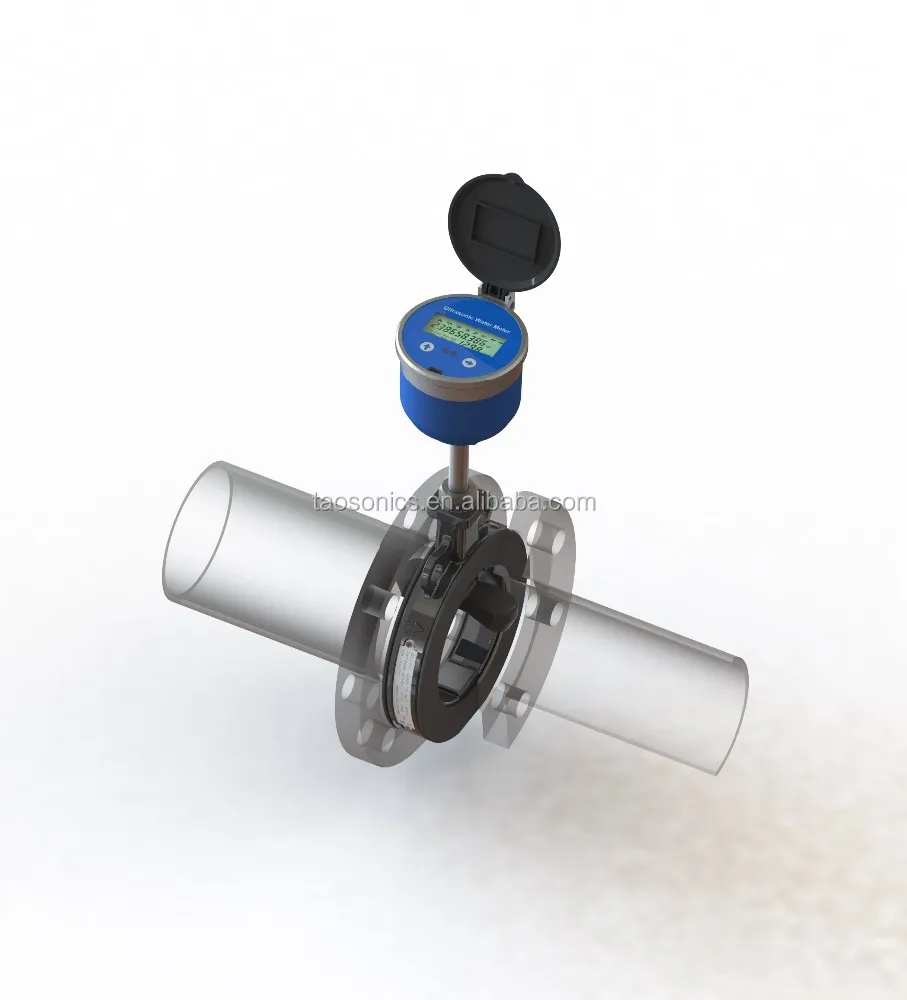

T3 1 K1 Sandwich IP68 RS485 Pulse OCT TTL Output Signal Low Cost Battery Operated Digital Bulk Ultrasonic Water Meter Flowmeter

Share on (60610930356):


Price:

Quantity:


Product Overview

Description


Product Description

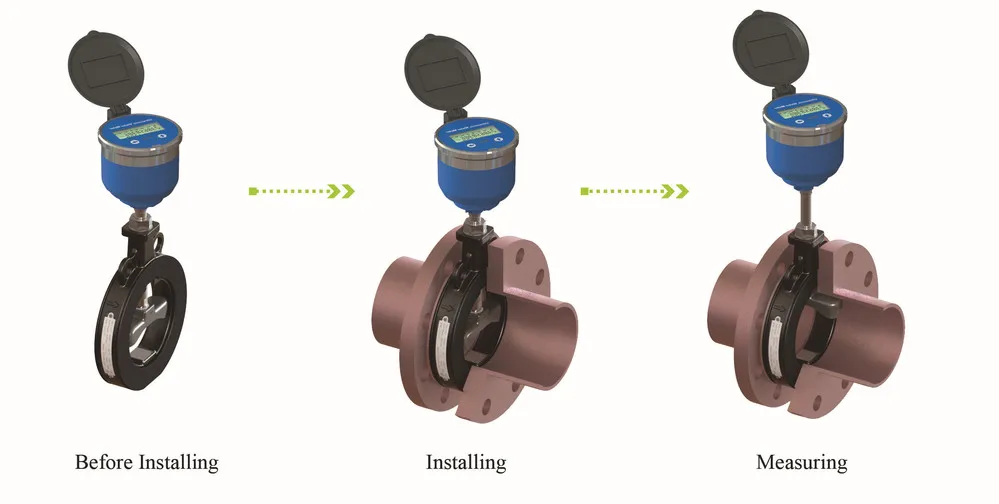

T3-1-K1 Sandwich IP68 RS485 Pulse OCT TTL Output Signal Low Cost Battery Operated Digital Bulk Ultrasonic Water Meter Flowmeter

Product Application


Widely be used in city water supply, water resource management, industry, agricultural irrigation and garden management.


Main Features

Low cost, small size can save the installation space.

T3-1-K1 ultrasonic water meter is a series of patent product designed and developed by Dalian Taosaonics Istrument Co.,Ltd according to ISO4064-1:2005/ GBT778-2007/ JJG162-2009 standard. The advantages include very low power consumption, stability and reliability. All parts of the meter achieve to IP68, enable the meter work in any severe ennironment.


\t
Basic Parameters
\t
Measurement Liquid
\t
water, sewage, seawater(other liquid need to customize).
\t
Working Environment
\t
Temperature: -10~45℃; Huminity: ≤100%(RH)
\t
Working Pressure
\t
1.6Mpa
\t
Medium Temperature
\t
0.1~30℃
\t
The Sensitivity of Upstream
\t
U5
\t
The Sensitivity of Downstream
\t
D3
\t
Climatic and Mechanical
\t
C class
\t
\t
Electromagnetic Compatibility
\t
E2
\t

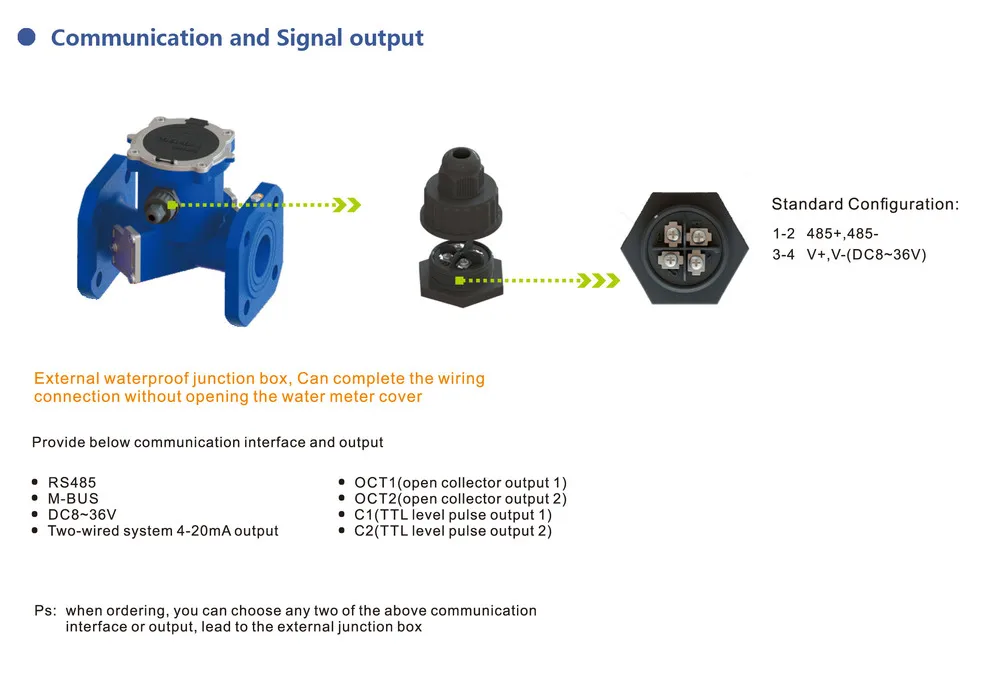

Communication Interface
\t
RS485/USART/ Infrared
\t
Signal output
\t
2 way OCT/ TTL pulse output/  1 way 4~20mA output

\t
\t
Signal input
\t
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
\t
Data Storage
\t
EEPROM/FLASH, automatically record the accumulative flow of last 512 days
\t

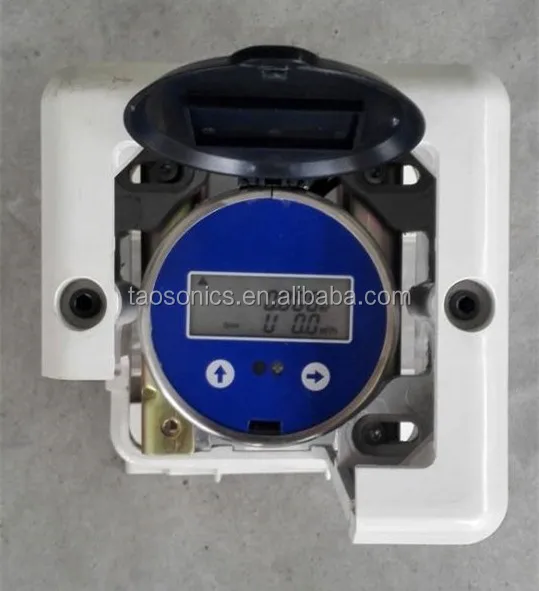

Digaital Display
\t
Multi line 9 digital accumulative flow, 4 digital display for instantaneous flow, various working status.
\t
Power supply
\t
built-in Lithium battery (3.6V, 9Ah)/ DC8~36V/ 2 wire 4~20mA power supply.
\t
Measurement Cycle
\t
Measuring:1 times/second; Verification: 4 times/second
\t
Power Consumption
\t
0.5mW, 10 years battery life
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use themachine.
* Safe packing.

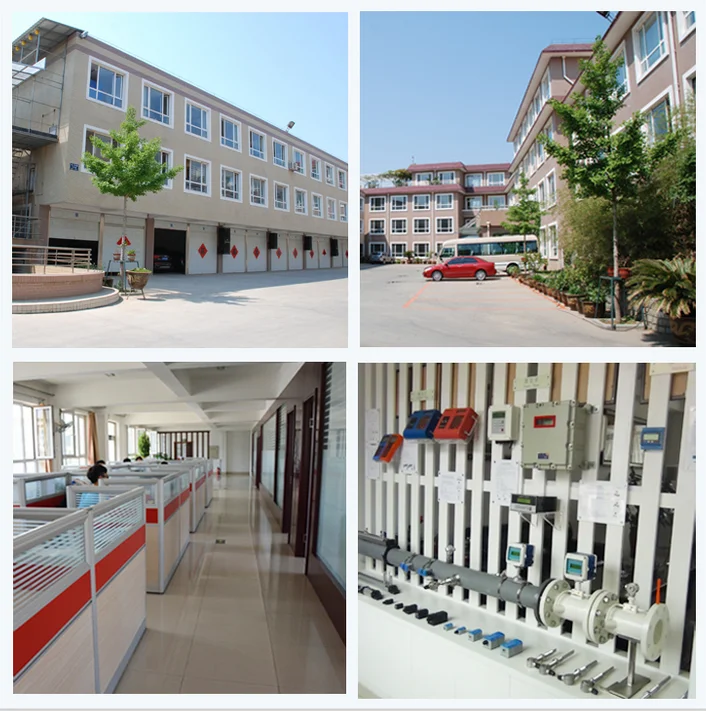

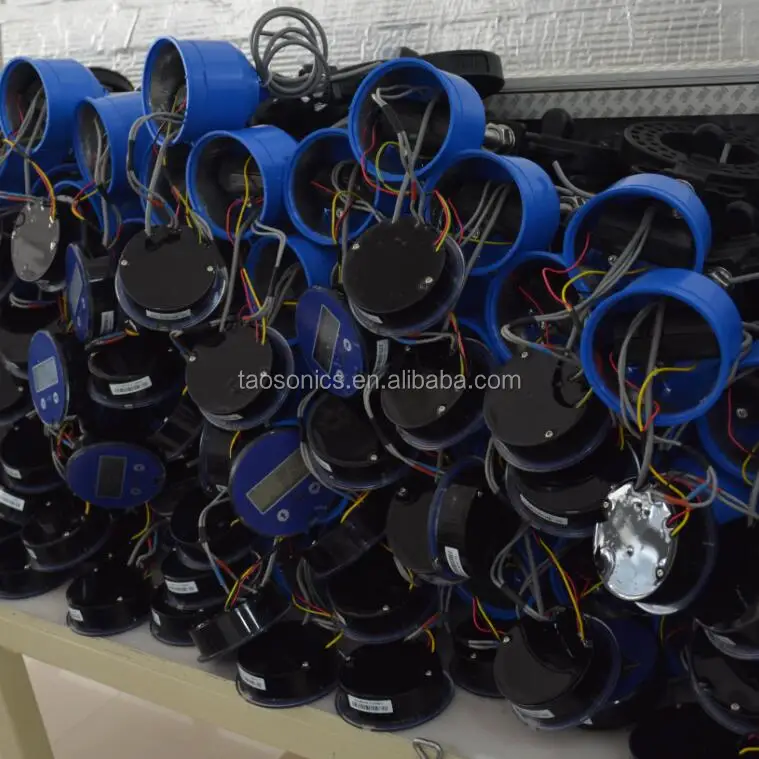

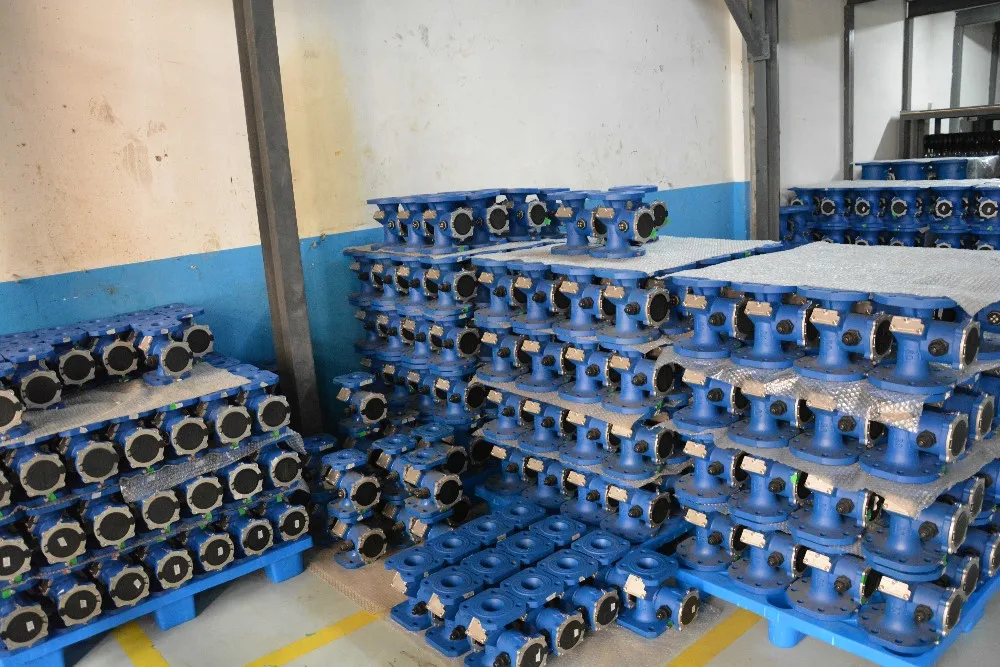

Our Company

Dalian Taosonics istrument Co,.Ltd

Dalian Taosonics Instrument Co., Ltd. has been in the ultrasonic flow measurement for over 20 years. Headquartered in Dalian, China, Taosonics was built on creative opportunity, entrepreneurial spirit and team camaraderie, designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Dalian Taosonics Instrument serves water utilities, municipalities, commercial and industrial customers worldwide. Measuring water, oil, chemicals and other fluids. Taosonics products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
