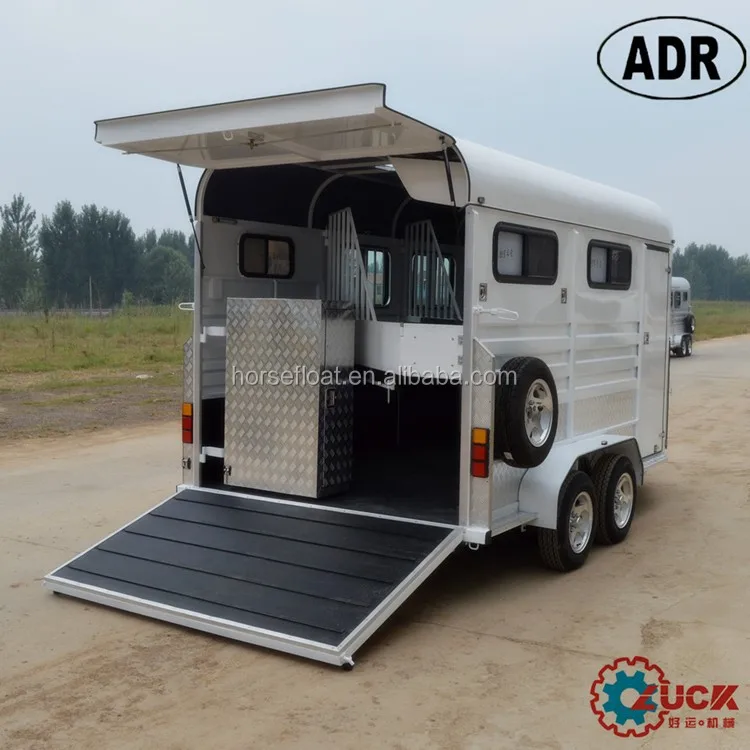

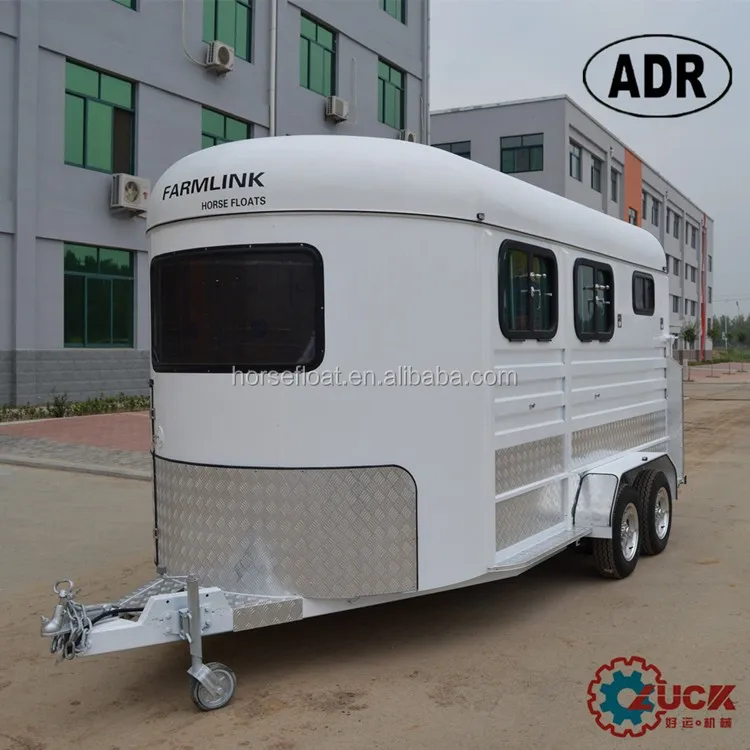

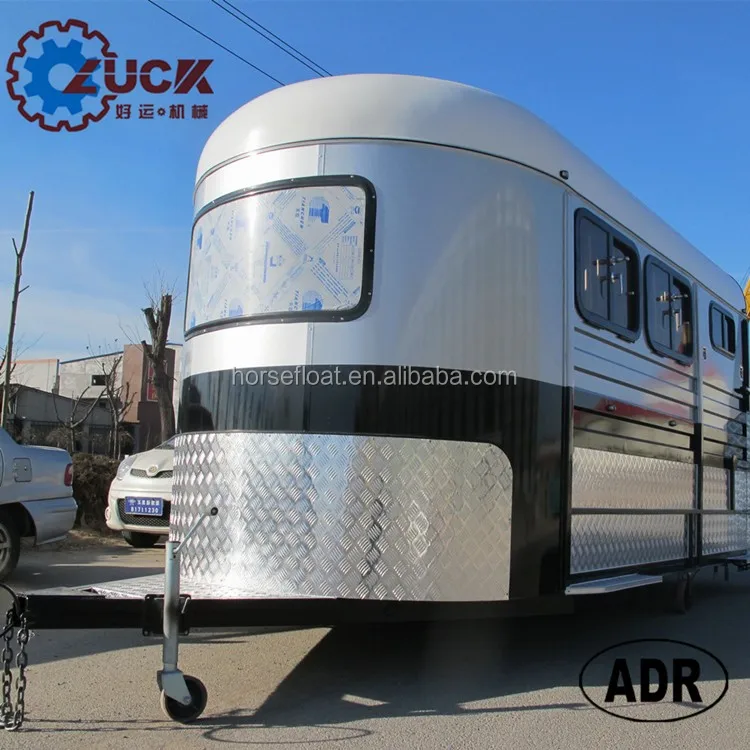

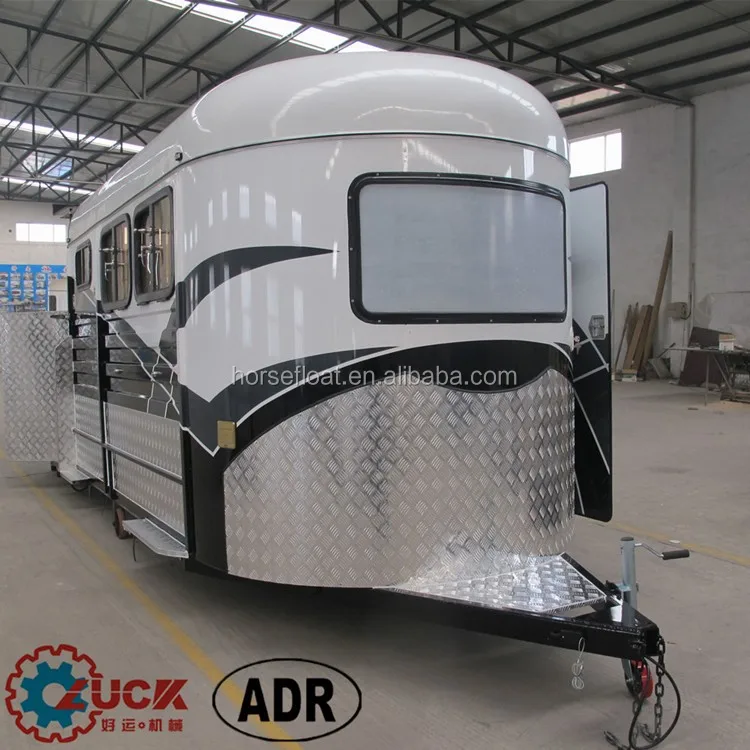

2 horse trailer australia with western swing out saddle box
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60610990569):
Product Overview
Description
Product Description
Model number is 2HAL-D, 2 horse trailer/ horse trailer in line with ADR, mainly export to Australia and New Zealand, its tare mass is 1600kg, ATM is 3200kg.
| 1.TRAILER MATERIALS | |
| 1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) | |
| 2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) | |
| 3 BODY PANEL galvanized (1.2mm) | |
| 4 ROOF special molded FRP 4120*1980 | |
| 5 NUTS & BOLTS stainless steel | |
| 2.WHEELS & TYRES | |
| 1 WHEEL RIM 14' aluminium alloy rims | |
| 2.2 TYRES 185R14C | |
| 2.3 SPARE WHEEL one | |
| 3.AXLES & SUSPENSIONS | |
| 3.1 AXLES two special trailer axles | |
| 3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates | |
| 3.3 BRAKE SYSTEM dual axle electric brake | |
| 4.WINDOWS & DOORS | |
| 4.1 FRONT WINDOW 1220*610 | |
| 4.2 SIDE WINDOWS 2 pop-up rectangle windows,2 sliding rectangular windows | |
| 4.3 VENTS double sash casement vent | |
| 4.4 SIZE OF SIDE DOOR 1755*615 | |
| 4.5 REAR UPPER DOOR 2020*1065 | |
| 4.6 RAMP DOOR 2020*1210 | |
| 4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut | |
| 4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges | |
| 5.DRAWBAR | |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium | |
| 5.2 DRAWBAR SAFETY CHAIN two | |
| 5.3 BRACING WHEEL one | |
| 6.LIGHTS & RETRO REFLECTORS | |
| 6.1 TRAILER PLUGS square 7 wick plug | |
| 6.2 SIDE LAMPS 6 | |
| 6.3 REAR LAMPS LED group | |
| 6.4 REAR LAMPS STAND aluminium | |
| 6.5 RETRO REFLECTORS 8 | |
| 7.MUDGUARD | |
| 7.1 MUDGUARD TYPE compact mudguard | |
| 7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard | |
| 7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board | |
| 8.INTERIOR & EXTERIOR | |
| 8.1A KITCHEN with a cupboard and all appliance from yourself | |
| 8.2 HORSE PROTECTION FRAME full padded | |
| 8.3 HORSE RING four | |
| 8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting | |
| 8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting | |
| 8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting | |
| 8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood | |
| 8.8 RUG RACK side | |
| 8.9 WATER TANK one | |
| 8.10 SADDLE RACK in saddle box | |
| 8.11 SADDLE BOX 1200mm height for 2 saddles | |
| 8.12 PAINTING single | |
| 9.DIMENSIONS | |
| 9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 4970*2230*2590 | |
| 9.2 BODY DIMENSIONS ( L x W x H: mm ) 4120*1980*2230 | |
| 9.3 INNER DIMENSIONS ( L x W x H: mm ) 4095*1930*2155 |
It is with brake away system, 50x50 heavy duty axle, 4 wheels with electric brake.
Front kitchen with overhead cupboard
Water tank, sink, pump, filling nozzles, tap
Overhead rug rack
Swing out tack box
Adjustable divider
horse bay width 70cm-90cm are all available
Caravan door, roof lining, fiamma awning, air conditioner, gas stove, microwave, fridge, etc are optional
Packaging & Shipping
Packing: 2pcs/40HC container, fixed by special belts.
Our Services
*L/T: 20-45days based on different model
*Payment terms: 20% TT down payment, balance TT before delivery or L/C
*Departure port: Qingdao or as requested
*Help customer to proceed the import if needed (We have cooperation with Australia logistic company)
Company Information
Our factory is located in Shandong, we have made horse trailers for 10 years to be now. Our oversea market mainly forcuses on Austrialia, New Zealand, Middle East (Saudi, Arabia, Yemen, UAE etc), southeast countries (Singapore, Malaysia, Thailand, Brunei, etc.), Southeast countries (Chile, Argentina, Brazil), they are all in line with ADR.
Our factory is with ISO certificate, ISO qualified.
Advantages
1. We have professional sales team, all the sales are trained well before serving you. It shall be a pleasant thing to deal with us. For example, sales must update customer production status weekly to make customer posted for the process.
2. Our factory is ISO approved with ISO certificate, with strict quality control from incoming material to shipment. Below are some key raw materials for our products, it makes our horse floats safty, strong and far from rust.
3. Competitive price. With bulk order to our supplier, it makes our price to you always competitive.
4. Rich experiences. We are one of the earliest horse float factory in China, with more than 7 years experiences, we are more professional and reliable.
