RIG21E rf power resistor resistor 50 ohm 250 watt

Share on (60611028388):


Price:

Quantity:


Product Overview

Description

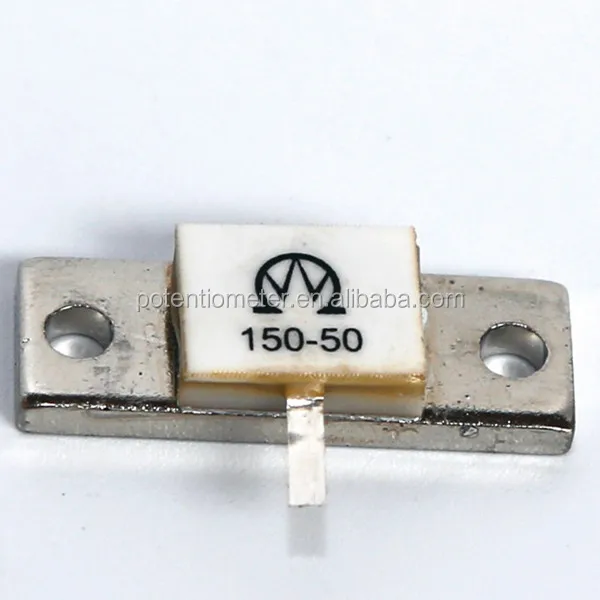

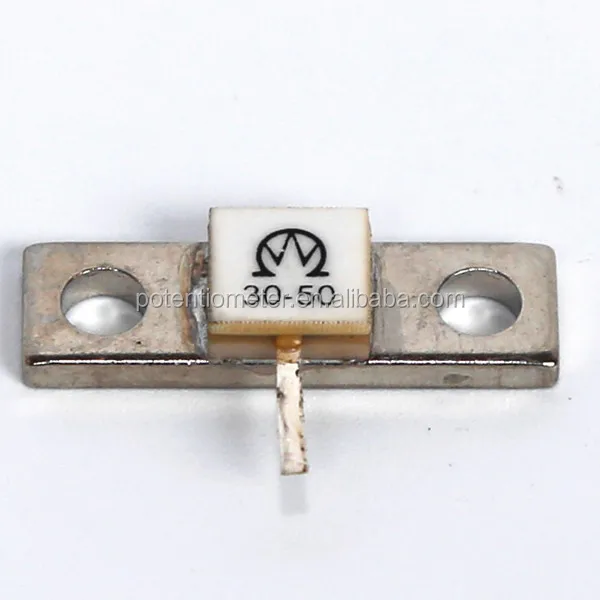

RIG power resistor
RIG22 1
RIG power resistor drawing
RIG21 250W drawing.png
RIG power resistor specification

Electrical Characteristics

Range of nominal resistance

1 ~500Ω

Resistance tolerance

±5%

Frequency range

0~2GHz

Standing wave ratio

1.2~1.3

Insulation resistance

≥ 1GΩ

Withstand voltage

500V/1 mm (Substrate thickness)

Environment Characteristics

Rated power

1~1000W (70°C)

Temperature range

-55°C~+165°C

TCR

±300×10-6/°C

Temperature shock (-55°C/+125°C, 3 times)

ΔR≤±5%R

Moisture proof (GJB306A-96-Method106)

ΔR≤±5%R

Vibration (10-500HZ, 0.75mm, 6h)

ΔR≤±3%R, No mechanical damage

Test at low temperature (-55°C, 24h)

ΔR≤±5%R

Load life (96)

ΔR≤±5%

Collision

ΔR≤±3%R

Physical Characteristics

Terminal strength(10N,5S)

No loose and fall off

Solderability(240℃,3s)

Tin layer covering area of 95%
