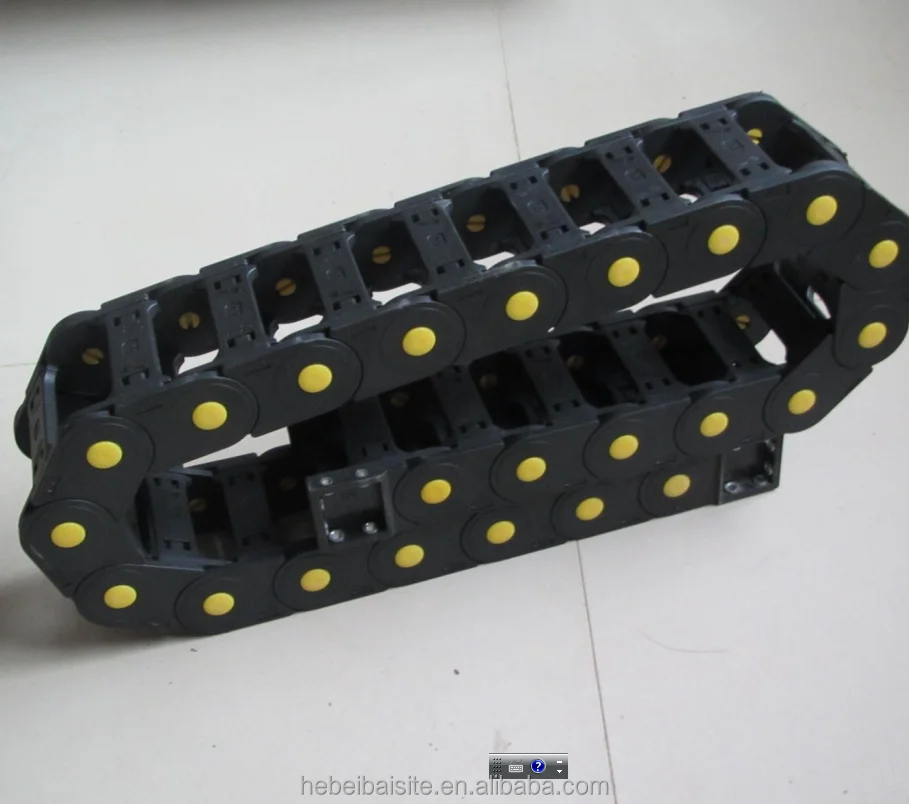

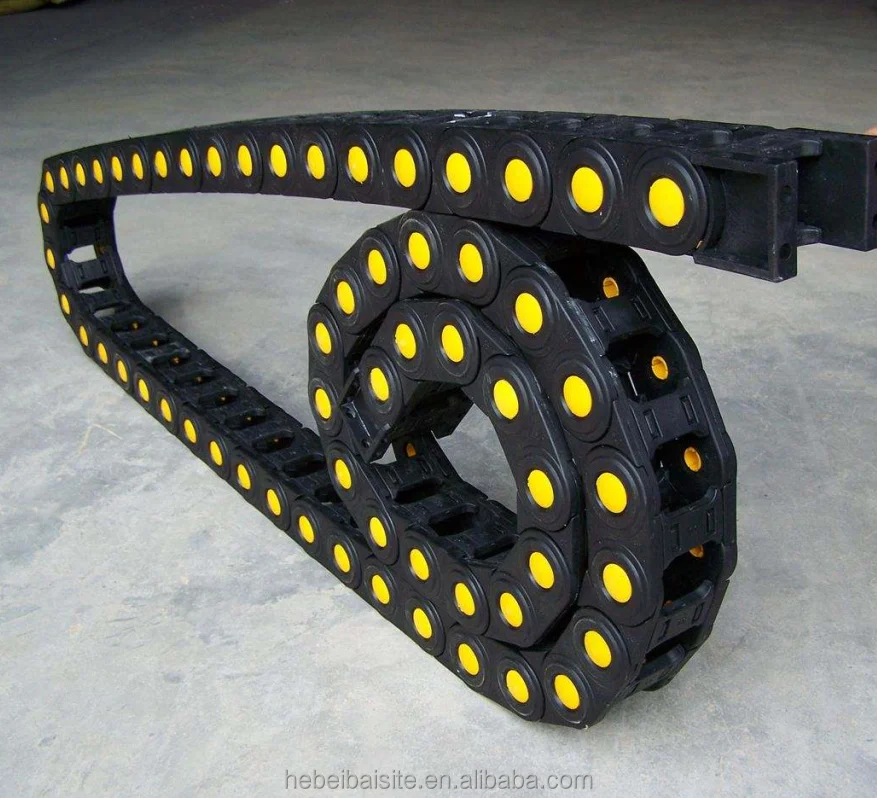

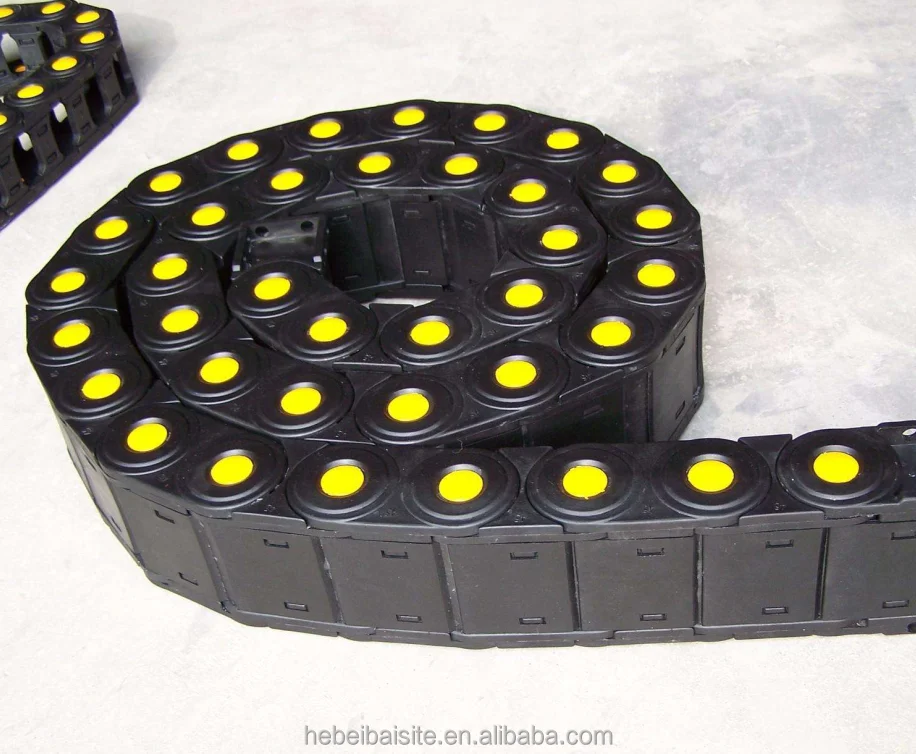

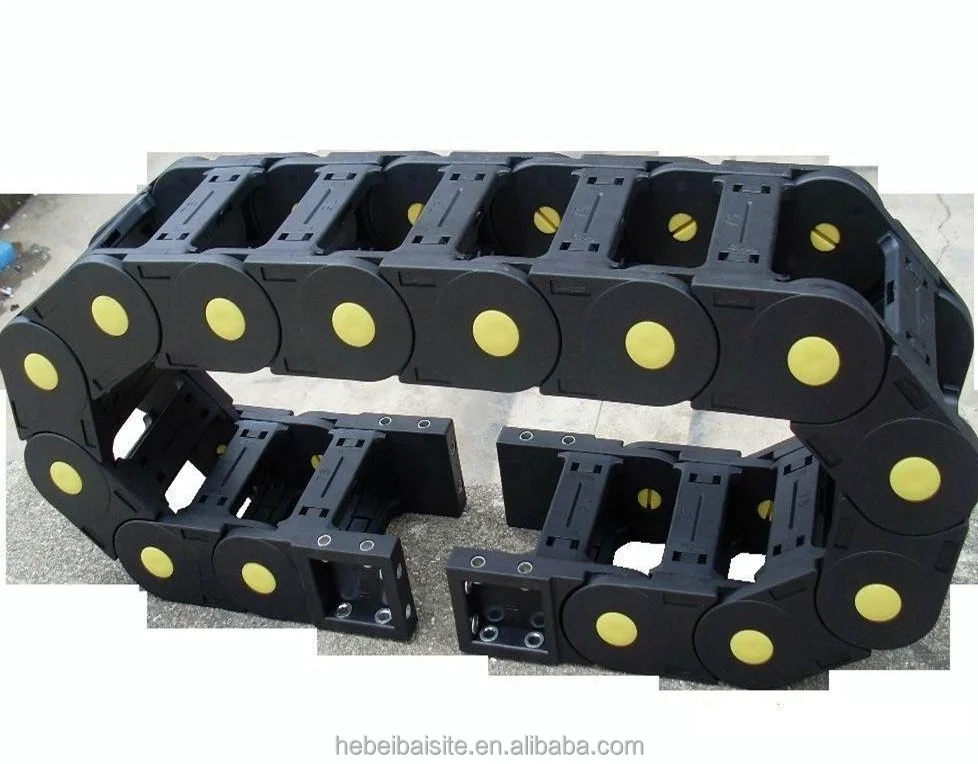

56 series plastic nylon cable electric drag chain for CNC machine

Product Overview

Description

                     High quality Bridge Drag Chain



1.Name:Plastic Drag Cable

2.Type: closed thype and open type
3.Matrial: PA66 or ABS, with yellow or blue dot,can be demolition
4.Professional Perfomance Machine accessories supplier
5.30 years experience

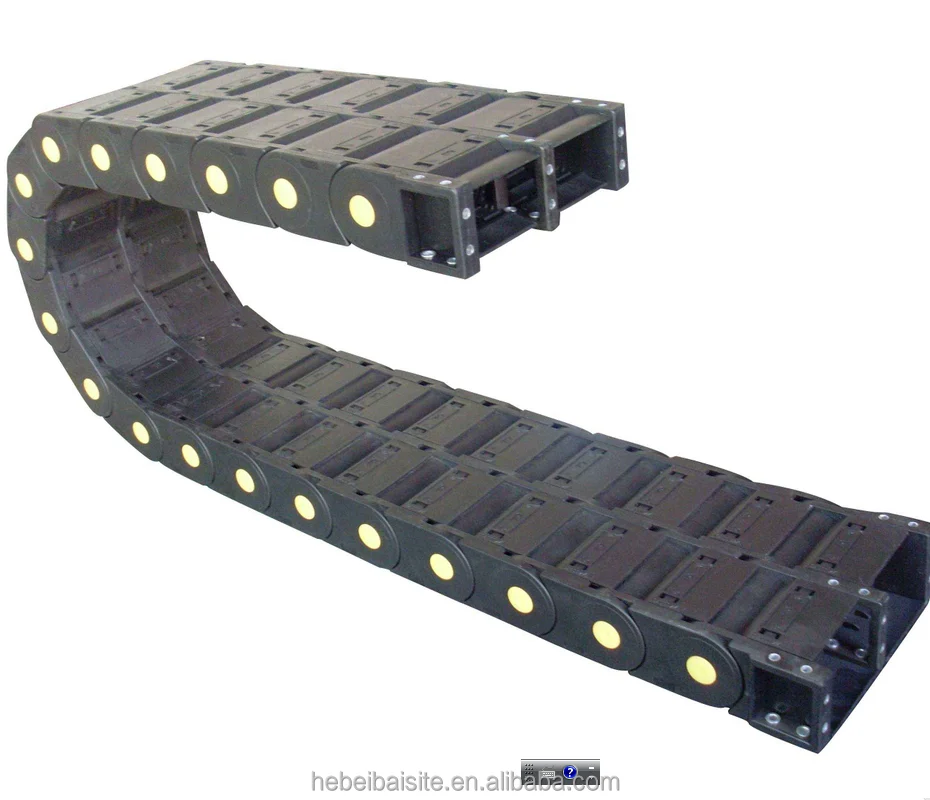

                           High quality Closed Drag Chain



Item	Inner	outside	Bending radius
	Height*width	Height*width	R23/38/48
18series	18*18	23*28
	18*25	23*35
	18*37	23*47
	18*50	23*60
25series	25*25	40*44	R55/75/100/125
	25*38	40*57
	25*50	40*69
	25*57	40*76
	25*77	40*96
	25*103	40*122
30series	30*25	45*45
	30*38	45*58
	30*50	45*70
	50*57	45*77
	30*77	45*97
	30*103	45*123
35series	35*50	55*75	R75/100/125/150/200
	35*60	55*85
	35*75	55*100
	35*90	55*115
	35*100	55*125
	35*117	55*142
	35*125	55*150
	35*150	55*175
	35*175	55*200
	35*200	55*225
	35*250	55*275
45series	45*50	65*77	R75/100/125/150/200/250
	45*60	65*87
	45*75	65*102
	45*90	65*117
	45*100	65*127
	45*117	65*145
	45*125	65*152
	45*150	65*177
	45*175	65*202
	45*200	65*227
	45*250	65*277
55series	55*50	75*80	R100/125/150/200/250/300
	55*60	75*90
	55*75	75*105
	55*90	75*120
	55*100	75*130
	55*117	75*147
	55*125	75*155
	55*150	75*180
	55*175	75*205
	55*200	75*230
	55*250	75*280
