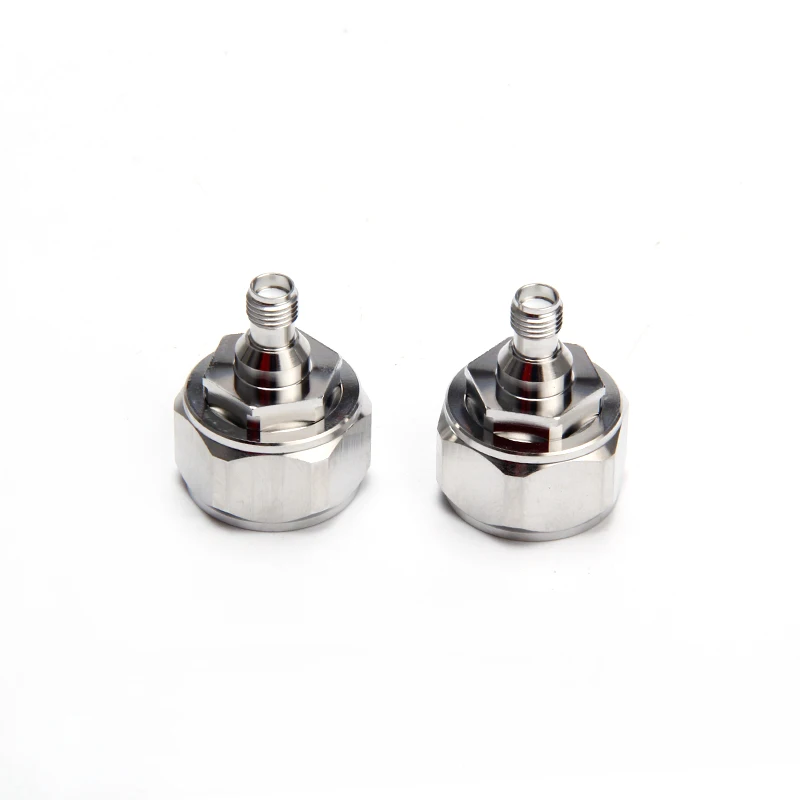

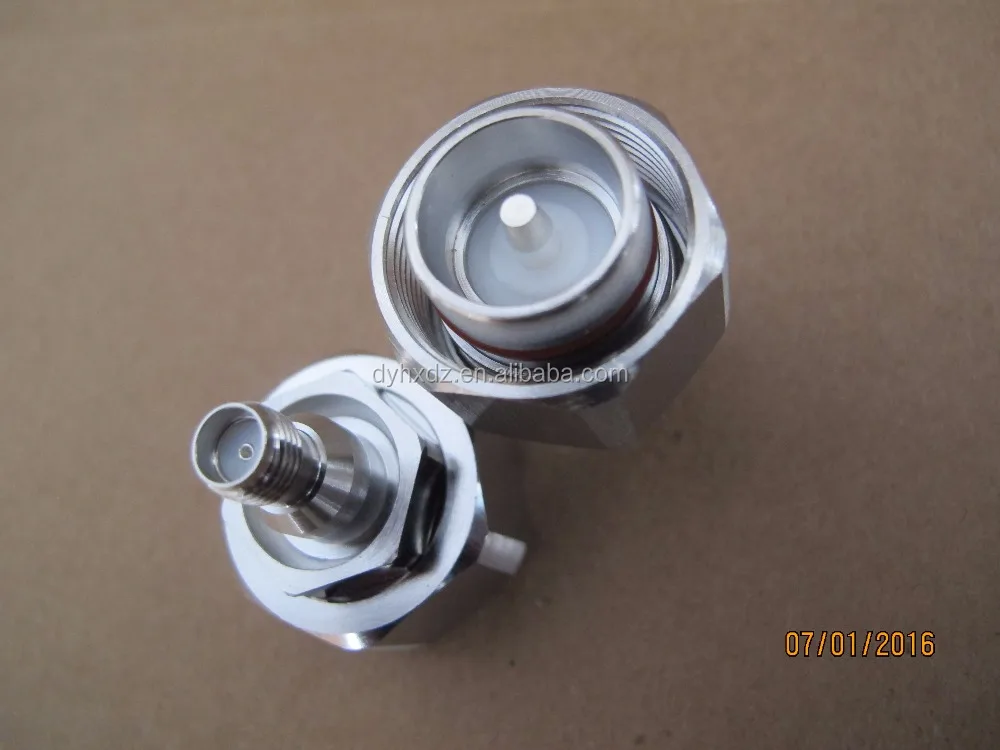

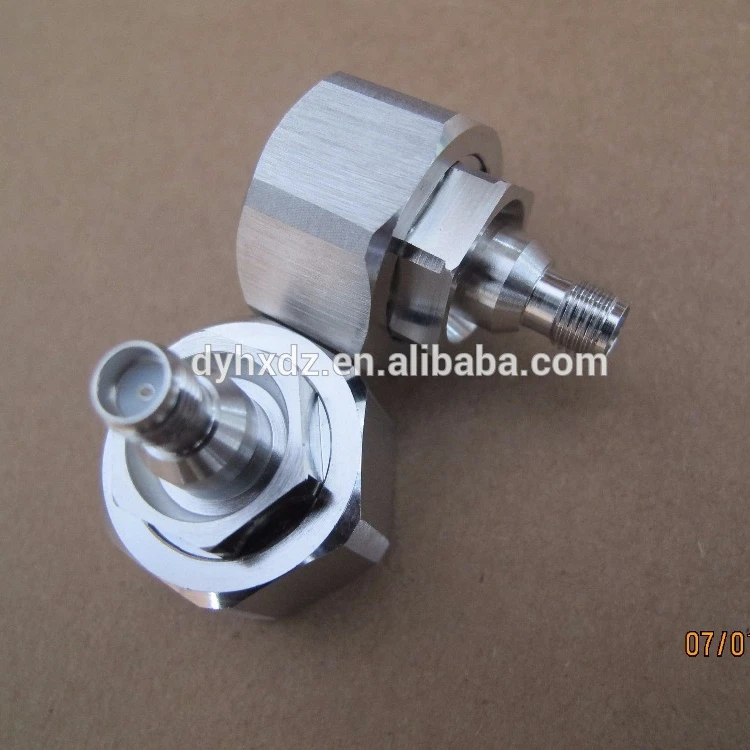

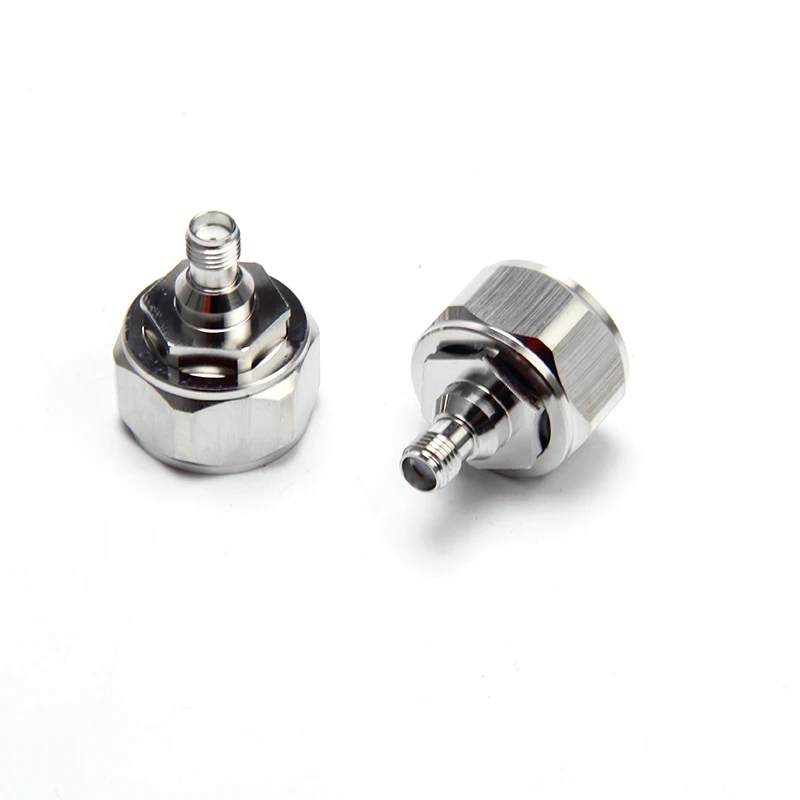

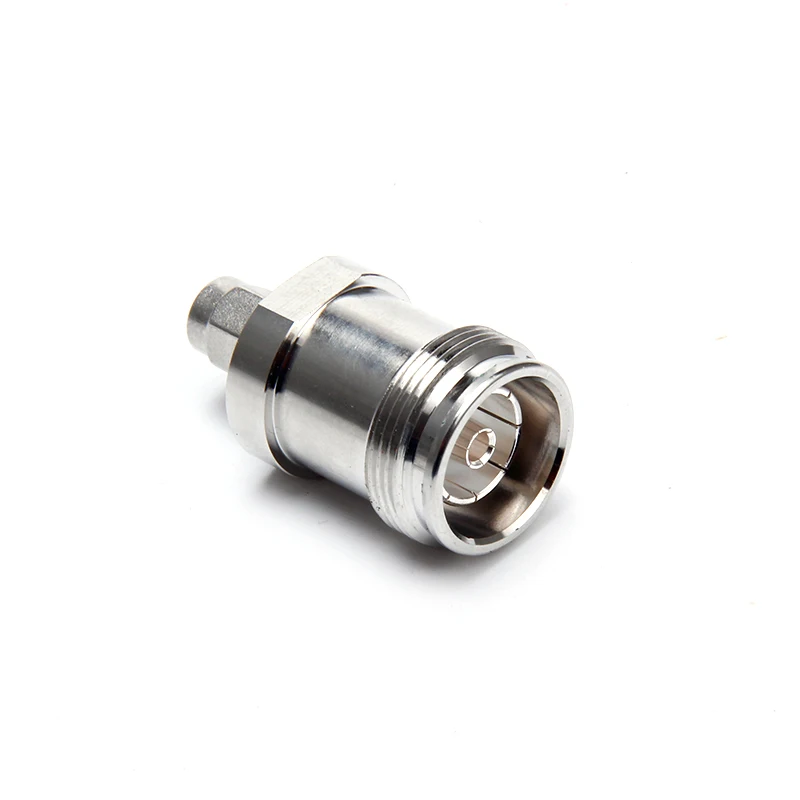

MINI DIN 4.3 10 plug male to SMA jack female adapter test 4.3/10 to SMA
- Category: >>>
- Supplier: Danyang City Huaxing Electronic Equipment Factory
Share on (60611179957):
Product Overview
Description
4.3-10 VSWR & low PIM test results for LTE & Mobile
Screw Type
Push-Pull Type
Hand Screw Type
In summer 2013, HX has been launching the new 4.3-10 connector system, a dedicated system for the needs of the
mobile communication market (see SPOTLIGHT 04/2013).
In the meantime we have started with testing and measuring first samples and the test results are just awesome. Outstanding PIM and VSWR test results confirm the 4.3-10 connector system an excellent performance.
Given also the other mechanical advantages such as size and lower coupling torque, the 4.3-10 connector system turns out to be a perfect fit for the mobile communication market.
Interface
IEC 60169-16;MIL-C-39012;CECC-22210
Electrical
Characteristic Impedance
50ohm
Frequency Range
DC-11GHz
VSWR
≤1.15@DC-3000MHz
Insertion Losss
≤0.24dB(6GHz)
3rd Order IM (PIM3)
—
Working Vlotage
1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Dielectric Resistance
≥5000MΩ
Contact Resistance
Center Contact ≤1mΩ
Outer Contact ≤0.25 mΩ
Mating
—
Mechanical
Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
Tri-Metal(CuZnSn)or Ni
Insulator
PTFE
—
Inner Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Ni
Gasket
Silicone Rubber
—
Cable Clamp
Brass
Ag
Ferrule
—
—
Environmental
Operating Temperature
45 ℃-85 ℃
Weatherproof Rate
IP67
RoHs (2002/95/EC)
Compliant by exemption
Suitable Cable Family
LMR400/RG213/RG8/CNT400 cable
