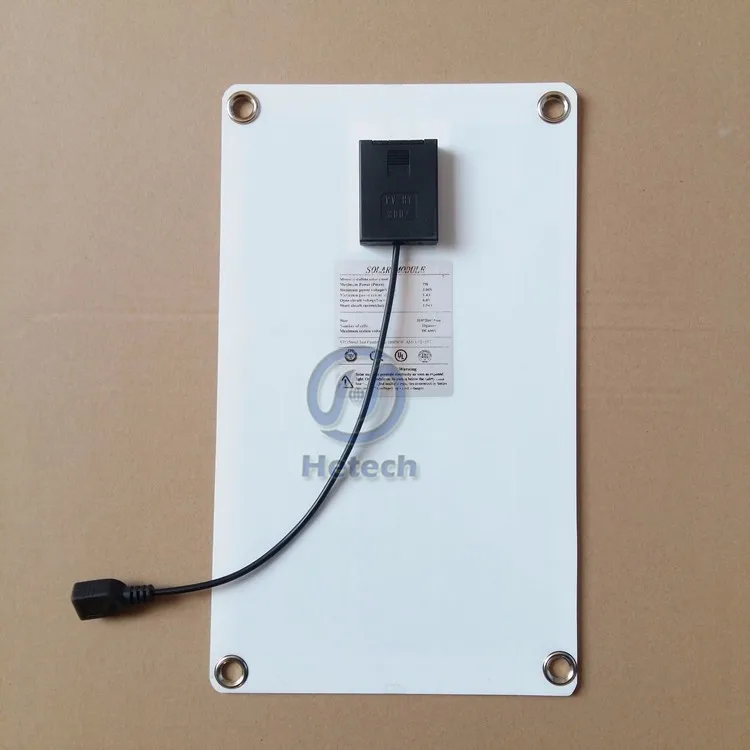

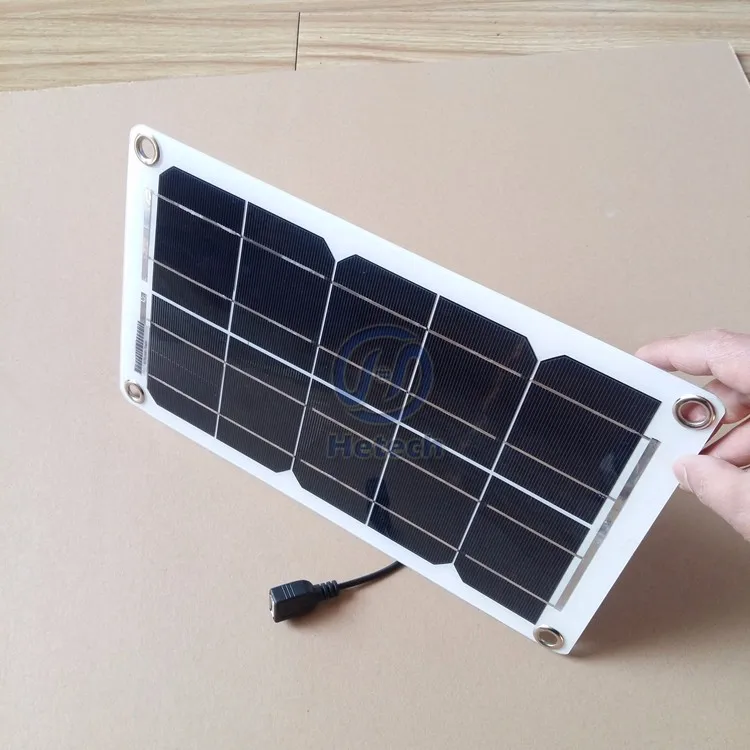

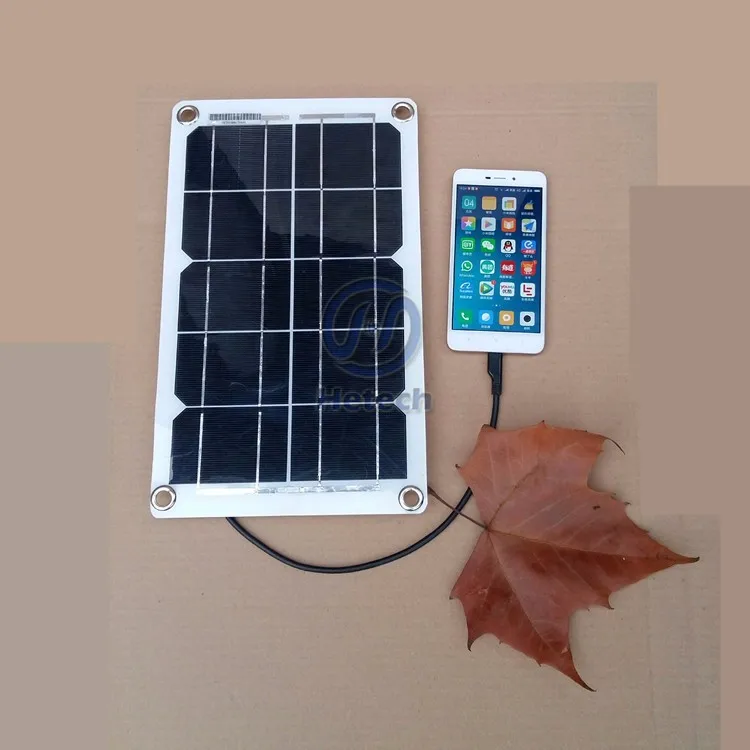

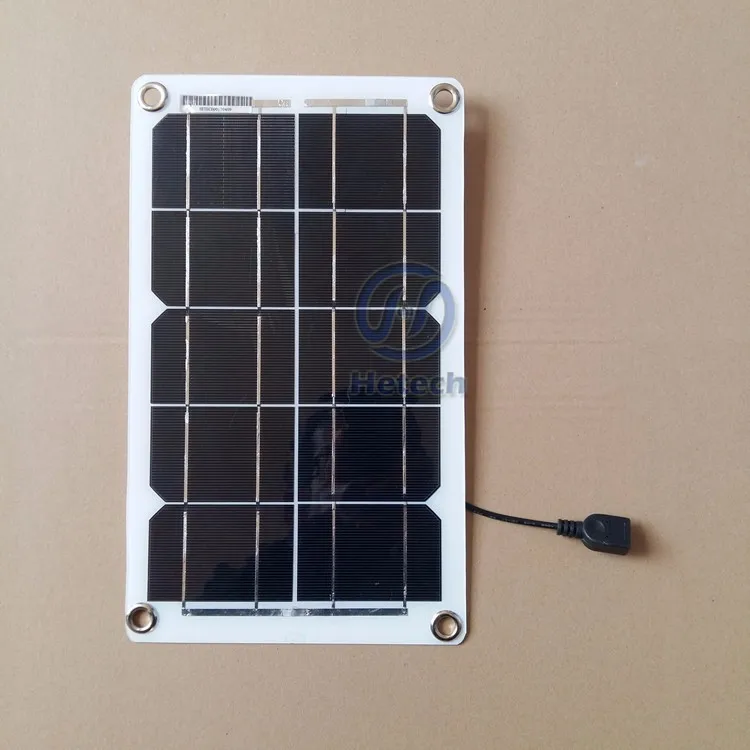

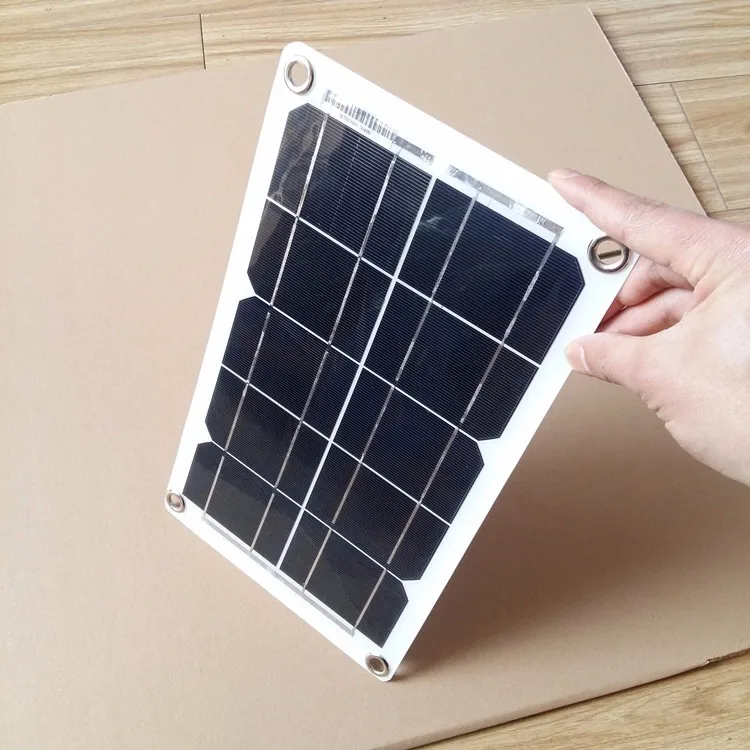

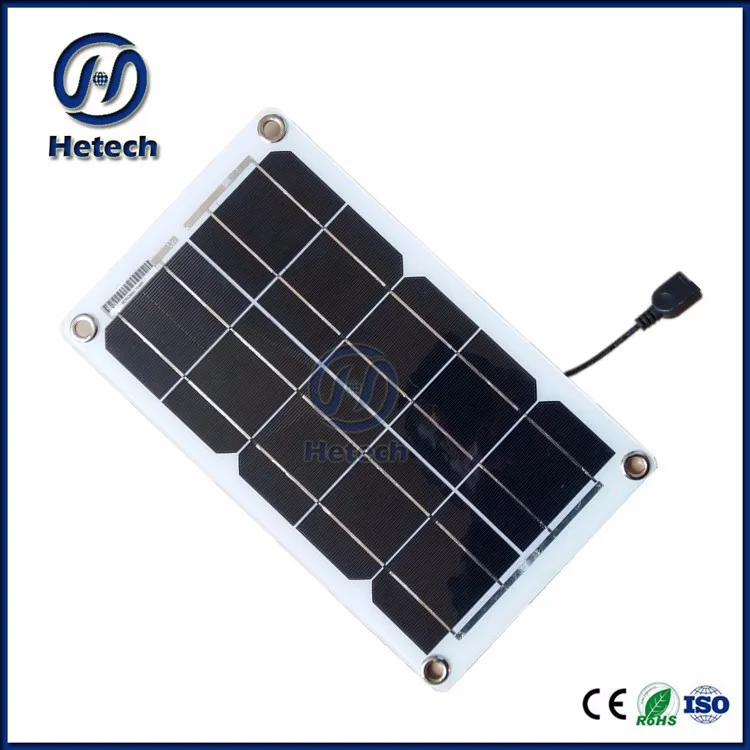

solar USB charger port 7w solar panel 5v for mobile phone charging
- Category: >>>
- Supplier: Zhengzhou Hetai Energy Co. Ltd.
Share on (60611312937):
Product Overview
Description
solar USB charger port 7w solar panel 5v for moble phone charging
Product Description
| Electrical Characteristic: | |
| Module Type | HT-M7W-10P |
| Peak power | 7W 0~+3%Toleracne |
| Optimum Operating Voltage(Vmp) | 5.0V |
| Optimum Operating Current(Imp) | 1.41A |
| Open-Circuit Voltage(Voc) | 6.01V |
| Short-Circuit Current(Isc) | 1.84A |
| Maximum system voltage | DC1000V |
| Warranty | 5 years product defect warranty. 90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | HT-M10W-12P |
| Size | 310*185*4mm |
| Weight | 0.4kg |
| No. of Cells | 10(2*5) pcs |
| Cell dimension | Mono 156*156mm |
| Junction Box | IP67/IP65 rated |
| Connectors | PV |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure | 60m/s(200kg /m² ) |
Semi-flexible solar panel is the alternative solar module - lighter, thinner. It charges your on-board 12V battery of your motorhome, caravan, boat or other vehicle automatically, silently and maintenance free. ,is much more flexible than comparable solar modules. Curved surfaces such as boat decks or caravan alcoves are easily mounted,Potted junction box, for additional protection.
APPLICATIONS:
Boats/Sailboats, Yachts, Marine applications
Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places
Highlights
Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.
Unique frameless design includes six metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards CE,TUV
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments
Positive and negative leads equipped with PVconnectors
Two bypass diodes minimizes performance drop due to partial shade
Set up easily
Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 3mm thick .
Built in blocking diode to prevent battery discharge at night
all weather proof. They are water-proof and UV-Resistant. Potted junction box, for additional protection.
Application
| Application: |
Company Information
| About Us: |
Hetech Energy Co.,Ltd, one of the top renewable energy companies in China, focuses on solar cell manufacturing,modules assembly and system installation. Our PV products have been widely recognized in residences,power plants and BIPV.
Our module output power range from 1w to 340w, we also produce a variety of solar LED lights, solar garden lights,solar lawn lamps.
All the products have passed the quality and environment protection certifications and fully available to meet the demands in your market.
| Process in Factory: |
Packaging & Shipping
| Packing: |
u Normally packing: 1pc/2pcs/3pcs/10pcs/25pcs per carton
u Individual packing requirement is acceptable.
| Shipping: |
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 15-40 days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
| Shipping Methods | Arrive AT | Delivery From |
| By Sea | Sea Port You Want | Shanghai or Qingdao Sea Port |
| By Air | Air Port You Want | Shanghai or Beijing Air Port |
| By Express | Your office or home door | Post by DHL,TNT,UPS EMS,etc. |
FAQ
| Our Sevice |
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
| FAQ |
1. Q: Are you a factory or trading company?
A: We are a factory and we have our own foreign trade department.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou city, Henan province, China,You are warmly welcomed to visit us!
Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount. The most reasonable price will be provided to meet your requirements!
4. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineers team. They can teach you how to install a solar system.
