Single acting 10 ton hydraulic cylinder jack ram
- Category: Jacks >>>
- Supplier: Taizhou Kashon Power Equipment Co. ltd.
Share on (60611330296):
Product Overview
Description

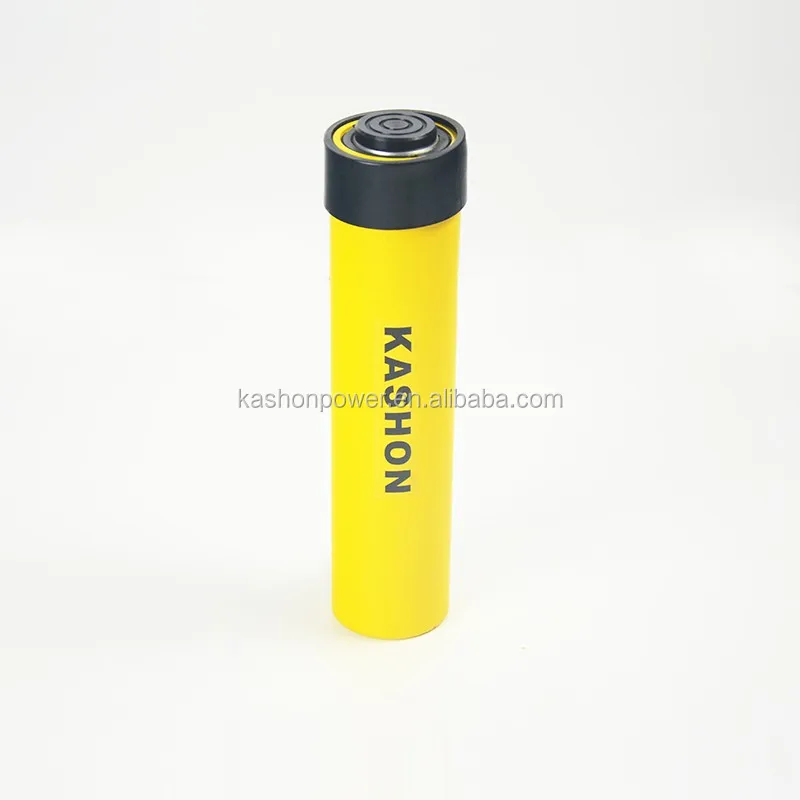

Single Acting 10 Ton Hydraulic Cylinder Jack Ram
Features:
Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy-duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
CR-400 coupler and dust cap included on all models
Plunger wiper reduces contamination, extending cylinder life
Specifications:
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Weight |
|---|---|---|---|---|---|---|
| ton (kN) | mm | cm2 | cm3 | mm | kg | |
| 10 (101) | 26 | KSRC-101 | 14,5 | 38 | 89 | 1,8 |
| 54 | KSRC-102* | 14,5 | 78 | 121 | 2,3 | |
| 105 | KSRC-104 | 14,5 | 152 | 171 | 3,3 | |
| 156 | KSRC-106* | 14,5 | 226 | 247 | 4,4 | |
| 203 | KSRC-108 | 14,5 | 294 | 298 | 5,4 | |
| 257 | KSRC-1010* | 14,5 | 373 | 349 | 6,4 | |
| 304 | KSRC-1012 | 14,5 | 441 | 400 | 6,8 | |
| 356 | KSRC-1014 | 14,5 | 516 | 450 | 8,2 |
Photos:
Suit hydraulic hand pump:
Model | P-392 |
Pump type | Two speed and single acting |
Oil capacity | 650ml |
Max. pressure | 700bar(10,000Psi) |
Weight | 5.9kgs |
Hydraulic connecting hose:
ID: 1/4"
Couplers: 3/8" or 1'4'' Screw Connection ( Ball or needle Type )
Rating: 4:1
Working Pressure: 10,000 psi ( 700 Bar )
Burst Pressure: 40,000 psi ( 2800 Bar )
Construction: Steel Braid
Length: 6m,7.5m,10m,15m and any lengths available
Company Information
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.,
FAQ
Q1: How can contact sales?
A1: Please via email sean at kashonequipment dot com or call: +86-158-5086-4100 for pre-sales
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram and T/T transfer.
Q3: How long does it take to process orders?
A3:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty
A6: 12 months against B/L date
