SHENPENG 80700CD4H heavy duty walking foot FIBC bag making machine

Product Overview

Description

80700CD4H heavy duty walking foot FIBC bag making machine





Applications



SHENPENG 80700CD4H heavy duty walking foot FIBC bag making machine is applicable for all sew container bags,FIBC bags,big bags,ton bag,bulk bag, such as side sew, bottom sew, inserting top covers, attaching filling and discharging tubes.



SHENPENG 80700CD4H heavy duty bag sewing machine ,the max.sewing speed is 1,400r.p.m and the max,sewing thickness is 19mm.



SHENPENG 80700CD4H heavy duty bag sewing machine could replace Union Special 80700CD4H bag sewing machine.



Features

1. Double needle four thread chain stitch;


2. Max. sewing speed up to 1400rpm;


3. Max. sewing thickness up to 19mm;


4. Upper and lower feed with pneumatic operated prersser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle;


5. Special for heavy duty seaming on FIBC;


6. Needle gauge 7.2mm and adjustable stitch length from 6 to 12mm;


7. Servo motor drived;


8. Special designed pedestal fitted.

Specifications







Model	80700CD4H
Stitch Length	6-12mm
Max. Sewing Speed	1,400spm
Max. Sewing Capacity	19mm (3/4in.)
Stitch Type	Safety Stitch 401.401
Needle Gauge	7.2mm
Overedge Stitch Width	10mm (25/64in.)
Feed Mechanism	Walking Foot
Lubrication	Manual with Built-in Sight Feed Oiler
Presser Foot Lifter	Electro-pneumatically Operated
Needle	9848G300/120
Thread	Polyester 20/6, 20/9 (2×3, 3×3)
Net Weight(head)	42kg
Gross Weight(head)	45kg
Net Weight(with motor and pedestal)	126kg
Gross Weight (with motor and pedestal)	133kg
Dimension	490×380×520mm

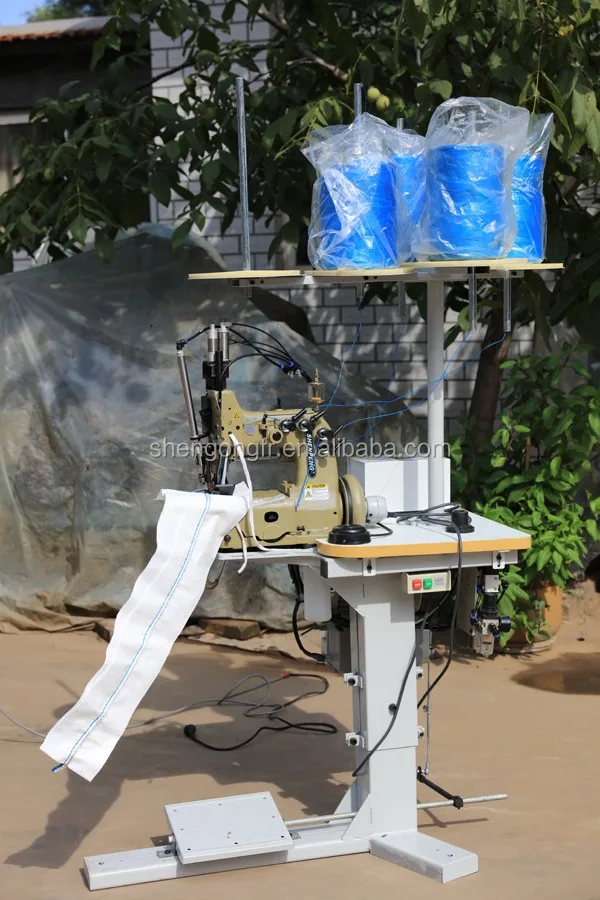

80700CD4H Machine Head ,Table And Motor

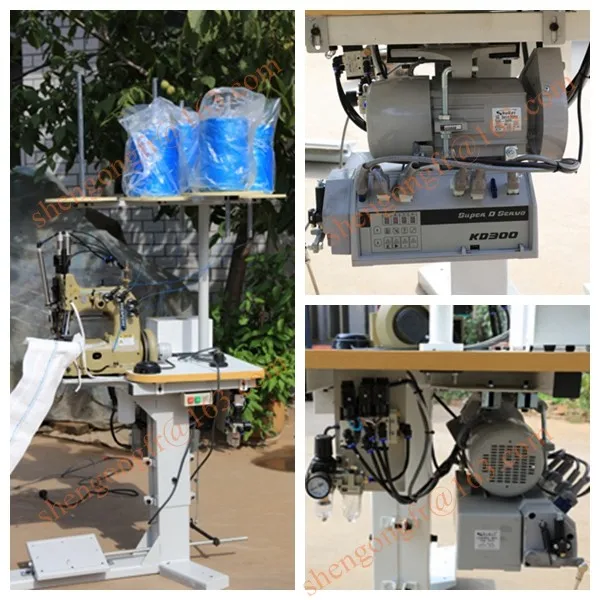

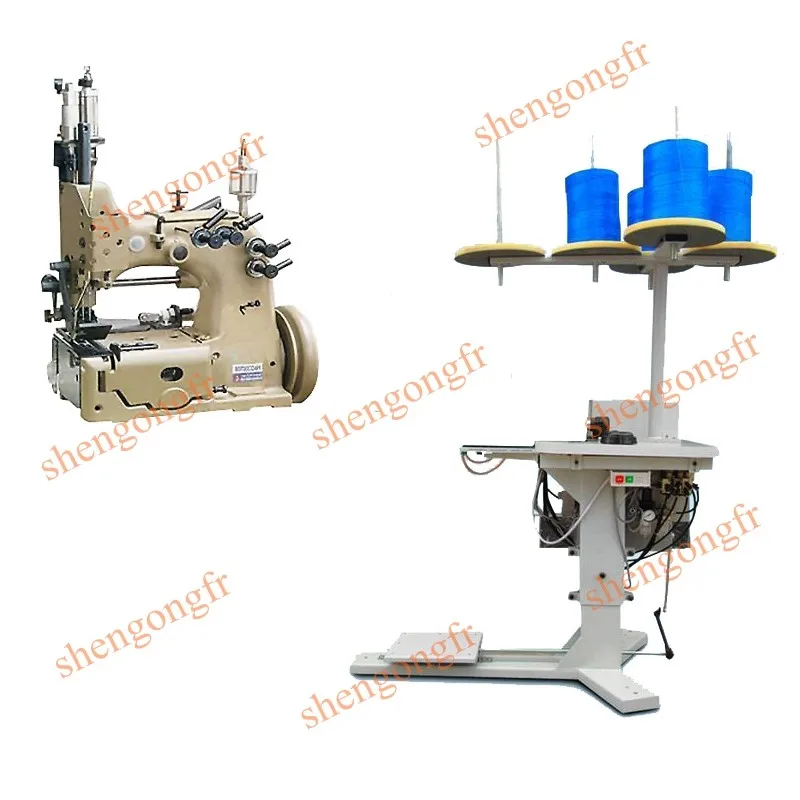

80700CD4H Machine And Motor

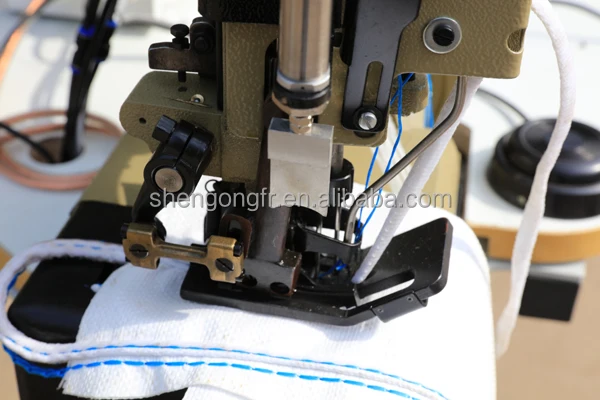

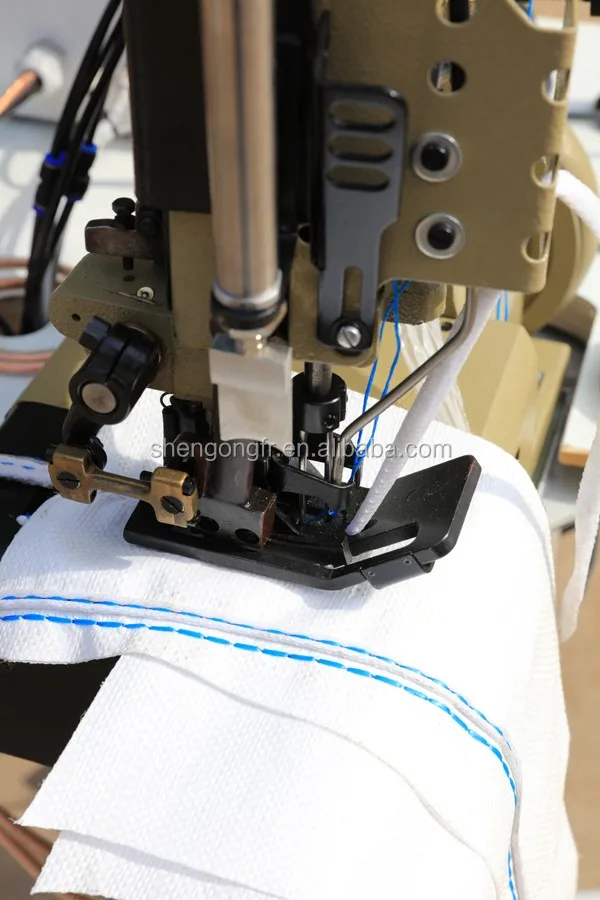

80700CD4H Presser foot

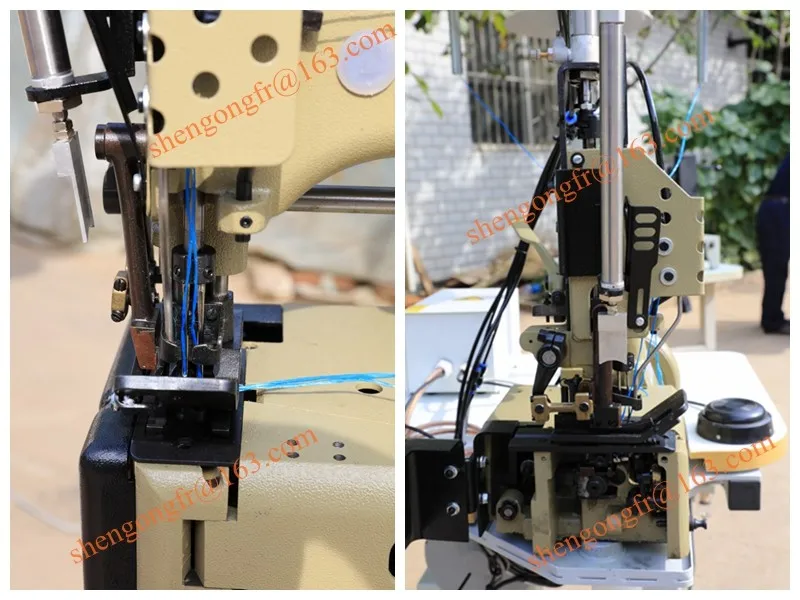

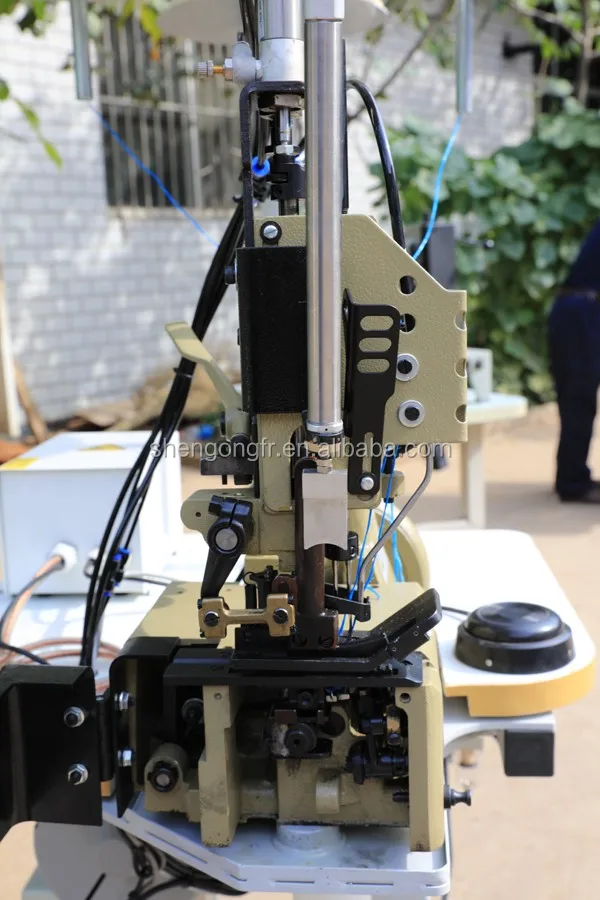

80700CD4H Internal Structure

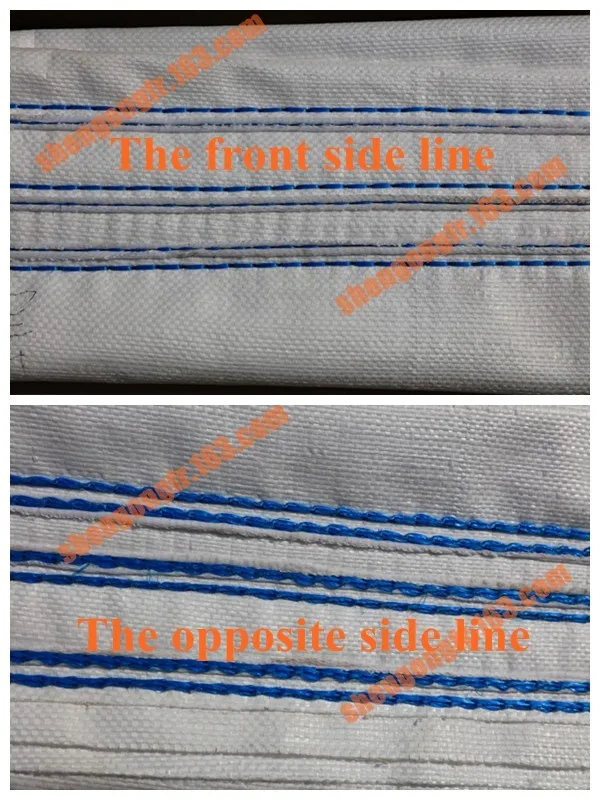

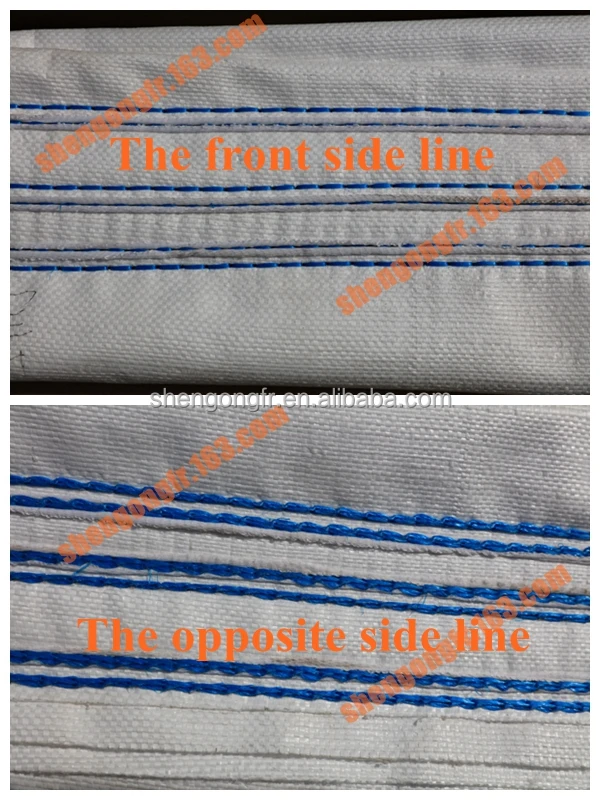

80700CD4H Stitch Sample









Attention:

1. Please oil the machine throughly before running;


2. Please follow the safety instruction strictly before put the machine into operation.





1.Professional technical consulting;

2.Machine operating analysis;

3.Stitch sample making;

4. Provide sewing machine working video ;

5.Maintenance and spare parts services.





FAQ:



1. Q: Do you have your own export right ?

    A: Yes, we are able to export the sewing machine to any country or region



2. Q: What service you can supply?

    A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Could i visit your factory ?

A: Yes, at the same time you can enjoy more favorable price if buy sewing machine



4. Q: Is your machine could replace Union Special or Newlong sewing machine function?

    A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.



5. Q: Do you supply spare parts?

    A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,

         best price.



6. Q: What gurantee you supply?

    A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate,

        feed dog, etc.
