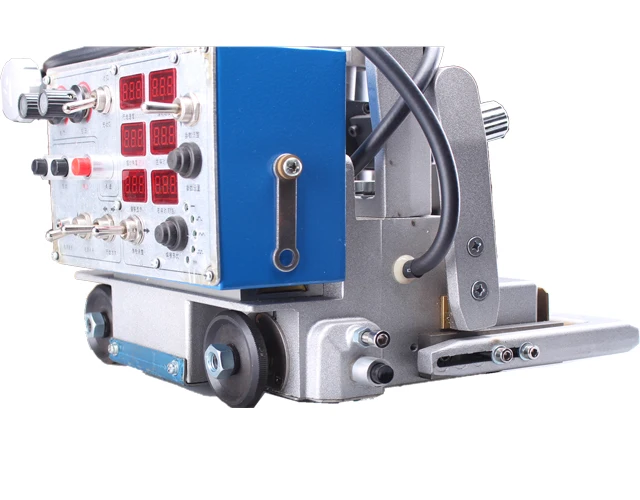

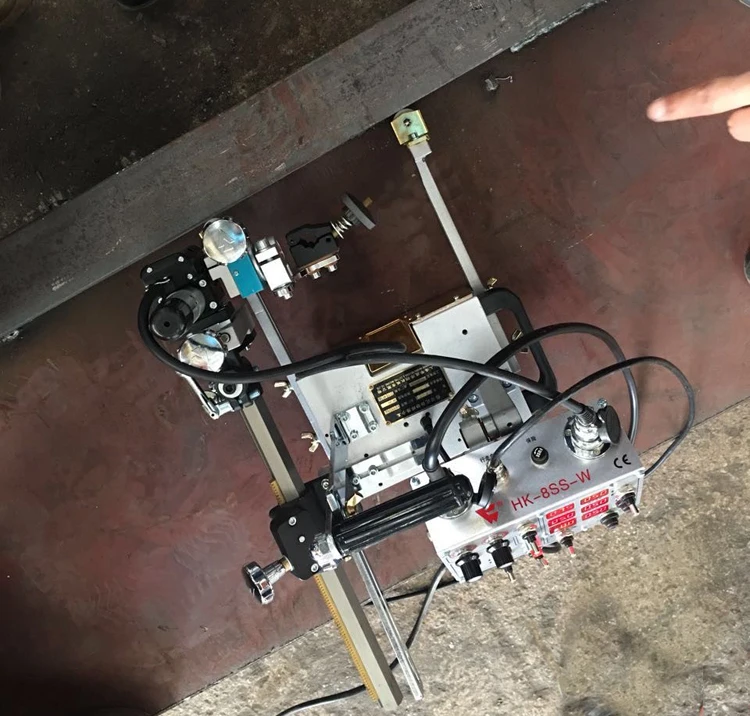

HK-8SS-W Swing Type Vertical Welding Auto Battery Welding Carriage
Product Description
* The machine is small, light weight, easy to move and install;
* Car with dust, anti-magnetization of the drive system placed in the internal, simple structure, long service life;
* Four wheel at the same time drive, rubber tire material is good, high temperature, welding walking smooth;

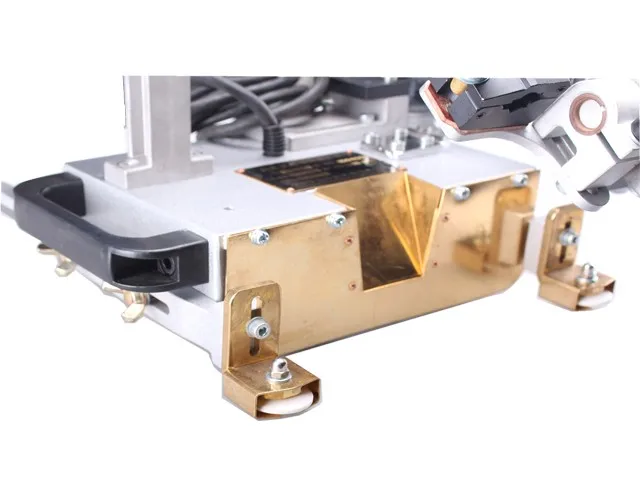

* Strong permanent magnet with the guide so that the car is always close to the weld, welding accurate;
* The use of gear transmission, to avoid the traditional chain drive a loose gap, walking with the phenomenon of interaction;

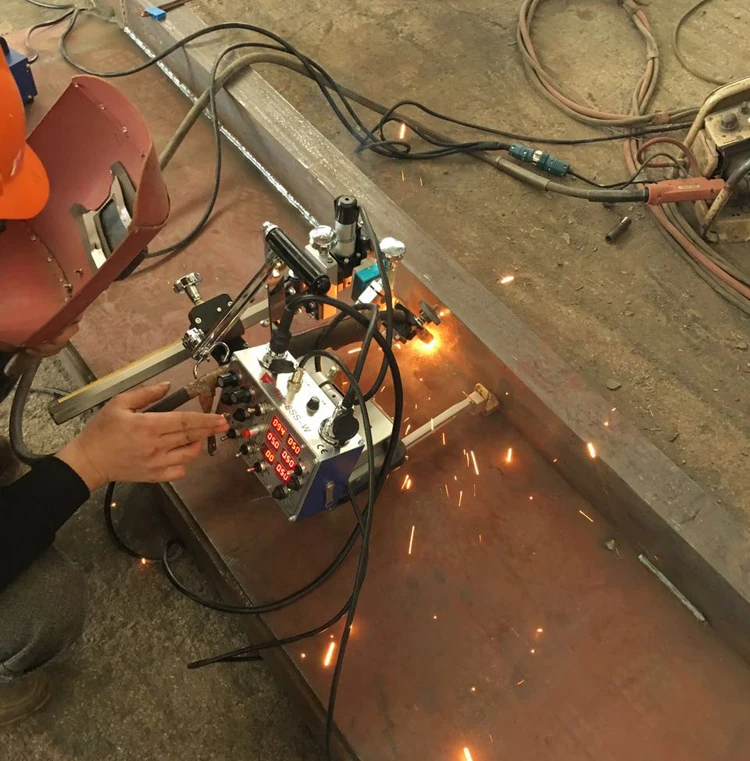

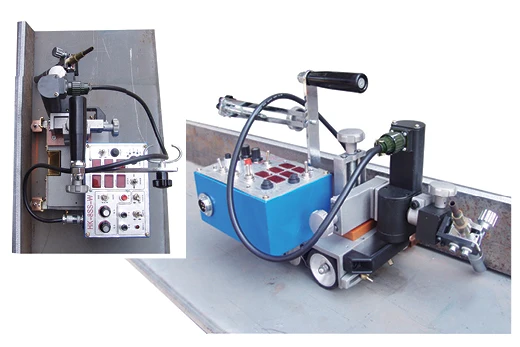

* Vertical welding and horizontal welding can be carried out, suitable for the welding of cross parts such as reinforcements.
Product Parameters
Source | 24V | DC | size | 435*280*330 | L*W*H |
weight | 10.2Kg | Included swing device | Swing motor | DC24V |
|
driving method | Four rims driving(Rubber rim) |
| Walk speed | 0~900mm/min | nixie display indicator |
Range of adjusting welding torch | Up an down | 60mm |
| Front an rear | 60mm. |
Range of working angle | 360° |
| Angle range adjustment | 10° | |
Operation function | current/voltage |
|
| Arc collection/no arc collection |
|
Power led |
|
| feed |
| |
Start walking |
|
| Stop walking |
| |
Choose of walking direction
| left or right |
| Speed adjustment | 0-900mm/min | |
Swing speed | 0~100 |
| Length of stay on left or right | 0~2.5 s | |
Swing angle | ±15° |
| Set position of deviation | 0~±8° | |
Choose swing model |
| ||||
Welding Parameter
welding wire diameter welding parameter | Φ1.2mm | Φ1.4mm | Φ1.6mm | |
current(A) | Down hand welding | 120-300 | 150-380 | 180-430 |
flush fillet welding | 120-280 | 150-320 | 180-380 | |
horizontal welding | 120-280 | 150-300 | 180-330 | |
voltage(U) |
| |||
distance between nozzle and workpiece(H) |
| |||
welding extension length(L) | The length is about 10 times welding wire diameter. It is L=10d | |||
Packaging & Shipping

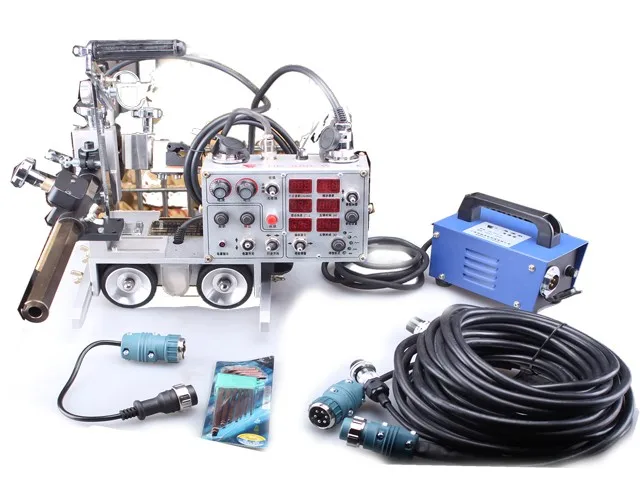

Packaging list
1. complete machine | One set |
2.Standard power wire (220V/20M) | One set |
3. Fuse(2A) | Two sets |
4. Hexangular screw | One set |
5. conjunction converts line(500mm) | One set |
6. Specification sheets | One set |
7. certificate of qualification | One set |
