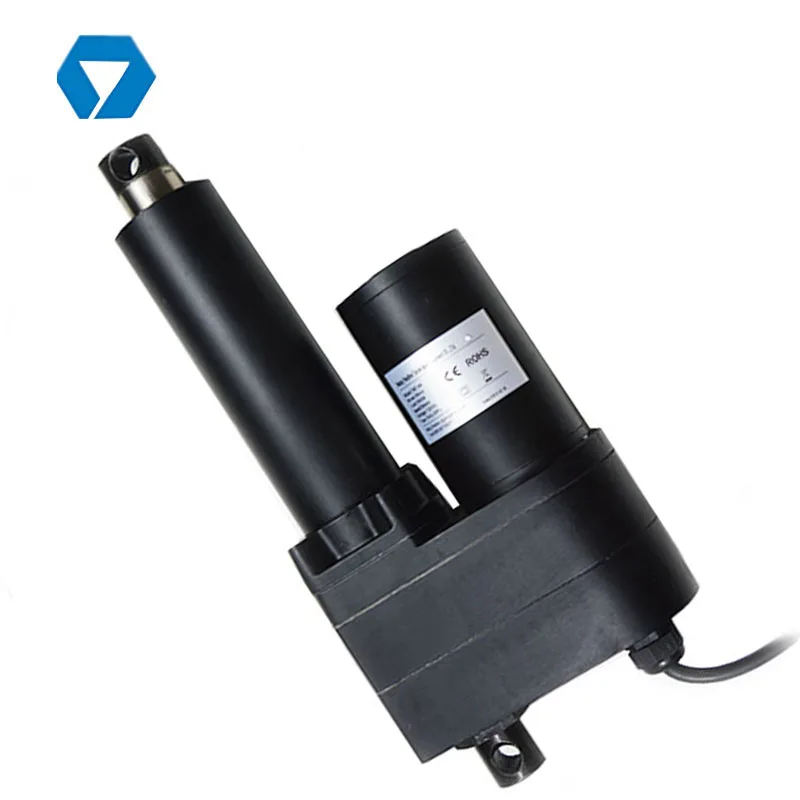

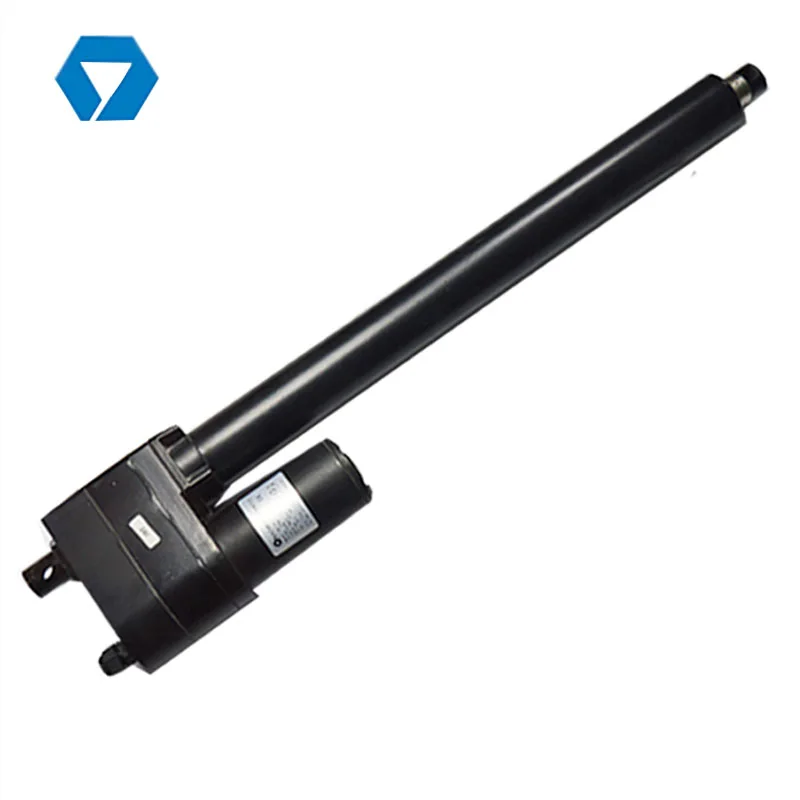

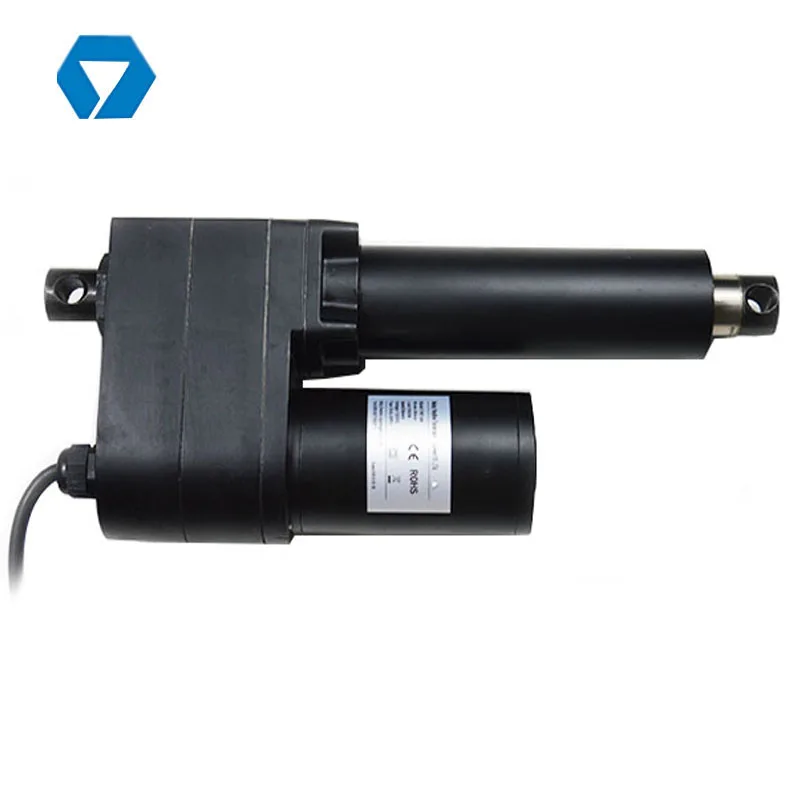

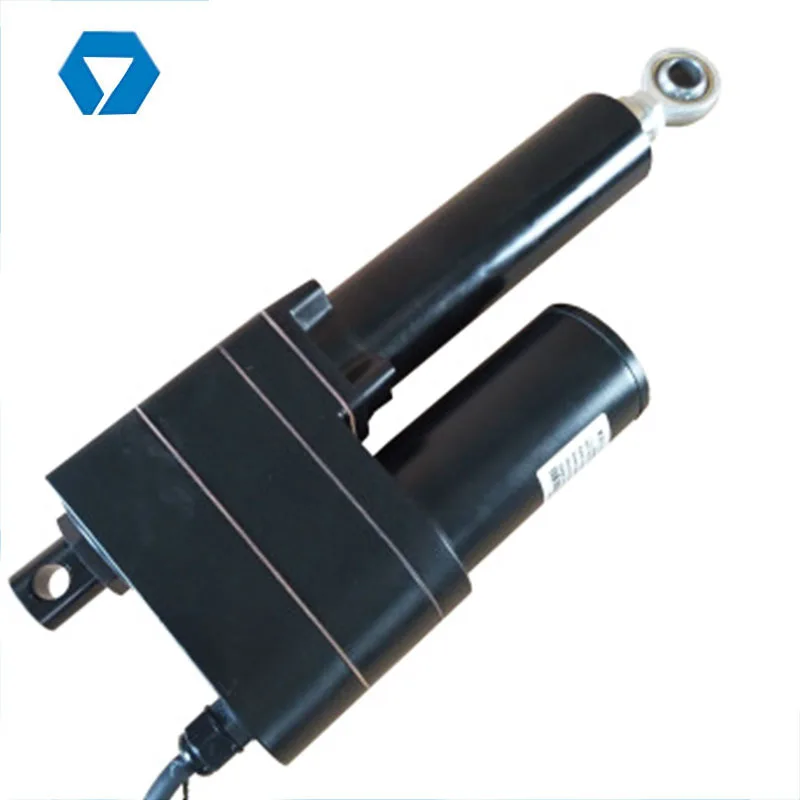

24V Dc 7000N IP65 Electric Motor Linear Actuator 400mm stroke With Potentiometer

Product Overview

Description

Nanjing Yongnuo Transmission Equipment Co., Ltd.. We are one designer and manufacturer of linear actuators in China for years. Now we offer some Metal gear type linear actuator with IP65,  max load capacity 7000N.

The linear actuators are Widely used in various types of industrial equipment, special vehicles, marine facilities .Plant protection machinery,Agricultural machinery,new energy vehicles,Cooking machine,Moving lighting,sweep vehicles,and other power devices, lifting devices.Attached are some photos for your reference.

YNT-04 Linear Actuator  technical data



LINEAR ACTUATOR YNT-04 TECHNICAL PARAMETER
Model	YNT-04	Input voltage	12/24/36/48VDC
Load capacity	Max7000N (push)/7000N(pull)	Stroke	Customized Stroke Available
Free load speed	30mm/s(1500N)	Operation temperature	-26℃~+65℃
Full load speed	5mm/s (7000N)	Protection class	IP65
Duty cycle	20%	Limit switch	Built-in
Output Power	150W	Noise level	≤70dB
Certificate	CE,ROHS	Minimum installation distance	Stroke+250mm





YNT-04 linear actuator support several load and speed based on different Metal gear ratio.



Dynamic Load Force	7000N	5000N	3000N	2000N	1000N	500N
Static Load Force	5mm/s	10mm/s	20mm/s	30mm/s	40mm/s	50mm/s
Speed with Load	5mm/s	10mm/s	20mm/s	30mm/s	40mm/s	50mm/s
Input Voltage	12/24/36/48VDC



Fully Retracted Status The length while fully retracted (Installation Length) is  Stroke length+250mm,  e.g., the stroke is 200mm, the Installation Length would be 450mm (200+250mm).

Fully Extended Status The length while fully extended length  is  Stroke length*2+250mm,  e.g., the stroke is 200mm, the fully extended Length would be 650mm (200*2+250mm).

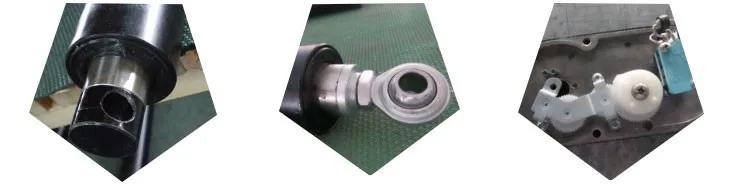

Core accessories



Mounting Drawing in millimeter:





Common Standard Installation length:Customization



Stroke length (mm)	50	100	200	300	400	500	600
Installation Length (mm)	300	350	450	550	650	750	850
Weight (KG)	4.61	4.99	5.75	6.51	7.27	8.03	8.79





You may like accessories



 Switching power supply and Reversing switch

 YNT-04 linear actuator With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in mining, electricity, transportation, ports, construction, medical equipment, firefighting equipment, furniture, military equipment, nuclear power plants, environmental protection, sewage treatment equipment (Decanter power) and other industries.

YNT-04 linear actuator Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.



YNT-04 linear actuator We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!



YNT-04 Linear Actuator — Quality Certification:ROHS and CE





Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How much is the packaging size?

A: Packing size is in accordance with your order, your product specifications to determine the package size.

Q: How much does shipping cost and what shipping methods do you support?

A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling;

Transport of large trucks to the seaport and international transport cooperation

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide customized Functions ?

A: Yes, we can design and program as your requirements.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us

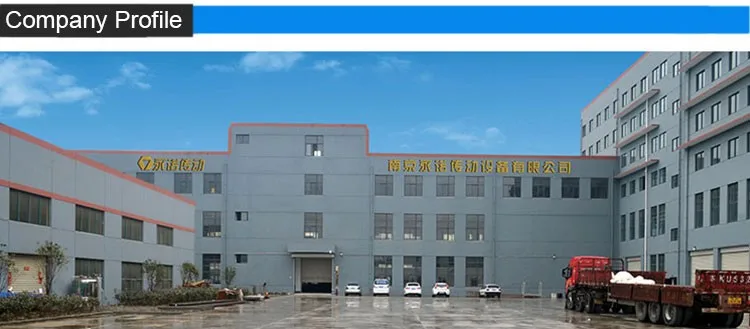

Nanjing Yongnuo Transmission Equipment Co., Ltd. is a professional engaged in linear actuators, controllers and hand controller manufacturers.
