Plastic pet egg tray making machine price

Product Overview

Description

Plastic pet egg tray egg tray making machine price

Video:

https://youtu.be/cPk5WIxbqJM







The FSCT770570 ,which is a combination of mechanical,electrical and pneumatic components,

adopts the most advanced thermoforming technology.The whole system is controlled by micro

PLC and operated by the man-machine interface.It combines the feeding,heating,forming,

cutting and stacking into one process.





Main parameters:



Sheet  material	PP/PS/PVC/PET/HIPS etc.
Max forming area	770×550mm
Max forming depth	≤100mm
Max plastic width	≤790mm (Adjustable)
Max plastic sheet dia.	1000mm
Thickness of plastic sheet	0.1-2mm
Forming speed	20-35times/m
Air pressure	0.6-0.8mpa
Air consumption	3m³/min
Power consumption	58KW/H
Machine Kilowatt consumption	≤82KW
Weight	9500kg
Power supply	380v/50Hz Three phase four wires
Size of machine	L11500*W2400*H2400

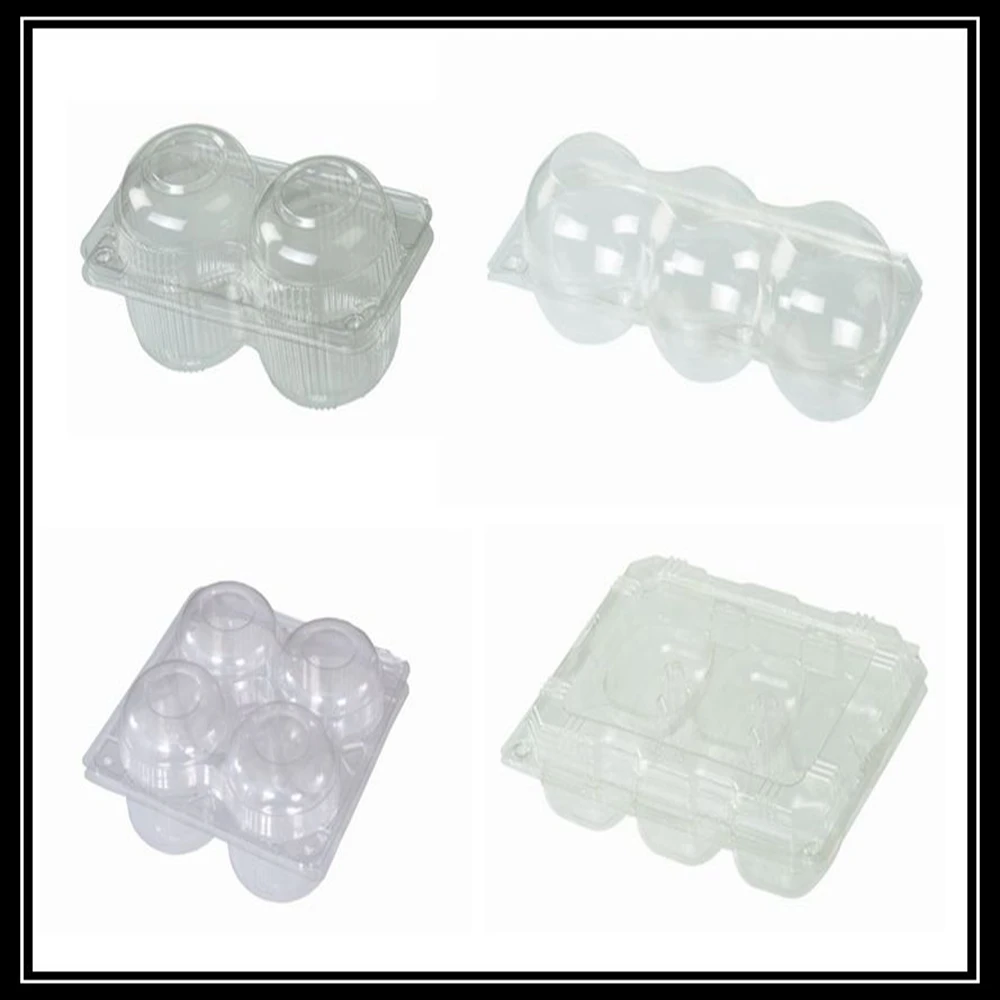

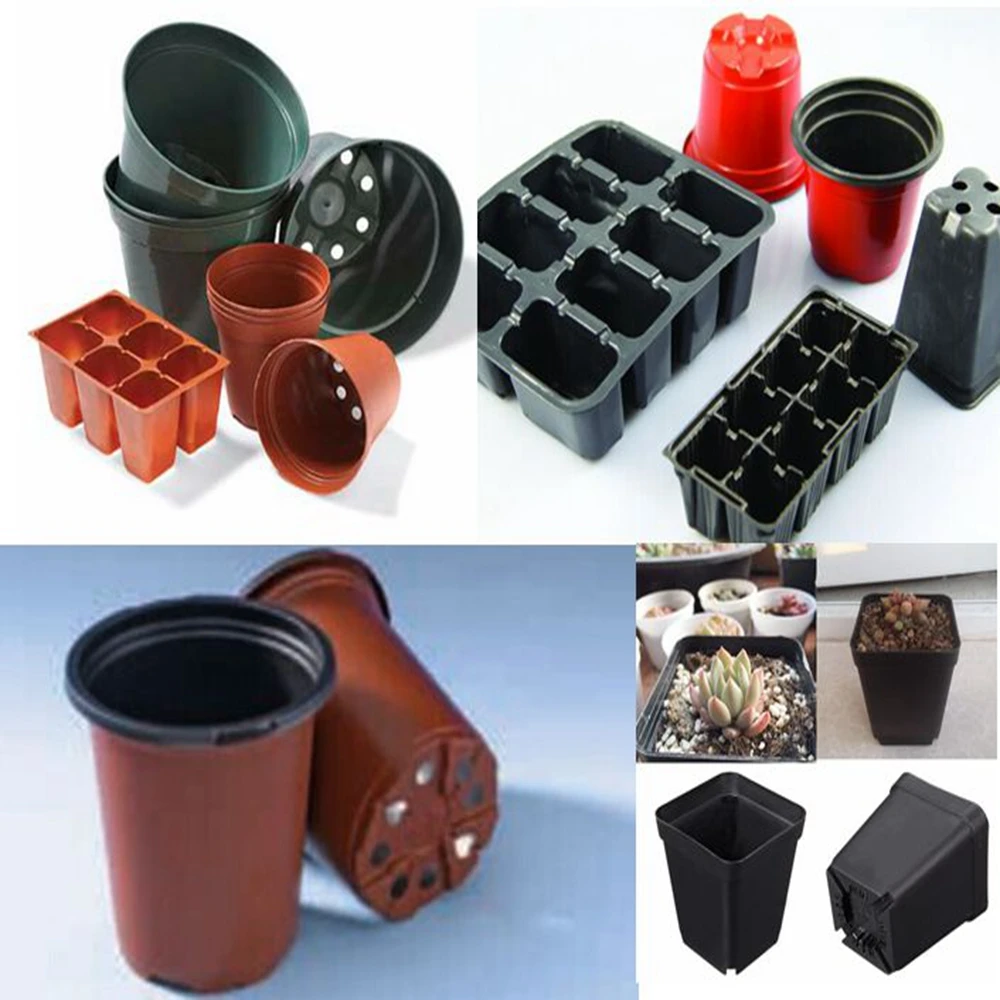

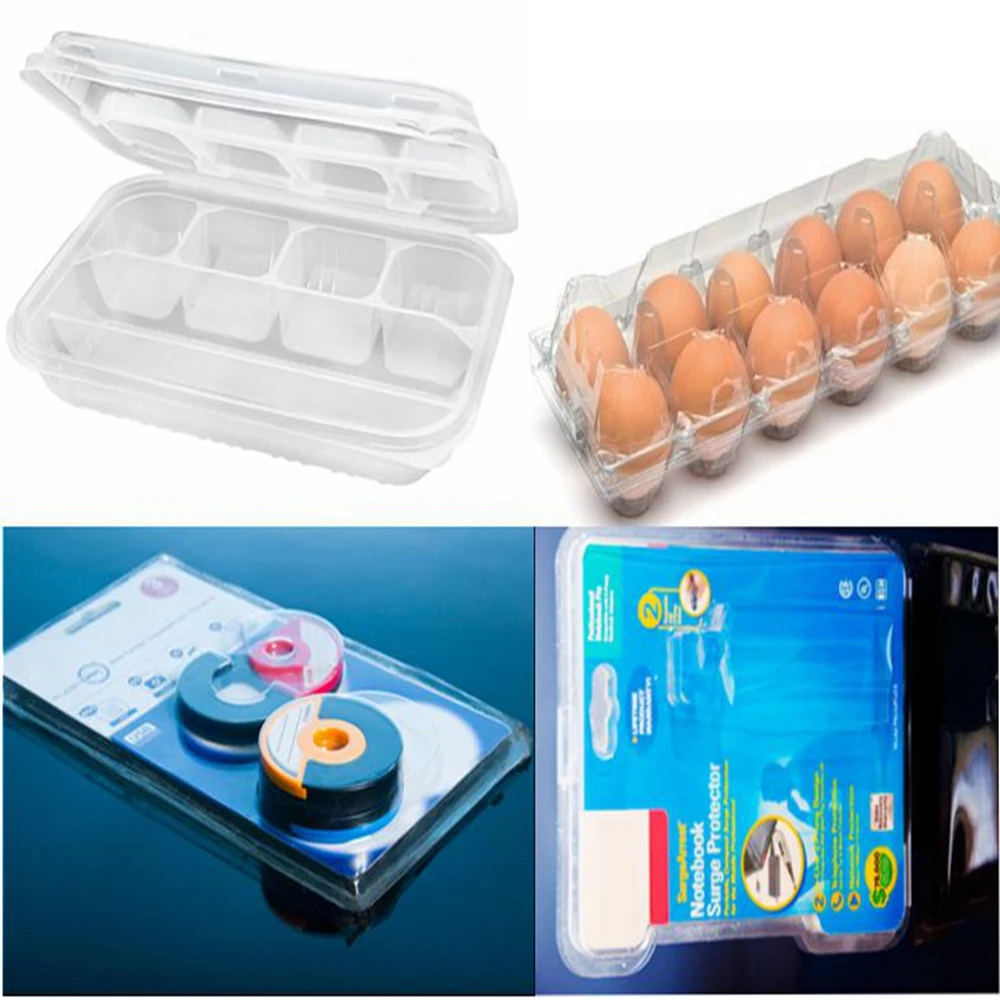

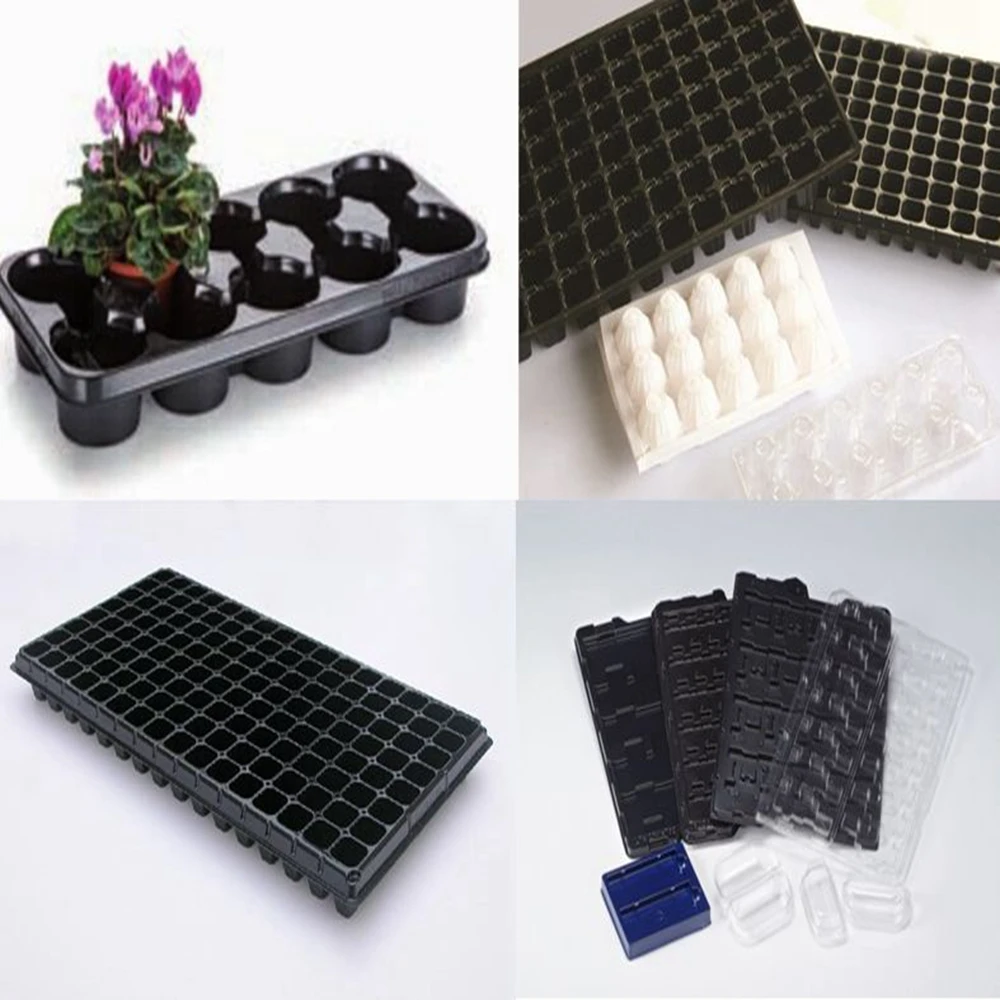

Sample information:





Machine Details:
