Product Overview

Description


Machine  Description Machine  Description

                                                      10T leather press punch machine

use and character
This machine is suitable for blanking of the nonmetallic materials as small-knife mold, ticket clip units, handset sleeve, small toys.,adornments, leather bag fittings etc.

10T leather press punch machine

Model number :GSB-100
Max scissoring force :100KN
Scissor speed: 0.10m/s
Stroke adjustment :5-75mm
Distance between upper table and lower table :60-120mm
Last work set size :400*800mm
Overall dimension: 850*700*1250mm
Motor power: 0.75KW

1.Features and Advantages

1.With freely rotary swing arm, easy to operate.
2.The upright column is made of high-grade seamless tube,supported by two upper and lower holes,to ensure the upper strike board can turn smoothly,with good reliability.
3.Adopt the switches tan are operated by two hands,to ensure the operator is safe.
4.The position of the swing arm is adjusted by the upper handwheel on the machine. Blanking travel is controlled by the timer. Thus it is easy to obtain the best cutting position,which and increase work sufficiency and prolong the service life of the knife mold and backing board.
5.Use fly wheel inertia stored energy to save energy.

2.Technical Parameters


Machine Detail Machine Detail
Model
GSB-2C/10
GSB-2C/12
GSB-2C/16
GSB-2C/200
Cutting Force
100KN
120KN
160KN
200KN
Seissor speed
0.10m/s
0.098m/s
0.10m/s
0.10m/s
Stroke adjustment
5-75mm
5-60mm
5-75mm
5-75mm
Distance between upper
 table and lower table
60-120mm
60-120mm
65-150mm
65-150mm
Last work set size
400*800mm
400*900mm
450*900mm
500*1000mm
Overall dimension
850*700*1250mm
900*800*1300mm
900*900*1380mm
1000*900*1380mm
Motor power
0.75kw
1.1kw
1.1kw
1.5kw
Color
red/blue with dark green/white
Voltage
Three/single phase,380v/220v
Hydraulic oil
46# 48# 68#
Function
Cutting

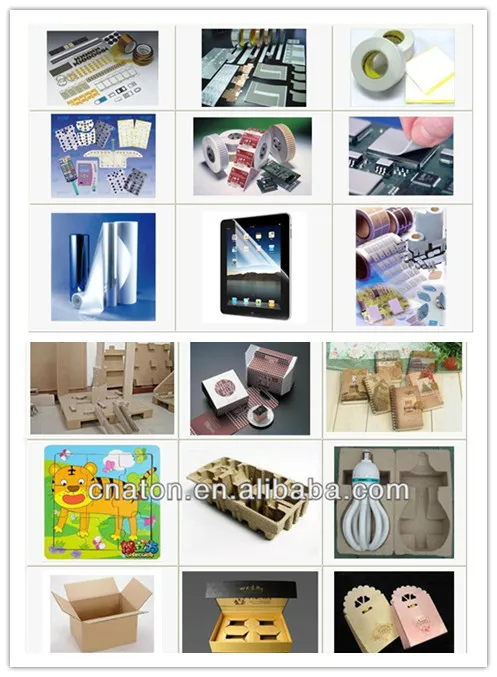

4.Product application

This equipment is suitable for all kinds of plastic, sponge, EPE pearl cotton, carpets, automotive interior, gloves, bags, puzzles, EVA, PAC, PVS, plastic floor, ceiling, floor mats, car cushion car seat, decoration materials, square tiles, flooring, carpet, football, sandpaper, grinding wheel, polishing, polishing CD, insoles, shoe uppers and shoe soles, leather, rubber, chemical fiber, paper, canvas, nylon, non-woven fabric, cotton fabric and various non-metallic materials in one layer or multilayer sheet and coil using the knife mold cutting so as to achieve the purpose of molding.

5.Features and Advantages
1.Rotation of swing arm is flexible, and operation and materials selection is convenient.
2.High quality seamless steel tubes are adopted and processed into pillars, which are supported by top and bottom holes, to guarantee the flexible rotation and good reliability of upper beating board.
3.The switch is operated by both hands to guarantee the safety of operators.
4.The whole machine use self-lubricating system to reduce wear and extend the service life of the machine
5.The inertial of flying wheel is used to store energy, which saves the energy
6.The use of time control allows for simple and convenient setting of cutter depth.

6.the cutting-dies & PP board

We can according to your material,requirements,design the mould for you

What Working of our die cutting machine?

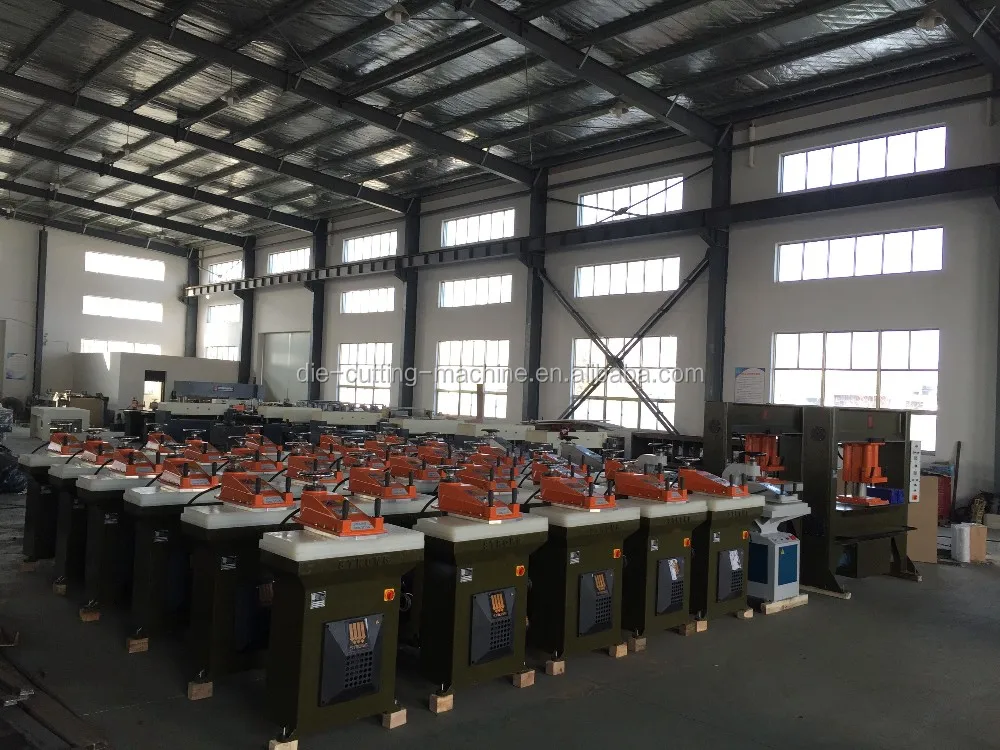

7.Working Shop ( Machine Manufacturing Process):

why choose us?
1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us.
3.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customers’ requirements.
4.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
5.Q: What is your MOQ of this item?
A: 1 set per style
6.Q: What is the lead time?
A: It depends on your order quantity.
7.Q: Is it all right to make customer's own brand name?
A: That’s all right to make your own brand name.
8.Q: Where is your Loading Port
A: Shanghai. port,China.
9.Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment or L/C at sight.
10.Q: What is your company's available production capacity?
A: Usually 200 sets monthly.



10T Swing Arm foam die Cutting press Machine

Packing & Shipping
Packing Details: Wooden Case.
Delivery Detail: 5-15days after order placed and receiving 30% of T/T deposit. Depends on quantity.
Our lead time is punctual and fast
We will offer our factory price with guaranteed quality.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us
We can produce the product under your brand name, also the size can be changed as your requiremen
Factory direct sale; Guarantee Period one year
Note: we can produce different types, tons and cutting area of machine according to your demand.
