Reverse osmosis drinking water filter

Share on (60612124758):


Price:

Quantity:


Product Overview

Description



Product Showcase:

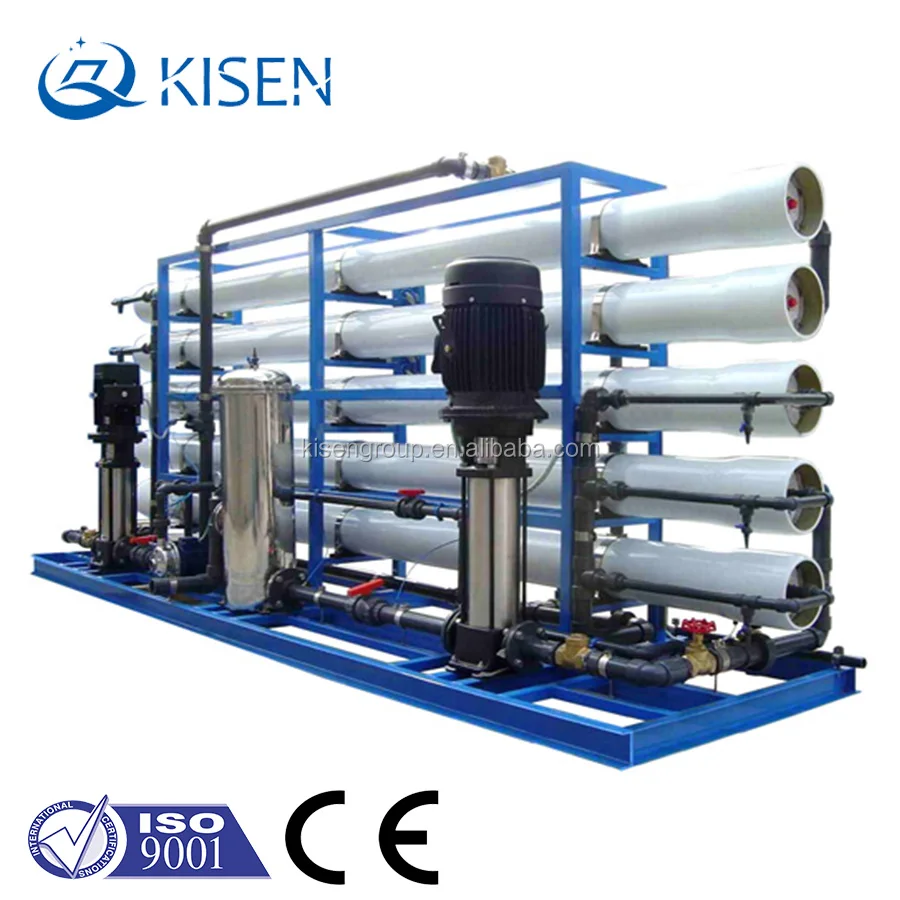

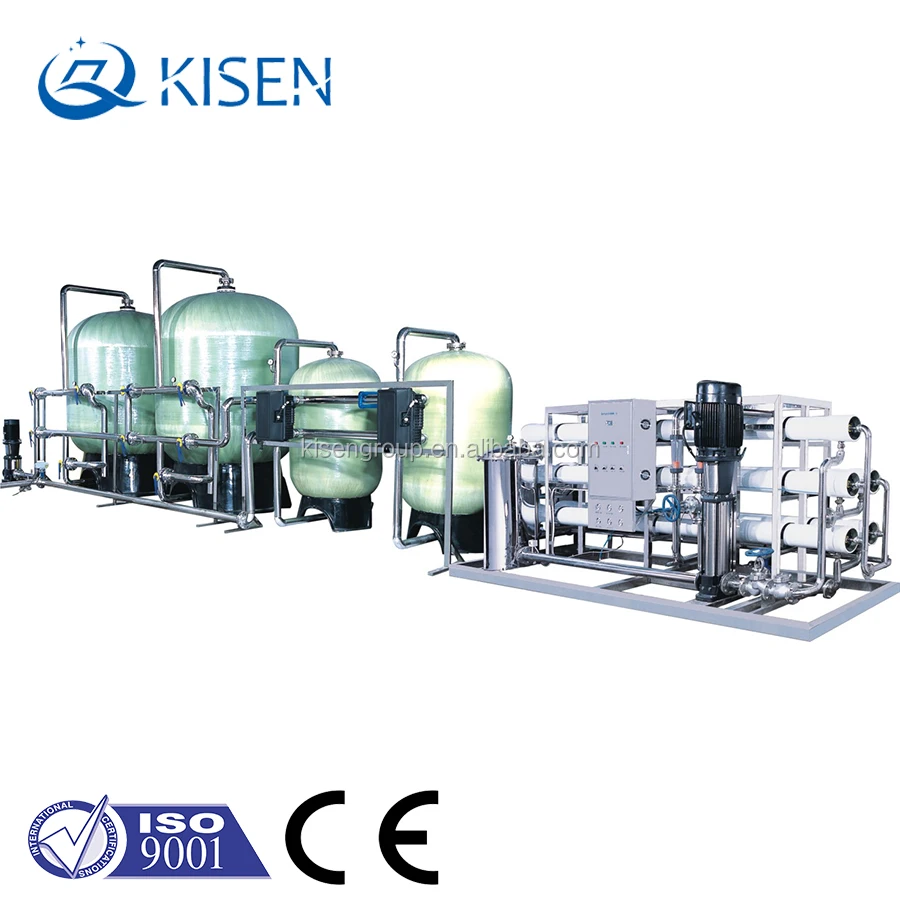

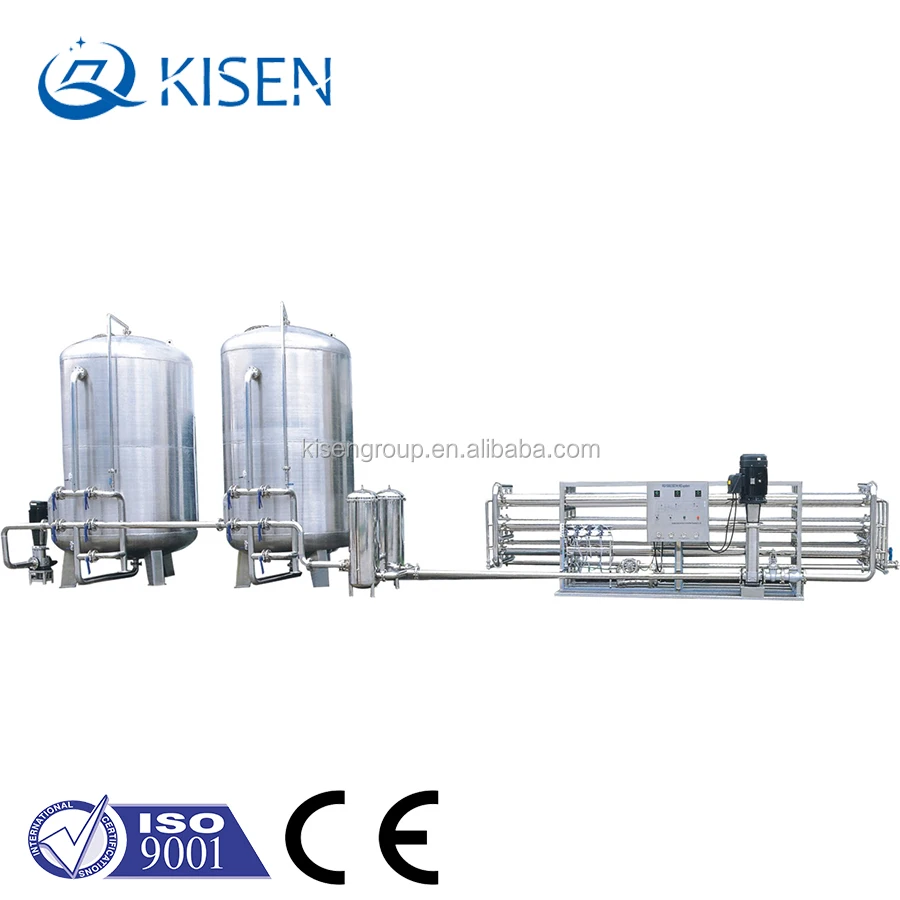

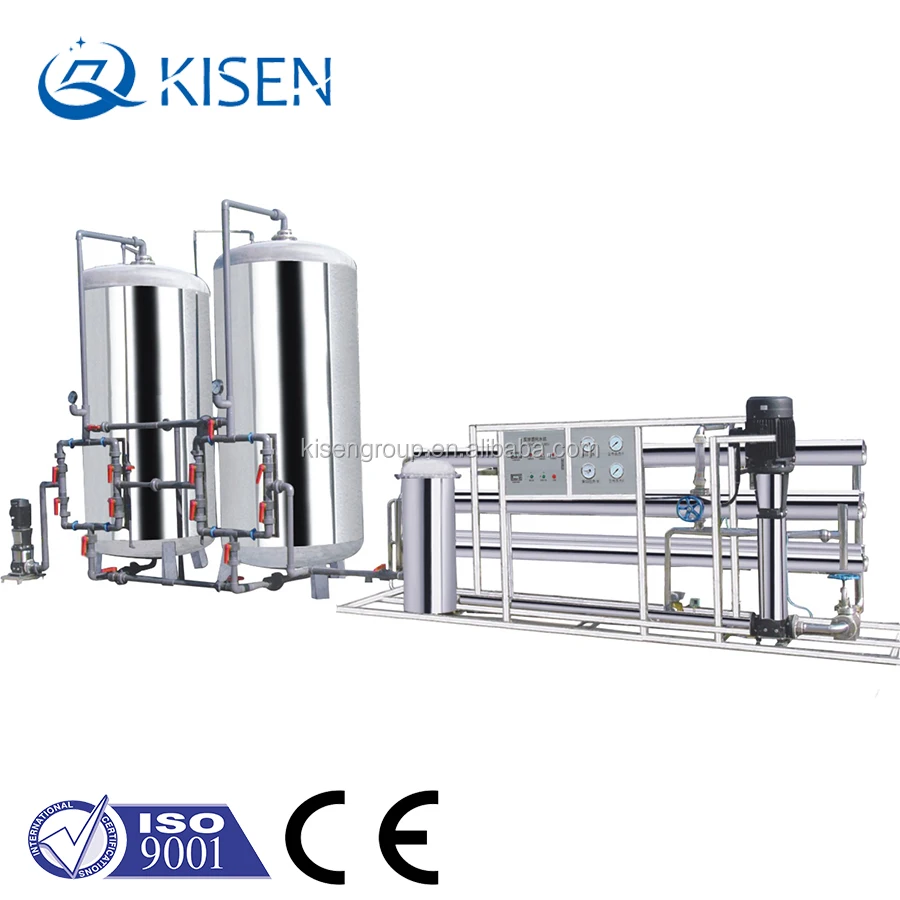

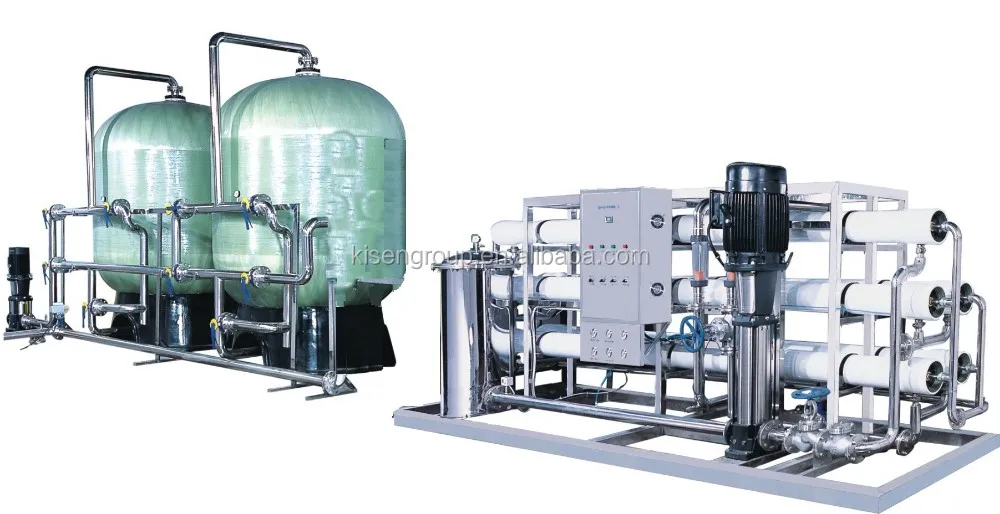

Kisen reverse osmosis drinking water filter
This reverse osmosis drinking water filter includes raw water tank ,raw water pump,silica sand filter,active carbon filter,ion exchange,high pressure pump,reverse osmosis,Ozone sterilizer,water storage tank  and so on.
The r
aw water tank is made of SUS304 material.Raw water pump provide the pressure to silica
sand
 filter/active carbon filter.Silica Sand filter get rid of turbidity, suspended matter, organic matter, colloid and so on.Active Carbon filter Remove the color, free chloride, organic matter, harmful
matter and so onion exchange
 prevent any deposition of large Particles, most of the bacteria,
 and viruses into the  RO   membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. High pressure pump
 Provide the high
pressure to RO membrane(at least 2.0 Mpa).RO system is the main part of pure water treatment
plant. The RO membrane's desalt rate  can   reach as high as 99%, it is capable of removing over 99% of ions,
bacteria's, particles and 98% of organic. It adopts the stainless steel filter membrane.Ozone sterilizer or UV sterilizer is For killing the organism bad to health.Pure water storage tank--Storage the purified water for filling.










Specification:



































































Model:



RO-1000I reverse osmosis drinking water filter



Capacity of pure water:



50,000 L/H



General power:



37.5KW



Electrical power:



AC 380V 68A 50Hz



RO membranes:



CPA2 8040 25 items



Multi-phases pump:



CR45-8(Groundfos Brand)



Beforehand filter:



1800×2400 2 items



Ion exchange tube:



1000×1800 2 items



PP sediment membranes filter tube:



500×1000×2.0 1 items



Booster pump:



CR45-2



Active carbon filter:



1600kg



Quartz sand filter:



5000kg



Cation:



1700L



Functions of the machine:



RO membranes auto wash and manual wash
RO membranes manual wash with medicine
Pure water high water level auto stop,low water level auto start
Multi-phases pump protected without water Protected when no power,poor power,short circuit,larger electric current,creepage of electricity



Out size of main machine:
Out size of beforehand filter:



6000×1400×1900mm


7000×1900×3500mm
