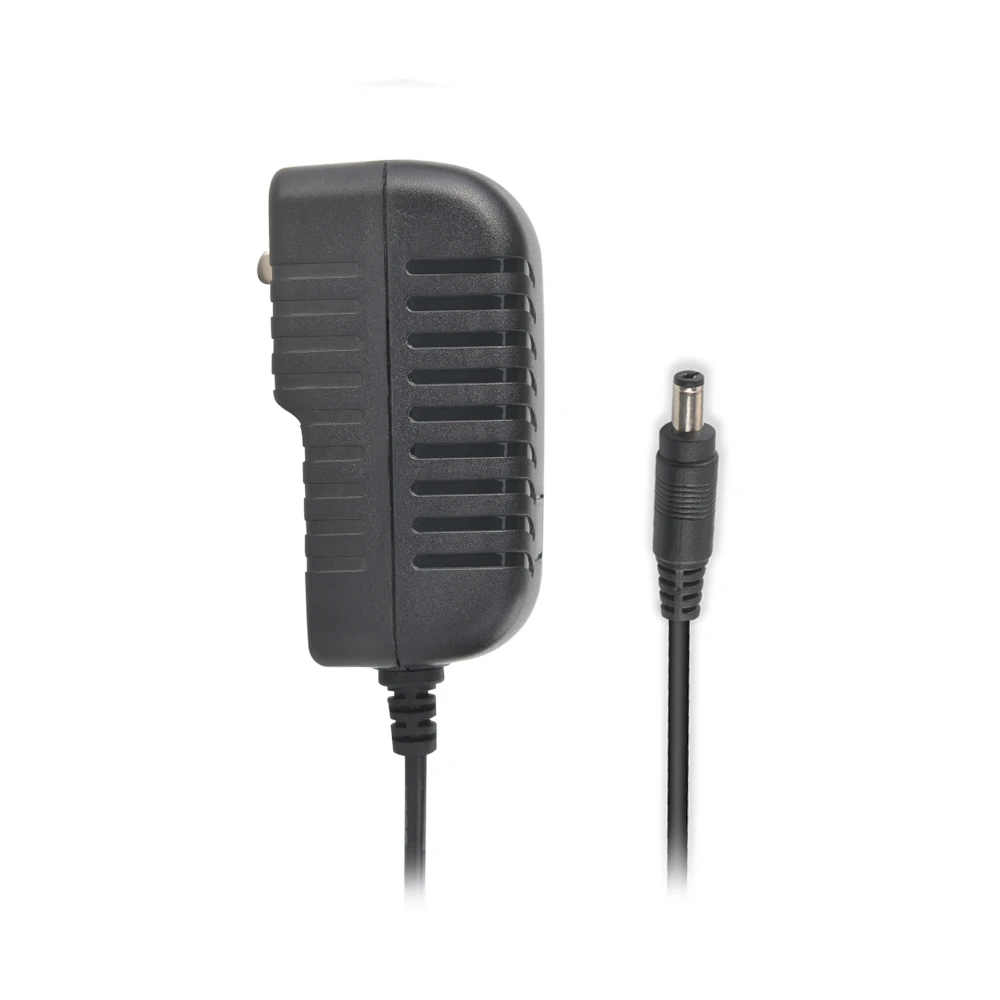

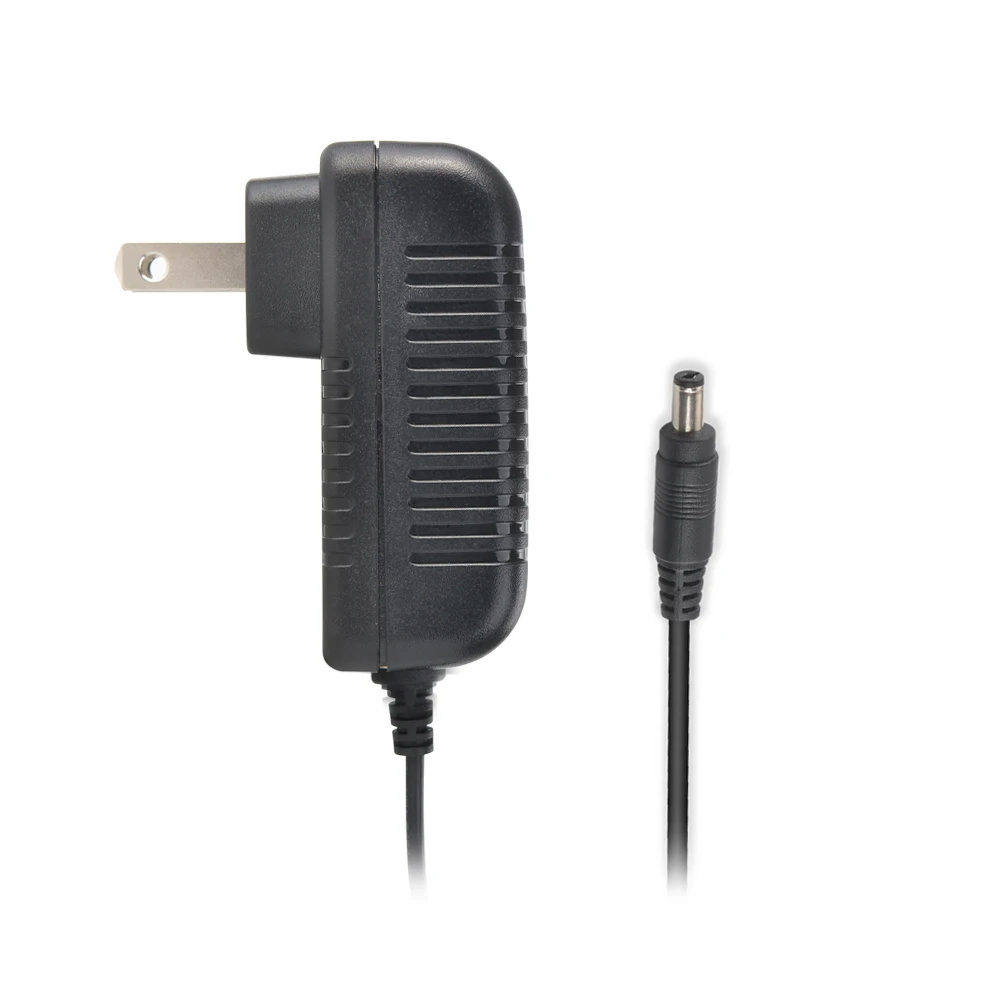

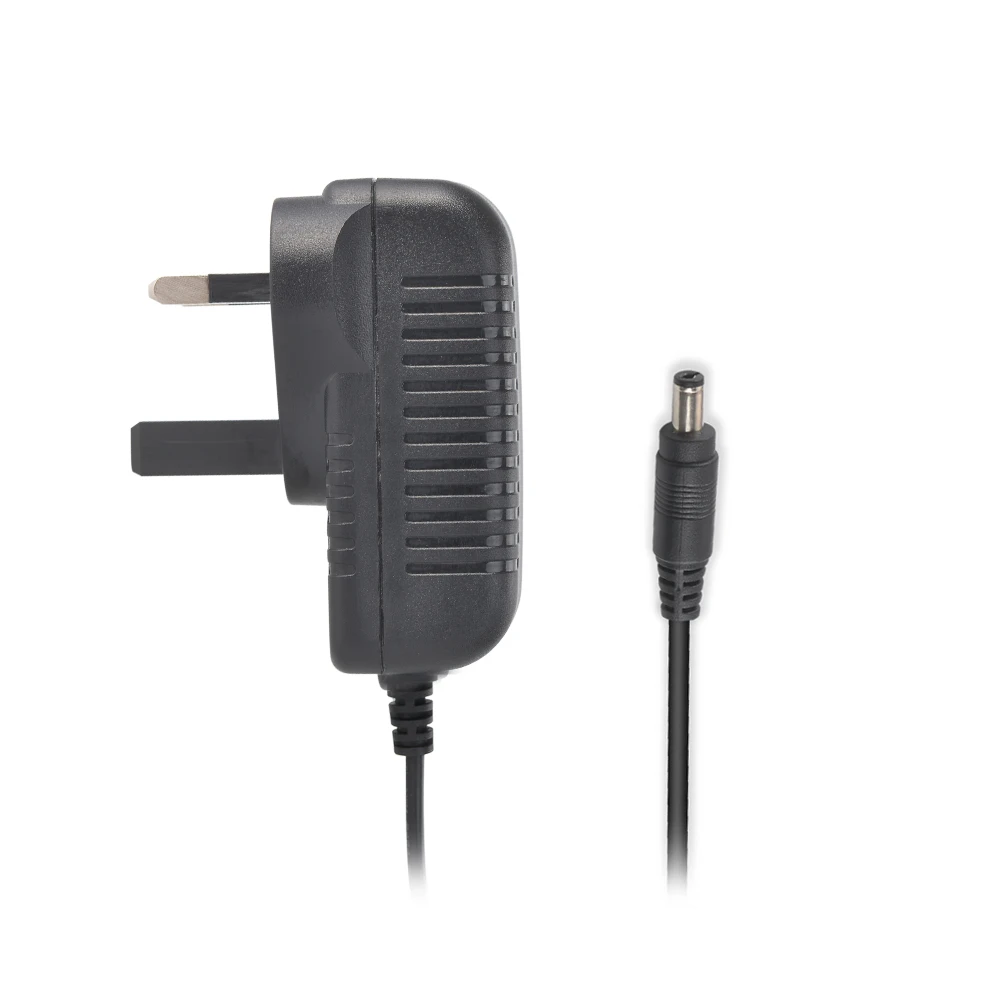

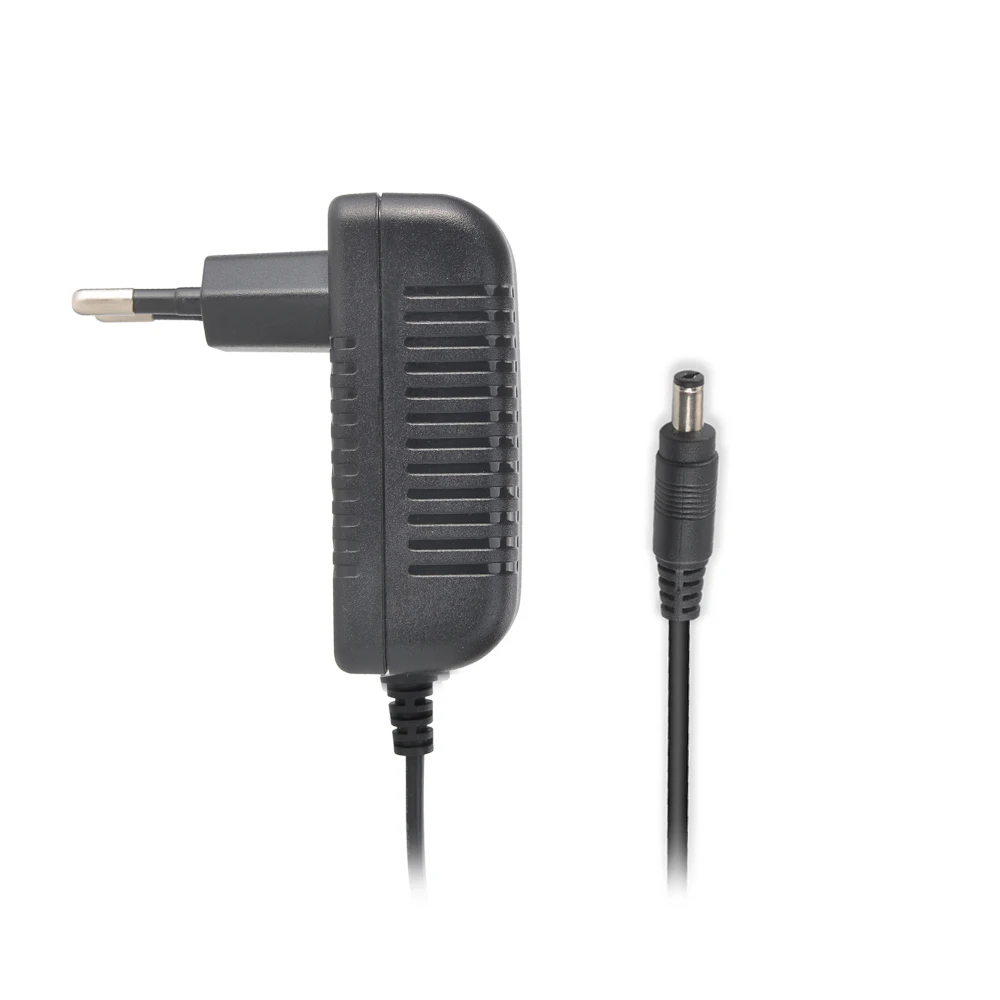

  • Au eu Plug Switch power Supply Ac Adaptor 100 240v 50 60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100 240v 50 60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100-240v 50-60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100-240v 50-60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100-240v 50-60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100-240v 50-60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter
Au eu Plug Switch power Supply Ac Adaptor 100-240v 50-60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter

Au eu Plug Switch power Supply Ac Adaptor 100 240v 50 60hz 12v 15v 18v 24v Dc 0.2a 200ma 350ma 400ma 500ma Ac/dc Power Adapter

Share on (60612337582):


Price:

Quantity:


Product Overview

Description



Features


Meet ROHS

> Universal Input 100-240 VAC
> Modified and Custom Design Available
> Output with Low Ripple Noise
> 3Year Warranty
             Electrical
             > Dielectric
             > Burn-In Test
             > Leakage Current
             > Efficiency
             > MTBF

3000VAC
100% full load
0.21mA
DOE VI
30000Hrs




AC Input

> Voltage Range: 90-264 VAC
> Input Frequency: 47-63Hz
> Input Current: 200mA max
> Inrush Current: 30A max
> Efficiency: 82% min


DC Output

> Voltage Range: 12-24V
> Current Range: 0.01A-0.5A
> Inrush Current: +1% Voltage Max
> Power: 13W Max.



Mechanical

> Case Dimension (L*W*H mm)
Wall-Mounted

AU: 68x40x50mm
EU: 68x40x63mm
US: 68x40x49mm
UK: 68x40x55mm
Interchangeable: 74x40x38.5mm



Safety Approval

UL cUL ETL CE FCC PSE SAA C-tick CCC








Application


Wall mount / Desktop Switching Power Supply
* Meet relative safety request, energy label programs.
* Universal Input : 100 – 240V
* You can select wall mount / desk top types per your need.
* Varied DC plug provided for customer to meet customer request.
* Usage : cell phone, small DC consumer electronics, pet relative appliances, required DC voltage / current- driven appliances, external hard drive, related computer peripheral equipment and other required information built-in power supply of related equipment.
