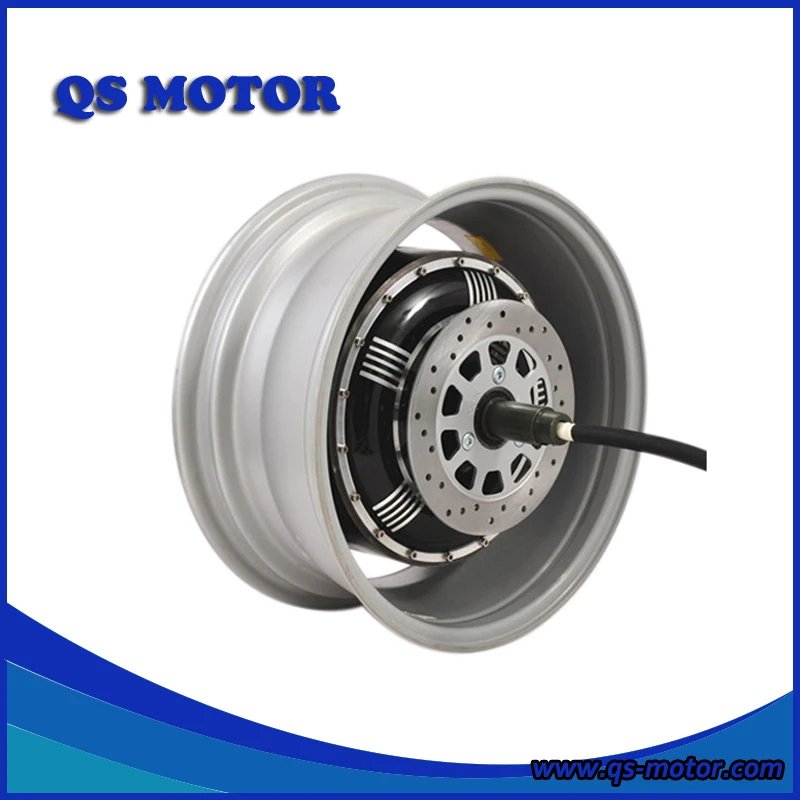

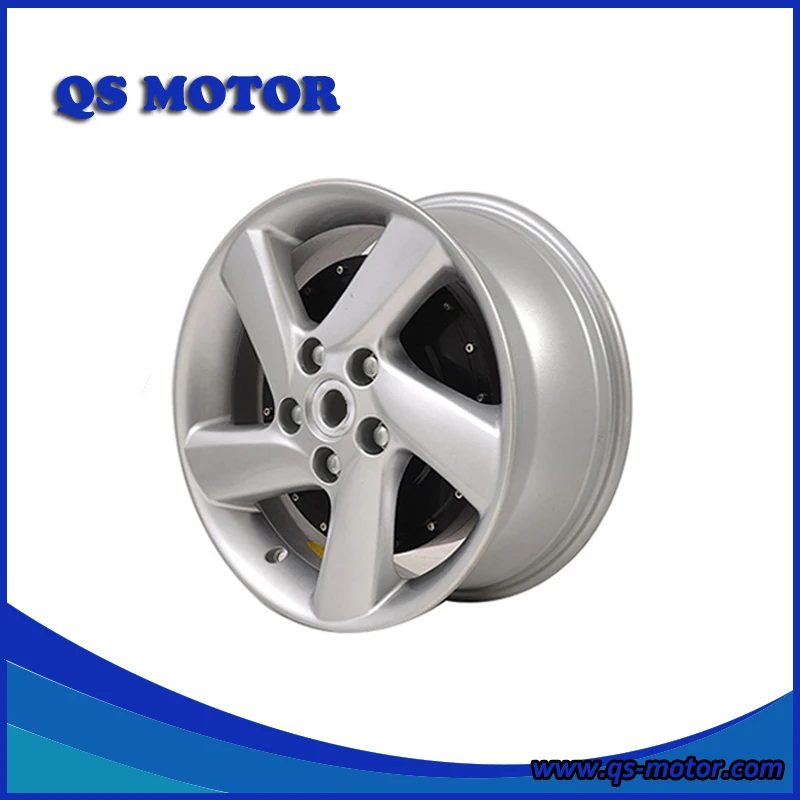

8000W V3 QS Electric Car Hub Motor ( 273 Model )

Product Overview

Description









273 E-Car Hub Motor(50H) 8000W V3 Type





273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.















1.      Motor Type: BLDC Hub Motor with Permanent Magnet

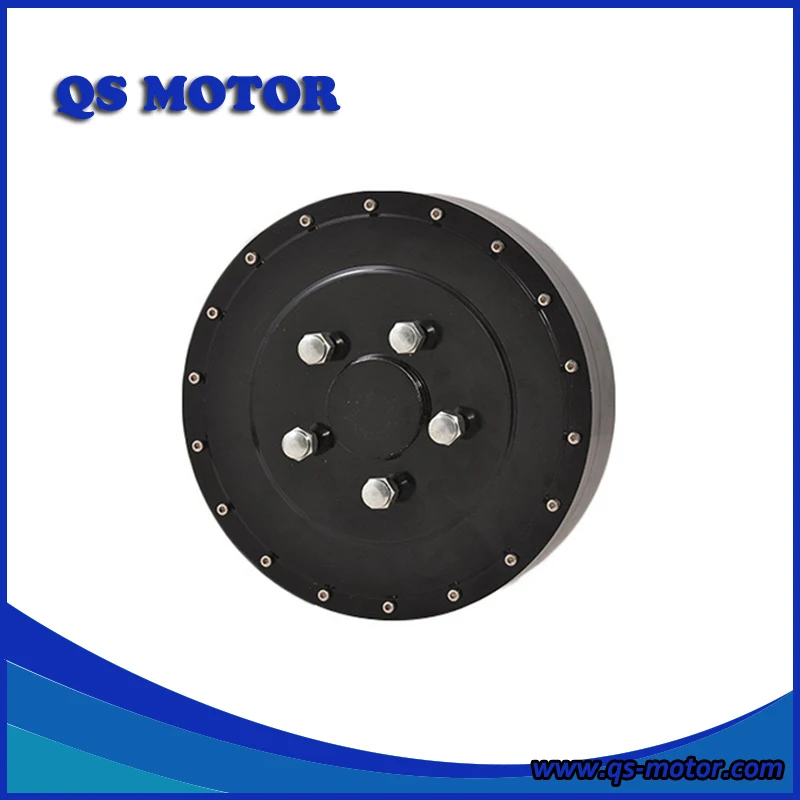

2.      Motor design: Single axle out without rim

3.      PCD for rim installation: 4 x100mm, 5x114.3mm

4.      CB:60MM/70MM

5.      Magnet Height:45MM

6.      No. of Pole Pairs: 16 pairs

7.      Rated Power: 8000W V3

8.      Peak Power: 16000W

9.      Rated Voltage: 72V( 60V-144V Can be optional)

10.  Speed: 100km/h (40-100km/h can be customized)

11.  Max No-load RPM: 1000RPM

12.  Max Torque: 250N.M

13.  Max Efficiency:90%

14.  Continious current:88A

15.  Max current:120A (Peak 170A in short time)

16.  Brake type: Disc brake

17.  Winding Core material: Aluminium

18.  Cross Section of Phase wire: 16 mm2

19.  Hall sensor phasing angle: 120 degree

20.  Temperature Sensor: Optional

21.  Max. Working Temperature: 70 degree, Peak 120 degree

22.  Waterproof Grade: IP54

23.  Color: Black

24.  N.W./ G..W. : 25kgs /26kgs



25.  Package Size: 44*43*34CM
