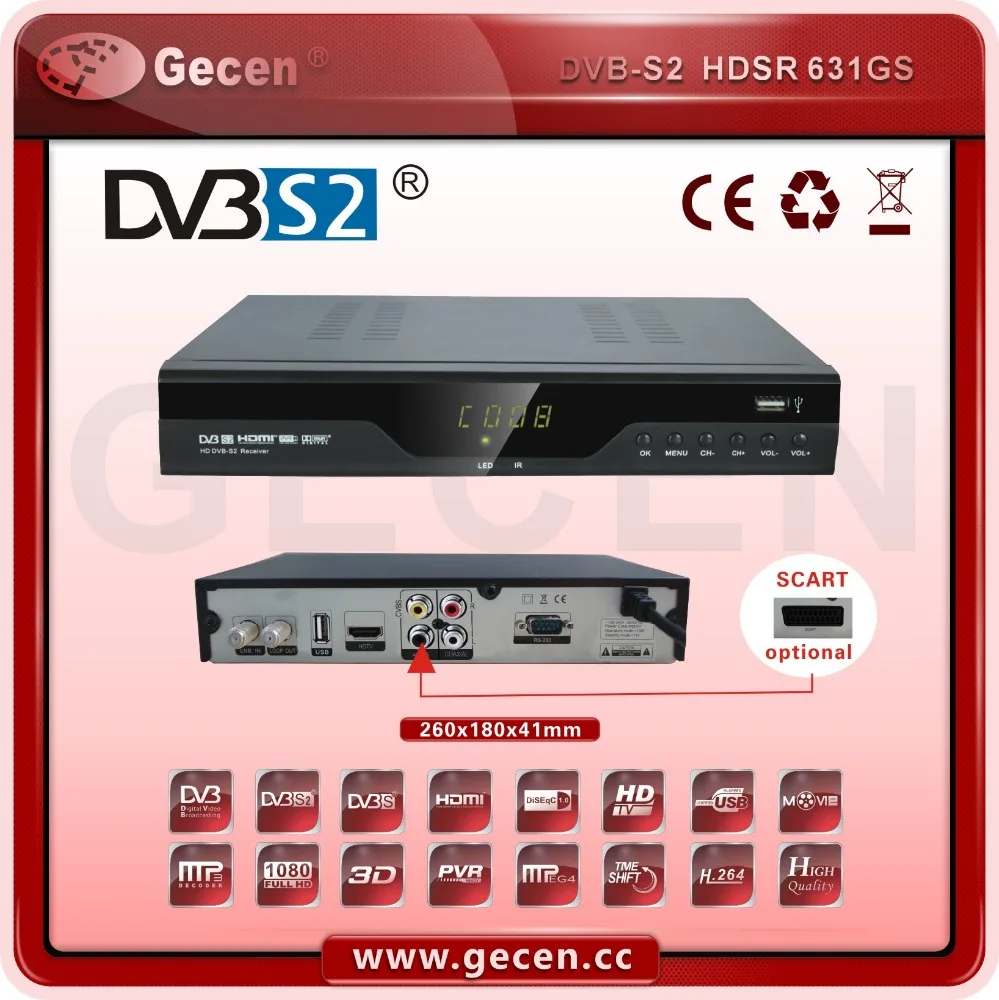

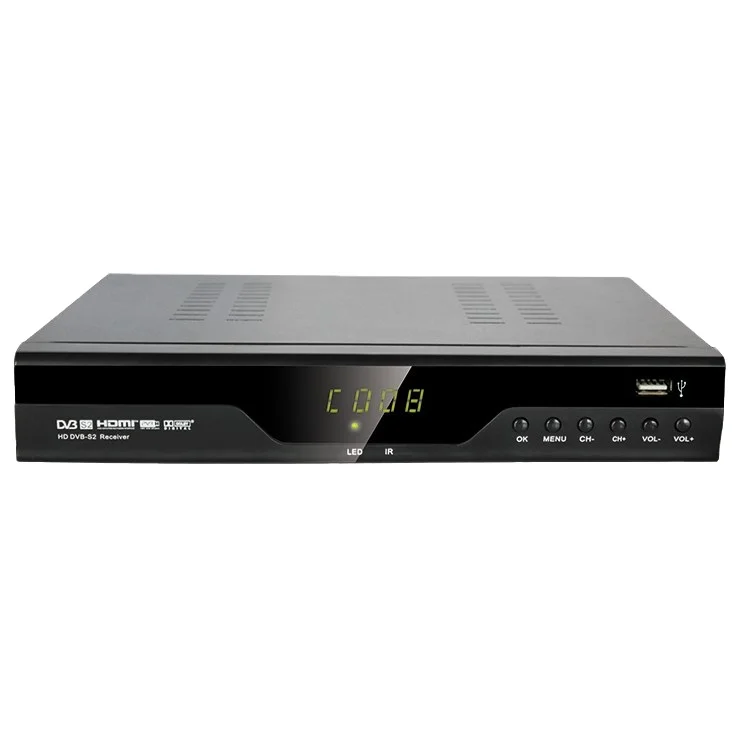

GecenHD Mpeg4 Digital FTA DVB S2 Satellite receiver model HDSR 631GS

Product Overview

Description

                     HD DVB-S2 Satellite receiver FTA and PVR model HDSR 631GS























Features:

• Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)


• USB2.0 for software update/PVR/media play back


• Full HD output in 720,1080i,1080p


• HDCP protection


• Multi-lingual OSD and user-friendly UI


• Parental Control,Teletext,EPG supported


• Favorite Group supported


• DiSEqC1.0, 1.1, USALS Compatible


• Time shift supported with external hard drive disc


• Supporting movie files with MPEG1/MPEG2/MPEG4/H264, so on


• Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)


• Suport picture with JPEG, BMP, PNG




  Specifications



























































































































  DVB-S2 LNB Input/Demodulation
  Connector Type	F-Female *1 for LNB Input,F-Female* 1 for LOOP OUT
  Input Frequency	950MHz-----2150MHz
  Signal Input level	-65dBm - -25dBm
  Input Impedance	75Ohm
  Demodulation Scheme	QPSK/8PSK: 1~55Msps
  Signal compatibility	Support conversion for different video formats and frame rates
  Power Supply
  AC input	100-240VAC@50/60Hz
  Power consumption	Max10W
  Memory
  Flash	32Mbit
  DDRII Memory	512Mbit
  Physical Characteristics
  Physical Size	260mm * 180mm * 41mm
  Front Panel
  Key	CH+, CH-, VOL+, VOL-, MENU, OK
  Indicator	LED Indicator for Power On/Off
  Dispay	4 Digits 7-segment LED dispay
  Remote Control input	Infra-red receiver
  Rear Panel
  Connector	2*F connector for LNB IN and LOOP OUT
  	1*HD 1.3 interface, up to 1080p
  	1*AV RCA3(CVBS,L/R)
  	1*YPbPr
  	1*Optical
  	1*USB2.0 interface
  Remote Specifications
  Battery	(AAA 1.5V)*2
  Operation Distance	8m Min.(front distance from receiver)
  Operation Angle Range	±45°(horizontal),±20°(vertical)
