Dimmable flexible led sheet light tiles for curved face lighting

Extremely thin Flexible led modules, you can cut and splice, making any shape and size led module, high light efficiency up to 108Lm/W, Constant voltage drive, Ideal for light source. Backlighting for advertising , Blister words backlit, Led signs . Do you own idea energy-saving lighting projects.

Specification

Cuttable

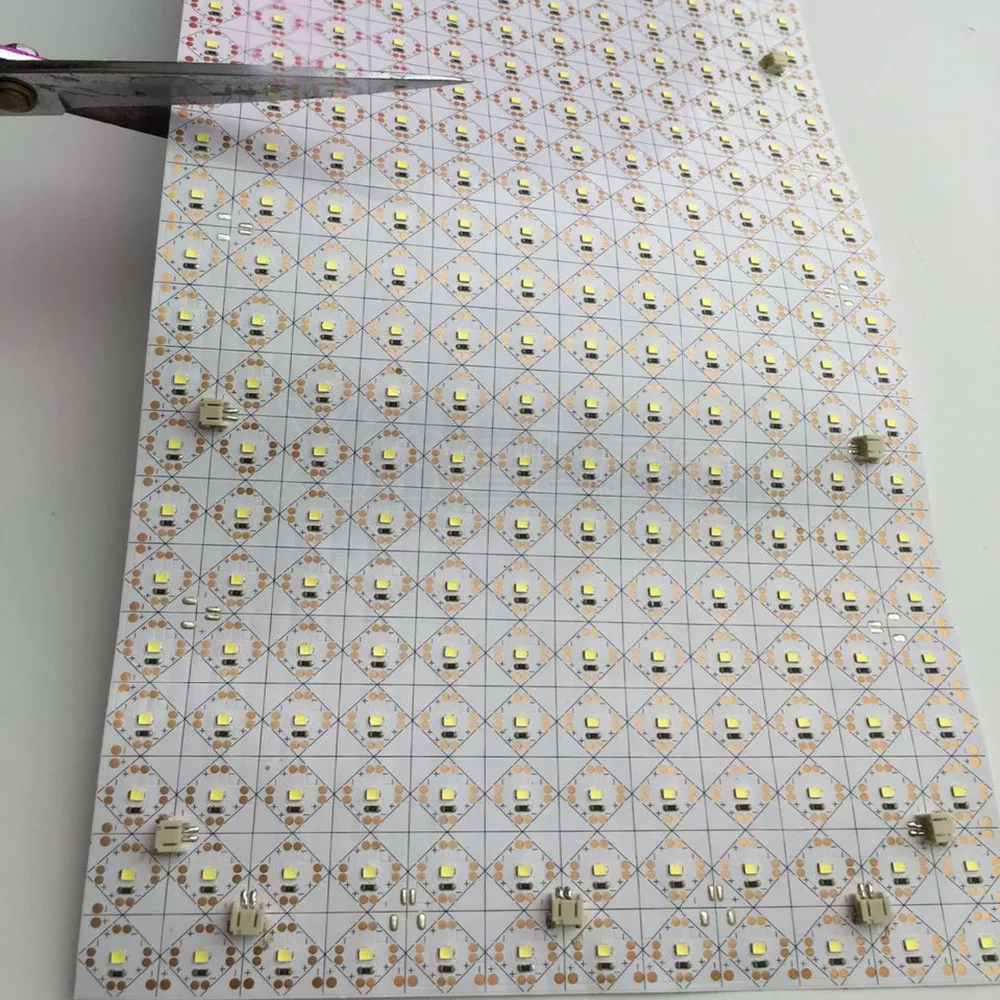

One LED Cut, It can be cut into any shape as your mind !

Flexible

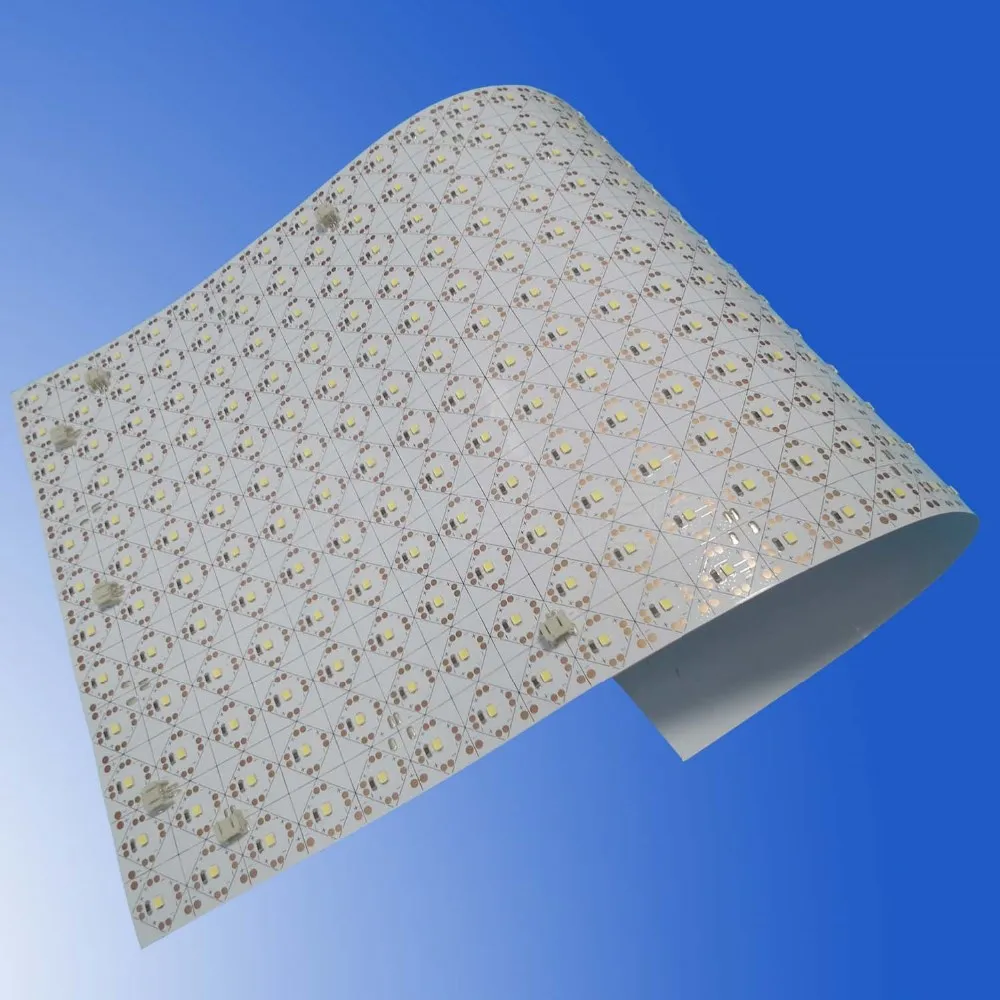

Soft US Dupont FPCB, Ideal for curved surface lighting.

1. One LED can cut, it can be cut into any shape and size.

2. Slim advertising light box, LED sheet module , depth 30mm

3. High light efficiency 108Lm/W, DC24V or DC12V Input

4. High CRI > 80 ( Optional > 90 )

5. Size 500x240mm, LED Spacing 20mm

6. 300 LEDs per sheet, SMD 2835 0.5W, 18V

7. High power 36W or 69W available

8. Patent No: ZL2014202499382

9. CV Input, Easy to expand installation

10. Warranty 3 years

11 CE RoHS FCC PSE approval

\t
Model
\t
RX-BKT28-500240L
\t
RX-BKT28-500240
\t
Dimension
\t
500x240x1mm
\t
500x240x1mm
\t
LED QTY
\t
300 LED
\t
300 LED
\t
Input voltage
\t
DC12V or DC24V
\t
DC12V or DC24V
\t
Power
\t
36 W
\t
69 W
\t
Lumen
\t
3802 Lm
\t
6929 Lm
\t
Continuous connection QTY
\t
6 pcs (180W) Parallel and series
\t
3 pcs (180W) Parallel and series
Product Images
Related Products

105 LED, 32W , No Lens

105LED, 32W, With 160 degree Lens

\t
Model
\t
Dimension
\t
Power
\t
Lumen
\t
Comment
\t
RX-BKT28-500235D-12V
\t
500x235x1mm
\t
32W
\t
3200Lm
\t
No Lens, 120 degree angle
\t
RX-BKT28T-500235D-12V
\t
500x235x5.8mm
\t
32W
\t
2900Lm
\t
TV Lens, 160 degree angle
\t
RX-BKT28-500235D-24V
\t
500x235x1mm
\t
32W
\t
3480Lm
\t
No Lens, 120 degree angle
\t
RX-BKT28T-500235D-24V
\t
500x235x5.8mm
\t
32W
\t
3120Lm
\t
TV Lens, 160 degree angle
Applications
1) Bus shelter light boxes
2) Kiosk advertising
3) Large Publicity display
4) Shopping mall light boxes
5) Airport/Metro light boxes
6) Commercial advertising light boxes
7) Architectural Walls & Columns
8) Blister words Backlit, LED signs
9) Advertising billboard,poster,signboard
10) Decoration light and other wide range of applications

11) DIY Lighting Projects

Our Company
Trade Shows
FAQ

Q1: Can I have sample to test ?

A:    Yes, we are pleased to supply samples to test and check our quality.


Q2: Do you have any MOQ Limited for order ?

A:    Our MOQ for order is 200 pcs.


Q3: What's the delivery time ?

A:   Samples: 2-3 days, Mass production: 7-10 days.


Q4: What's the payment you accept ?

A:   1. T/T ( Bank to bank payment )

       2. Paypal

       3. Western Union


Q5: Do you offer guarantee for your products ?

A:    Yes, we offer three years guarantee for our products.


Q6: How do you ship the goods and how long does it take ?

A:    DHL/UPS/FEDEC/TNT, 3-5 Days

        By air flight, 5-10 Days

        By sea, 15-30 Days
