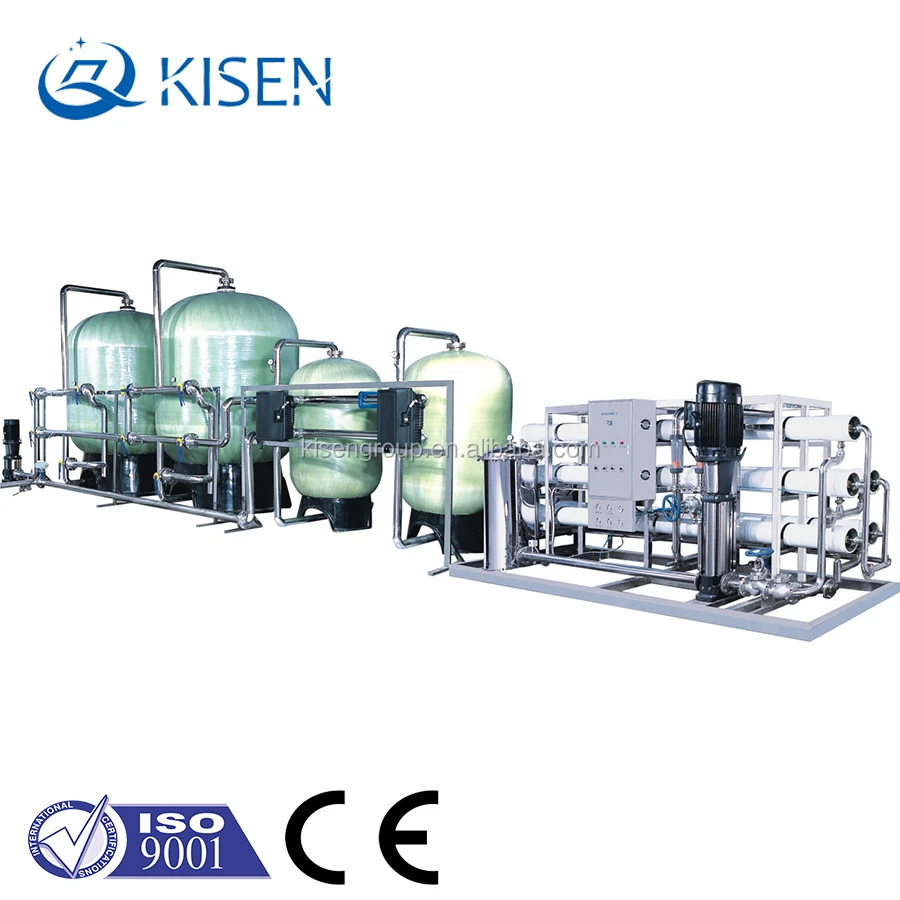

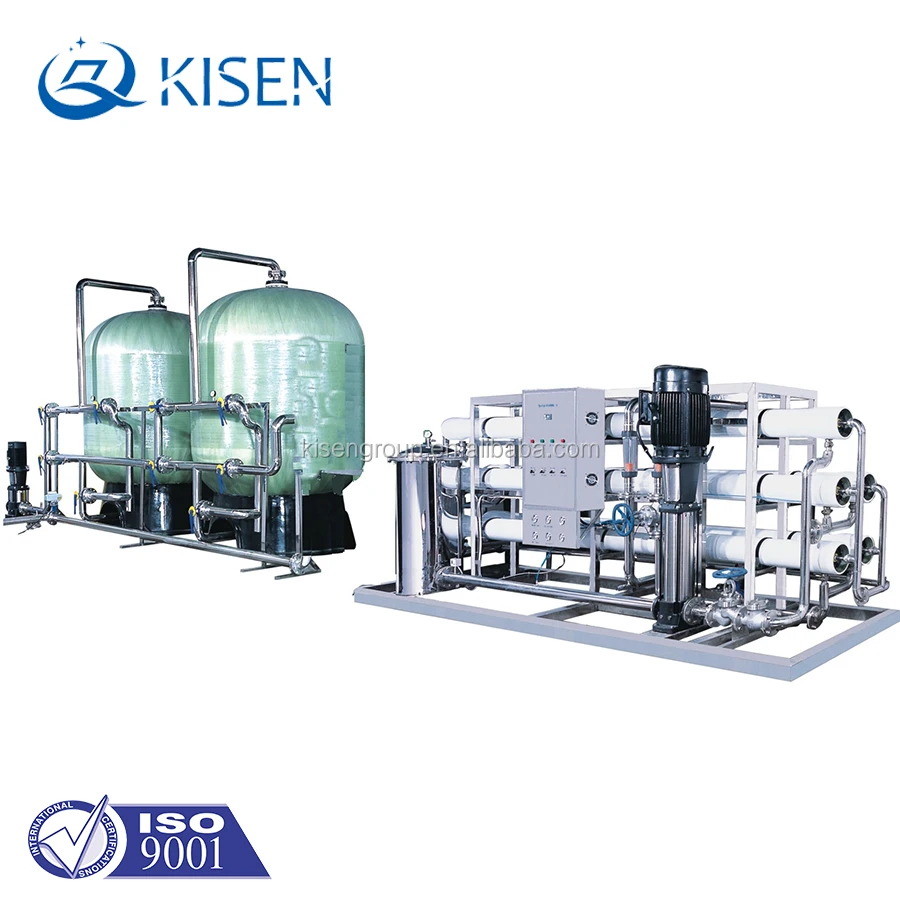

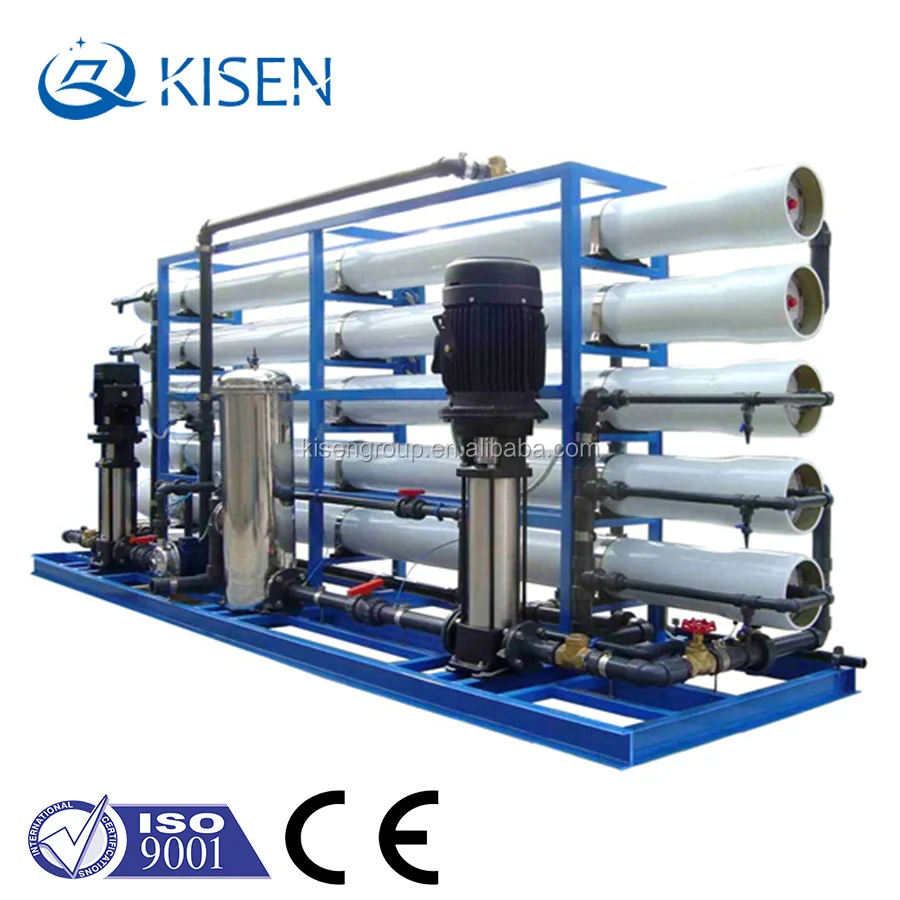

25T reverse osmosis water filter

Product Overview

Description

25T reverse osmosis water filter/reverse osmosis water purifier/reverse osmosis water treatment machine



25T/H RO reverse osmosis water filter/reverse osmosis water purifier/reverse osmosis water treatment machine



Place of Origin: Wenzhou China (Mainland)

Brand Name: Kisen Model Number: Ro-1000I

Control way: PLC and man machine interface or computer

RO membrane brand: Film Tec ,Hydranautics or PFT

Multi media filter material: quartz sand,5 types 1,2,3,4,5

Active carbon filter material: active carbon, iodine 900

RO high pressure pump: modern pump, Nan fang pump or select by the user

Raw water temperature: 15--35 centigrade

Raw water PH range: 4-9

Raw water hardness: 17mg/L (calcium carbonate)

Raw water pollution index: SDI less than 5

Raw water total dissolved solids:      less than 1000mg/L

System capacity changes significantly with water temperature and feed TDS, for higher TDS,a water analysis must be supplied and could result in modifications to the system. Our reverse osmosis system are mostly custom designed specifically for your water treatment requirements by our experienced engineers.

Packaging & Delivery

Packaging Detail: plywood case

Delivery Detail:7~15 days

Specifications

1.Custom designed according to the customer’s raw water analysis, capacity and product water requirements.

2.Certificate : ISO9001, RO system CE certificate No: 111018/WHE713

3.Warranty one year

4.Install compact

A. Description:

reverse osmosis water filter/reverse osmosis water purifier/reverse osmosis water treatment machine, the raw water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².

B. Process:

Raw water+ Raw water tank +Raw water pump+Quartz sand Filter + Activitated carbon Filter + Scale inhibitor system +Ultrafilter+High Pressure  Pump+ Reverse Osmosis Host System + Pure Water Tank

C. Parameters:

1. Capacity: customized

2. Rated power: check with the configuration list

3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country

4. Desalting rate:97-98%

5. Water recovery rate: 50-70%

6. Conductivity of raw water: ≤400μs or custom designed

7. Conductivity of pure water: ≤10μs or custom designed



Note: The quality of raw water could be from city tap water or the same quality water.

Capacity: 0.5T/H (25℃ input water temperature)

Electric conductivity ≤5μm/cm (raw water electric conductivity≤1000μm/cm)

D. Application Field:



• Electronics Industry: Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries


• Food and Beverage field: Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown


• Phamaceutical industry:Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection


• Cosmetics :The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.


• Chemistry and Chemical Engineering:The using of pure water in the production of chemical reagent, chemical fertilizers and paper making


• Surface Treatment: The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water



E. Function:

1. Manually and automatically wash RO membrane, CIP system

2. Manually wash RO membrane with chemicals on machine,

3. Automatic shut-down at tank full,

4 .SS high pressure components, SS pump to avoid the leakage.

5. Multi-stage pumps protect the machine when lack of water,

6. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.

F. Consumable:

1. Microfilter cartridges

2. Scale inhibitor

G. Service:

1. Installation guideline.

2. Factory tested to ensure trouble-free operation

3. 24 hours/7 days after sale service for the whole life of the system

4. We can manufacture machines according to your requirement, welcome to our company

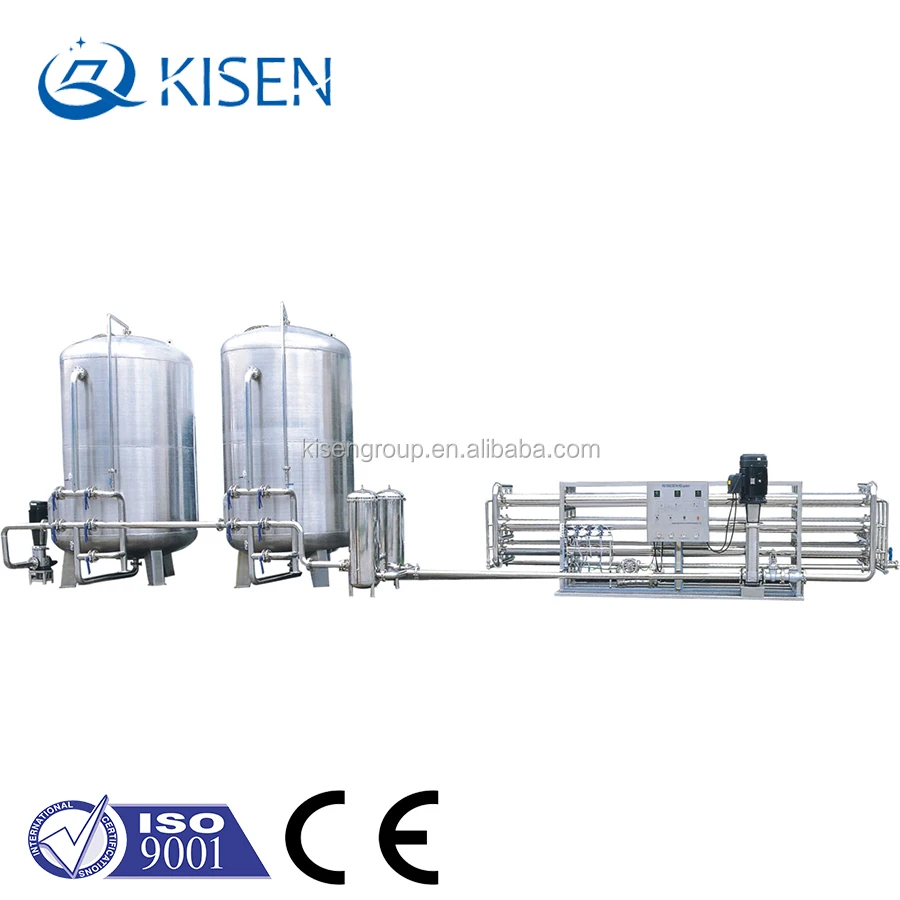

36T Per Hour reverse osmosis water filter/reverse osmosis water purifier/reverse osmosis water treatment machine for Reference:
