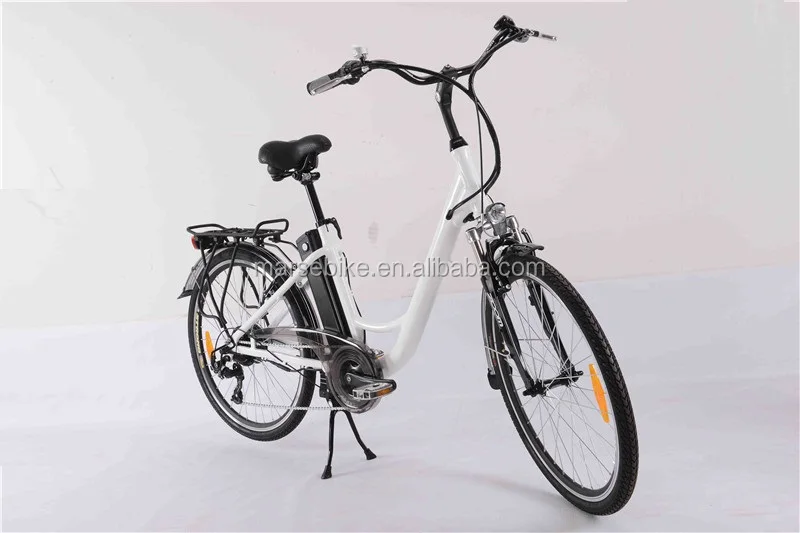

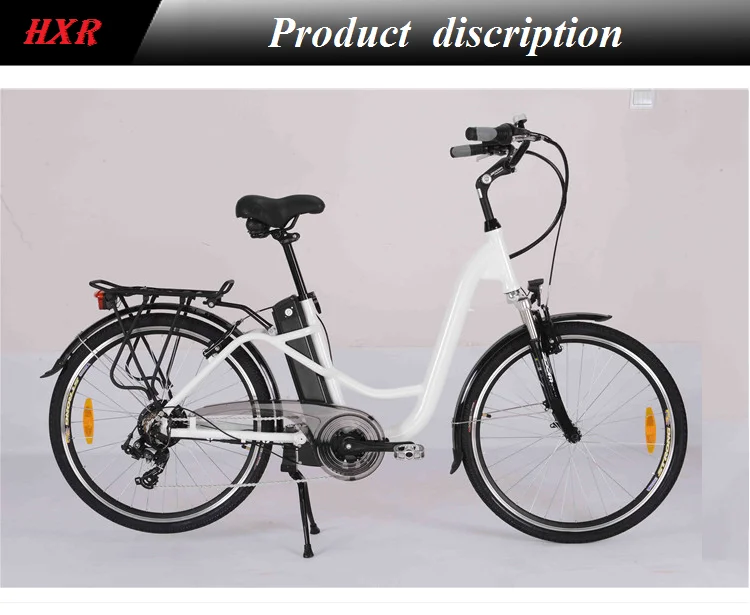

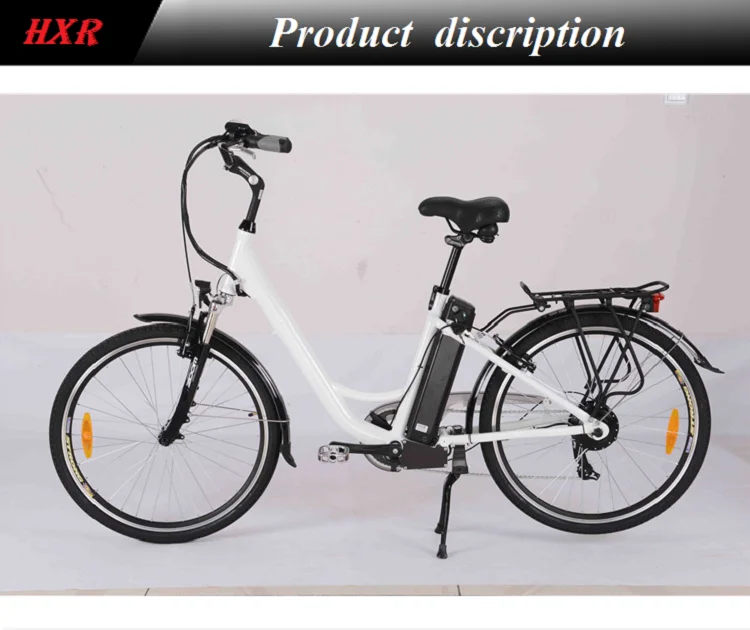

250W pedal assist 7speed city electric bicycle

Product Overview

Description



 250W pedal assist 7speed city electric bicycle

what is the specialty?how about the warranty?

 Warrant Warranty Period





1.36 months for the Frame.
2.24 months for the electric motor.
3.12 months for the Li-ion battery.
4.12 months for the controller.
5.12 months for the charger .

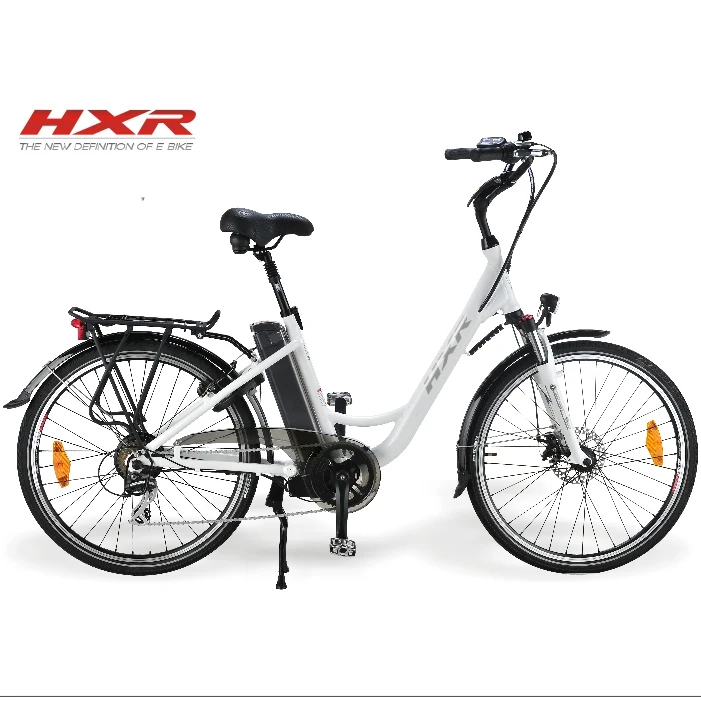

MODEL:TDF12Z

Electric System



1)motor:250W Brushless (XOFO)

2)Battery:King-Co,Li-Poly (NMC),36V,10Ah

3)charger:AC110V--240V,47-63Hz (ABT)

4)PAS:1:1 Intelligent pedal assistant system 4-level option (neutral gear,1,2,3,)

5)Controller:Intelligent controller (LSW)

6)DISPLAY:JIATE,LED,790,3 assistant model

7)Front Light/rear light:LED Light(spanninga)



Performance & Paking





8)Max speed:25km/h-32km/h



9)Driving distance:45-70KM



10)Charging time&life:6-8 hours,>500 times



11)Max loading:75kg-125kg



12)G.W./N.W.:29/23Kg



13)Product size:1730×635×1075mm



14)Packing size:1450×270×770mm



Main Cable System



Main Components



15)frame:6061 Aluminum alloy (PSJ)

16)front fork:Al alloy Suspension (ZOOM)

17)rim:Al alloy double wall,CNC (HUAFENG)

18)tyre:CST 26"×1.75

19)spokes:Steel spokes

20)handlebar:Al alloy,TDS(ZOOM)

21)stem:Al alloy,MTB (ZOOM)

22)Derailleur:SHIMANO RS35-7 speed

23)Rear derailleur:SHIMANO TX55D

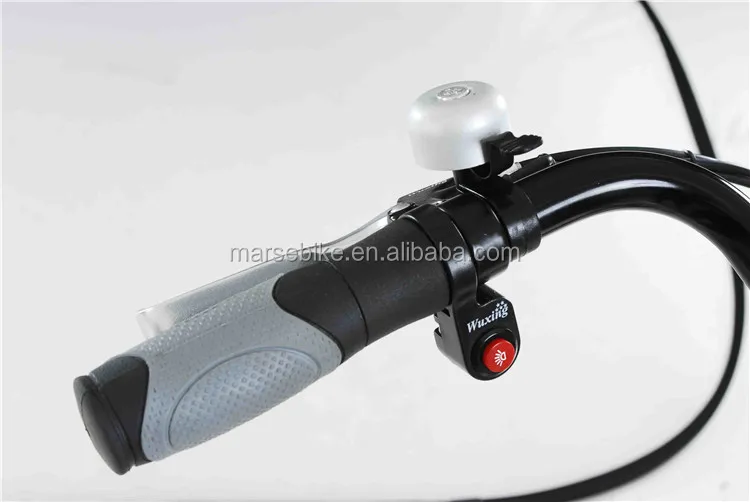

24)Brake level:Al alloy (WUXING)

25)F/R brake:V-brake,TEKTRO

26)Grip:DC

27)Throttle:Optional

28)sadddle:GRAND STAR (GS)

29)Seat post:Al alloy( zoom)

30)Crank Set:PROWHEEL 44T

31)chain:Rust resistant chain,Z33,KMC

32)Pedal:VP 308

33)Freewheel:SHIMANO,7R

34)Mudguard:PC (Bikeman)

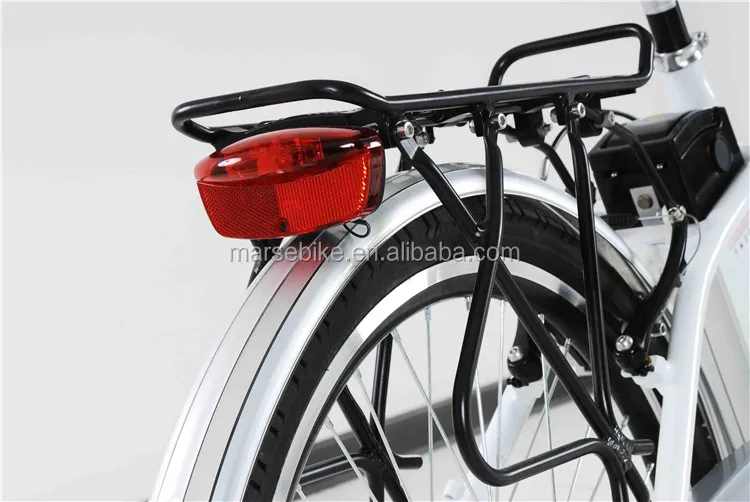

35)rear rack:MASSLOAD
