Универсальный беспроводной пульт дистанционного управления AC 220 В 1 канал РЧ для двери гаража

Product Overview

Description



AC 220 v 1 ch RF cloning Wireless Universal Remote Control Light ac Switch System garage door



Product Description

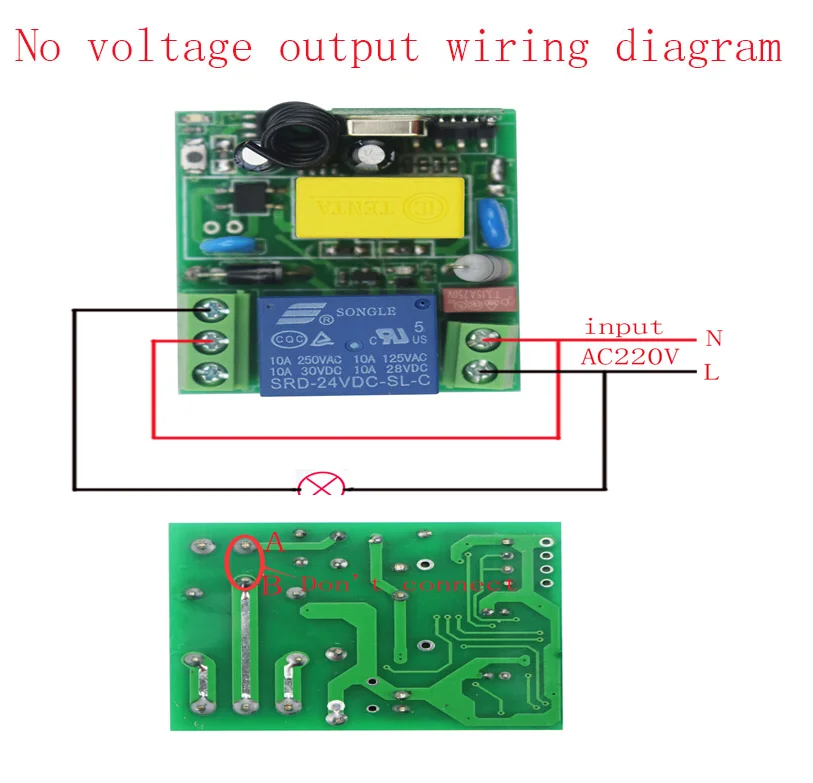

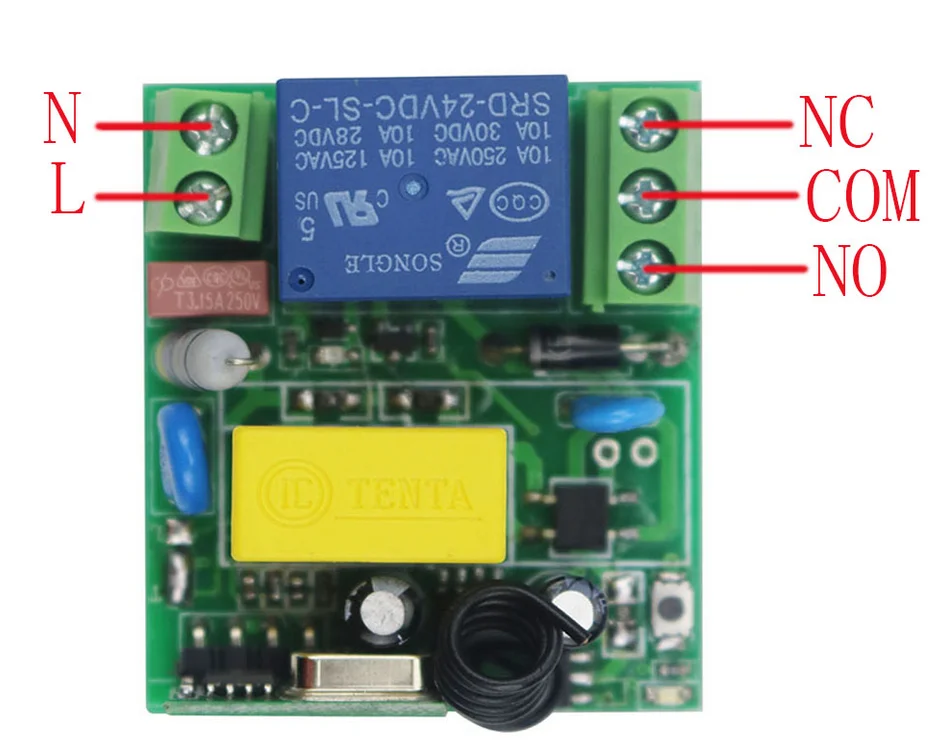

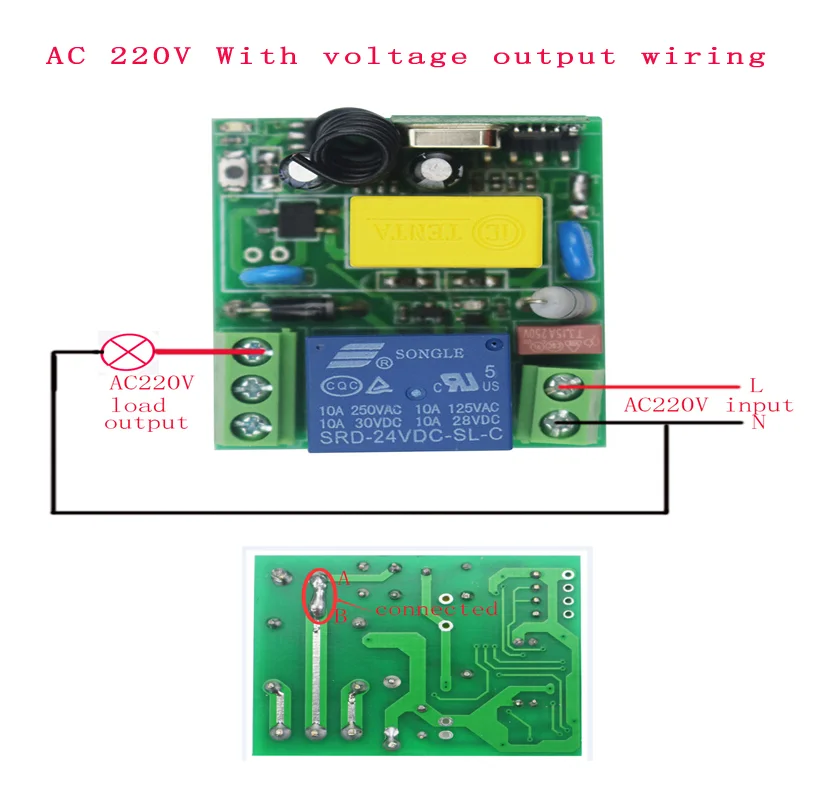

The product is electronic design and manufacture of single remote control switch 220 volts USES 10A relay, can use load higher power electronics;Can choose resistance capacity step-down or power supply module decompression;Can learn more remote control, and each remote control all buttons can learn, can be a remote control multiple switch, a switch can also be multiple remote controller, and can be implemented at short welding plate, interlock, or the workings of a self-locking;In order to facilitate the use of customer, this kind of controller can be charged dry contact output and output.Operation is simple and flexible supporting any combination;

Mainly used in lamps and lanterns, electric door, window, hoisting equipment, elevator control and security industry and other fields.



RF wireless remote control system
Receiver (switch)
Working Voltage : AC220V
Output Current : ≤10A
Working Frequency : 315MHZ/433MHZ( Frequency can be customized)
Output way : Jog .Inter-lock .Self -lock
Code type :Learning code

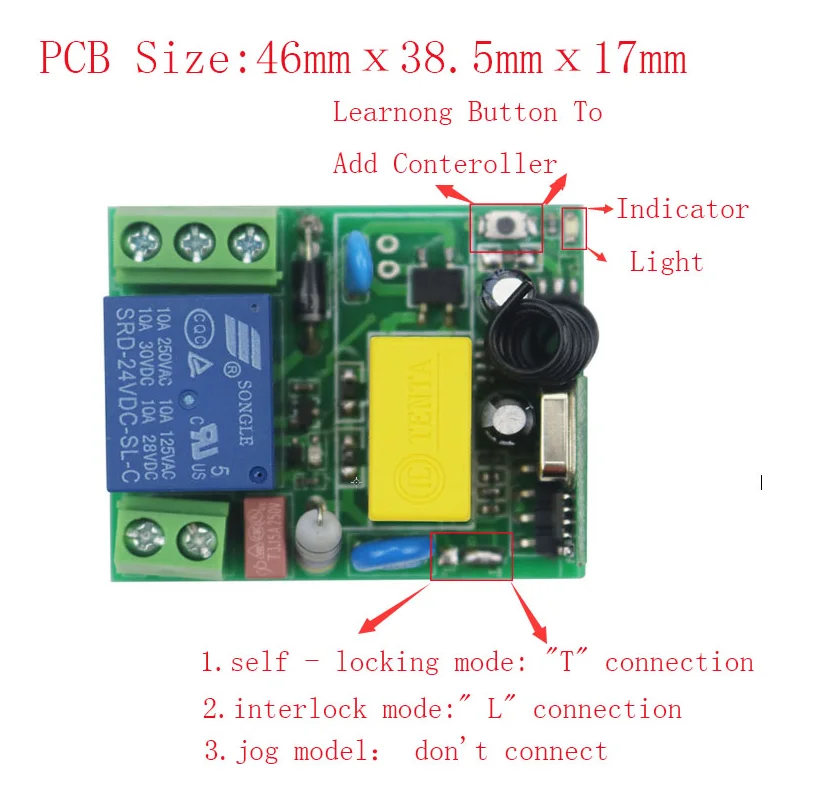

Circuit board size: 46 mm*38.5mm*17mm
 working/output way

1.jog model:not connect
2.self-lock model:''T''connect
 3.inter-locking model:''L'' connect

Learning Method:
Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.
Remove code:
press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .
