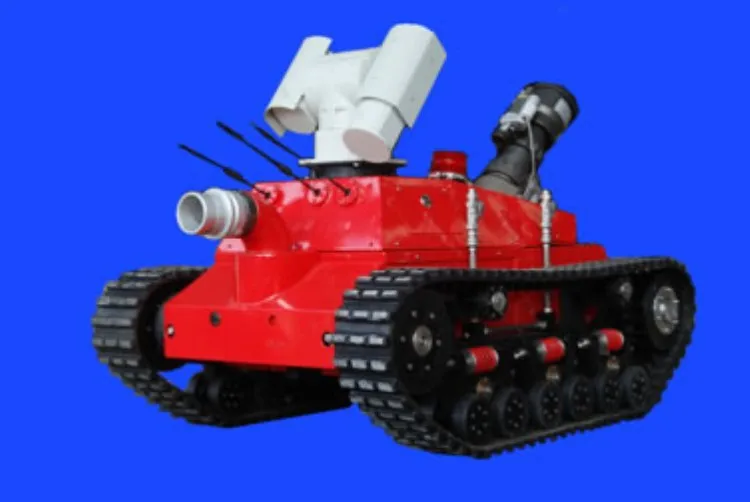

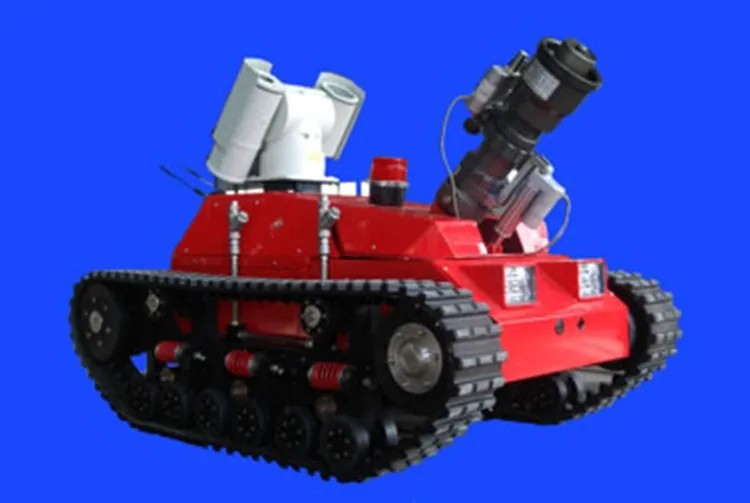

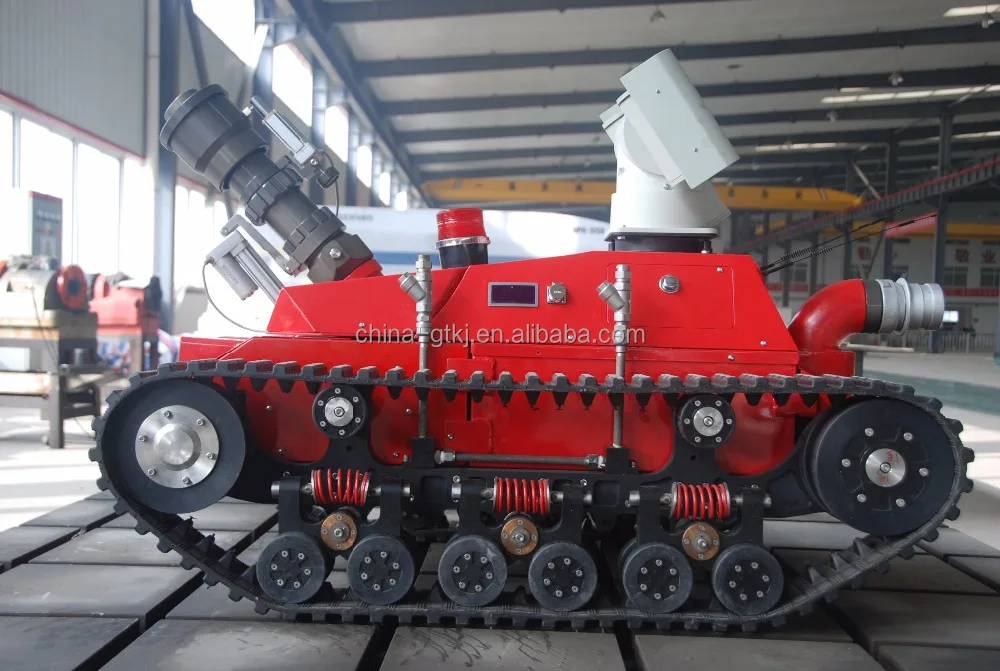

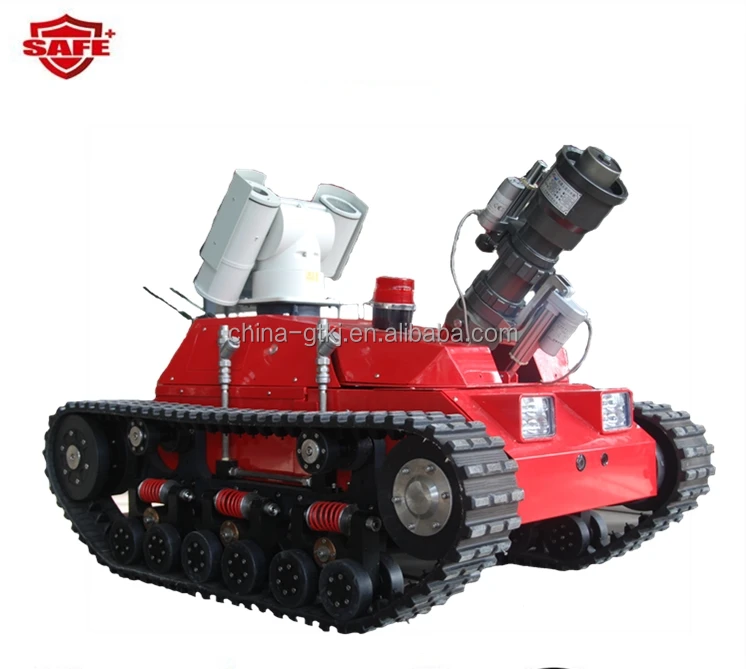

Introduction of Fire Fighting Robot

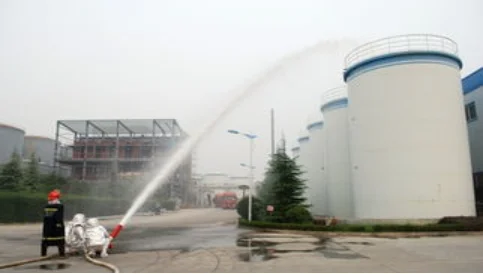

 1.Fire extinguishing robot is used for extinguishing fire,cooling and decontamination of chemical pollution by remote-control in the condition with water under pressure.

2.Fire extinguishing robot consists of mobile crawler carrier,fire water monitor and remote-control.Walking, crossing obstacle, climbing, pivot steering and extinguishing the fire can be realized by remote-control.

 3.Fire extinguishing robot transfers the fire fighting scene to the commander as well as command center by wireless image transmission system,the commander can proceed the operational analysis and arrangement according to the image.And the film image can be stored for evaluation and analysis in future.
4.Fire extinguishing robot has toxic and harmful gas qualitative quantitative detection device and wireless transmission system,it can detect on-site toxic and harmful gases and transfer the detected data to background to analyze and process.

\t
PARAMETER
\t
Walking mechanism form
\t
crawler
\t
Rated power of electric machine(w)
\t
850*2
\t
Effective remote control distance()
\t
≥200
\t
Walking speed (km/h)
\t
≥3
\t
Walking temperature(°C)
\t
-20°~+55°
\t
Ingress protection
\t
IP65
\t
Climbing slope angle( °)
\t
≥30
\t
Crossing vertical obstacle height(mm)
\t
≥160
\t
Gyration
\t
pivot steering
\t
(L/s)
\t
40
\t
Rated spraying pressure (MPa)
\t
0.8
\t
Spraying distance(m)
\t
≥ 65
\t
Spraying angle (°)
\t
≥ 120
\t
Total weight (kg)
\t
160
\t
Dimension(L*W*H)(mm)
\t
1450*820*800

Main Features of Fire Fighting Robot

1)Romote-control design providing the ideal security guarantee for the front firefighters.

2) Wide range of application with the small size,light weight and strong flexibility.

3) Good quality:conforms with ISO9001 and CE certification.

4) Fireproof and waterproof with the body made of AL-Mg-Si aluminum alloy(6061)and stainless steel (304)etc.

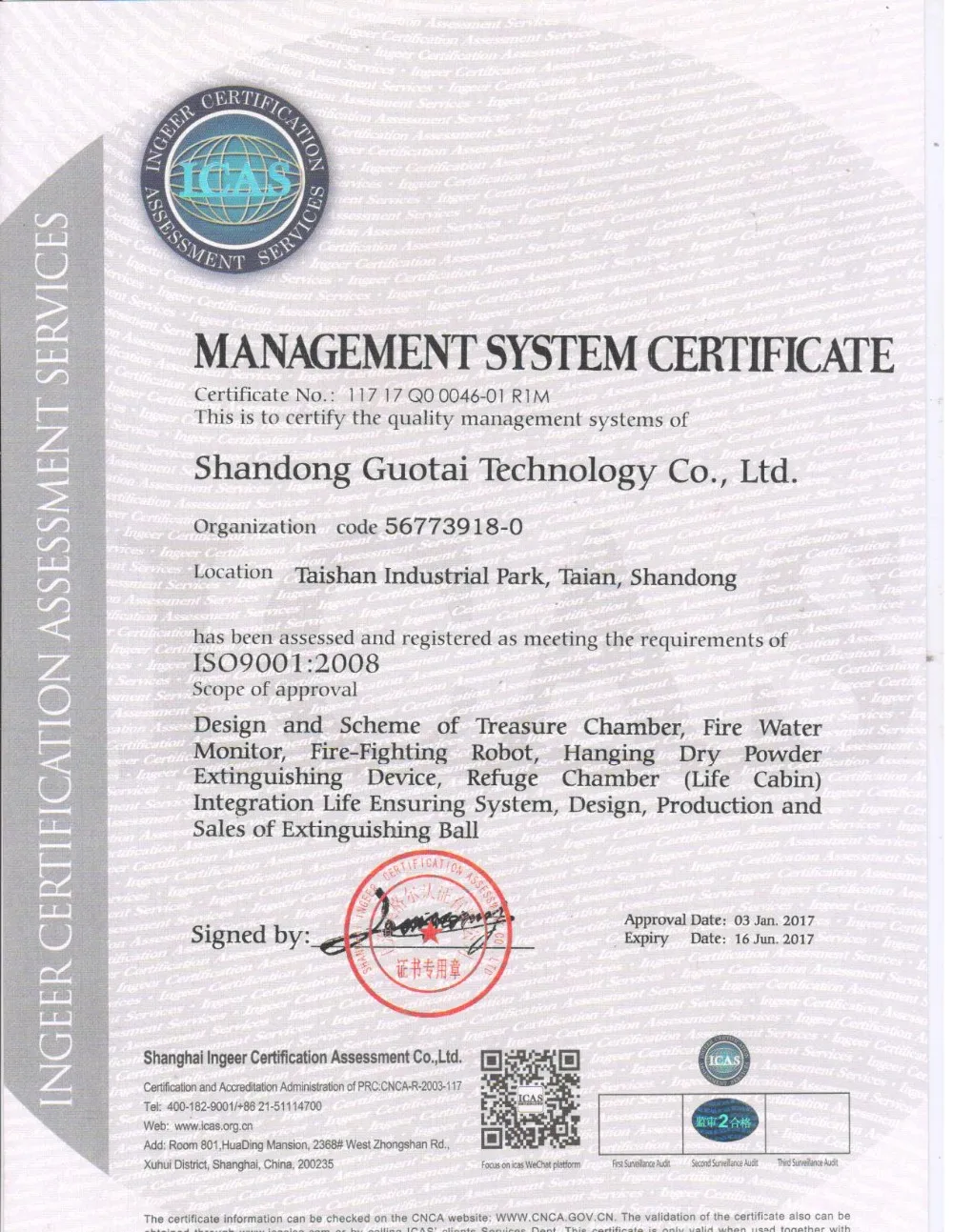

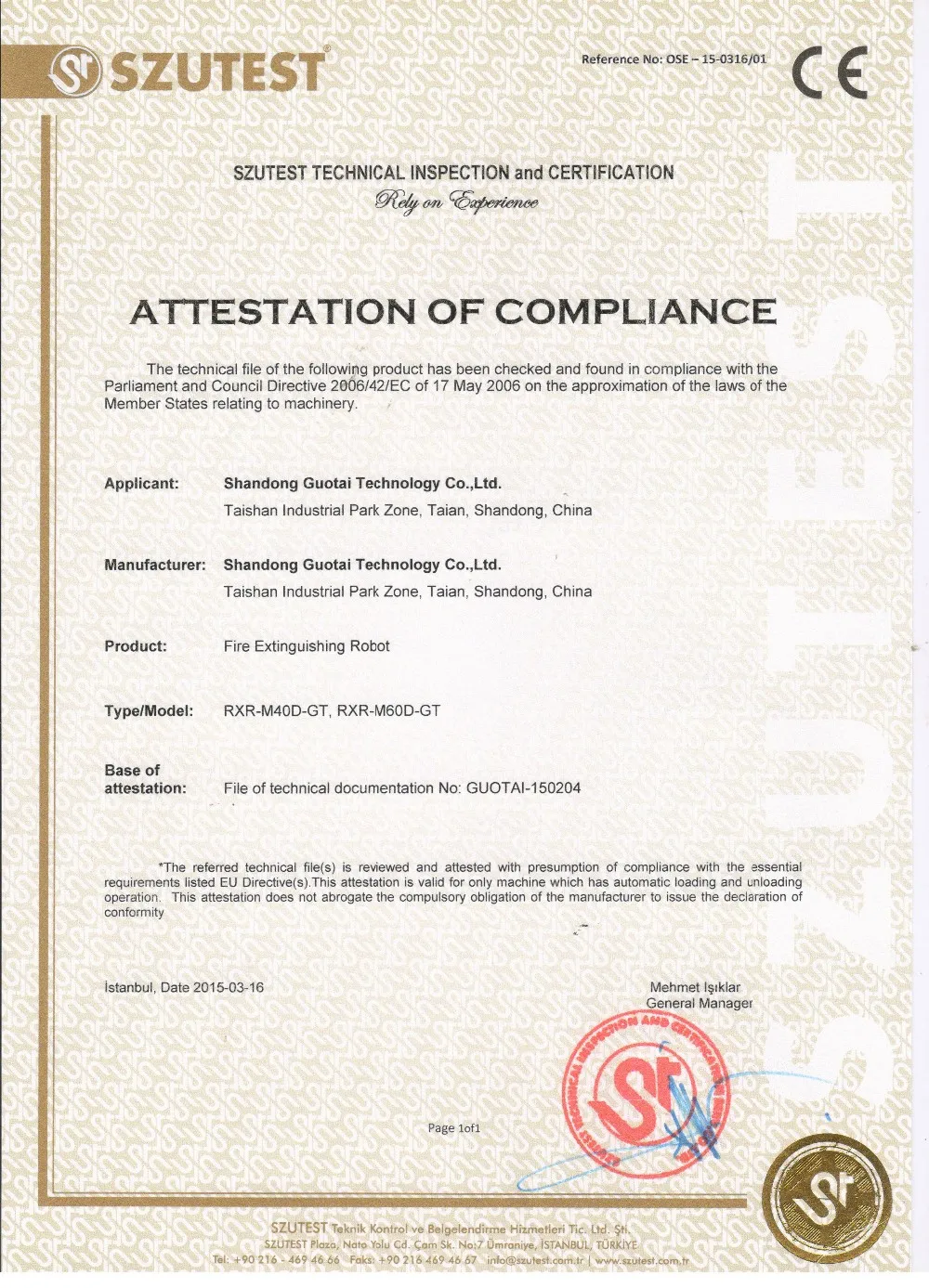

Certifications
Advantage

1.No loss of life.

    As a carrier without life,fire extinguishing robot can be fully effective when face high temperature,toxic,hypoixa,and smoke etc dangerous complicated environment where people are not able to move into.It will decrease the loss of fireman.

2.Reusability.

Fire extinguishing robot is a special equipment,it can be used repeatedly while maintain normally.

3.Functional diversification.

 Fire extinguishing robot can not only extinguish the fire efficiently,but also realize the function of scene image transfer,toxic and hazardous gas detection etc.

Our Service


 Service principle: customer first, service first, reputation first, efficiency first
Service target: all for your 100% satisfaction
Service time: 7 *24 hours



    Tel:+8615269865168
    Web:www.guotaitech.com
    Add:Taishan IndustrialPark,
   Tai'an,Shandong,China

Packing & Delivery
Related Products

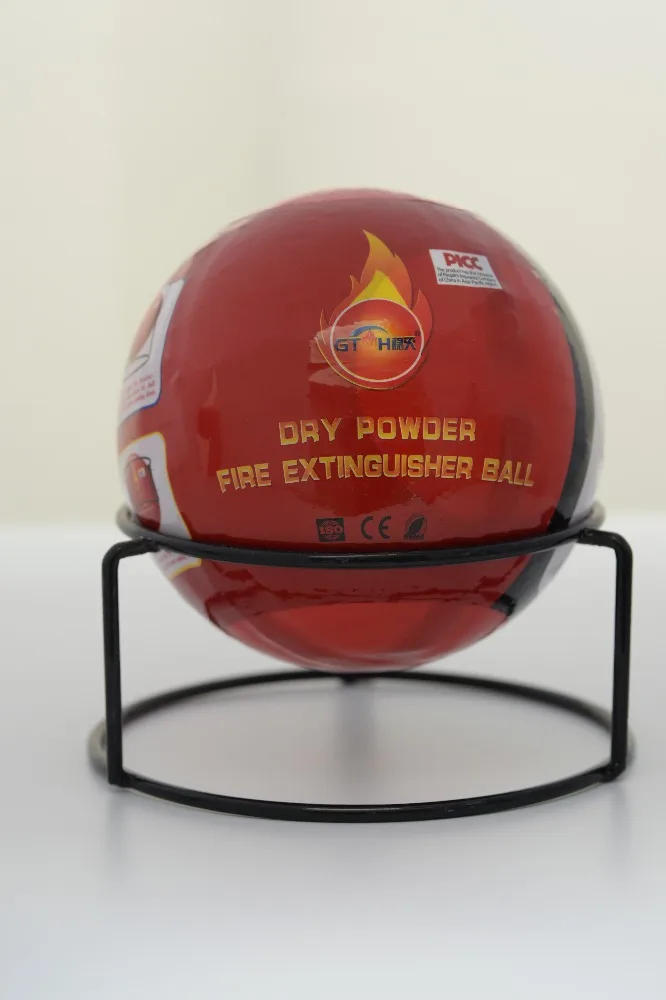

Dry powder fire extinguisher ball device

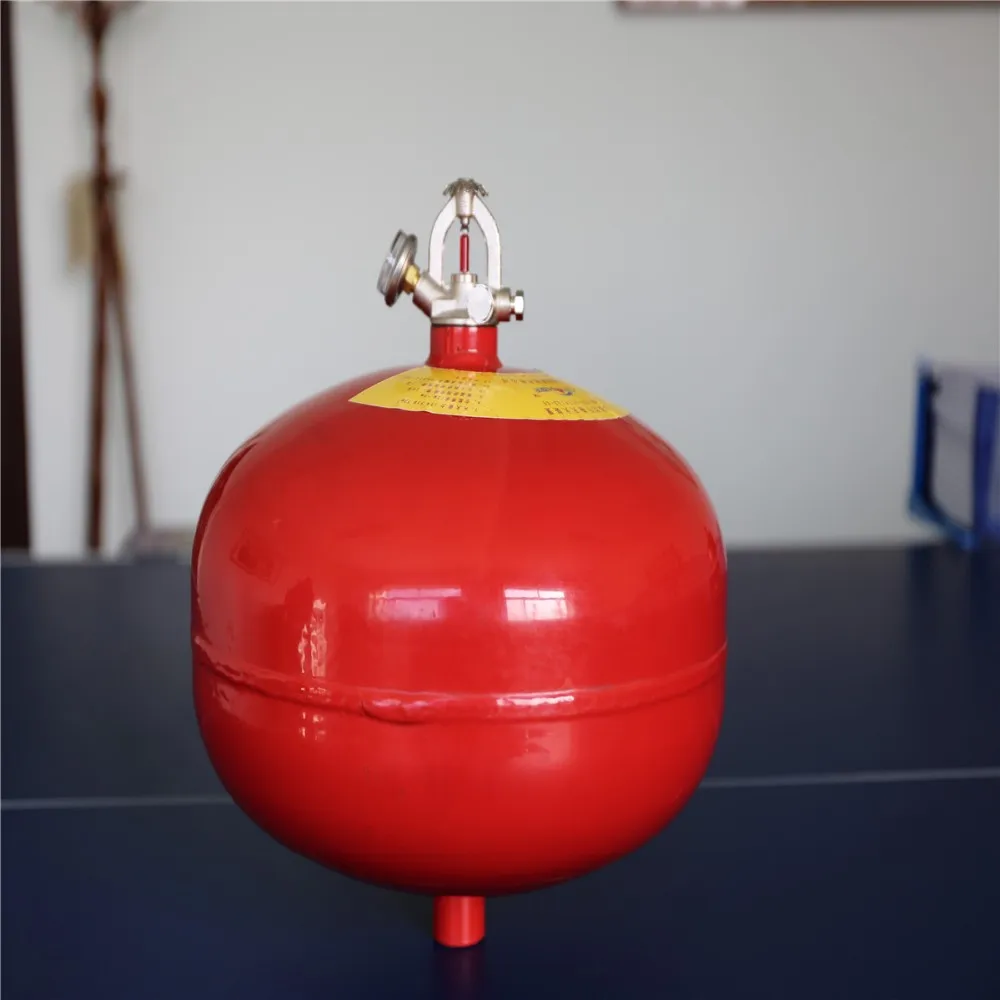

(No-stored pressure)Hanging dry powder fire extinguishing device


(stored pressure)Hanging dry powder fire extinguishing device

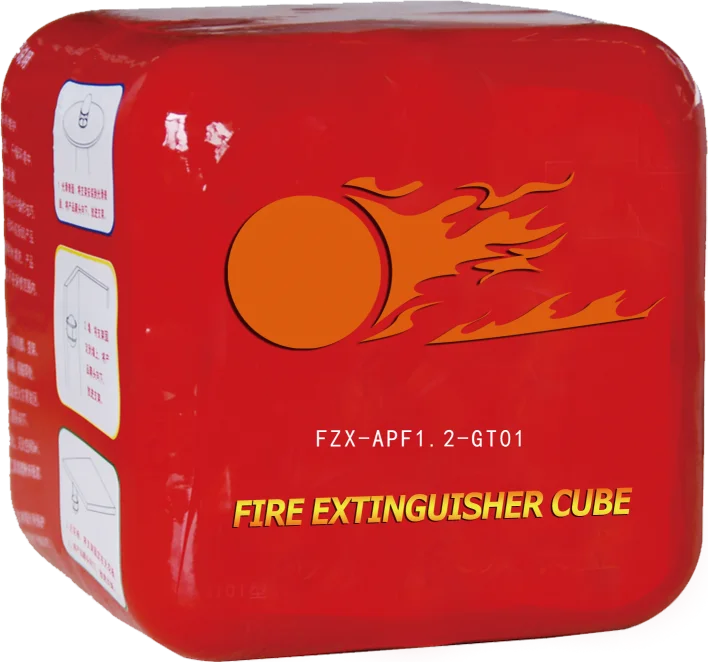

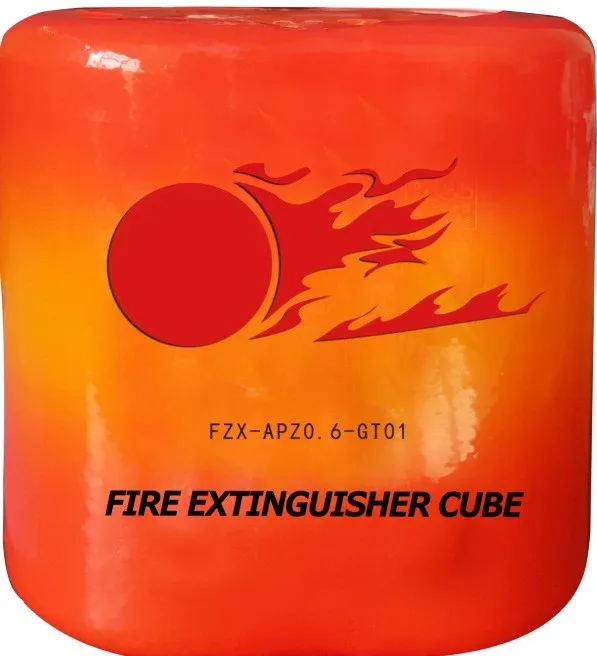

Dry powder fire extinguisher cube device
