The SUS310# stainless steel plate. External SS41 plate iron powder coating.
Vacuum system
The high vacuum degree of 5*10's 3Torr
Decompression valve
3/8 solenoid valve (table KSD)
Vacuum tube
3/8 is made of SUS304# stainless steel
Exhaust port
12mm or NW25
Safety device
Fuse
dynamic process
In vacuum to 1*10's 3 with nitrogen vacuum to atmospheric pressure in nitrogen environment to start heating. Prevent the oxidation of baked things.
Insulation
Production of high density ceramic fiber board and diamond cotton insulation.
Control system
Using PLC program to control the man-machine coordination linkage, digital set, digital display, PID automatic calculation, with the action of SCR.
Heating system
Special ceramic heating plate (4 piece), coated around the upper and lower heating cavity, with the black heat effect for low wattage heater, low heat radiation is not easy to be oxidized.
Exhaust device
The vacuum pump exhaust can be directly connected to the exhaust pipe.
The door
Single, manual locking doors, doors all around the fastening device of high temperature resistant insulation.
Standard accessories
1. electric SW1 2. no fuse switch - only 3. power line 3M long - 4. signal only 1
5. - 6. - meter buzzer 7. start switch - only 8. digital vacuum gauge -1
Safety device
The motor over-current protection, control circuit of electric fuses, overcurrent protection, no fuse switch

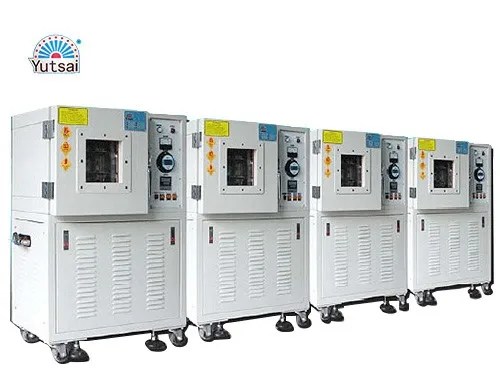

1,Vacuum oven
Working principle of vacuum oven:
Vacuum oven is connected with the digital temperature sensor to control the appearance and the studio temperature, selection of hot air circulation blower to dry material, hot air circulation system is divided into horizontal wind and straight air, through professional planning, air is composed of motor femoral wind wheel, make the wind blowing in electric heating tube, forming a hot air duct into the vacuum oven by the studio, and will use the hot air suction duct into the air again heating, greatly improve the temperature uniformity. By the switch such as box door use, can be used to supply air circulation system operating condition temperature. Agile rehabilitation.
2, High temperature vacuum oven
High temperature oven box layout:
1), the use of high-quality steel or stainless steel plate
2), the microcomputer intelligent temperature control, with determination of temperature setting, digital display, punctuality, power control and self-tuning function, temperature control is accurate and reliable.
3,Lithium battery vacuum oven
This series of products mainly adopt the square vacuum chamber, and can put in clean workshop and workshop center, can make full use of the space. The progress of pumping rate, high vacuum degree, the operation is very convenient. The lithium battery can regulate the air tightness of vacuum oven body, all forming a silicon rubber sealing ring to ensure the vacuum box heat treatment. Boring vacuum deaeration, dehydration, hardening and disposal of the battery cleaning oven is suitable for electronic product manufacturing process after the battery. The oven is suitable for LED optoelectronic components, lithium battery, crystal and battery pole piece and other electronic occupation. According to customer demand, this kind of boring single box can also control can computer manufacturing control. According to the specific needs of different users.
4, Reverse vacuum dryer
Reverse vacuum dryer features:
It has a high rate in low temperature. Dry material closed boring, materials and environment are not polluted. The thermal efficiency is high. Recyclable solvent. Vacuum dryer reversal material can be dry to very low moisture. Simple structure, easy cleaning, reverse wall not easy to accumulate material. Not after work slow, boring. Effective heating area is small, it is difficult to scale.
5,Open the door to clean oven
Open door clean oven layout:
This series of universal and efficient self-cleaning oven is divided into two kinds, open features before and after method, air inlet and outlet is equipped with HEPA filter, with hot air circulation, open the door interlock features. Self efficient type advection wind circulation type (side to side back) and straight type (laminar air feeding back side); general type sterilization oven side to side and back to send back bottom two methods.
Hot aircirculation ovenis our Original product, with carefully designed and continuously update,it have reach the international advanced level. The device is a kind of Oven, and can be installed, divided into CT type (centrifugal fan) CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source, through the heater heating,a large number of hot air will circulate in the Oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture. The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%. The device named SAO series is according to the National Pharmaceutical Administration released the industry standard. Advantage 1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized. 2.Heated air circulation: Baked good is heated uniformly Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
Application Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural steel, blowers and motors, burners, insulation , heat exchanger and Control systems. VITECH manufactures the following type of ovens Dry Off Ovens for moisture removal after Pretreatment or any wet process
Industrial Drying Oven for any drying application Batch / Conveyorised Ovens for paint or powder curing Hot Air Generators - Electrical / Oil /Gas
Heat Exchangers
Our Services
Service we can supply:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
Technological support
Yutsai has been largely adopting new technologies, new techniques and high-tech equipments. And Yutsai also has strict and effective quality control system.

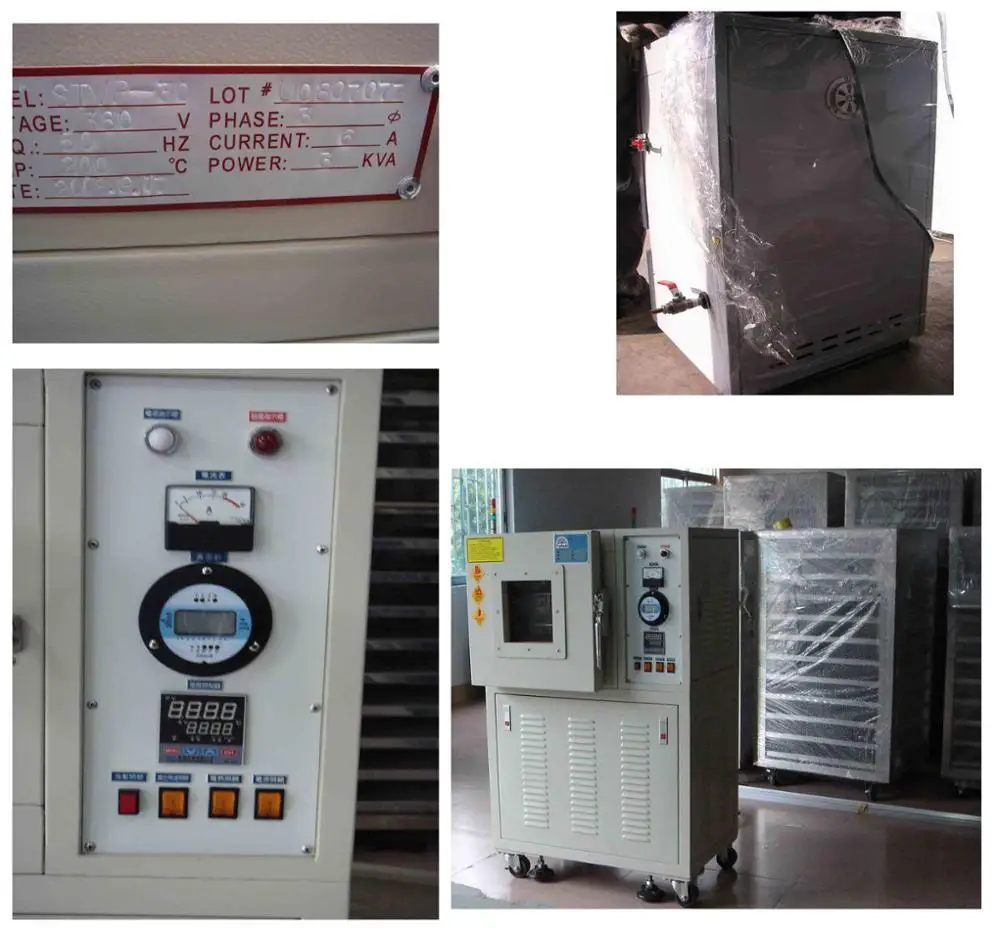

Package and shipping and work shop:
Company Information
About us
Dongguan city Jinyao precision Equipment co., LTD is one of Enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machine; automation industrial equipment etc.
Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.
Dong Guan Yutsai precision device enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.
We has the steady domestic clients such as: FOXCONN, HuohYow, FU BROTHRT industrial company, HUAXIN technology company, PUYAO group etc. It's all about more than 500 company include Domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
Our strength:
Our company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Every year, periodic or aperiodic professional trainings held at home and abroad make sure the employees have grasped the latest technology and skills. Outstanding expertise and employee quality guarantees high-quality products.What's more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using our products. Company has past ISO9001:2008 certification.
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome to visit, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world.
FAQ
1. Can you customize the product?
Yes, we can customize any products according to customer's requirements.
2. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)
3. Which shipment is available?
By sea, by air ,by express or as your requirement.
4. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.
