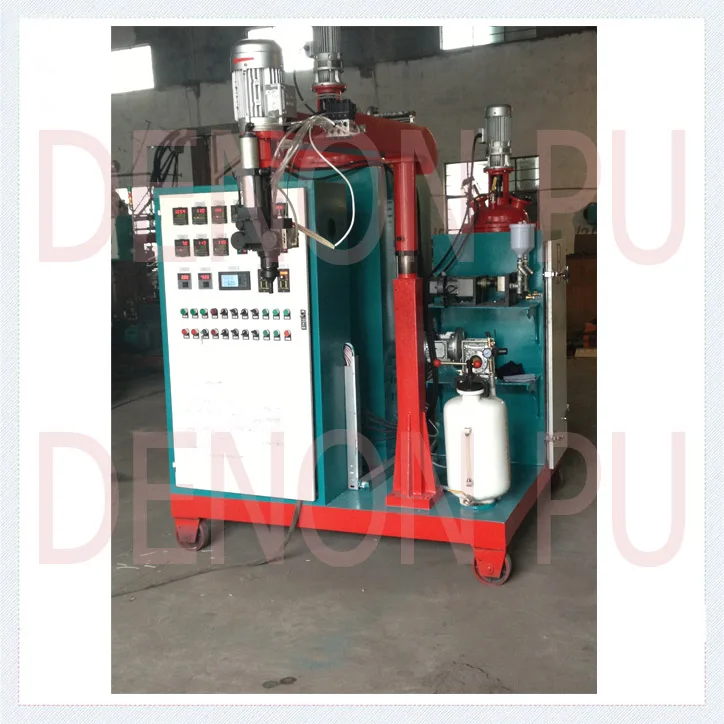

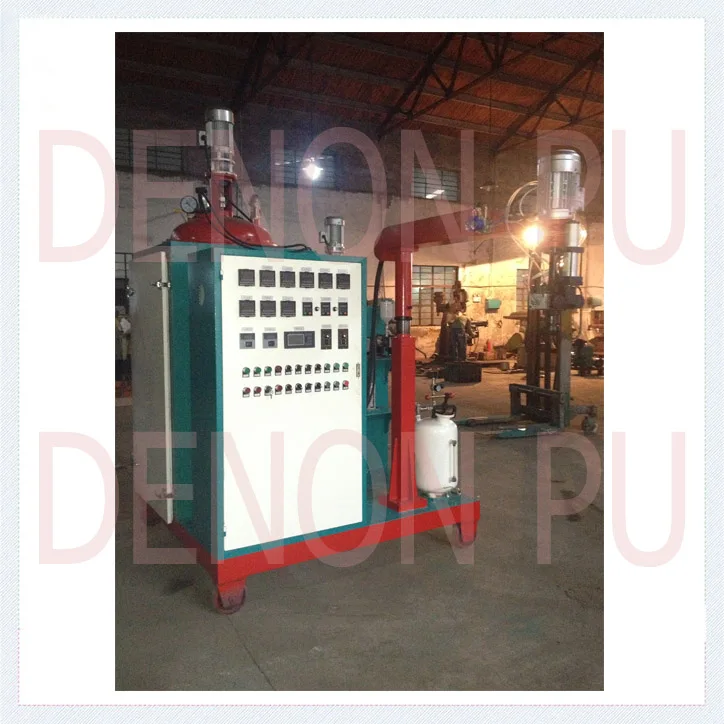

High Temperature Hot Air Heating Type Elastomer Polyurethane Inje Machine With Color Paste Adding System For PU Industry Rollers

Product Overview

Description

Product Description



Application

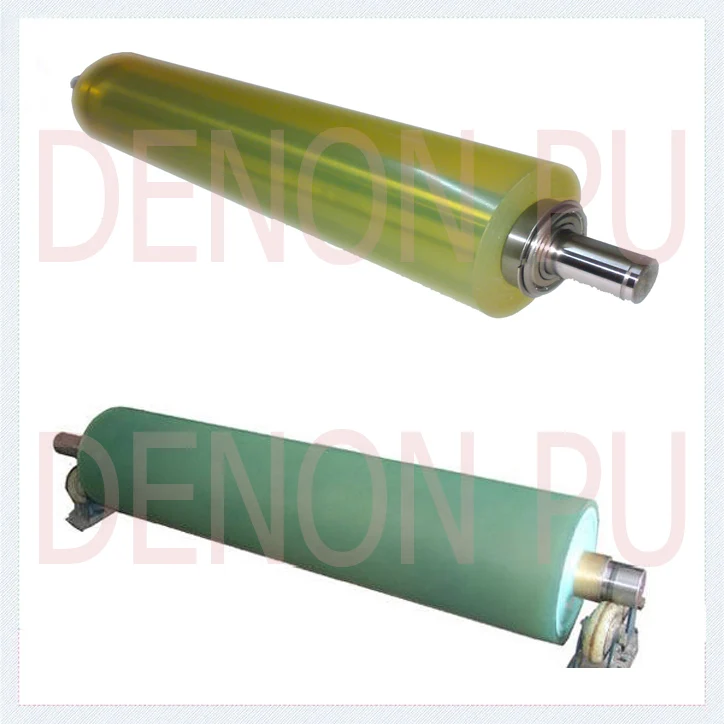

Use for producing PU rollers.



Construction

Included of electrical control system, mixing head, chemical tanks, metering pumps, control and adjust system of temperature, rotate speed and pressure, hot air heating systems, cleaning system, air push system, vacuum system and base frame etc.



Feature

1.Adopt closed hot air to heat, no non-conducting oil, warming faster, PDI control algorithm to make temperature more uniform, temperature error≤2℃,fuel-efficient, clean and green.

2.Adopt high precision metering pumps, variable frequency  speed  regulation, ratio accuracy, output error≤0.5%.

3.Adopt intelligent control system, auto-cleaning, failure record, self diagnosis etc functions can be realized on touch screen, simple and clear, easy operation.

4.Adopt reverse screw device in mixing head to prevent countercurrent of  chemical.

5.Adopt treaded armored hose of both chemicals, easily to dredge when blocking whether conduction oil or chemicals.

6.Color pastes can be added from independent tank and nylon tube to mixing head, ensure color consistency, no color difference.



No.	Item	PUM-2E01	PUM-2E02	PUM-2E03	PUM-2E04	PUM-2E05
1	Output  (g/min)	200-800	1000-3000	2000-5000	3000-8000	5000-15000
2	Volume of A tank  (L)	120~160~220~300~400~500(Optional)
3	Volume of B tank  (L)	30~40~60~80(Optional)
4	Volume of cleaner tank  (L)	20	20	20	20	20
5	Volume  (L/S)	2X-8	2X-15	2X-15	2X-20	2X-30
6	Power  (KW)	22	23	25	28	32
7	Weight  (kg)	1200	1500	1600	1800	2000







Packing & Shipping

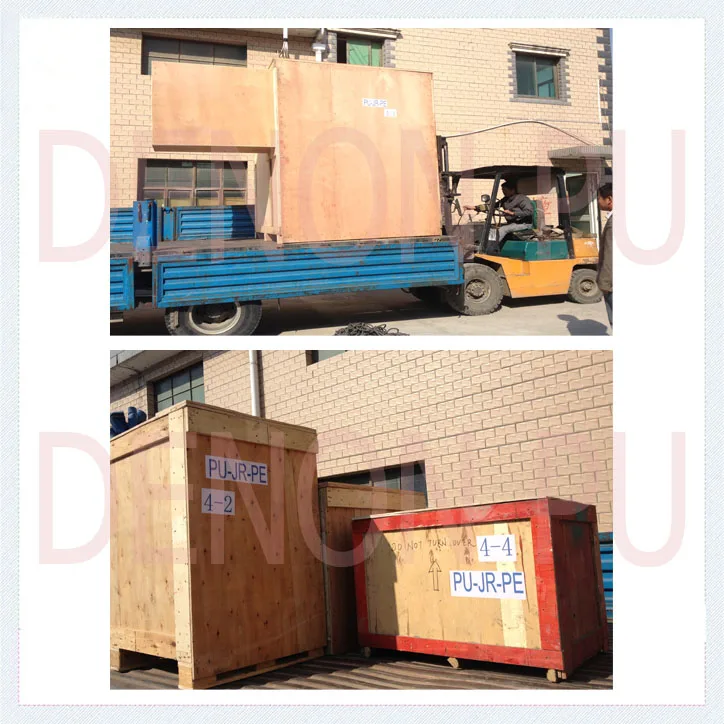

1.Export standard plywood cases for better care when transport;

2.Easily to Shanghai/Ningbo/Tianjin/Guangzhou ports for ocean shipping, air transportation or main airports and railway stations for choices.







Company Information

1. More than 20 years PU equipment industry experience;

2. Advantaged production equipment and modern industrial workshops;

3. Strong R & D team and skilled assembly workers;

4. Strict quality control and perfect after-sales service



Our services

After sales service & Guaranty

1.Supply full manuals, videos and online support to guide machine operation and maintain after order confirmation.

2.Also can arrange engineer direct buyer operate machine, and buyer need to bear travel expenses (plane tickets, board and lodging, subsidy etc. )

3.Quality guaranty is valid for one year since delivered the machine, during this period the seller would provide free accessory if any broken caused by non-human cause.



Value-added services

Corresponding chemical material can be advised if needed.



FAQ

1. Application field: Manufacture various PU rollers, wheels, sheet, stick, sieve plates etc;

2. Chemical material:TDI/MDI/NDI/HDI/IPDI etc prepolymers and MOCA/1,4- butanediol etc

curing agents;

3. Components and capacities: 2 or 3 even more components,0.25-0.8Kg/min,1-3Kg/min,

2-5Kg/min, 3-8Kg/min, 5-15Kg/min etc;

4. Temperature types: High / Middle temperature for choices;

5. Multicolor products manufacture: additional color paste adding systems selectable.
