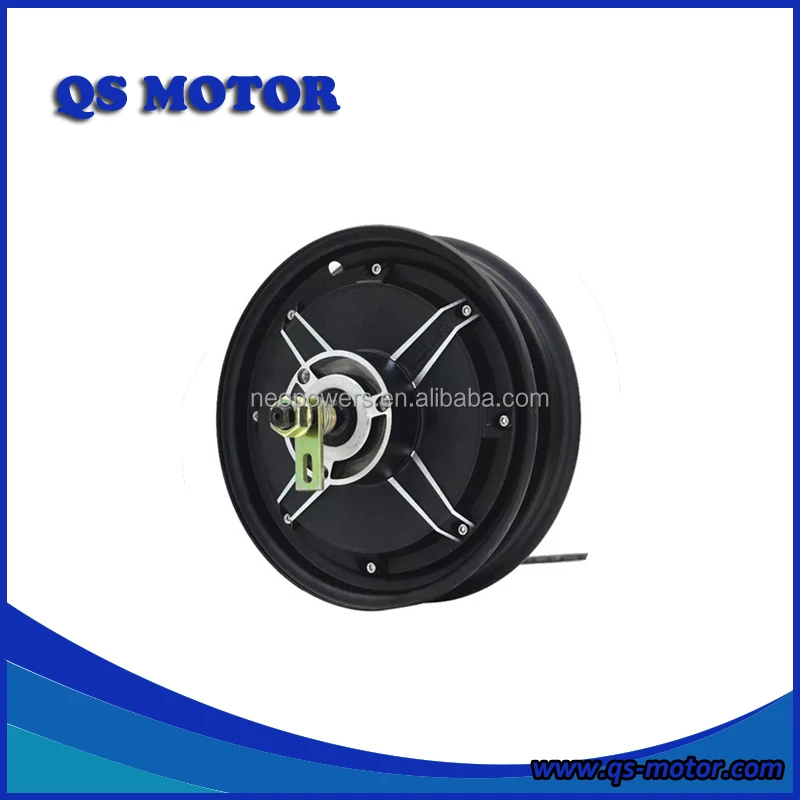

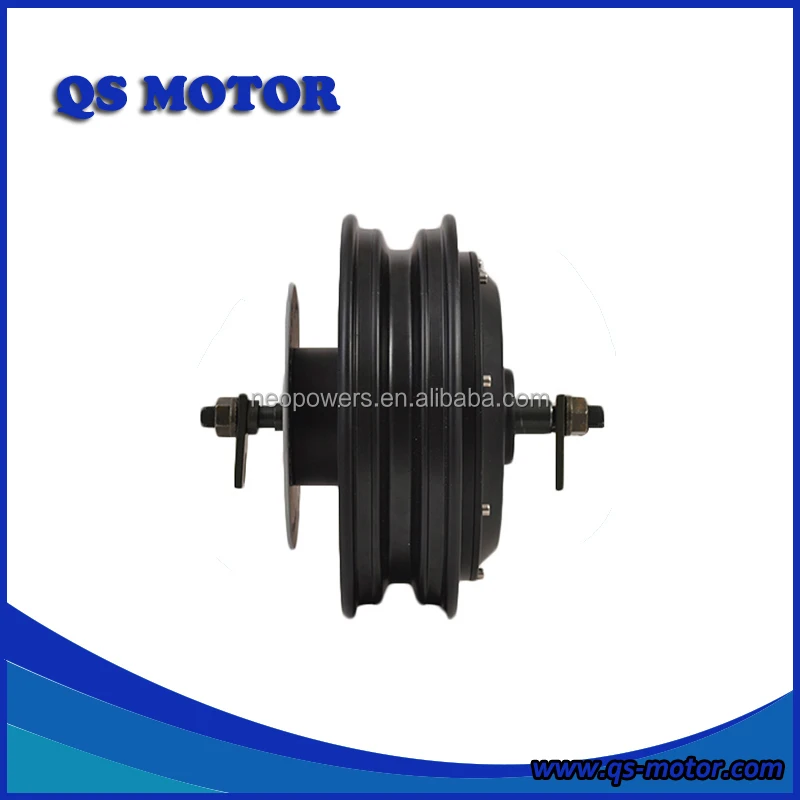

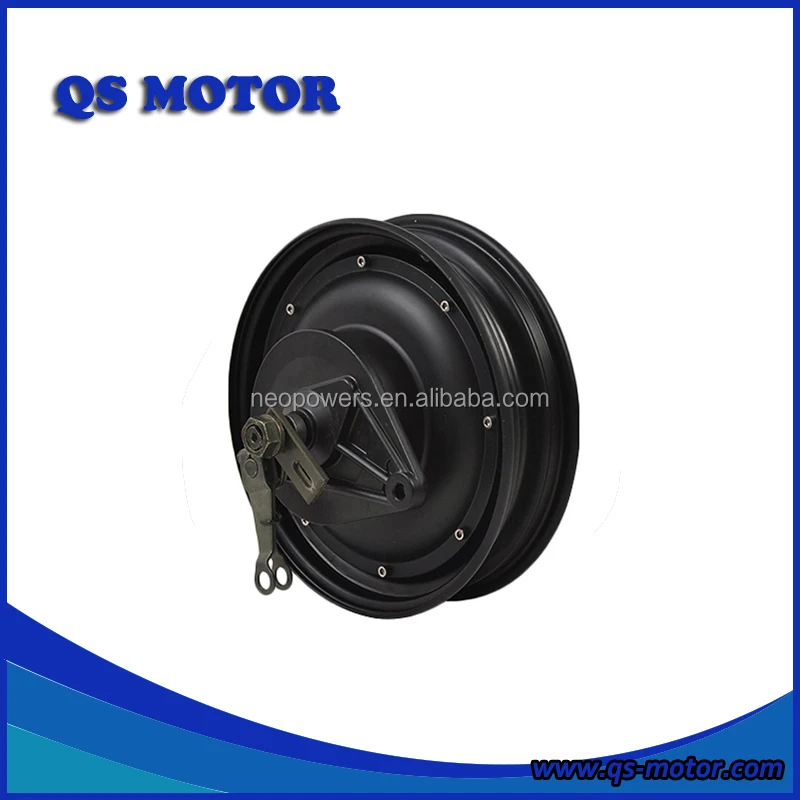

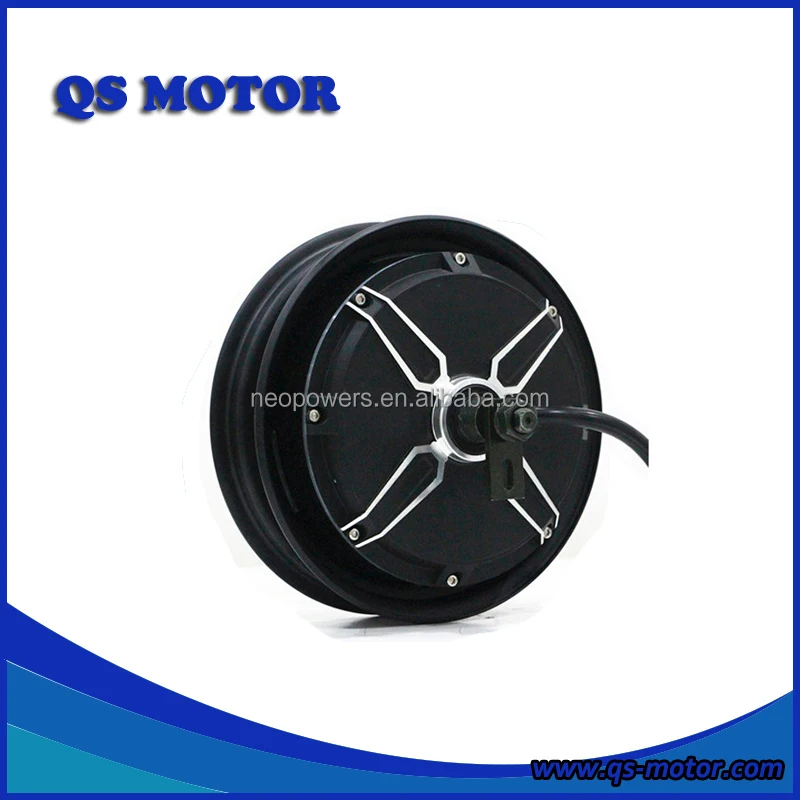

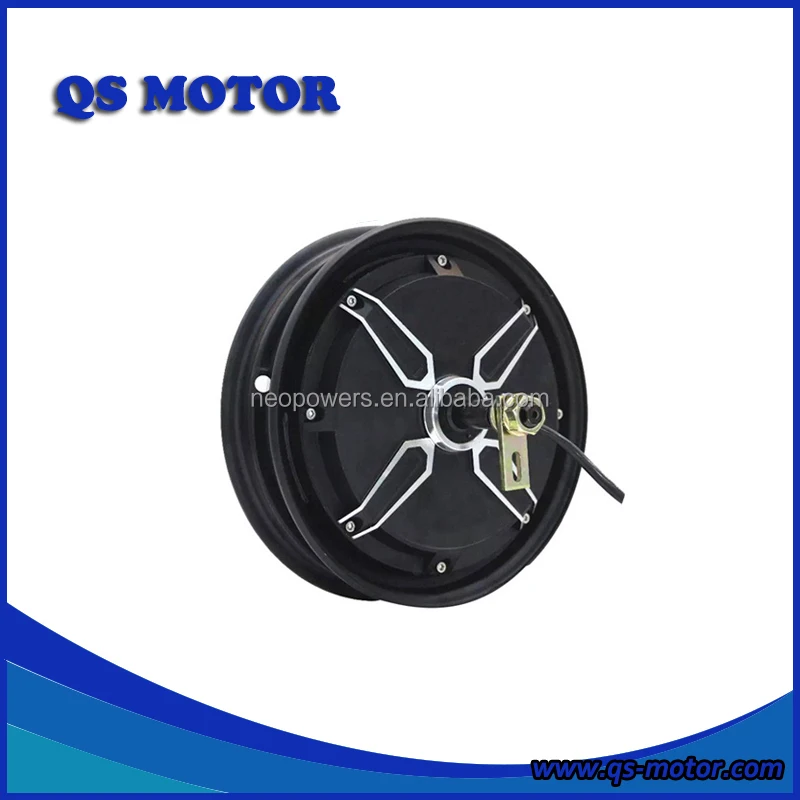

QS Motor 10 inch 3000W 72V(48 96V Can be optional) Electric Scooter In Wheel Hub Motor (50H) V2 Type, Brushless DC Motor

Product Overview

Description









10inch E-Scooter In-Wheel Hub Motor(50H) 3000W V2 Type





10inch 3000W Hub Motor specially designed for powerful electric scooters, drum brake or disc brake type can be optional, speed can be customized from 30-75KMPH.









1.      Motor Type: BLDC Hub Motor with Permanent Magnets

2.      Motor design: Double axle out with 10inch rim

3.      Rim size:2.15-10

4.      Matching Tire: 3.0-10, 3.5-10

5.      Magnet Height: 50MM

6.      No. of Pole Pairs: 23 pairs

7.      Rated Power: 3000W V2

8.      Peak Power: 5000W

9.      Rated Voltage: 72V( 48-96V Can be optional)

10.  Speed: 70km/h (30-75km/h can be customized)

11.  Max No-load RPM: 950RPM

12.  Max Torque: 170N.M

13.  Max Efficiency: 88%

14.  Continious current:45A

15.  Max current:80A (Peak 100A in short time)

16.  Brake type: Disc brake or Drum brake(Optional)

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 10 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black or Silver

25.  N.W./ G..W. : 14kgs / 15kgs



26.  Package Size: 34*34*33CM
