Test spray particle size distribution winner319B spray particle size analyzer
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (60613523512):
Product Overview
Description
Product Description

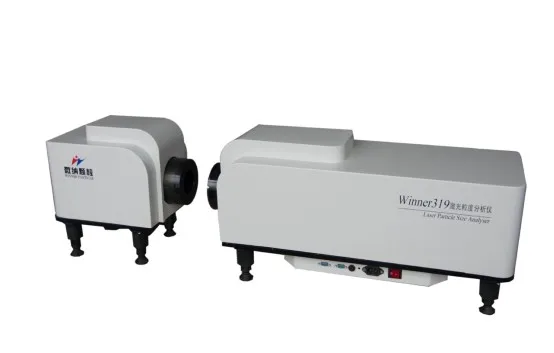

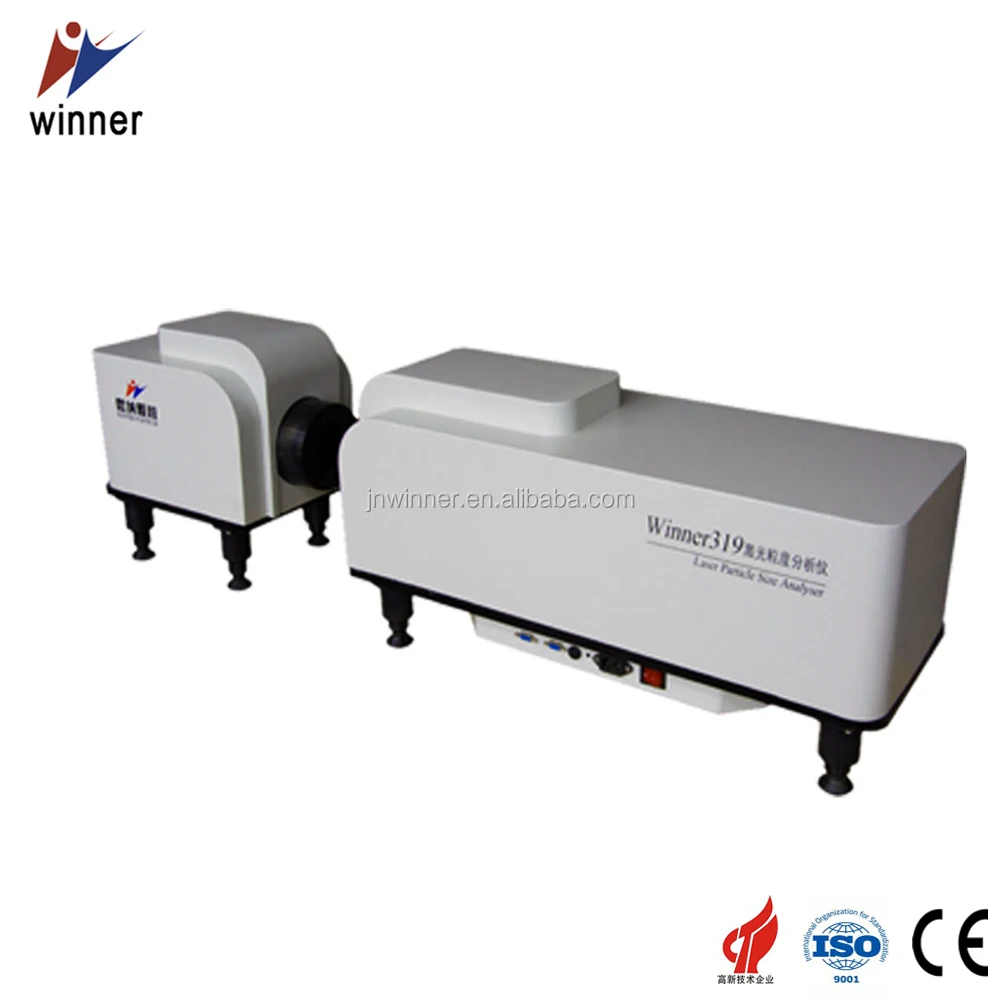

Winner319B Laser Diffraction Spray Particle Size Analyzer
This particle size analyzer with the national standard GBW (E) 1200000 calibration can compare test data with foreign similar products, whose technical content and stability is the best of similar products in China. The series of Laser spray particle size analyzer since it has been widely used in aerosols, physical and chemical nozzles and atomizers, fire, dust, pesticides, and many other areas of research and testing, it delivers accurate, reproducible spray particle size analysis in an easy to understand report, highly improve product understanding and control.
Winner319 is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test. This instrument adopts Fraunhofer of scalar diffraction principle and parallel light path design with high-performance and high-power laser, which can meet the requirements of droplet test. And the test range can be adjusted according to the customers’ requirement.
Production Features and Advantages:
Exclusive patent technology | It adopts representative Parallel optical testing technology and Spectrum amplification technique and realizes the wide range expansion in limited space. Besides, it adds several Auxiliary integration photoelectric detector, which can effectively collect scattering light from every angle in the testing range, realizing the testing accuracy and reliability in the whole range. |
Unique Airflow Protection Device | It has airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process. |
Split-Type Structure Design | Split-Type structure and adjustable test area can meet the needs of the spray test in any conditions and It has many specialties, such as non-contact measurements, non-interfering etc. |
Stable automatic optical path alignment system | Remove adjusted difficulty caused by the light path movement, the light path alignment system can be corrected by a key |
Multiple size distribution model | Free choice standard model, RR distribution and Lognormal distribution. Can convert the volume distribution and individual number distribution freely. |
Technical Parameters:
Models | Winner319A | Winner319B | Winner319C | |
Executive Standard | ISO13320-1:1999,GB/T19077.1-2008,Q/0100JWN001-2013 | |||
Instrument Structure | Split-Type | |||
Testing Range | 1-500μm | 1-1000μm | 1-2000μm | |
Number of Channels | 50 | 51 | 58 | |
Accuracy | <1% (National Standard Sample D50) | |||
Repeatability | <1% (National Standard Sample D50) | |||
Laser |
LD Pump Laser;λ=532nm, p>40mw
| |||
Sampling Mode | Open Style | |||
Testing Area Length | 0.1-10m | |||
Lens Protection | Double gas episodic | |||
Outer Dimension | Launch port: L369*W295*H360mm Receive port:L858*W295*H360mm | |||
Weight | 68KG | |||

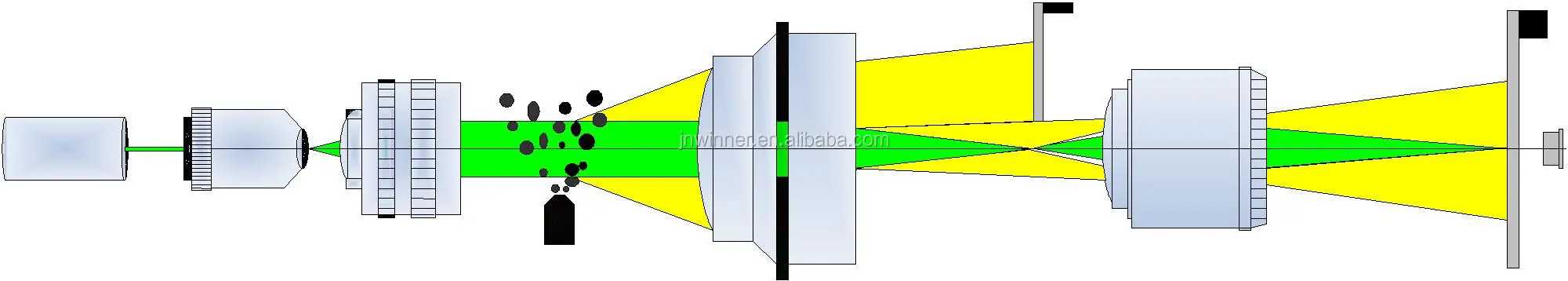

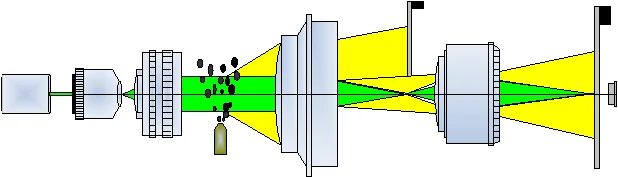

Figure-Winner319 spray/droplet particle size analyzer test scheme
Our Services
Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system,
2. Strict control from purchasing materials, process inspection to final test,
3. QC department to execute quality control regulations,
4.Only qualified components will be assembled and total equipment must be inspected completely before sale.
5, Machine will be processed preventing -shake test before delivery.
After sale service
1. We will send our technician to install instruments.( operation demo video CD will be offered also.)
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
Certifications
Company Information
Winner Particle Instrument Stock Co.,Ltd. have been specialized in laser particle size analyzer since 1985, as the leading manufacturer in China, winner undertake the national science and technology project for many times, get more than 30 patents technology, Strongly recommended by 500 Universities in China!
1st Circulation test wet particle size analyzer
1st Dry particle size analyzer
1st Dynamic particle image instrument
1st Nano particle size analyzer
1st Image laser particle size analyzer
1st Inline particle size analyzer
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
FAQ
Purchase laser particle size analyzer need know points:
1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also.
Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.
For dry dispersion model, just use compressed air as dispersion media.
In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
