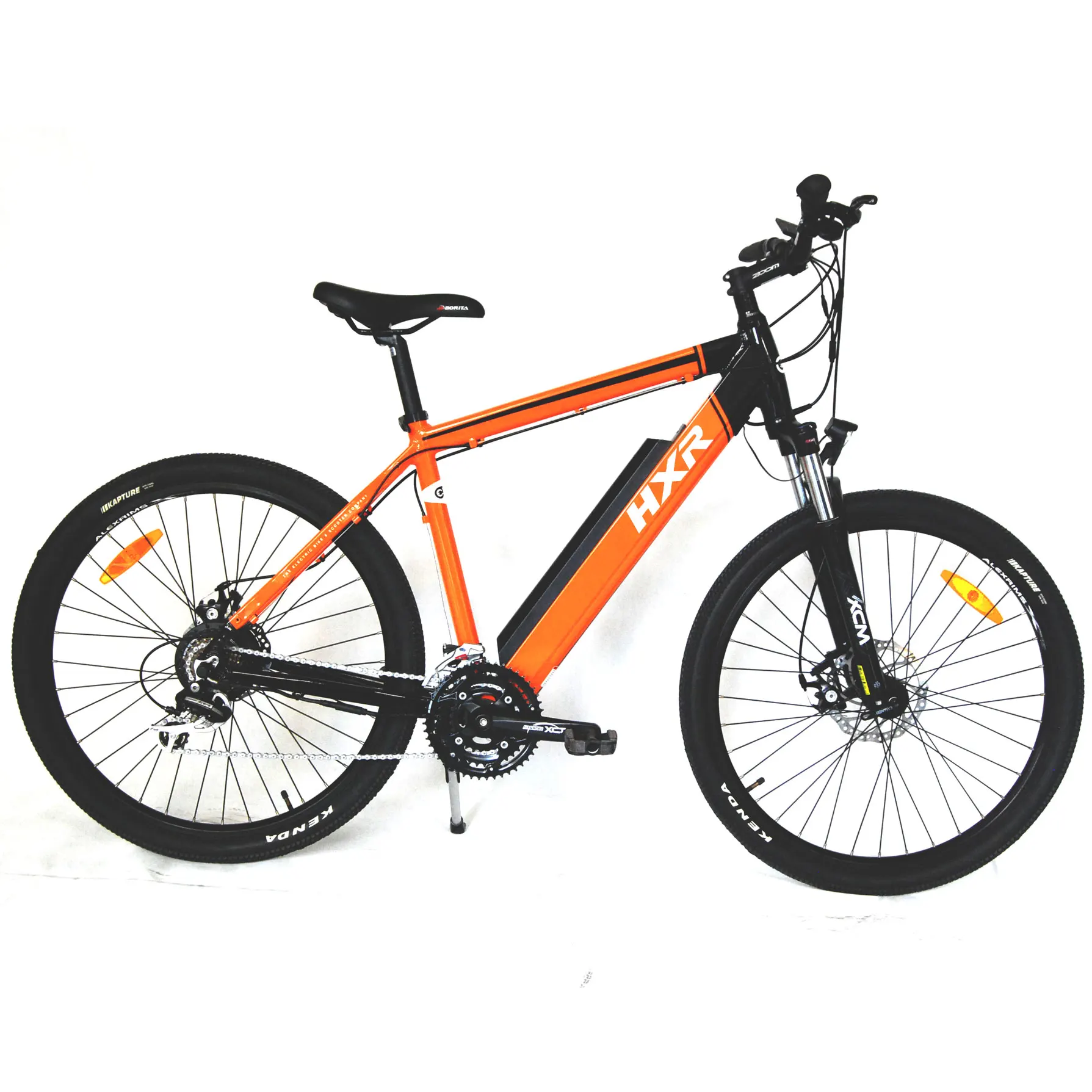

27.5 inch kenda tyres pedal assist electric bike

Product Overview

Description

27.5 inch kenda tyres pedal assist throttle electric bike

 what is the specialty?how about the warranty?

 Warrant Warranty Period



1.36 months for the Frame.
2.24 months for the electric motor.
3.12 months for the Li-ion battery.
4.12 months for the controller.
5.12 months for the charger .

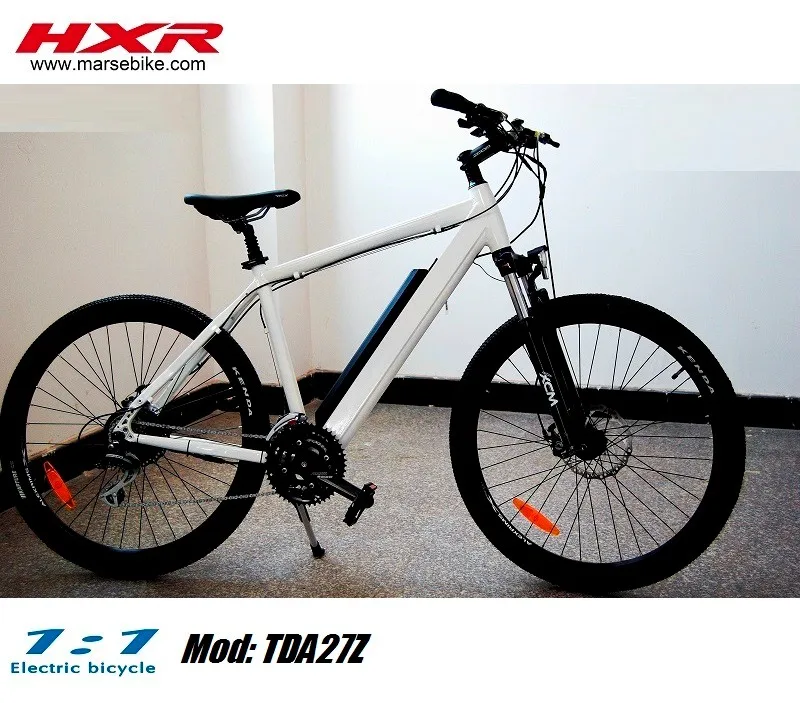

MODEL:TDA27Z

Electric System



1)250W Brushless (8FUN)

2)Battery:SANYO,Li-Poly (NMC)

3)charger:AC110V--240V,47-63Hz (ST)

4)PAS:1:1 Intelligent pedal assistant system 6-level option (neutral gear,1,2,3,4,5)

5)Controller:Intelligent controller (LSW)

6)DISPLAY:APT LCD,800S,5 assistant model

7)Front Light/rear light:LED Light(spanninga)



Performance & Paking





8)Max speed:25km/h-32km/h



9)Driving distance:45-70KM



10)Charging time&life:6-8 hours,>500 times



11)Max loading:95kg-125kg



12)G.W./N.W.:29/23Kg



13)Product size:1765×650×1105mm



14)Packing size:1500×270×780mm



Main Cable System



Main Components



15)frame:6061 Aluminum alloy (PSJ)

16)front fork:Al alloy Suspension (RST)

17)rim:Al alloy double wall

18)tyre:KENDA 27.5"×1.95

19)spokes:Steel spokes

20)handlebar:Al alloy,TDS(ZOOM)

21)stem:Al alloy,MTB(ZOOM)

22)Derailleur:SHIMANO M310-7 speed

23)Rear derailleur:SHIMANO M360

24)Brake level:Al alloy (TEKTRO)

25)F/R brake:D-brake,TEKTRO

26)Grip:VELO

27)Throttle:Optional

28)sadddle:WD

29)Seat post:Al alloy (KSP)

30)Crank Set:SR-3R

31)chain:Rust resistant chain,Z51RB,KMC

32)Pedal:VP 896

33)Freewheel:SHIMANO,7R

34)Mudguard:Optional

35)rear rack:Optional
