PE Stub Flanges lap joint flange stub ends

Product Overview

Description

Specifications

Australian, South African ,USA, ISO standard flange adapotors and short stub end up to 1600mm

Smart Joint develops full lines of PE flange stub from 40mm to 1600mm with SDR11,SDR17,SDR21 and SDR26.

Australia short stub end, South African short stub end, Thailand short stub end, all up to 1600,ASTM(USA) in both IPS

and DIPS up to 36'' in SDR9,SDR11,SDR17.



PE flange stub is used for PE pipe jointing, with god sealing performance,easy construction, PE flange stub can protect

the flanges well. It's widely adopted in water pipe, minning area, in particular suitable for negative pressure coal mine pipe

connection.



Invesment of unique equipment for flange stub production enhances the working efficiency and slove the bubble problem

during the injection.

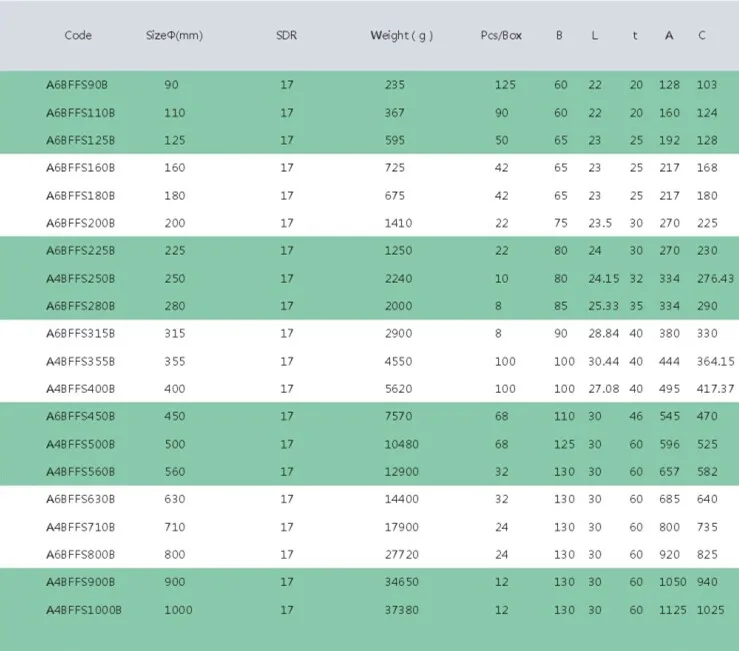

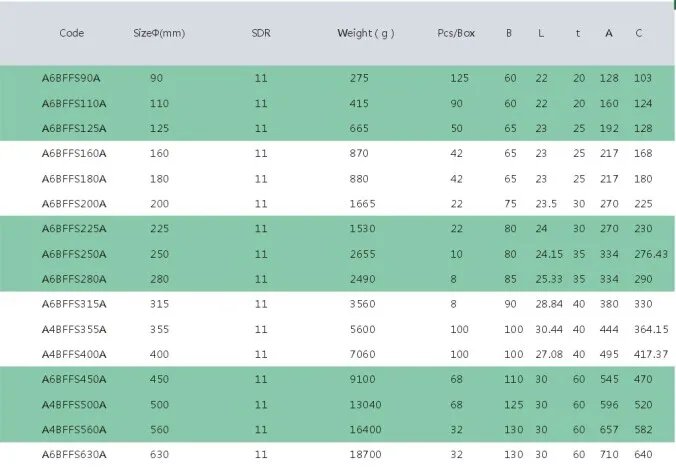

<img src="//sc01.alicdn.com/kf/HTB1NfObFVXXXXbhXpXXq6xXFXXXQ/200402519/HTB1NfObFVXXXXbhXpXXq6xXFXXXQ.jpg" alt="Australian Stub End" ori-width="739" ori-height="651"><img src="//sc01.alicdn.com/kf/HTB19eJ9FVXXXXcLXFXXq6xXFXXXK/200402519/HTB19eJ9FVXXXXcLXFXXq6xXFXXXK.jpg" alt="Australian Stub End" ori-width="676" ori-height="469">
