Cable TV 4 Outputs Outdoor Optical Receiver / Best Price CATV Equipment
Product Description
OR719 optical receiver is an outdoor 2 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence. OR719 AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.

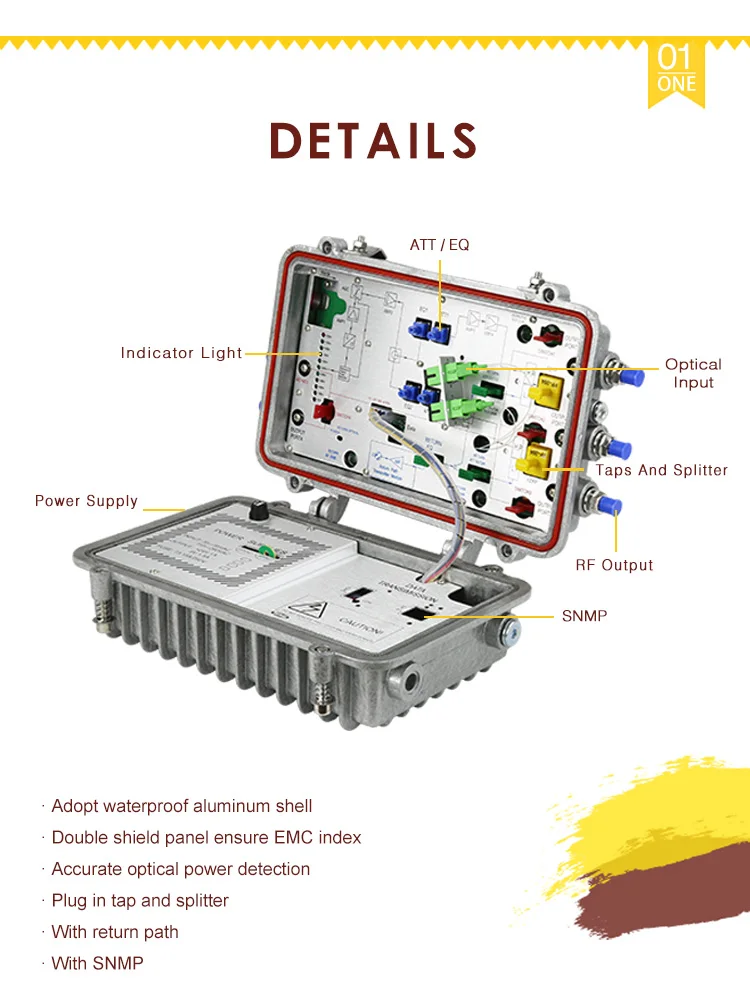

Detailed Image

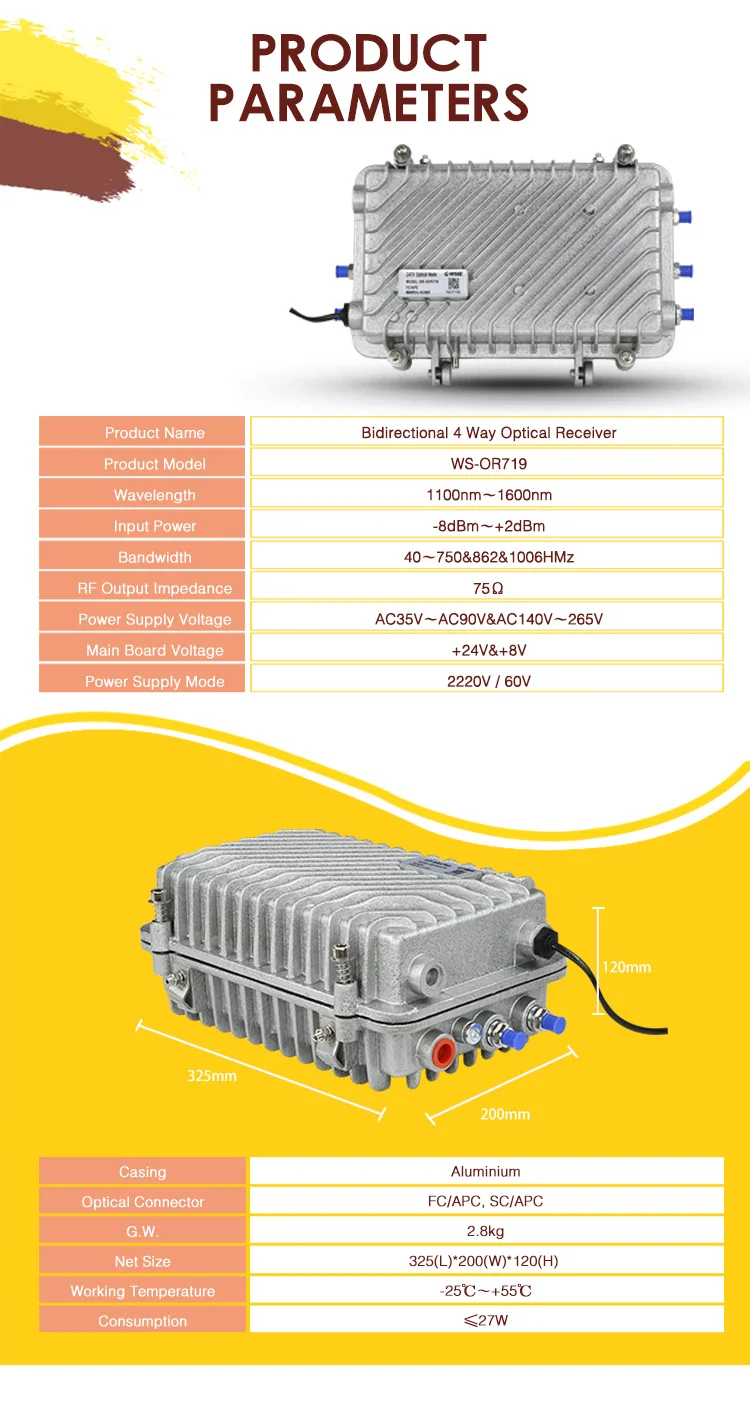

Technical Parameter
Technical Data | OR719 |
Wave Length | 1100~1600nm |
Optical input power | -8dBm~+2 dBm |
Optical AGC range | -8dBm~+2 dBm |
Optical Return Loss | >45dB |
Optical Connector | FC/APC&SC/APC |
Bandwidth | 40~750&862&1006MHz |
Flatness | ±0.75dB@40~750 MHz ±1dB@40~862&1006 MHz |
RF return loss | ≥16dB@40~550MHz ≥14dB@550~750@862&1006MHz |
ATT adjustable range | 0-30dB |
EQ adjustable range | 0-18dB |
RF Impedance | 75Ω |
C/N (Note3) | ≥51dB |
CTB(Note 3) | ≥65dB |
CSO(Note 3) | ≥62dB |
Return Path Wavelength | 1310nm&1550nm |
Return Path Bandwidth | 5-30MHz & 42MHz & 65MHz(max:200MHz) |
Return Path Output Power | 1&2MW@1310nm| or customized |
Return Path Flatness | ±0.75dB |
Power supply | AC35-AC90V & AC140V-265V or customized |
Main board voltage | +24V,+8V |
Working Tem. | -25℃~+55℃ |
Consumption | ≤27w |
Power supply way | 220V@ Chinese outlet with 1m power cord 60V@G283 independent power supply port |
Net Size | 325X200X120mm |
Weight with inner box | 3.4kgs(N.W.2.8kgs) |
Whole carton weight | 29kgs(8pcs) |
Packaging & Shipping
Company Information
Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. We are located in Zibo City, Shandong Province, with convenient transportation access. Our company has become one of the biggest enterprises in the field of CATV equipment in China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC and FTTX network equipment, including EDFA, 1550nm/1310nm optical transmitters, optical receivers, FTTH optical node, CATV amplifiers, hybrid modules, power supplies and passive devices.
We have over 70 employees, an annual sales figure that exceeds USD3,300,000 and are currently exporting 60% of our production worldwide.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc.
Shandong Wanshuo Optoelectronic Equipment Co., Ltd always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing I S O 9 0 0 1, CE certifications.
Our Services
This device warranty is 12 months. If the problem is caused by the user's wrong operation or natural force majure, we will only be responsible for the maintenance and charge the appropriate material cost.
When the device has problem, please contact us immediately. On-site maintenance of faulty device should be operated by professional technician to avoid causing more damage to the equipment.
Note: For users who disassemble and repair equipment wihtout our authorization, our company will not offer free warranty. Reasonable maintenance and materials costs will be collected.
